Husqvarna GTH26K54 Manual de usuario

GTH26K54

Owner's Manual / 96043003101

03002

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

S TATO R

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

16 AMP DC @ 36 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

02929-194276_Regulated-Tex

IGNITION SWITCH

CIRCUITPOSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

02929

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

RED RED

RED

WHITE

GRAY

BLACK

POWER OUTLET

(IF SO EQUIPPED)

12V

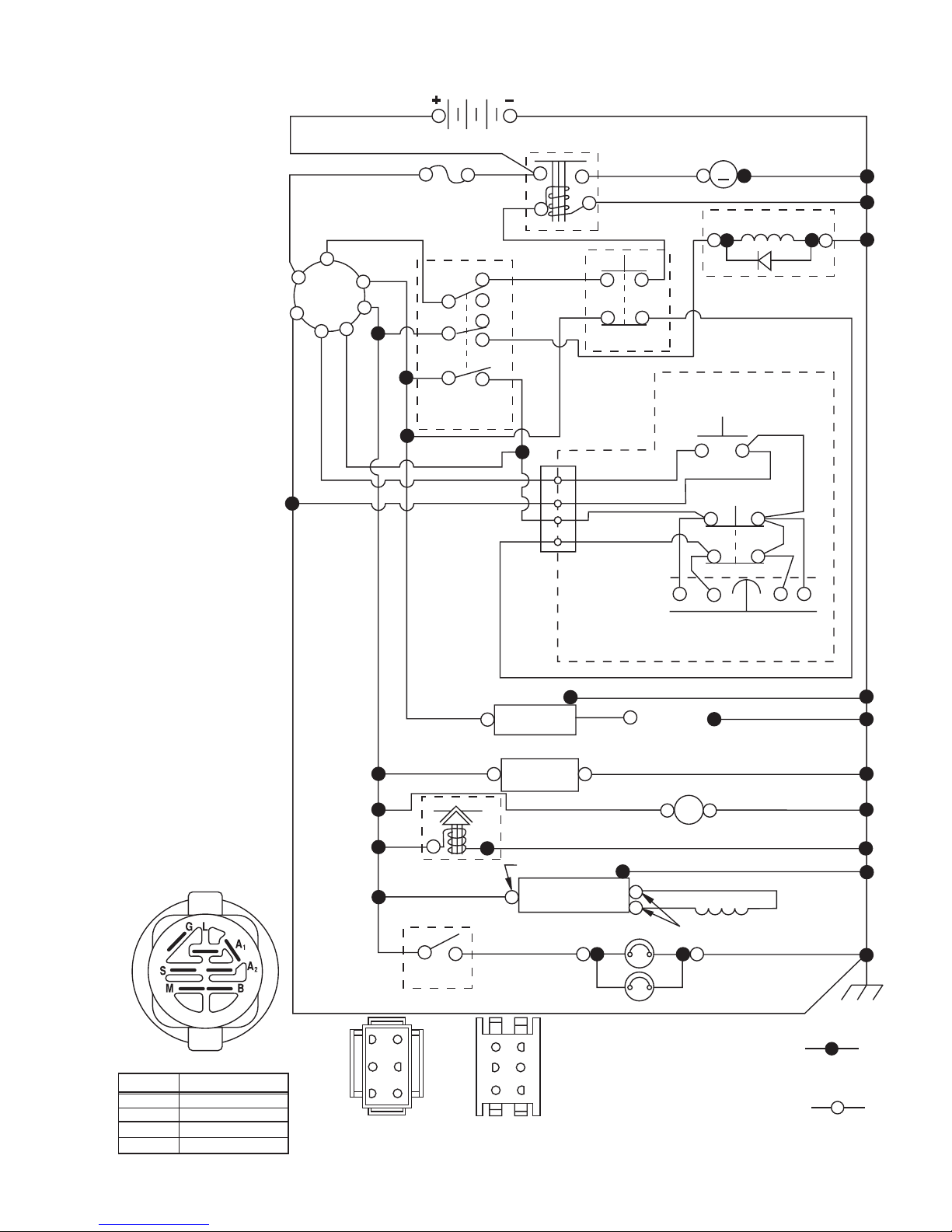

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

SCHEMATIC

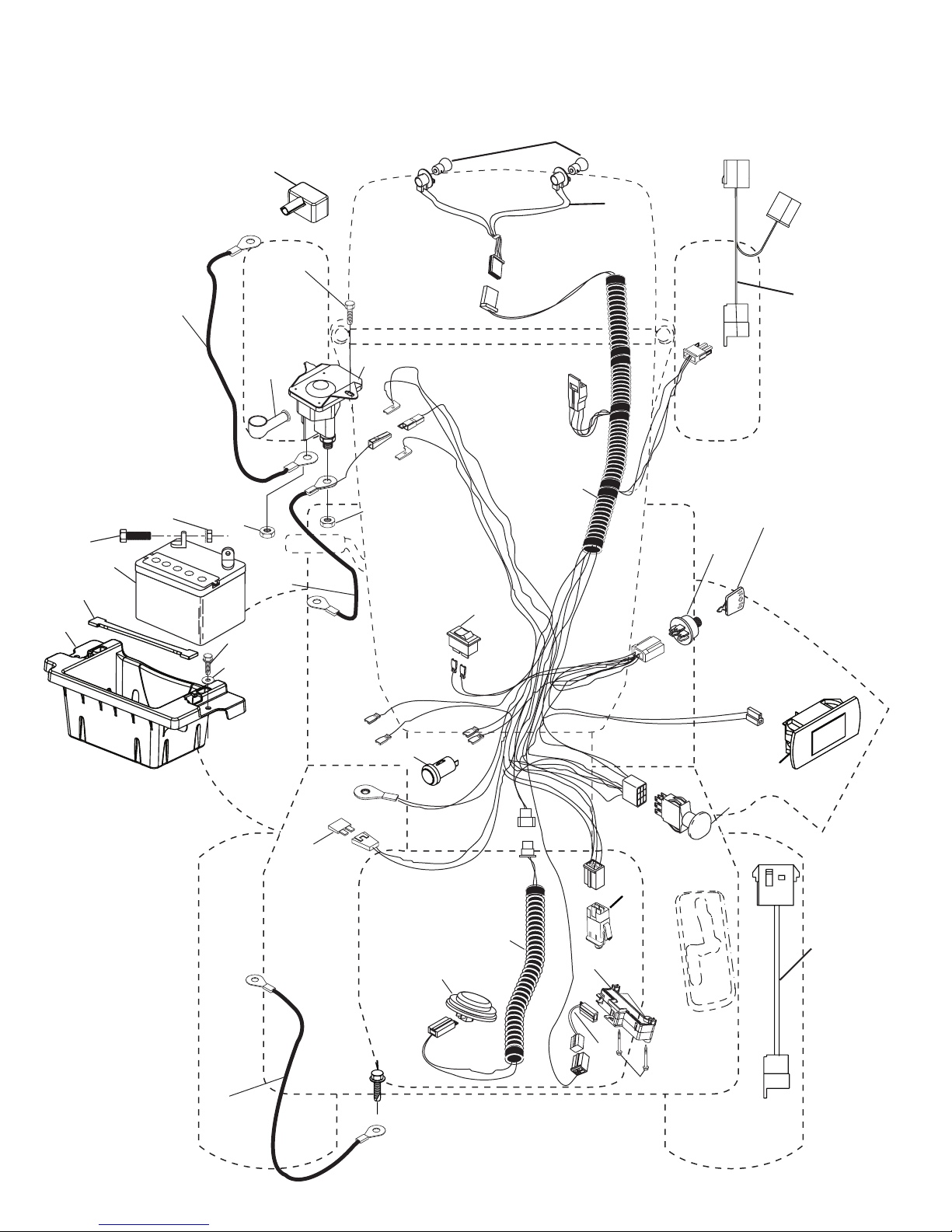

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

ELECTRICAL





















 











 



4646

103

101

Battery _28

100

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 14 49-27 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 18 64-91 Battery Box

16 532 17 61-38 Switch Interlock

21 532 18 37-59 Harness Socket Light

22 532 00 41-52 Bulb, Light # 1156

24 532 40 02-53 Cable Battery

25 532 19 88-93 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable Ground 21" Blk 6 Ga.

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ign

33 532 14 04-01 Key Ign Molded Generic

34 532 11 07-12 Switch Light/Reset

40 532 40 11-04 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge Hourmeter

50 532 17 46-51 Switch PTO

55 817 49 05-12 Screw Thdrol 5/16-18 x 3/4

59 532 40 03-03 Outlet 12-Volt

71 532 19 42-76 Harness Ign

90 532 40 07-24 Cover Terminal Battery

91 532 19 02-70 Strap Battery

92 532 19 66-15 Harness Pigtail

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

101 532 19 83-17 Pigtail MATNLK Harness

103 532 40 79-62 Harness Pigtail 12V outlet

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

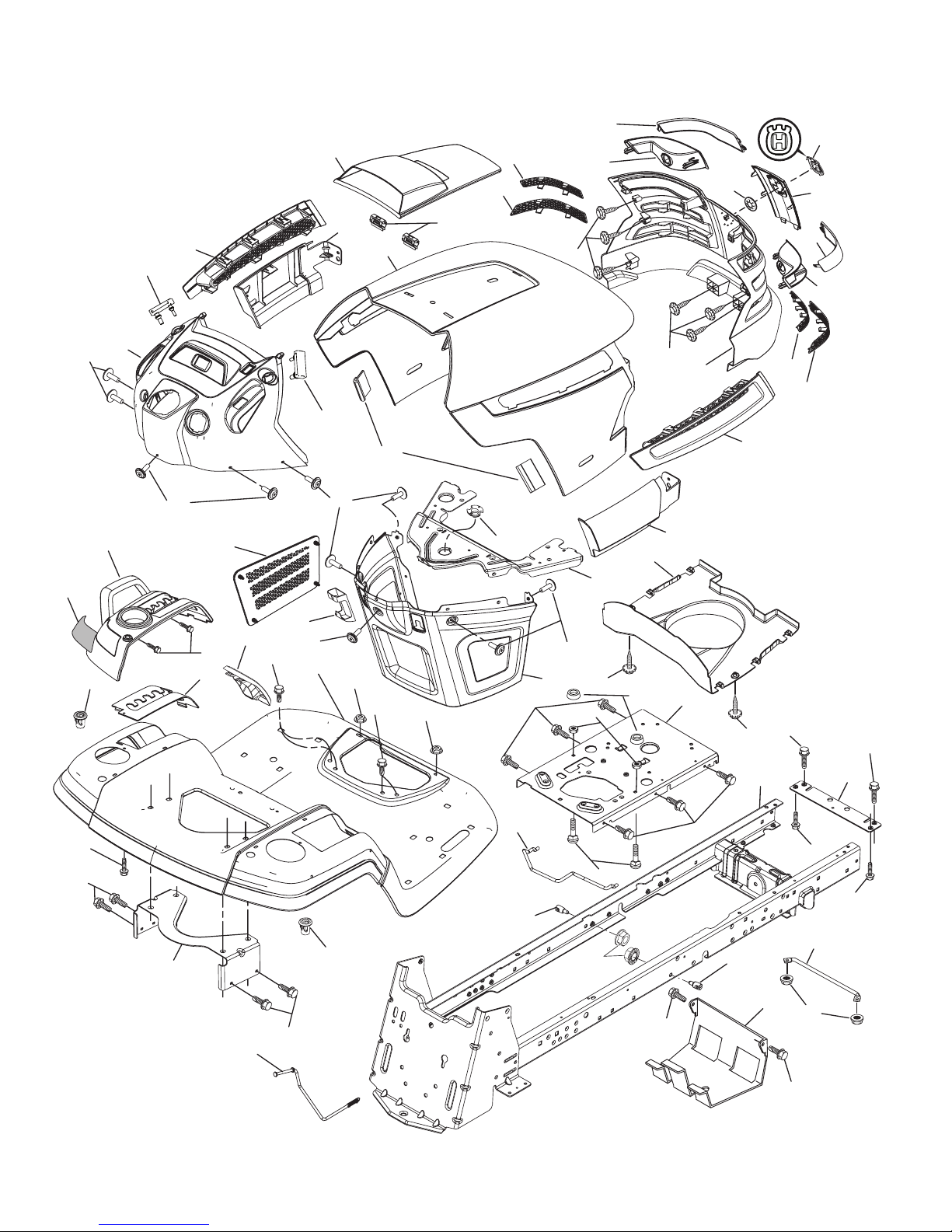

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

CHASSIS

194

181

182

176 176

175

178

195

165

228

194

150

180

130

161

199

162

177

196

221

162

189

chassis-tex_62-gt-husq

239 238

189

152

176

137

176

214

130

202

203

204 210

207

211

209

212

205

206

208

234

217

213

218

183

236

235

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

CHASSIS

KEY PART

NO. NO. DESCRIPTION

3 532 40 50-12 Logo

5 532 40 87-01 Dash

14 532 41 10-46 Hood

15 532 19 89-07 Lens LH

18 532 40 48-21 Grille

25 532 19 89-06 Lens RH

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 40 18-25 Fender

52 873 68 05-00 Nut Crown Lock 5/16-18

58 532 19 43-14 Bracket Fender

68 817 49 05-08 Screw 5/16-18 x 1/2

99 532 19 72-73 Rod Bypass Asm.

130 532 19 16-11 Screw 10 x 3/4 Single Lead Hex

137 532 40 75-90 Bumper Dash

150 532 19 85-12 Duct Heat Hood

152 532 19 95-35 Shield Browning/Debris

161 532 40 17-70 Console Fuel Window

162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2

165 532 19 68-26 Bracket Support Tank

175 532 19 63-04 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx

177 532 19 52-27 Bushing Steering

178 532 19 97-82 Cargo Asm. Net

180 532 19 54-77 Chassis

181 532 40 30-25 Bushing Mtg. Fender Crgo.

182 532 19 47-87 Dash Lower

184 532 40 61-29 Spacer Fender

185 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

195 532 40 35-71 Plug Cruise/Phone

196 532 40 02-99 Console Asm. Deck Lift

199 532 19 82-59 Plate Deck Lift

202 532 40 30-48 Vent Side Hood RH

203 532 40 30-76 Vent Side Hood LH

204 532 19 89-04 Vent Asm Hood Top

205 532 40 17-09 Skirt Hood Side RH

206 532 40 17-11 Skirt Hood Side LH

207 532 19 71-98 Bezel RH

208 532 19 71-99 Bezel LH

209 532 19 91-30 Insert Hex Top RH

210 532 19 91-31 Insert Hex Top LH

211 532 19 91-32 Insert Hex Bottom RH

212 532 19 91-33 Insert Hex Bottom LH

213 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4

214 532 19 91-45 Clip Retainer

217 532 15 65-24 Rod Pivot

218 532 19 63-95 Hood Stop

221 532 19 89-09 Reflector LH

228 532 19 51-61 Stud Fastener

234 532 40 47-42 Bumper Hood

236 873 93 05-00 Nut Center Lock 5/16-18 UNC

238 532 40 86-06 Trim

239 532 11 04-52 Nut Push

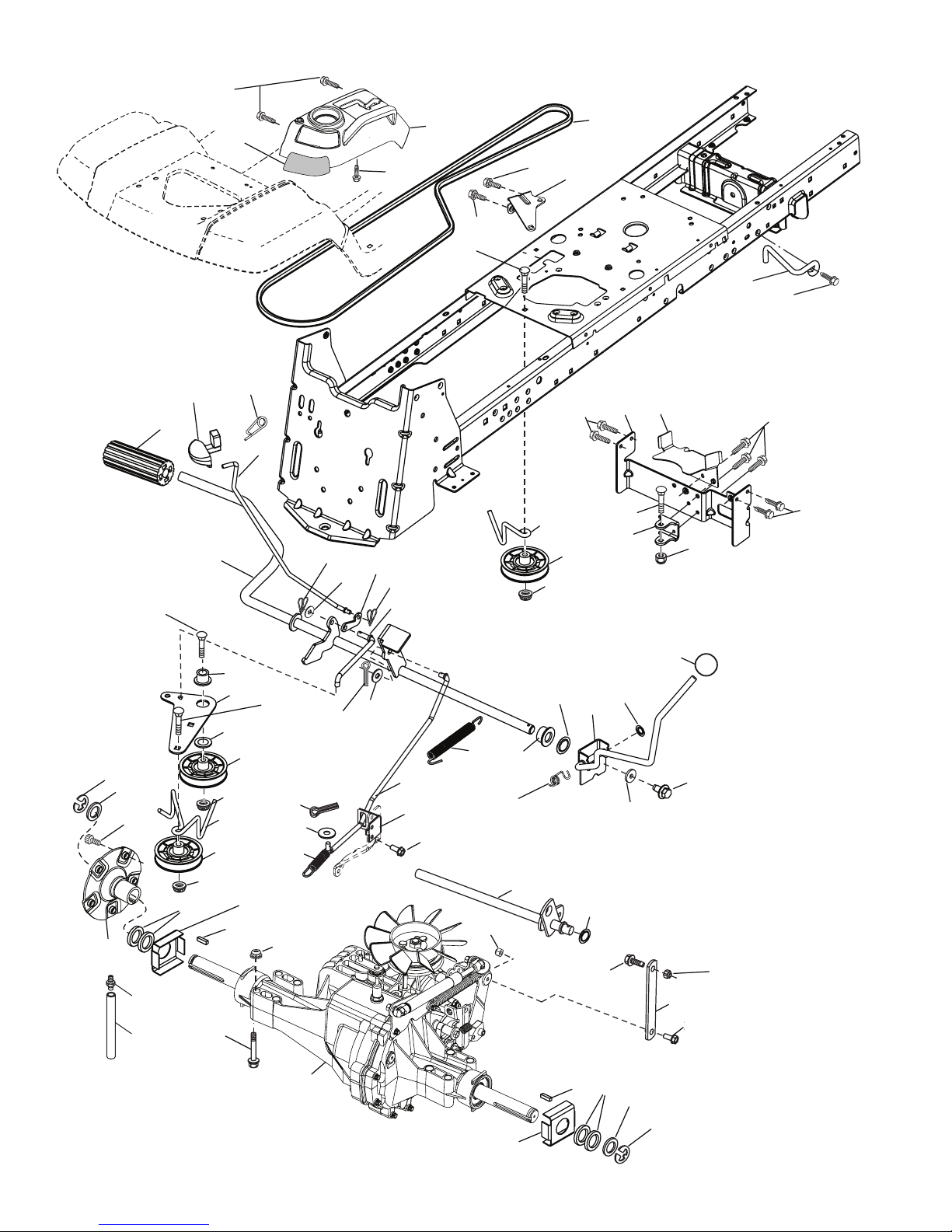

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

DRIVE

186

189

187

190

125

211

166 174

185 188

161

184 221

167

160

203

216

143

121

122

114

125

142 158

126

233

195

159

171

197

196

170

220

178

175

116

drive-tex_32-HG_3000

201

200

166

116

3145

145

107

106

281

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

DRIVE

KEY PART

NO. NO. DESCRIPTION

1 - - - - - - Transaxle, Hydro 344-3000

(Order Parts from Transaxle

Manufacturer)

2 532 18 62-11 Key 1/4 x 2.5

3 532 00 75-63 Washer

7 532 19 98-37 Hub Asm. Wheel

9 532 14 00-80 Bolt Hub Wheel

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 19 72-96 Spring, Brake

22 532 40 05-04 Shifter Rod

23 532 14 08-45 Knob

29 532 19 72-69 Rod, Brake

33 812 00 00-53 Ring E

35 532 19 95-91 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 16 58-13 V-Belt, Drive

64 532 19 62-00 Shaft Asm. Pedal Brake Control

69 532 12 38-00 Washer 11/32 x 1-5/8 x 16 Ga.

70 532 40 02-98 Control Asm.

73 874 49 05-48 Bolt Hex Flghd 5/16-18 x 3.00

74 532 14 24-32 Screw 1/4 x 1/2

93 532 19 62-13 Link Shift

106 532 14 29-17 Cap Asm. Vent

107 532 41 04-81 Tube Vent

114 873 80 05-00 Nut Lock Hex w/Insert 5/16-18 unc

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

121 532 17 56-11 Bracket Strap Torque

122 872 01 05-20 Bolt 5/16 - 18 x 2.50

125 817 00 05-12 Screw 5/16-18 x 3/4

126 874 78 07-16 Bolt Fin Hex 7/16 - 14 x 1 GR5

142 532 40 44-83 Strap Torque

143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

145 532 16 31-68 Washer Axle flange

158 532 19 43-51 Keeper Belt

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 19 54-03 Spring, Return, Clutch

166 532 19 72-90 Nut Push .625

167 532 40 52-57 Latch Brake Parking

170 532 19 43-22 Keeper Belt Centerspan

171 872 11 06-16 Bolt

174 532 19 72-89 Nut Push

175 532 19 62-04 Shaft Asm Shift

178 532 19 74-56 Spring Shift

184 532 40 31-18 Handle Parking Brake

185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Dr.

195 532 40 51-13 Bracket Rod Brake

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 97-69 Bracket Clutch Anti-Rotation

200 873 93 05-00 Nut Center Lock 5/16-18

201 532 16 96-12 Bolt Shoulder 5/16-18 unc

203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

211 532 19 62-12 Bushing

216 532 19 61-31 Bracket Pulley Idler

220 532 19 89-08 Reflector RH

221 532 40 31-87 Retainer Spring Clip Handle

233 532 40 52-96 Washer Serrated

281 532 41 15-54 Bolt Shoulder

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

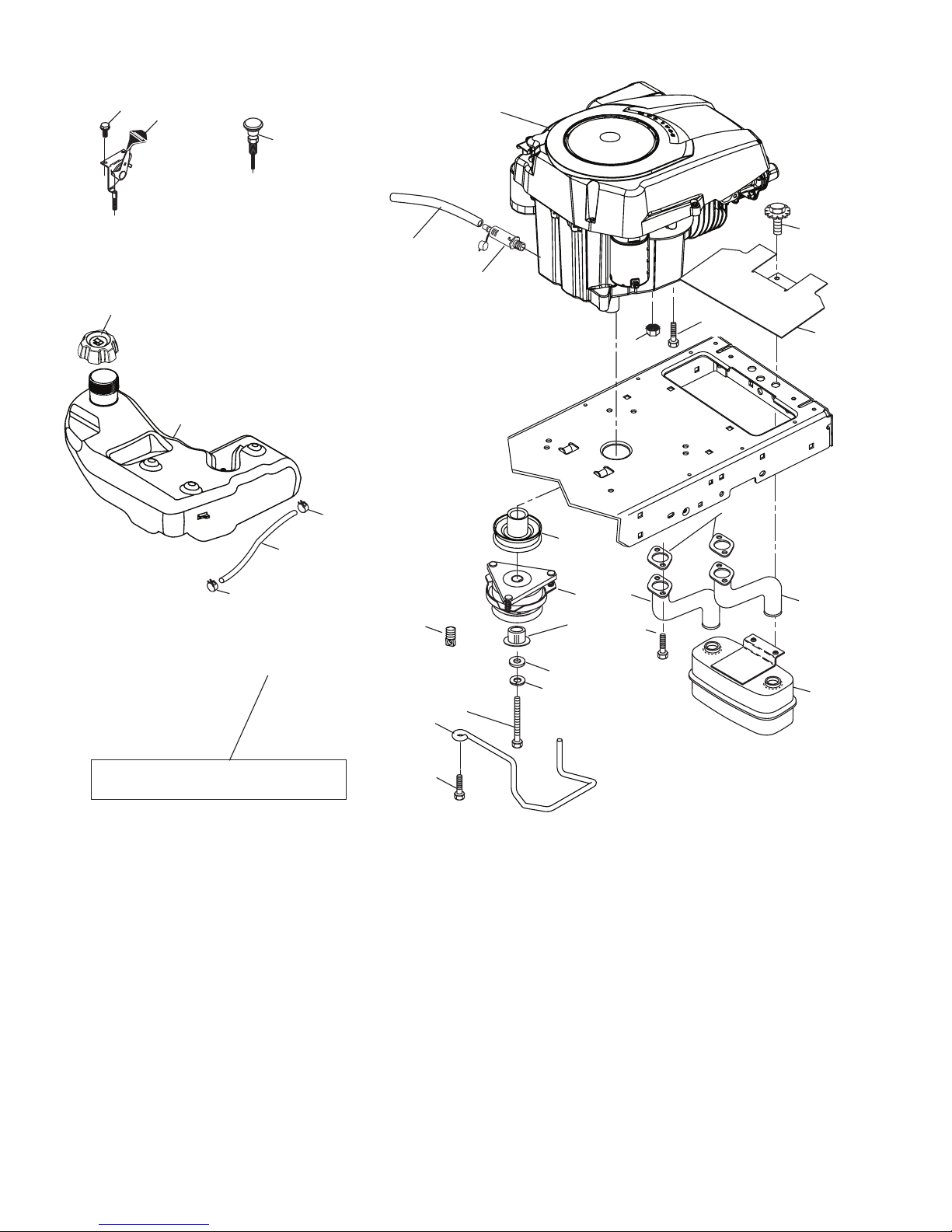

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

ENGINE

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

For engine service and replacement parts, call the toll free

number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723

Kohler Co. 1-800-544-2444

Tecumseh Products 1-800-558-5402

Honda Engines 1-800-426-7701

Kawasaki 1-949-460-5688

1 - - - - - - - - - Engine Kohl Model No. SV735

2 532 14 97-23 Muffler

9 532 19 43-20 Keeper Belt Engine

11 532 17 93-35 Clutch Electric

12 532 19 43-43 Pulley Engine

15 532 19 34-99 Tank Fuel 4.0

18 532 19 42-67 Cap Asm

20 532 18 29-37 Control Throttle

21 532 19 16-11 Screw 10 x 3/4 Single Lead Hex

22 532 19 15-96 Control Choke

28 532 40 11-35 Fuel Line

29 532 13 71-80 Spark Arrester Kit

31 532 14 50-06 Clip Push-In

37 532 12 34-87 Clamp Hose

41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250

42 810 04 07-00 Washer Lock 7/16

45 873 51 04-00 Nut Keps Hex 1/4-20 unc

62 532 14 66-29 Shield Heat Muffler

69 532 18 68-54 Gasket

70 532 14 66-99 Tube Exhaust LH

KEY PART

NO. NO. DESCRIPTION

71 532 14 67-00 Tube Exhaust RH

79 532 19 23-34 Screw Socket HD 5/16 - 18 x .75

81 532 14 84-56 Tube Drain Oil Easy

82 532 18 16-54 Plug Drain Oil

84 817 12 06-16 Screw 3/8-16 x 1

85 532 17 99-53 Bolt Hex 7/16-20 x 3.75 Gr. 5

87 532 19 82-39 Bolt 5/16-18 unc x 1 w/Sems

90 817 00 06-16 Screw 3/8-16 x 1

91 532 18 74-95 Bushing

SPARK ARRESTER KIT

21 20

engine-tex_31-kohl

31 91

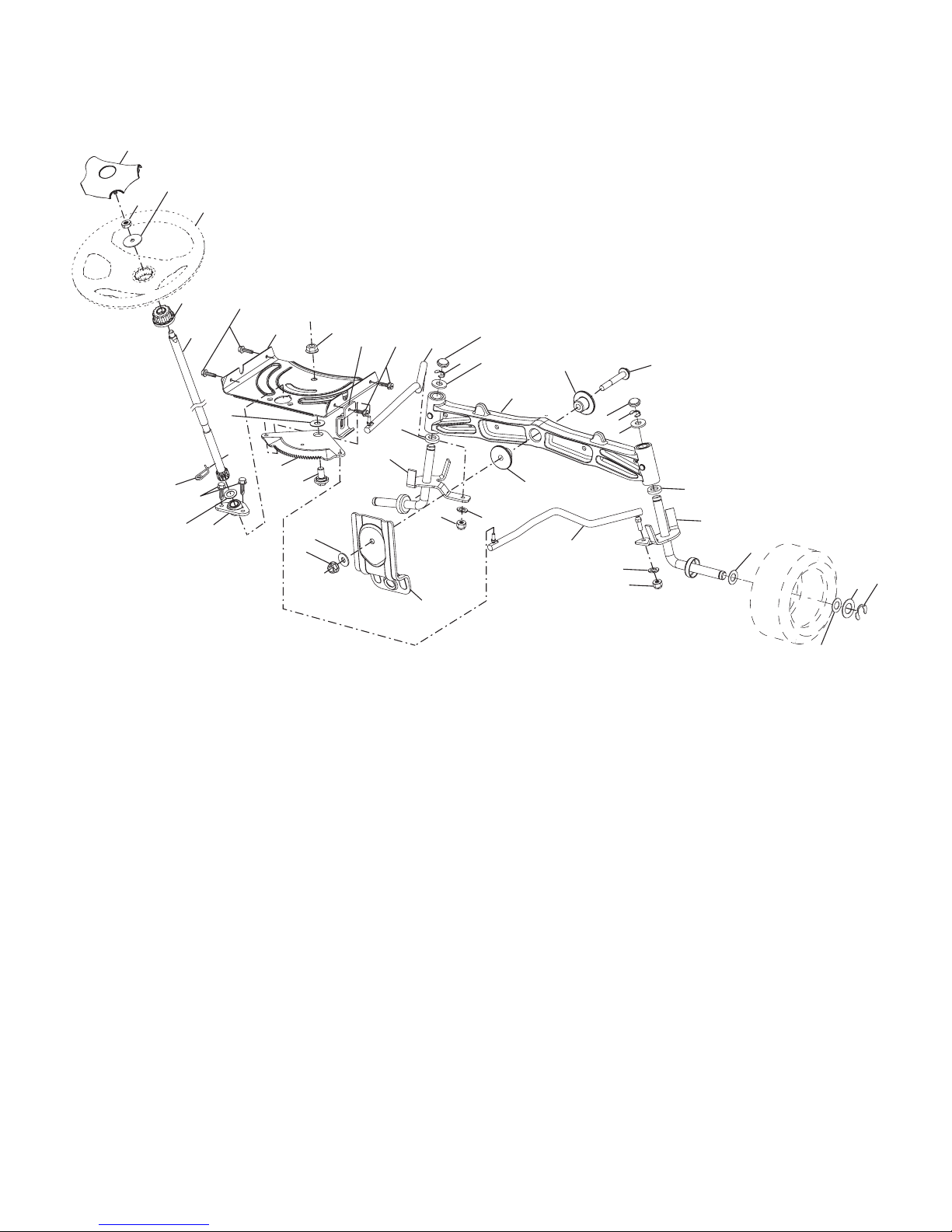

TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

STEERING ASSEMBLY

53 8

16 19

13 22

67 66

steering-tex_4-husq

KEY PART

NO. NO. DESCRIPTION

1 532 19 39-43 Wheel, Steering

2 532 19 59-68 Axle Asm., Front

4 532 40 30-89 Spindle Asm. LH

5 532 40 30-90 Spindle Asm. RH

6 532 12 49-31 Bearing, Race Thrust Harden

7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

8 812 00 00-29 Ring, Klip #T5304-75

9 532 12 12-32 Cap, Spindle

13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8

15 873 54 06-00 Nut, Crown Lock 3/8-24 unf

16 532 19 47-46 Shaft Steering

19 532 19 47-29 Plate Steering

21 532 18 67-37 Adapter, Wheel Steering

22 532 19 48-45 Bushing, Strg. Blk

26 532 19 36-52 Insert, Wheel Steering

28 817 00 06-12 Screw 3/8-16 x 3/4

35 532 19 47-32 Gear, Sector Plate

45 819 18 38-12 Washer 9/16 x 2-3/8 x 12 Ga. NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf

53 532 18 89-67 Washer Hardened

57 532 19 72-46 Bracket Upstop

58 532 19 47-47 Bolt Shoulder Sector Pivot CFM

59 532 19 47-48 Washer Thrust Sector Steering

60 873 97 10-00 Nut Flange Lock 5/8-11

61 532 19 47-40 Draglink LH

62 532 19 47-41 Draglink, RH

63 817 00 05-12 Screw 5/16-18 x 3/4

64 532 19 98-49 Retainer Clip Spring Steering

66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr

67 532 19 47-37 Bushing PM Front Axle

68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5

69 532 19 91-62 Washer 1.5 x .505 x .118

70 532 19 61-97 Bracket Deck Susp. Front

Otros manuales para GTH26K54

Tabla de contenidos

Otros manuales de Cortacésped de Husqvarna

Husqvarna

Husqvarna ZTH5223 Manual de instrucciones

Husqvarna

Husqvarna CTH170 Manual de usuario

Husqvarna

Husqvarna 962000107 Manual de usuario

Husqvarna

Husqvarna 62522SH Manual de usuario

Husqvarna

Husqvarna M-ZT 52 Manual de usuario

Husqvarna

Husqvarna LC247Li Manual de instrucciones

Husqvarna

Husqvarna R152SVB Manual de usuario

Husqvarna

Husqvarna YTA18542 / 96045005500 NO. 960 45 00-55 Manual de usuario

Husqvarna

Husqvarna AUTOMOWER 435X AWD Manual de usuario

Husqvarna

Husqvarna EZ4217KAA Manual de usuario

Husqvarna

Husqvarna LC 137i Manual de usuario

Husqvarna

Husqvarna 54 Guía

Husqvarna

Husqvarna 580 580 580 580 600 Manual de usuario

Husqvarna

Husqvarna R 152SVH Manual de usuario

Husqvarna

Husqvarna iZE 4821 Manual de usuario

Husqvarna

Husqvarna CTH 164T Manual de usuario

Husqvarna

Husqvarna YTH2042 Manual de usuario

Husqvarna

Husqvarna M-ZT 52 Manual de usuario

Husqvarna

Husqvarna 968999254 / iZ4217TSKAA Manual de usuario

Husqvarna

Husqvarna LB448S Manual de usuario

Husqvarna

Husqvarna TS 142 Manual de usuario

Husqvarna

Husqvarna LGT24K54 Manual de usuario

Husqvarna

Husqvarna CTH2542 XP Manual de usuario

Husqvarna

Husqvarna 96727750400 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario

Stihl

Stihl RMA 443 PV Manual de usuario
