Husqvarna 54" Mulch kit Manual de usuario

P/N 115 152827 R1

08/15/09

INSTALLATION INSTRUCTIONS

1

1

2

54" MULCH KIT - 966 050401

IMPORTANT: BEFORE PROCEEDING, PLACE ALL CONTROLS IN

THE DISENGAGED OR OFF POSITION, REMOVE SPARK PLUG

WIRES FROM THE SPARK PLUGS AND REMOVE IGNITION KEY.

WARNING!

Blades are sharp. Protect your hands

with gloves and/or wrap blades with a

heavy cloth when handling.

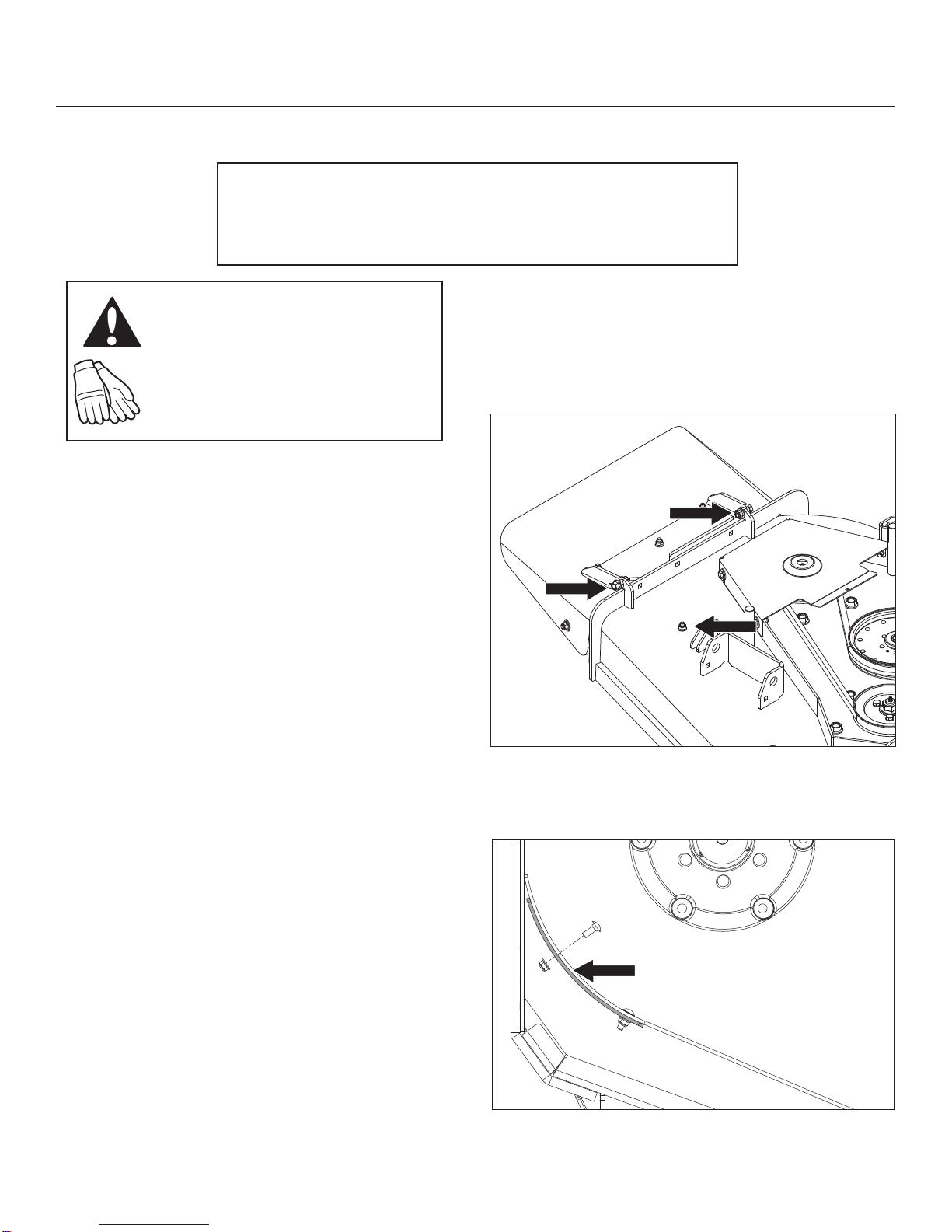

Block the front of the mower up to give access 1.

to the underside of the front deck. Remove the

discharge chute assembly by removing hardware

(1) on the bracket top. Set the assembly and

hardware aside for reinstallation when the mulch

kit is not being used.

Remove the three nuts and bolts that protect the 2.

mulch kit fastening locations (2).

NOTE: Only one hardware site is shown in the

illustration.

Carefully remove the cutting blades, retaining the 3.

blade bolts for reuse. Clean any grass out from

underneath the deck.

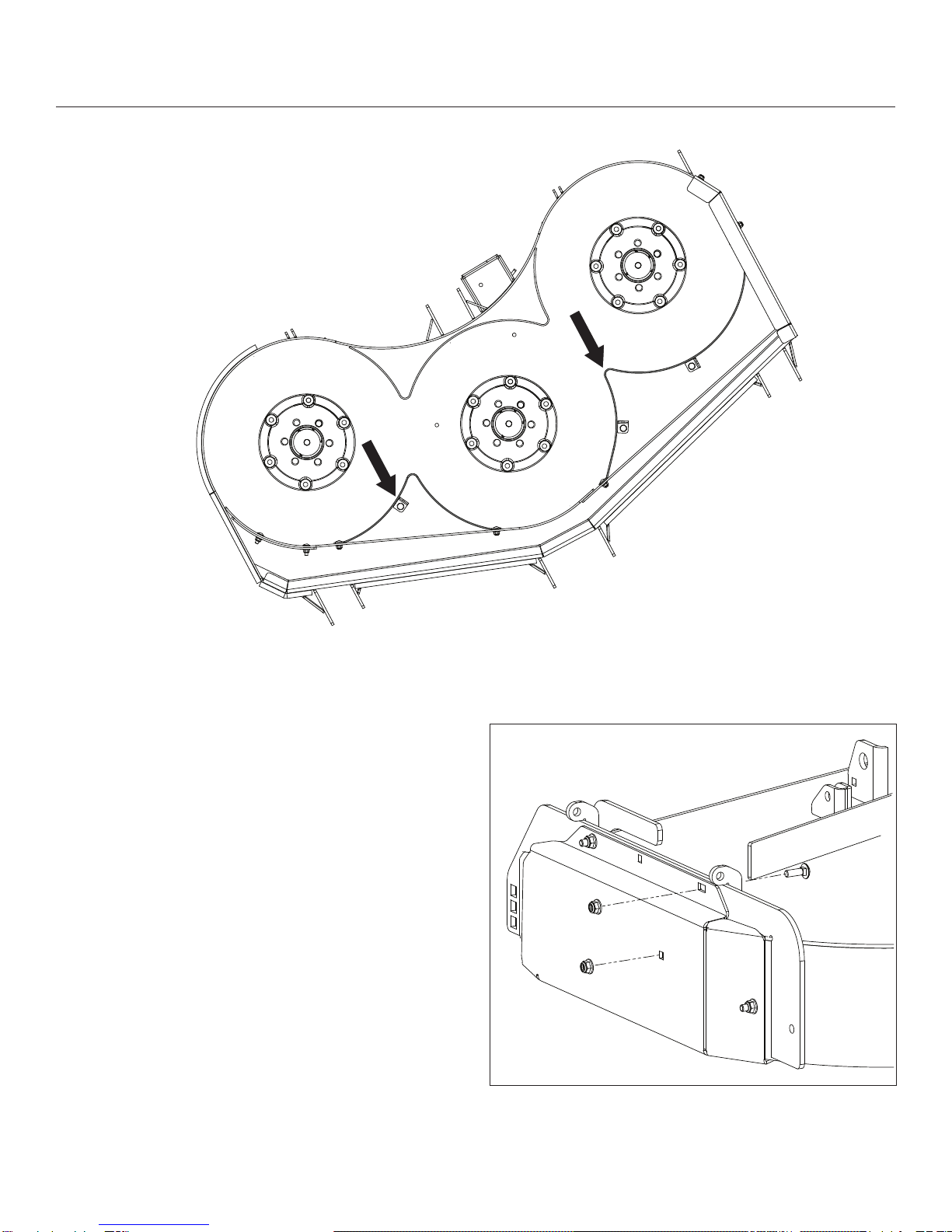

Bolt left hand corner mulch bafe to the 4. outside

of the deck bafe weldment as shown in the

illustration.

P/N 115 152827 R1

08/15/09

INSTALLATION INSTRUCTIONS

Set the left hand bafe in place, with weld bolt up 5.

through the deck. Secure bafe to deck with nuts

and bolts as shown. Attach right hand bafe with

the same procedure.

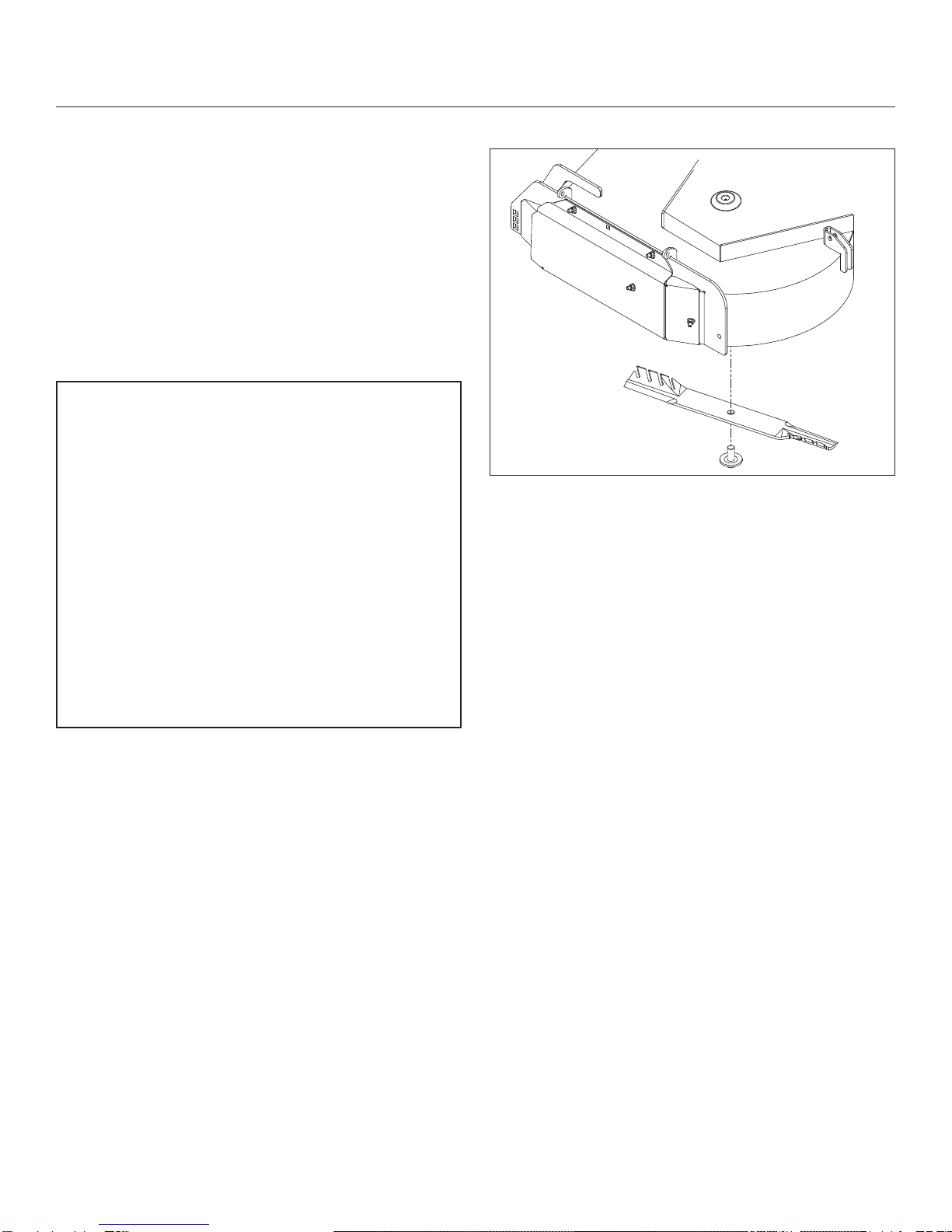

Fasten the mulch cap to the deck and bafe. 6.

P/N 115 152827 R1

08/15/09

INSTALLATION INSTRUCTIONS

Mulching Guidelines

To ensure acceptable mulching performance:

The length of grass to be cut in one pass •

should not exceed 1/3 of the total grass height.

Example: If grass height is 3", the mower deck

cutting height should be set at not less than 2".

Ground speed should normally be reduced to •

allow clippings to be nely mulched.

Engine RPM should be set at maximum.•

Blades must be kept sharp.•

The underside of deck should be cleaned out •

often to prevent grass accumulation.

Conditions must be dry. Wet grass does not •

mulch well and grass accumulates under deck.

Install the kit mulching blades using the existing 7.

blade bolt (torque to 90 ft./lbs.).

Rotate the blades by hand and check for 8.

clearance of all bafes.

Make sure all hardware is tight. 9.

Remove blocks and return the mower to its normal 10.

position.
