Husky TSA4524 Manual de usuario

THANK YOU

We appreciate the trust and conﬁdence you have placed in Husky through the purchase of this deluxe work bench. We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement

needs. Thank you for choosing Husky!

USE AND CARE GUIDE

DELUXE WORK BENCH

Questions, problems, missing parts?

Before returning to the store, call

Husky Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday

9 a.m. - 6 p.m., EST, Saturday

1-888-HD-HUSKY

HUSKYTOOLS.COM

Item # 1001 017 021

Model # TSA4524F

Table of Contents

Table of Contents ...................................2

Safety Information ..................................2

IC Warning ........................................2

Warranty ..........................................3

Pre-Assembly ......................................3

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Maintenance .......................................7

Care and Cleaning ..................................7

Safety Information

Please read and understand all instructions in this manual before you

assemble of use this product.

□Do not open more than one drawer at a time.

□Do not let children approach the product.

□To help prevent the product from tipping, load the product

starting from the bottom drawers.

□Keep the locking caster brakes set unless you are moving the

work station. This prevents the product from rolling.

□Lock all drawers before moving the product.

□Push this product. Do not pull.

□Do not alter this product in any manner.

DANGER: Do not stand on this product. You may fall or

cause the product to tip.

DANGER: Do not move the product prior to closing and

locking all the drawers. The drawers could come open and

make the product unstable and tip.

WARNING: Keep the product on a level surface. The

product may become unstable and tip if stored or moved on

an uneven surface.

CAUTION: Do not lift this product directly with a forklift or

tow with any mechanical devices.

CAUTION: Only transport this product when empty.

Properly secure when transporting.

IC Warning

CAN ICES-3 (B)/NMB-3(B)

3 HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Pre-Assembly

EE FF

BB CC

PLANNING INSTALLATION

Compare all parts with the Hardware Included and Package Contents lists. If any part appears missing or damaged, do not use this

product. Contact Customer Service at 1-855-HD-HUSKY.

MAXIMUM WEIGHT CAPACITIES

Removable top tray 10 lbs. x 3 = 30 lbs.

Wooden top 220 lbs.

Small drawer 100 lbs. x 2 = 200 lbs.

Big drawer 100 lbs.

Bottom tray 132 lbs.

Total capacity 679 lbs.

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part Description Quantity

AA Screw ST6.3x12 64+2

BB Screw ST5x12 3

CC Pan head tapping screw ST4.2x12 6

DD Bolt M6x16 for caster 16+1

EE Washer Ø6 for caster 16+1

FF Hex nut M6 for caster 16+1

Warranty

WHAT IS COVERED

The manufacturer warrants the product to be free from defects in materials and workmanship for a period of three (3) years from date

of purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is

found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the

manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alteration

neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in any

way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of

an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship. This

warranty shall not apply to the finish on any portion of the products such as surface and/or weathering, as this is considered normal wear

and tear.

The manufacturer does not warrant and specifically disclaims any warranty, whether express or implied, of fitness for a particular purpose,

other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential

or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.

Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.HUSKYTOOLS.com.

TOOLS REQUIRED

Phillips

screwdriver

Pre-Assembly (continued)

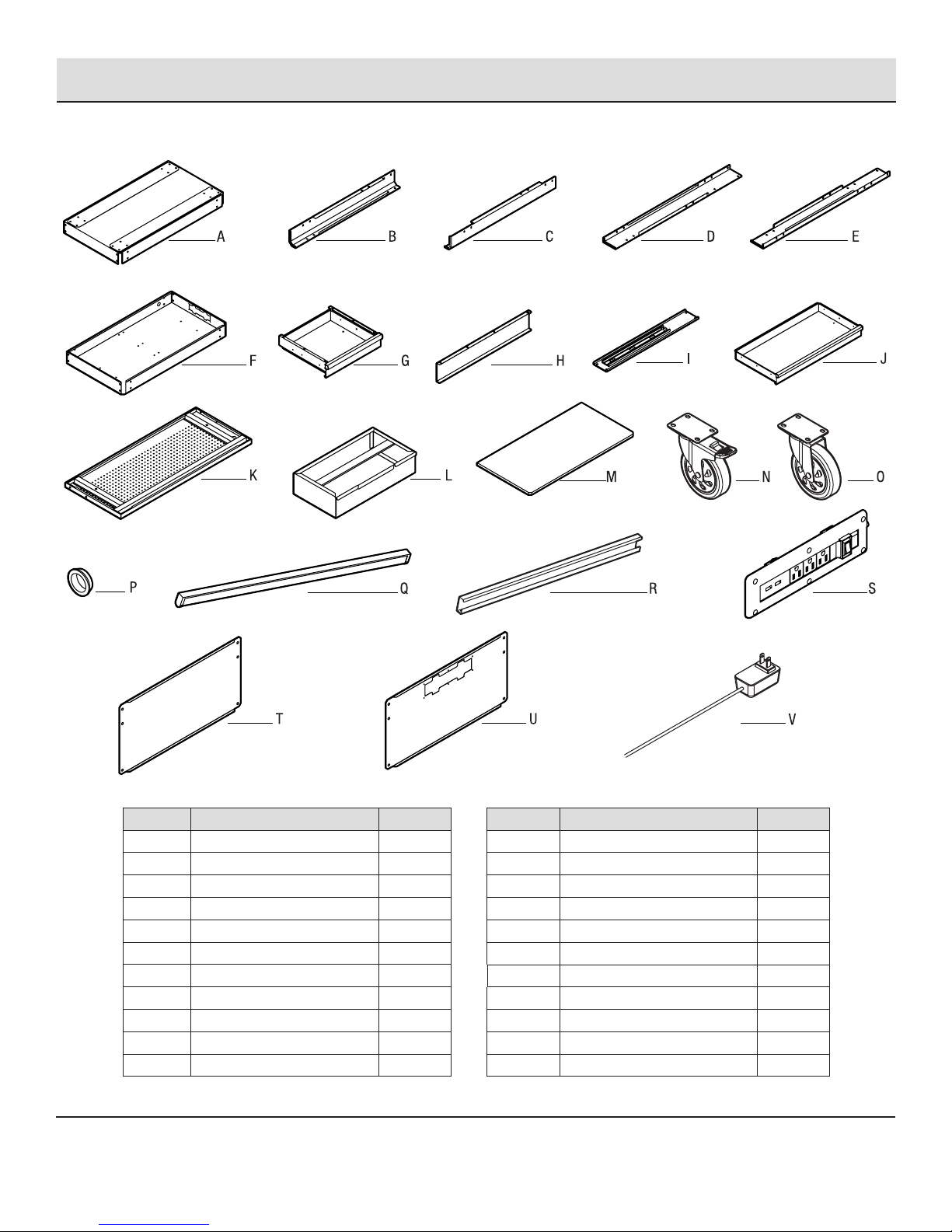

PACKAGE CONTENTS

Part Description Quantity Part Description Quantity

A Bottom shelf 1 L Portable bucket 3

B Left front leg 1 M Wooden top 1

C Right front leg 1 N Caster with brake 2

D Left back leg 1 O Swivel caster 2

E Right back leg 1 P Portective ring 3

F Top tray 1 Q LED light 1

G Small drawer 2 R Assembly bar for LED light 1

HSupportive plate 2 S Power outlet 1

I Slide board for drawer 2 T Left bafﬂe 1

J Big drawer 1 U Right bafﬂe 1

K Grid board 1 V Power plug for LED light 1

5 HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Assembly

1 Installing the casters

□Attach the casters (O) to the bottom of the bottom shelf (A)

using caster bolts (DD), washers (EE), and hex nuts (FF).

□Repeat on the other side of the bottom shelf (A) for the

casters with brakes (N).

NOTE: Do not fully tighten the bolts until assembly is

complete.

2 Attaching the front and back legs

□Attach the front and back legs (B, C, D, and E) onto the

bottom shelf (A) using screws (AA), as shown.

3 Attaching the top tray and bafﬂes

□Attach the top tray (F) and left and right bafﬂes (T and U) to

the assembly using screws (AA), as shown.

4 Attaching the small drawers

□Install six screws (AA) onto the assembly as shown.

□Slide the small drawers (G) underneath the top tray (F), as

shown. Tighten the six screws (AA) to secure in place.

Assembly (continued)

5 Installing the supportive plates

□Position the two supportive plates (H) onto the top of the

assembly as shown.

□Secure the assembly using eight screws (AA). Screw six

of the screws in from the top into the bottom, as shown.

Screw the last two screws from the bottom and up into the

assembly, as shown.

6 Attaching the side boards for the

drawers

□Attach a side board (I) on each side of the assembly using

screws (AA), as shown.

7 Attaching the big drawer and the

power outlet

□Slide the big drawer (J) into the assembly, as shown.

□Attach the power outlet (S) to the assembly using tapping

screws (CC), as shown.

8 Attaching the grid board

□Attach the grid board (K) to both sides of the assembly using

screws (AA), as shown.

□Place the three protective rings (P) onto the assembly, as

shown.

7 HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Assembly (continued)

9 Placing the portable buckets

□Place the portable buckets (L) on top of the assembly, as

shown.

10 Installing the wooden top and LED

light

□Insert the LED light(Q) into the light bar(R)

□Determine a location for the bar(R) with LED light(Q) on the

peg board. Then attach the the bar(R) with LED light(Q) using

screws(BB), as shown.

□Place the wooden top(M) on the assembly, as shown.

Maintenance

MAINTAINING THE CASTERS

Grease the casters annually using a high-quality bearing grease.

Care and Cleaning

□This steel product has been coated with industrial powder coating for a durable ﬁnish. To help protect this ﬁnish, do not allow harsh

chemicals such as oil or grease to remain on the powder coating surface. Use a glass cleaner (Windex® or equivalent product) to

clean and maintain all powder coated surfaces.

□The wood top is made of Parawood (also called Rubberwood) which has a polyurethane coating to help protect it from moisture. It can

be cleaned with most household cleaners, such as Windex®.

Questions, problems, missing parts? Before returning to the store,

call Husky Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday

9 a.m. - 6 p.m., EST, Saturday

1-888-HD-HUSKY

HUSKYTOOLS.COM

Retain this manual for future use.
