Husky HPRO72TLOCKERBLK Manual de usuario
USE AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m – 7 p.m., EST, Monday-Friday
9 a.m – 6 p.m., EST, Saturday
THANK YOU
We appreciate the trust and con dence you have placed in Husky through the purchase of this We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Husky!
1-888-HD-HUSKY
HUSKYTOOLS.COM
Husky Professional Duty 72 in. Top Locker
top locker
.
Item # 1000000000
Model # HPRO72TLOCKERBLK
Table of Contents
Table of Contents..................................................2
Safety Information ...............................................2
Warranty ................................................................3
Specifications ........................................................3
Package Contents..................................................3
Hardware Included...........................................................3
Assembly ...............................................................5
6............................... ................................ecnanetniaM
Safety Information
1. To reduce the risk of injury, please read and follow
the safety instructions below before assembling and
using this product.
2. Two or more people are required for the
assembly of this product.
3. Secure this product properly before moving it with a
forklift.
4. Do not tow the product with power equipment.
5. Do not alter this product in any manner. For
example, do not weld external lock bars or attach
electrical equipment.
CAUTION: Keep the product on level surfaces.
The product may become unstable and tip if
stored or moved on an unlevel surface, which
may cause personal injury or product damage.
Replacement Parts ................................................7
6.
2
Do not attach or mount this product
to a vehicle or mobile trailers. This may cause
personal injury or product damage. Mounting this
product to any vehicle or mobile trailers in any
warranty.
CAUTION:
manner will void
Do not stand, sit or climb on this
product. You may fall which may cause perso
inju
nal
ry or
CAUTION:
product damage.
CAUTION:
Lock the door before moving
this product. The door could come open and
make the product unstable, which may
cause personal or product damage.
!Save these instructions.
Before locking the cabinet, ensure there are no obstructions
in order for the door to completely close and lock bars to
work properly.
Package Contents
HARDWARE INCLUDED
NOTE: Hardware not shown to act
2,000 lbs.
ual size.
Warranty
AA BB CC
DD
Part Description Quantity
AA
BB
CC
DD
4
4
Hexagon head at bolt (M8*60mm)
4
1
Washer
Hex socket button cap bolt
Hex key
Specifications
Maximum Load Capacity
3 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
This Husky Professional Grade product includes a Limited Lifetime Warranty, whereas the manufacturer warrants the product to be free from
defects in materials and workmanship for the product’s useful life. If any part of this product is found to be defective, the manufacturer’s only
obligation, and purchaser’s exclusive remedy, is to provide replacement parts at the manufacturer’s discretion, provided that the product has not
been damaged through misuse, abuse, accident, modications, alterations, neglect or mishandling.
This warranty shall not apply to any product that is found to have been improperly installed, setup, or used in any way not in accordance with the
instructions supplied with the product. This warranty shall not apply to normal wear and tear or lack of maintenance, or a failure of the product
as a result of use in a highly corrosive environment, improper storage, misuse, abuse, negligence, alteration, faulty installation, or any other
failure not relating to faulty material or workmanship. This warranty shall not apply to the nish on any portion of the product such as surface
and/or weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specically disclaims any warranty, whether express or implied, of tness for a particular purpose, other
than the warranty contained herein. The manufacture specically disclaims any liability and shall not be liable for any consequential or incidental
loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.
NOTE: Begin product assembly close to t nal
intended location of your cabinet. The product is
heavy and may be di cult to move after assembly.
EE
FF
8
4
Plastic plug (M6)
Plastic plug (ø15mm)
EE FF
Part Description Quantity
A
Top Locker 1
B
Handle 2
4
Package Contents (continued)
NOTE:
Keys are attached to gas strut.
C
Magnetic Husky® logo badge 1
A
C
B
5HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
CAUTION:
Two people are required for assembly.
Assembly
This Husky 72 in. Top Locker is designed as a set and only intended to be used with the Husky Professional Duty system, which
includes the following products:
72 in. 20-Dr. Professional Duty Workbench Model#HPRO72MWC20BLK SKU#100000
72 in. Professional Duty Hutch Model # HPRO72HUTCHBLK SKU # 1000000000
27.5 in. Professional Duty Side Locker Model # HPRO27SLOCKERBLK SKU # 1000000000

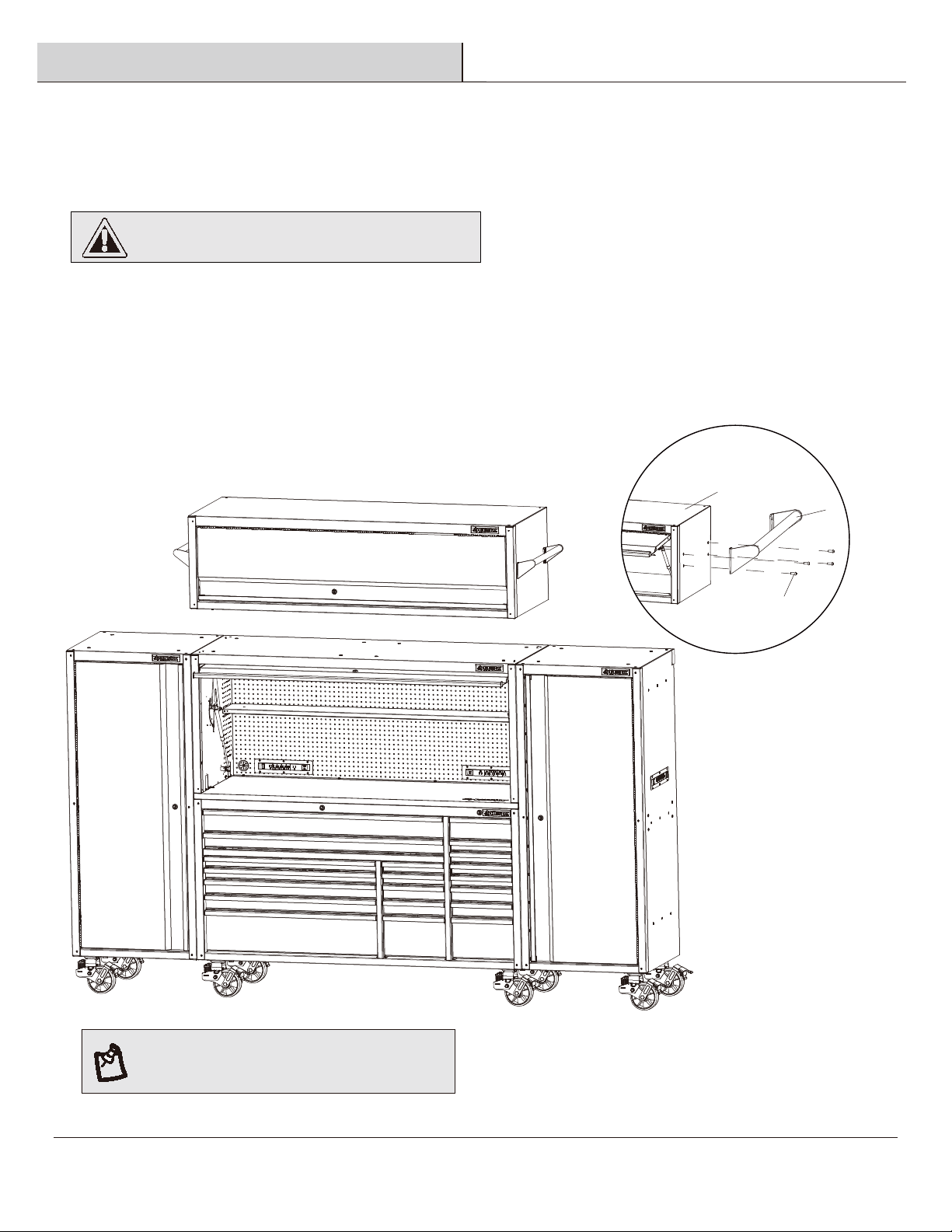

1
Setting the Top Locker
□
□
Attach both side handles using 8pcs Bolts (BB) and tighten with supplied Hex Key (CC).
Gently place the Top Locker directly on top of the existing 72in Hutch.
A
B
BB
NOTE: 27.5in Side Lockers are shown for
illustrative purposes and are not required for Top
Locker installation.
6
Attach the Top Locker to the Hutch & Workbench.
2
AA
BB
This product has been equipped with the Kwikset Smartkey® locks which allow you to easily program each lock cylinder
to a specic key code to match other Kwikset keyed products.
Please Kwikset Smartkey® see supplemental instructions for keying and re-keying the locks.
□
□
4
Kwikset Smartkey® Lock Operation
Maintenance
□
□
□
□
Open the Top Locker door.
Attach the Top Locker (A) using 4 pcs M8*60 at bolts (AA) and 4 pcs washers (BB) with supplied Hex Key (DD) in
the 4 corners.
Once the Top Locker is ush along the front and sides of the Hutch, tighten the bolts.
Be careful not to overtighten.
If desired, the 2 Side Handles (B) can be attached to the ends of the Top Locker (A), or removed.
□Periodically clean the door fronts, trim, and other surfaces with a mild detergent and water.
□
□
This product has been coated with an industrial UV-resistant power coating for a durable and long lasting finish.
To help protect the coating, do not allow harsh chemicals to remain on the surface for extended periods of time.
3
Remove the plastic plug (Optional)
EE
FF
□Remove the 8 plastic plugs (EE) and 4 plastic plugs (FF) from the top locker side panels and top panel if needed.
7Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
Replacement Parts
For assistance with replacement parts please call 1-888-HD-HUSKY.
4
A1
B
1
C
2
Kwikset Smartkey® Lock
D
Magnetic Badge
2
G
Key
Part Description Quantity
Rubber Grommet
Side Handle Bolt
2
EGas Strut
2
FSide Handle
4
H
4
IWasher
Hexagon head at
bolt (M8*60mm)
xxxxxxxxxx
xxxxxxxxxx
xxxxxxxxxx
Part#
xxxxxxxxxx
xxxxxxxxxx
xxxxxxxxxx
xxxxxxxxxx
xxxxxxxxxx
2
JAluminum Edge Guard
xxxxxxxxxx
xxxxxxxxxx
CBA
DE
F
G
J
H
I
8
KPlastic Plug (M6)
xxxxxxxxxx
4
LPlastic Plug (ø15mm)
xxxxxxxxxx
L
K
Questions, problems, missing parts? Before returning to the store call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
