HUSKY LINERS 4713 Manual de usuario

H2 2 pc plastic cover instr

Hummer H2 Spare Tire Cover Installation

Thank you for the purchase of your new Hummer H2 spare tire cover. Please inspect your package contents before

beginning installation. Shown below is a list of installation hardware, faceplate, base plate and quantities:

Faceplate (1) Base Plate (1)

Latch Assembly and Insert Installation:

1. Install latch insert and latch to the spare tire base plate with screw, through the front side of an open latch, into

the predrilled holes on the base plate, and finally through the latch insert (textured side against base plate).

Fasten with a washer and nut using a flat head screwdriver and 5/16” wrench (fig 1). Repeat this installation on

each of the 3 notched and predrilled locations on the tire base plate (fig 2).

fig 1 fig 2

Latch (3)

Catch (3)

Latch

Insert (3)

Catch

Insert (3)

Washer

(12)

Nut

(12)

Screw

(12)

Key (1)

H2 2 pc plastic cover instr

2. Install catch insert and catch to the spare tire faceplate with screw through the front side of catch, into the

predrilled holes on the faceplate, and finally through the catch insert (textured side against faceplate). Fasten

with a washer and nut using a flat head screwdriver and 5/16” wrench (fig 3). Repeat this installation on each

of the 3 predrilled locations on the faceplate (fig 4).

fig 3 fig 4

Spare Tire Cover Installation:

3. Remove License Tag Holder from spare tire.

4. Remove lug nuts and spare tire from spare tire rack (fig 5). Install Base Plate on lugs with one latch located

center bottom, this will allow for proper Faceplate alignment (fig 6). Place tire on lugs and fasten lug nuts (fig

7).

5. Attach Spare Tire Faceplate and reinstall License Tag Holder (fig 8).

fig 5 fig 6

H2 2 pc plastic cover instr

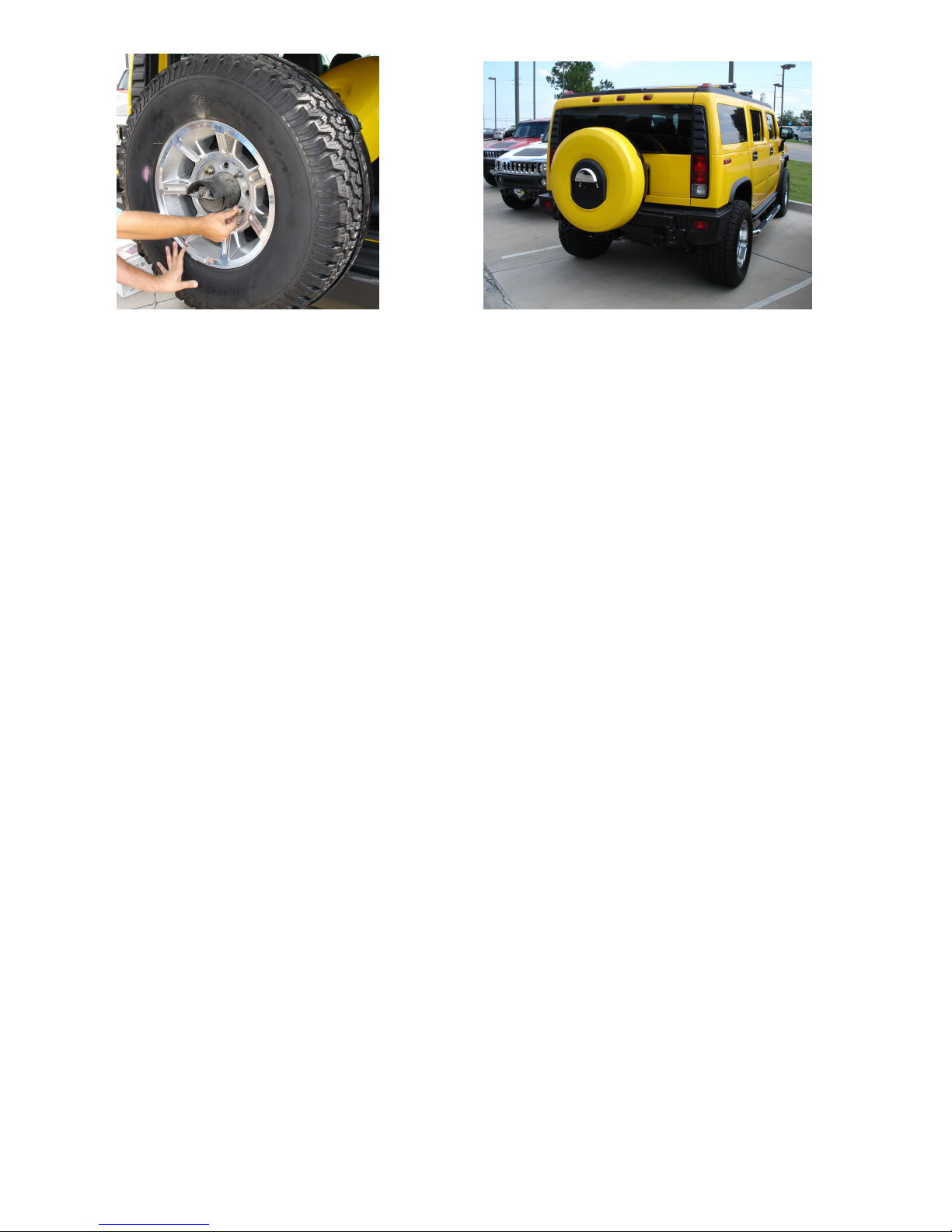

fig 7 fig 8
