HunterDouglas PowerView EOS Plisse Manual de usuario

Safety instructions

The motor may only be operated after reading these safety instructions, failing to do so might cause serious harm.

• Do not operate a blind which in any way is damaged

• Charging of battery operated blinds, only with suitable chargers

• only operate the blind within the prescribed environmental situation

• the motor may only be used in combination with the recommended and suitable power source, originally supplied

with the blind.

• A remote control is considered NOT to be a children's toy

• window decoration motors should be replaced when the rated cycle limitation is reached

Never drop the

motor!

Never drill into

the motor!

Do not immerse

into liquid!

Avoid

collisions!

MANUAL

Page 1 of 20 version: 1.1

PowerView® EOS Bottom-Up blind

The PowerView® M25S single shaft motor is suited to be used with EOS Plissé and Duette® blind hardware from

HunterDouglas.

1. Delivery condition

As standard, no remote control or hub is connected to the motor. No limits are set. Motor is default set to

Venetian

blind motor type. If the motor condition is unknown, perform the following steps.

1.1. Check motor type

The motor can be programmed for

freehanging blinds:

•Freehanging Plissé

•Freehanging Duette®

The motor can be programmed for

tensioned blinds:

•Tensioned Plissé

•Tensioned Duette®

By reading out the LED sequence after power up, the motor type can be seen.

Plissé Duette®

IMPORTANT

The motor type (default set to

Venetian blind

), has to be changed to

Plissé or Duette®

type. Use the

PowerView®

Programmer

software tool to change.



IMPORTANT

It is important to assign the correct motor type:

•

The behaviour of the blind is slightly different with each motor type

•

Correct recognition in the PowerView® App depends on the motor type



MANUAL

Page 2 of 20 version: 1.1

1.2. End limits reset (factory default)

This procedure will erase all limits stored in the volatile motor memory. It will not clear the Network ID and Group

assignments. Completing an End limits reset will prevent a PowerView® remote or App from operating a window covering

until it is reprogrammed.

1.1.1 Power up the motor by connecting the power cable to

the battery wand or power supply.

1.1.2 Immediately Check the motor button LED sequence

after start up.

1.1.3 The LED sequence should read:

Freehanging Plissé type

Freehanging Duette® type

Tensioned Plissé type

Tensioned Duette® type

MANUAL

Page 3 of 20 version: 1.1

Note

This procedure can be skipped for a fresh out of the box motor.

The motor will jog 2x when receiving any PowerView® command (e.g. Pressing the manual control button on the motor),

to conrm no limits are set.



1.2.1 Remove power from the motor by disconnecting the

power cable from the battery wand or power supply

and wait for 20 seconds.

1.2.2 Press and hold the manual control button on the

motor.

1.2.3 Reconnect power to the motor while press and hold

the manual control button .

The motor LED turns red/green

MANUAL

Page 4 of 20 version: 1.1

1.3. Network reset

This procedure will erase all network data stored in the motor, including Network ID and Group assignments. It will not

clear the end limits. Completing a Network reset will prevent a PowerView® remote or App from operating the window

covering until it is reprogrammed.

1.2.4 Press and hold the manual control button until the

motor jogs 1x.

1.2.5 Release the manual control button .

The end limits have been cleared.

1.3.1 Press and hold the manual control button on the

motor for 12 seconds.

The blind will jog 1x at 6 seconds and a second time at

12 seconds

1.3.2 Release the manual control button after the

second jog.

The Network ID and Group assignments have

been cleared.

MANUAL

Page 5 of 20 version: 1.1

2. Pairing a remote

A PowerView® remote can control up to 6 individual groups of blinds (buttons 1 to 6 at the top of the remote). The

instructions below assign a blind to group 1.

2.1 Locate the manual control button on your blind.

2.2 Press and hold the stop button for 6 seconds.

Keep pressing until the remote lights start blinking

2.3 Press the group1 button.

IMPORTANT

Watch out to perform steps 2.4 and 2.5 within 3 seconds!



MANUAL

Page 6 of 20 version: 1.1

2.4 Press and hold the manual control button .

2.5 Press the open button.

The blind will jog 1x

2.6 Release the manual control button .

2.7 Press and hold the stop button for 6 seconds.

Keep pressing until the remote lights stop blinking

The remote will exit programming mode

automatically after 20 seconds.

MANUAL

Page 7 of 20 version: 1.1

3. Checking motor direction

3.1. Put motor in program mode

IMPORTANT

Reversing motor direction is only possible with a fresh out of the box motor (no limits set) or when the end limits are

reset.

Before any limits are programmed, the motor direction has to be checked and reversed if needed.

If the top or bottom limit is already set, and the motor direction has to be reversed, perform a

reset

before continuing.



IMPORTANT

Watch out to perform steps 3.1.1 and 3.1.2 within 3 seconds!



3.1.1 Press and hold the manual control button .

3.1.2 Press the open button.

The blind will jog 1x

Make sure group1 on the remote is selected.

MANUAL

Page 8 of 20 version: 1.1

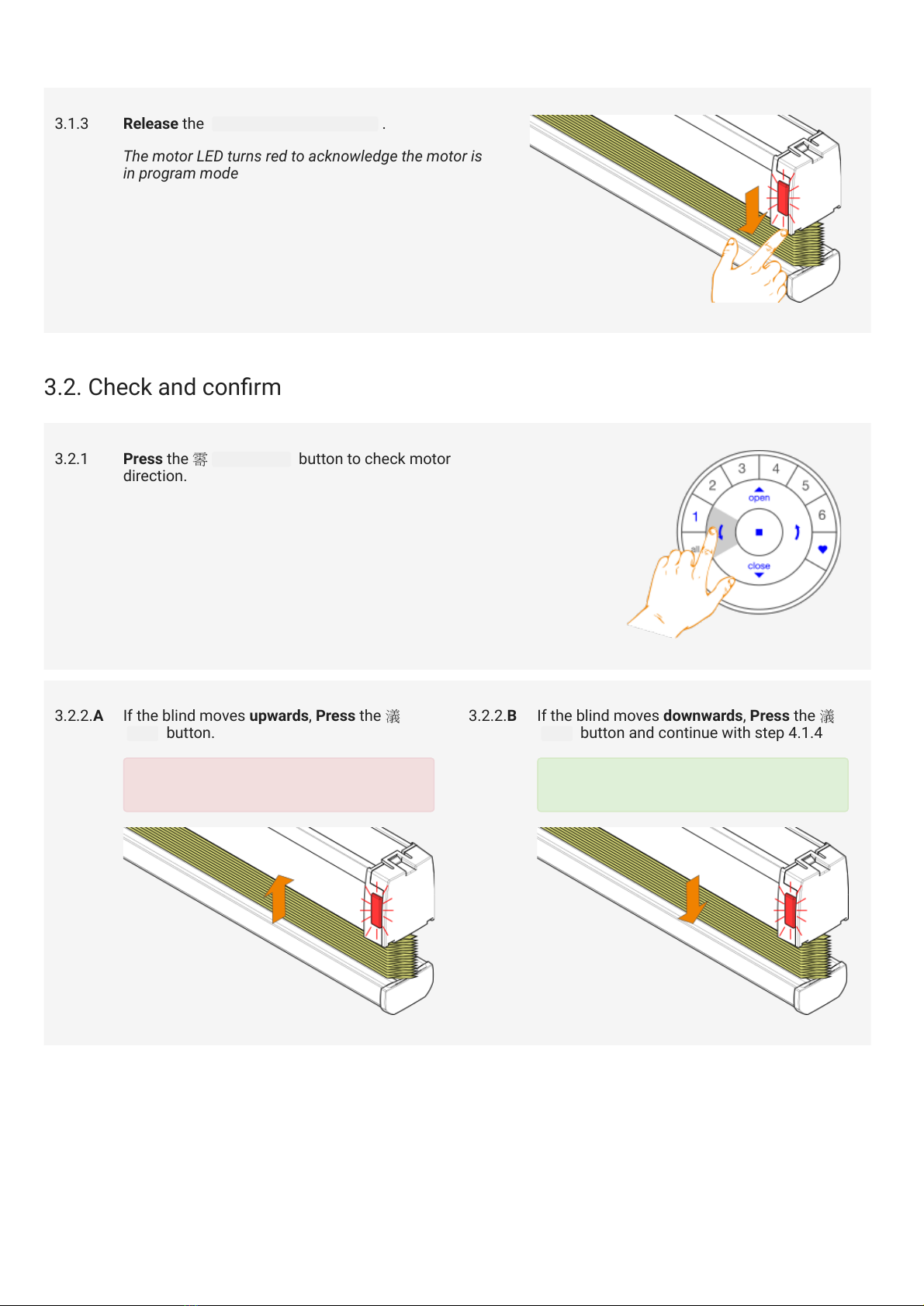

3.2. Check and conrm

3.1.3 Release the manual control button .

The motor LED turns red to acknowledge the motor is

in program mode

3.2.1 Press the arrow down button to check motor

direction.

3.2.2.AIf the blind moves upwards, Press the 

stop button.

Motor direction NOT OK!

3.2.2.BIf the blind moves downwards, Press the 

stop button and continue with step 4.1.4

Motor direction OK!

MANUAL

Page 9 of 20 version: 1.1

4. Setting end limits

It doesn’t matter if you start with setting the open or the close limit rst. In this description we start with the open (top)

limit.

4.1. Open limit (top)

3.2.3 Press and hold the manual control button for 1

second to reverse motor direction.

The blind will jog 1x to acknowledge the direction is

reversed

3.2.4 Continue with step 4.1.4

4.1.1 Press and hold the manual control button .

4.1.2 Press the open button.

The blind will jog 1x

Make sure group1 on the remote is selected.

MANUAL

Page 10 of 20 version: 1.1
