Stand Fan

Owner’s Manual

Model

90405

English

TABLE OF CONTENTS

Introduction ............................................................. 3

Safety and Warnings................................................ 3

Grounding............................................................... 5

Unpacking............................................................... 6

Base Assembly......................................................... 6

Motor Assembly....................................................... 7

Grill Assembly ......................................................... 8

Operation.............................................................. 10

Off / Speed Selection 10

Oscillation 10

Adjustment 10

Maintenance.......................................................... 11

Technical Support................................................... 12

Warranty............................................................... 12

Products ................................................................ 14

INTRODUCTION

To reduce the risk of fire or electrical shock, DO NOT use

this fan with any solid-state speed control device.

When using electrical appliances, basic precautions

should always be taken to reduce the risk of fire, electric

shock and personal injury:

Read all instructions before using this fan.

1. Improper installation may result in the risk of fire,

electric shock or personal injury.

2. To prevent the risk of fire and electric shock, DO

NOT use the unit near windows. Rain and moisture

may create an electrical hazard.

3. The power plug must be removed from the power

socket when not in use, before cleaning, servicing,

maintenance and before moving to another location.

4. DO NOT put fan in a damp place or where humidity

is high-such as a bathroom.

5. The fan should be placed on a flat, stable surface or

tabletop to avoid overturning.

6. Use fan only for intended use, as described in this

instruction manual.

7. To protect against electrical shock, DO NOT immerse

unit, plug or cord in water or spray with liquids.

Thank you for choosing the Hunter Oscillating Stand

Fan. This manual gives you complete instructions for

assembling and using your fan. Here are some the

features you will enjoy with your fan:

3An attractive design that enhances any decor

3A powerful motor for maximum air flow

3Three speeds to adjust your comfort level

3All metal construction

3Parts of this fan, including the blades and the grill,

have been treated with Hunter’s Dust Armor Protection,

making them less likely to attract dust and dirt.

SAFETY AND WARNINGS

8. Close supervision is necessary when any appliance

is used by or near children.

9. NEVER insert fingers, pencils or any other objects

through the grill when the fan is running.

10. DO NOT operate any appliance with a damaged

cord or plug, after the appliance malfunctions or has

been dropped or damaged in any manner.

11. To disconnect, grip plug and pull from wall outlet.

NEVER yank on cord.

12. ALWAYS use on a dry surface.

13. This product is intended for household use only and

not for commercial or industrial use.

14. DO NOT operate fan in the presence of explosive

and/or flammable fumes.

15. DO NOT place fan or any parts near an open flame,

cooking or any other heating appliances.

16. DO NOT use near curtains, plants, window

treatments, etc.

17. This appliance has a grounded three-prong plug

and is suitable for grounded receptacle use only.

An adapter is available for connecting three-blade

grounding-type plugs to two-slot receptacles. The

adapter must be properly grounded. DO NOT

attempt to defeat the purpose of this safely feature.

18. The rubber ring on this product may interact with

wood and cause damage to furniture. Do not place

on fine wood furniture.

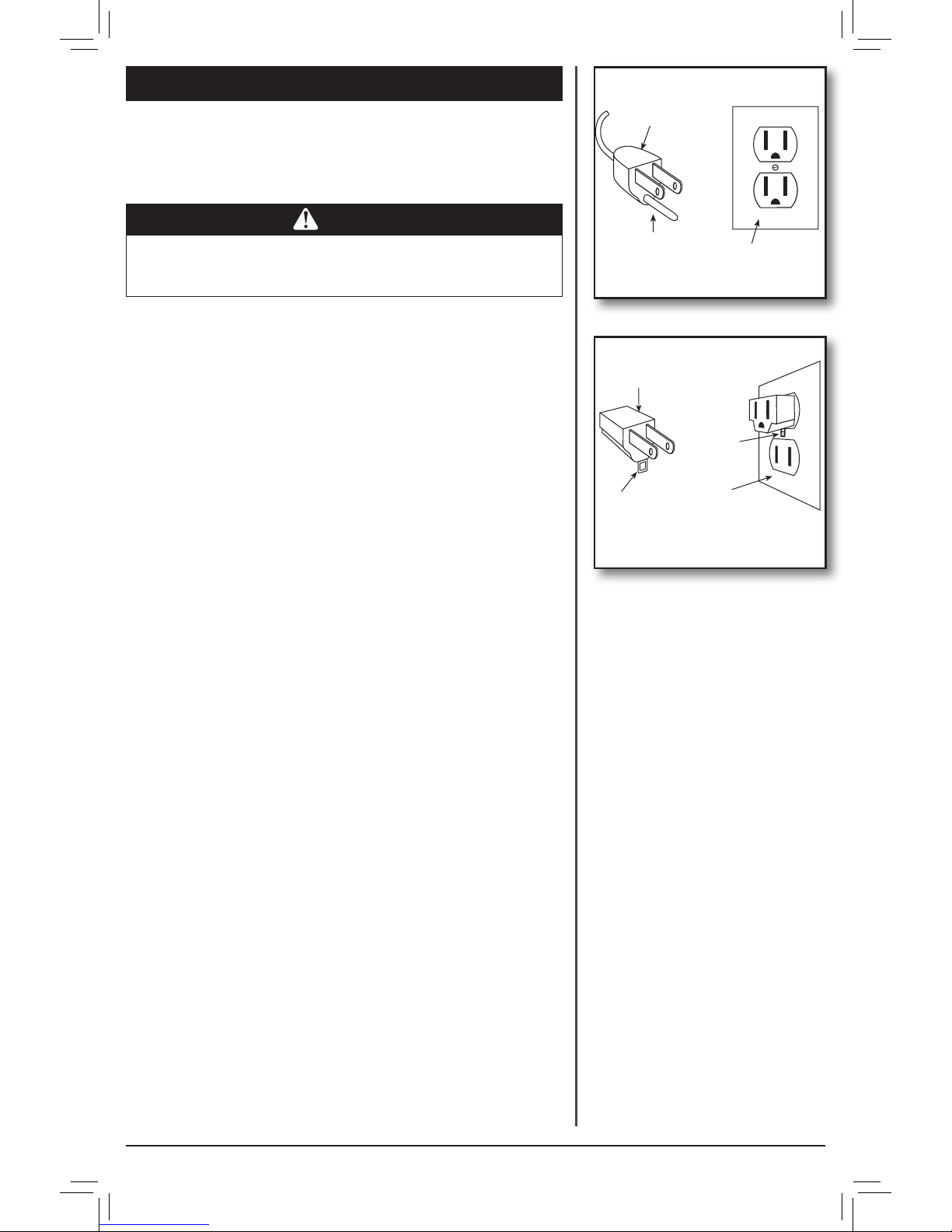

Figure 1.

is appliance is for household use only and may be plugged

into any 120-volt AC electrical outlet (ordinary household cur-

rent). DO NOT use any other type of outlet.

is unit is suitable for grounded receptacle use only.

e power cord has a grounded plug as shown in Figure 1, and

must be used with an electrical outlet that can accommodate

the grounding pin. If your electrical outlet can not accommo-

date the grounding pin, then you must purchase and install

one of the two types of adapters shown in Figure 2. NOTE: e

adapters ARE NOT supplied with this fan. Read, follow, and save

the instructions that are included with the adapter you choose.

Do not use an adapter if your electrical outlet can accommo-

date the grounding pin. \

LINE CORD SAFETY TIPS

1. NEVER pull or yank on the cord or the appliance.

2. To insert plug, grasp it ﬁrmly and guide it into the outlet.

3. To disconnect the appliance, grasp the plug and remove it

from the outlet.

4. Before each use, inspect the line cord for cuts and/or

abrasion marks. If any are found, the appliance should be

serviced and the line cord replaced. Please return it to our

Service Department or to an authorized service representa-

tive.

5. NEVER wrap the cord tightly around the appliance, as this

could place undue stress on the cord where it enters the ap-

pliance and could cause it to fray and break.

6. DO NOT operate appliance if the line cord shows any dam-

age, if the appliance works intermittently or stops working

entirely.

Grounded

Plug

Grounding Pin

Grounded Outlet

Box Cover

WARNING

Figure 2.

Grounded Outlet

Box Cover

Metal

Screw

Adapter

Grounding

Means

GROUNDING

BASE ASSEMBLY Figure 3.

Figure 4.

Figure 5.

1. Insert the Weight(1) into the Base Cover(2). Figure 3.

2. Insert the base of the Telescoping Pole(3) into the top

of the Base Cover(2) and attach to the Base Weight(1)

by turning clockwise on the Screw(4) in the center of

the Base Weight(1). Figure 4.

3. Turn the Base on it’s side and turn the handle of the

Screw(4) on the bottom of the Weight until secure.

Figure 3.

4. Tip the Base back upright. Figure 5.

Figure 6.

UNPACKING

As you unpack the fan, save the carton and packing

materials in case you want to move or ship the unit in the

future. Carefully remove all items from the box.

NOTE: It is best to have someone hold the box while

you lift the fan and the protective packaging out of the

carton. Make sure all shipping materials are removed

from fan before operating. (1) Base Weight

(2) Base Cover

(3) Telescope

Pole

(4) Screw

Figure 9.

MOTOR ASSEMBLY

1. Grasp the Telescope Pole firmly and twist the

Adjustment Knob Counter Clockwise to loosen.

Figure 7.

2. Raise the Inner Pole and tighten the Adjustment Knob

by twisting Clockwise until secure.

3. Remove the Motor Knob(7), Motor Bolt(6), and Tilt

Adjustment Knob(8). Loosen the screw above the

Motor Knob(7).

4. Set the Motor(5) on top of the Pole(3), Figure 8.,

and Secure using the Motor Bolt(6) and Knob(7).

Retighten the screw above the motor knob in the slot

to secure motor. Figure 9.

Note: The Motor Bolt has a square cut on the inside of the

head, ensure this fits securely into the square hole in the

Pole. Do not overtighten the Motor Knob, as this could

make it difficult to tilt the motor later.

After securing the motor(5), Screw in the Tilt Adjustment

Knob(8) securely. Figure 10. This Knob allows you to

adjust the fans angle.

Figure 7.

Figure 8.

Figure 10.

(5) Motor

(3) Telescope Pole

(6) Motor

Bolt

(7) Motor

Knob

(8) Tilt Adjustment

Knob

(7) Motor

Knob

(6) Motor

Bolt

(8) Tilt

Adjustment

Knob

Screw

Figure 11.

Figure 12.

Figure 13.

Figure 14.

GRILL ASSEMBLY

13a.

1. Place the back grill against the motor housing(5),

Figure 11., and line up the 4 tabs on the back of the

grill(9) to the 4 screws holes on the front of the motor.

Caution: Make sure the Handle on the back of the Back

Grill is facing up.

2. Attach the Back Grill(9) to the Motor(5) using the 4

Grill Mount Screws. Figure 12.

Note:1 screw will have a star washer on it, for grounding

purposes. The other 3 screws will not have a washer.

3. Loosen the Screw on the back of the Fan Blade(10),

13a., and slide the Fan Blade onto the post on the

Motor(5). Figure 13.

4. Tighten the Screw on the Blade(10( to secure it to the

Motor(5). Figure 14.

Caution: Ensure when tightening the screw on the back

of the fan blade, you tighten it on the flat part of the post.

(5) Motor

(9) Back Grill

Screw Holes

(5) Motor

(10) Fan Blade

Handle

Figure 16.

Figure 15.

Figure 17.

GRILL ASSEMBLY CONT.

1. Remove the Grill Ring from the Front Grill(11) by

loosening the screw holding it.

2. Place the Front Grill(11) against the Back Grill(9) so

the Hunter logo faces right side up and push together

until the tabs on the grills hold them together. Figure

15.

3. Slide the Grill Ring over both Front(11) and Back(9)

Grills turning it so the screw that will secure it is on

the bottom. Figure 16.

4. Tighten the Screw to secure the Grill Ring over the

Front and Back Grills.

5. Straighten the Cord from the Motor along the

Telescoping Pole and Snap the Cord Clip over the

cord onto the Pole so the cord rests in the notch on

the Clip. Figure 18.

(11)Front Grill

Hunter Logo

(12) Grill Ring

Screw

(9) Back Grill

Figure 18.

(13) Cord Clip

Cord

Notch

Figure 19.

High

Medium

Low

Off

Figure 20.

Figure 21.

OPERATION

To turn the fan on and off / control the speed. Turn the

speed knob on the top of the motor to the porper setting.

Figure 19.

Off / Speed Selection

Oscillation

To allow the fan to oscillate, push the Knob beside the fan

speed control down. Pull up on the knob if oscillation is

not desired. Figure 20.

Adjustment

To adjust the angle the fan is blowing.

1. Loosen the adjustment knob under the Fan Motor

2. Adjust the fan to the angle desired and retighten the

knob to secure the fan at that angle. Figure 21.

When adjusting the height of the fan, always grip the

pole above the adjustment knob firmly to prevent the

telescoping pole from collapsing.

Otros manuales para 90405

Tabla de contenidos

Otros manuales de Admirador de Hunter

Hunter

Hunter Original Manual de usuario

Hunter

Hunter Burroughs Manual de usuario

Hunter

Hunter 42747-01 Manual de usuario

Hunter

Hunter Captiva 21318 Manual

Hunter

Hunter Lake Cottage Manual de instrucciones

Hunter

Hunter 41892 Manual de usuario

Hunter

Hunter 41535-01 Manual de usuario

Hunter

Hunter Maribel Series Manual de usuario

Hunter

Hunter 42678-01 Manual de instrucciones

Hunter

Hunter 42616-01 Manual de usuario

Hunter

Hunter Lantern Bay Manual de usuario

Hunter

Hunter 20801 Manual de usuario

Hunter

Hunter 51481 Manual de usuario

Hunter

Hunter 90400 Manual de usuario

Hunter

Hunter 42650-02 Manual de instrucciones

Hunter

Hunter 52 Pro’s Best Manual de instrucciones

Hunter

Hunter 50486 Manual de usuario

Hunter

Hunter 21337 Manual

Hunter

Hunter 25601 Manual

Hunter

Hunter Baseball 23252 Manual de instrucciones

Hunter

Hunter 42687-01 Manual de instrucciones

Hunter

Hunter SPA SELECT 90051 Manual de usuario

Hunter

Hunter 90052 Manual

Hunter

Hunter Millington 51667 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje

Litex Industries

Litex Industries E-CGL52CB5C1 Manual de usuario

Lindab

Lindab LTDF Manual de usuario
