Installation and Operation Manual
For Hunter Ceiling Fans
41457-01 7/2000
®
SINCE 1886
241457-01 7/2000
®
3
41457-01 7/2000
®
CONGRATULATIONS!
Your new Hunter ceiling fan is an
addition to your home or office that
will provide comfort and perfor-
mance for many years. This manual
gives you complete instructions for
installing and operating your fan.
We are proud of our work. We ap-
preciate the opportunity to supply
you with the best ceiling fan avail-
able anywhere in the world.
Before installing your fan, record the
following information for your
records and warranty assistance.
Please refer to the carton and the
Hunter nameplate (located on top
outside fan motor housing) for the
proper information.
© 2000 Hunter Fan Co.
7/2000
Model Name __________________
Catalog No. ___________________
Serial No. _____________________
Date Purchased ________________
Where Purchased ______________
_____________________________
Please attach your Hardware Sheet
and Exploded View Sheet to this
manual for future reference.
Attach Your Receipt
or a Copy of
Your Receipt Here
441457-01 7/2000
®
CONTENTS
Important Information....................................................................................................................................... 5
Step 1 - Getting Ready ...................................................................................................................................... 6
Step 2 - Installing the Ceiling Plate.................................................................................................................... 8
Step 3 - Assembling Pipe/Ball Assembly........................................................................................................... 10
Step 4 - Assembling the Fan............................................................................................................................ 12
Step 5 - Hanging the Fan ................................................................................................................................ 14
Step 6 - Installing the Remote ......................................................................................................................... 15
Step 7 - Wiring the Fan ................................................................................................................................... 18
Step 8 - Attaching the Canopy........................................................................................................................ 20
Step 9 - Assembling Fan Blades....................................................................................................................... 21
Step 10 - Attaching the Switch Housing.......................................................................................................... 23
Step 11 - Installing Light Fixture ...................................................................................................................... 26
Operating Your Hunter Fan and Remote ......................................................................................................... 30
Cleaning and Maintenance ............................................................................................................................. 32
Troubleshooting .............................................................................................................................................. 33
5
41457-01 7/2000
®
IMPORTANT INFORMATION
not lock the circuit break-
ers in the off position, se-
curely fasten a prominent
warning device, such as a
tag, to the service panel.
• All wiring must be in accor-
dance with national and lo-
cal electrical codes and
ANSI/NFPA 70. If you are
unfamiliar with wiring, you
should use a qualified elec-
trician.
• To reduce the risk of per-
sonal injury, do not bend
the blade attachment sys-
tem when installing, bal-
ancing, or cleaning the fan.
Never insert foreign objects
between rotating fan
blades.
DO YOU NEED HELP?
To install a ceiling fan, be sure you
can do the following:
• Locate ceiling joist or other suit-
able support in ceiling.
• Drill holes for and install wood
screws.
• Identify and connect electrical
wires.
• Lift 40 pounds.
If you need help installing the fan,
yourHunter fandealer candirectyou
to a licensed installer or electrician.
• To reduce the risk of fire,
electrical shock, or motor
damage, do not use a solid-
state speed control with
this fan. Use only Hunter
speed controls.
WARNINGS
• To avoid possible electrical
shock, before installing
your fan, disconnect the
power by turning off the
circuit breakers to the out-
let box and associated wall
switch location. If you can-
CAUTIONS
• Read entire booklet care-
fully before beginning in-
stallation and save these
instructions.
• To reduce the risk of per-
sonal injury, attach the fan
directly to the support
structure of the building ac-
cording to these instruc-
tions, and use only the
hardware supplied.
641457-01 7/2000
®
GATHERING THE TOOLS
You will need the following tools for
installing the fan:
• Electric drill with 9/64" bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
OPTIONAL ACCESSORIES
Consider using Hunter’s optional ac-
cessories, including a wall-mounted
orremotespeedcontrol.Toinstall and
usethe accessories, followthe instruc-
tions included with each product.
For quiet and optimum performance
of your Hunter fan, use only Hunter
speed controls.
STEP 1 - GETTING READY
PREPARING THE FAN SITE
Thelocation of aceiling fanand how
the fan is attached to the building
structure are essential for reliable
operation, maximum efficiency, and
energy savings. For this reason, we
have included a separate booklet —
“Guide to Choosing and Preparing
a Ceiling Fan Site” — to help you
select the best location for your fan.
The booklet also provides informa-
tion to ensure your fan support and
electricoutlet boxmeet UL-approved
safety codes for ceiling fans.
The instructions in this installation
manual assume that you have used
“Guide to Choosing and Preparing
a Ceiling Fan Site” to pick the fan
locationand makecertainthe proper
fan support and outlet box are in-
stalled.
CHECKING YOUR FAN PARTS
Carefully unpack your fan to avoid
damage to the fan parts. Check for
any shipping damage to the motor
orfan blades.If oneof thefan blades
was damaged in shipment, return all
the blades for replacement.
Hint: If you are installing more than
one fan, keep the fan blades
in sets, as they were shipped.
The fan includes a separate diagram
of the screws and other small parts
needed for the fan. Keep this dia-
gramhandy foridentifying parts dur-
inginstallation; thediagramindicates
the step in which each part is used.
If any parts are missing or damaged,
contact your Hunter dealer or call
Hunter Parts Department at
901-248-2222.
7
41457-01 7/2000
®
INSTALLER’S CHOICE®
This patented 3-position mounting
systemprovidesyoumaximum instal-
lation flexibility and ease. You can
installyour Hunterfan in oneof three
ways. The steps in this manual in-
cludespecific instructions forthe fan
mountingmethod ofyourchoice. For
a ceiling 8 feet or higher, standard
mounting is recommended.
Flush Mounting (Figure 1a) fits
close to the ceiling, for low ceilings
less than 8 feet high.
Standard Mounting (Figure 1b)
hangs from the ceiling by a connec-
torpipe (included), forceilings 8 feet
or higher. For ceilings higher than
eight feet, you can purchase Hunter
extension rods. All Hunter fans use
sturdy 3/4" diameter pipe to assure
stability and wobble-free perfor-
mance.
Angle Mounting (Figure 1c) hangs
from a vaulted or angled ceiling.

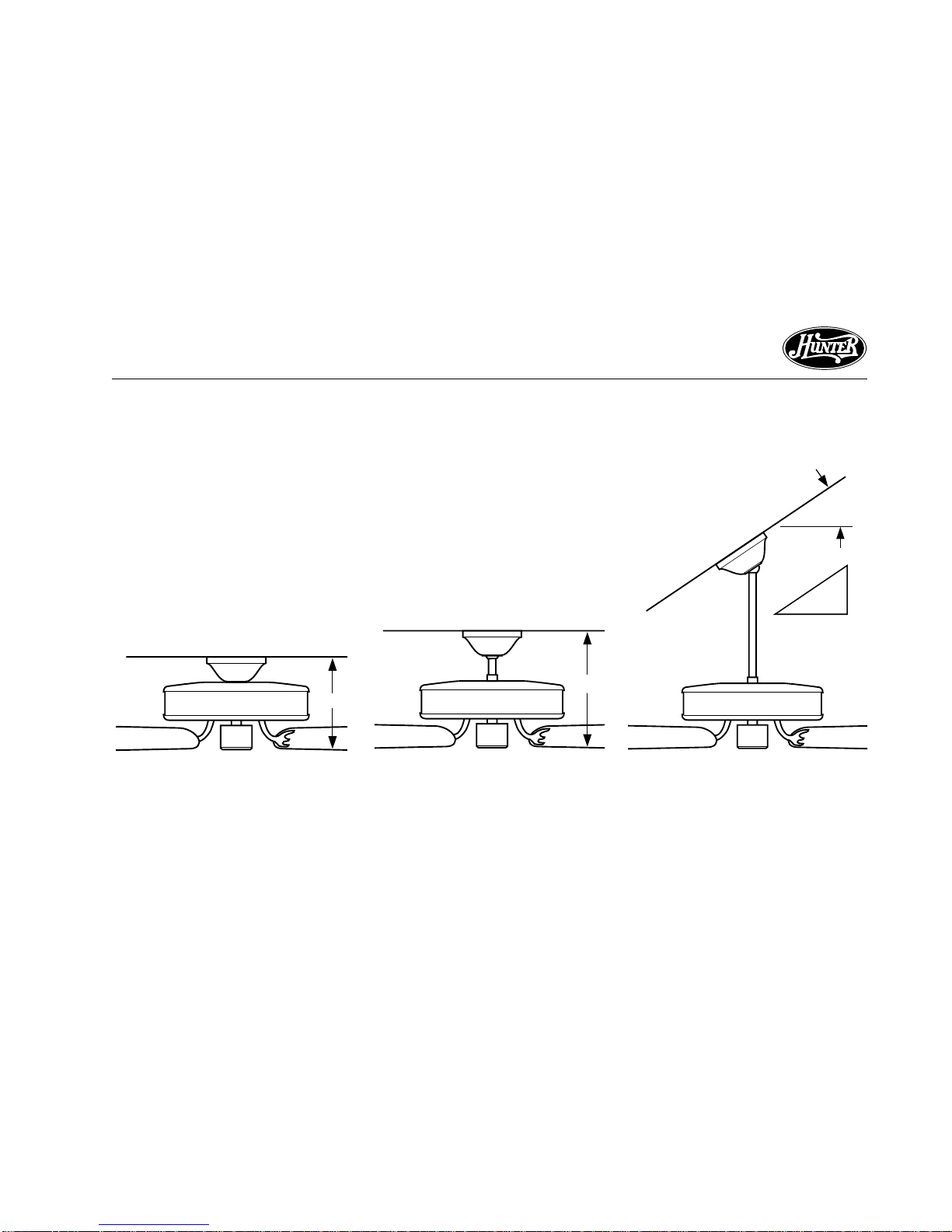

Figure 1c - Angle Mounting
Figure 1b - Standard Mounting
Figure 1a - Flush Mounting
10"
12"
34°Max
Pitch
12
8
841457-01 7/2000
®
STEP 2 - INSTALLING THE CEILING PLATE
4. Align the slotted holes in the ceil-
ing plate with the pilot holes in
the wood support structure.
Note: The isolation pads should
be flush against the ceiling.
1. Drill twopilotholes intothe wood
support structure through the
outermost holes on the outlet
box. The pilot holes should be
9/64" in diameter by 2 3/4" in
depth.
2. Bring the lead wires around the
sidesof the ceilingplate. Thread-
ing the lead wires through the
hole in the middle may cause
problems when installing the re-
mote and trying to close the
canopy.
3. Your fan comes with two neo-
prenenoise isolators.Position the
isolatorsbetween theceilingplate
and ceiling by inserting the raised
areas on each isolator into the
holes in the ceiling plate. Refer to
Figure 2a.
Figure 2a - Adding Isolators to Ceiling
Plate Figure 2b - Correct Position of Ceiling
Plate for Angle Mounting
Ceiling Plate
Hooks
Isolators
Ceiling
Plate
For Angle Mounting Only: Be
sure to orient the ceiling plate so
that the two hooks point up to-
wards the ceiling peak as shown
in Figure 2b. Note: You will use
the hooks to support the fan
while wiring the fan.
9
41457-01 7/2000
®
Figure 2c - Attaching Ceiling Plate to
2 x 4 Brace
2 x 4 Brace
Ceiling Joist
Ceiling
Outlet Box
Ceiling
Plate
Flat
Washer 3" Wood
Screw
5. Placea flat washeron each ofthe
two 3" screws and pass the
screws through the slotted holes
in the ceiling plate as shown in
Figure 2c.
6. Tightenthe screwsinto the9/64"
pilot holes; do not use lubricants
on the screws. Do not over-
tighten.
10 41457-01 7/2000
®
continued
As discussed in STEP 1 - GETTING
READY, your Hunter fan can be in-
stalled in a standard mounting posi-
tion.
Included with the fan are two pipes:
one 3" long pipe/ball assembly for
standard mounting on 8' ceilings and
one 12" long pipe for 9' ceilings and
higher. See Figure 3a.
If you are going to install the fan us-
ing the standard mounting, go to
STEP 4 - ASSEMBLING THE FAN.
If you are going to install the fan us-
ing the 12" long pipe for 9' ceilings
or higher, complete the steps below.
STEP 3 - ASSEMBLING PIPE/BALL ASSEMBLY
3. Remove the ball from the pipe.
4. Remove the pin from the pipe.

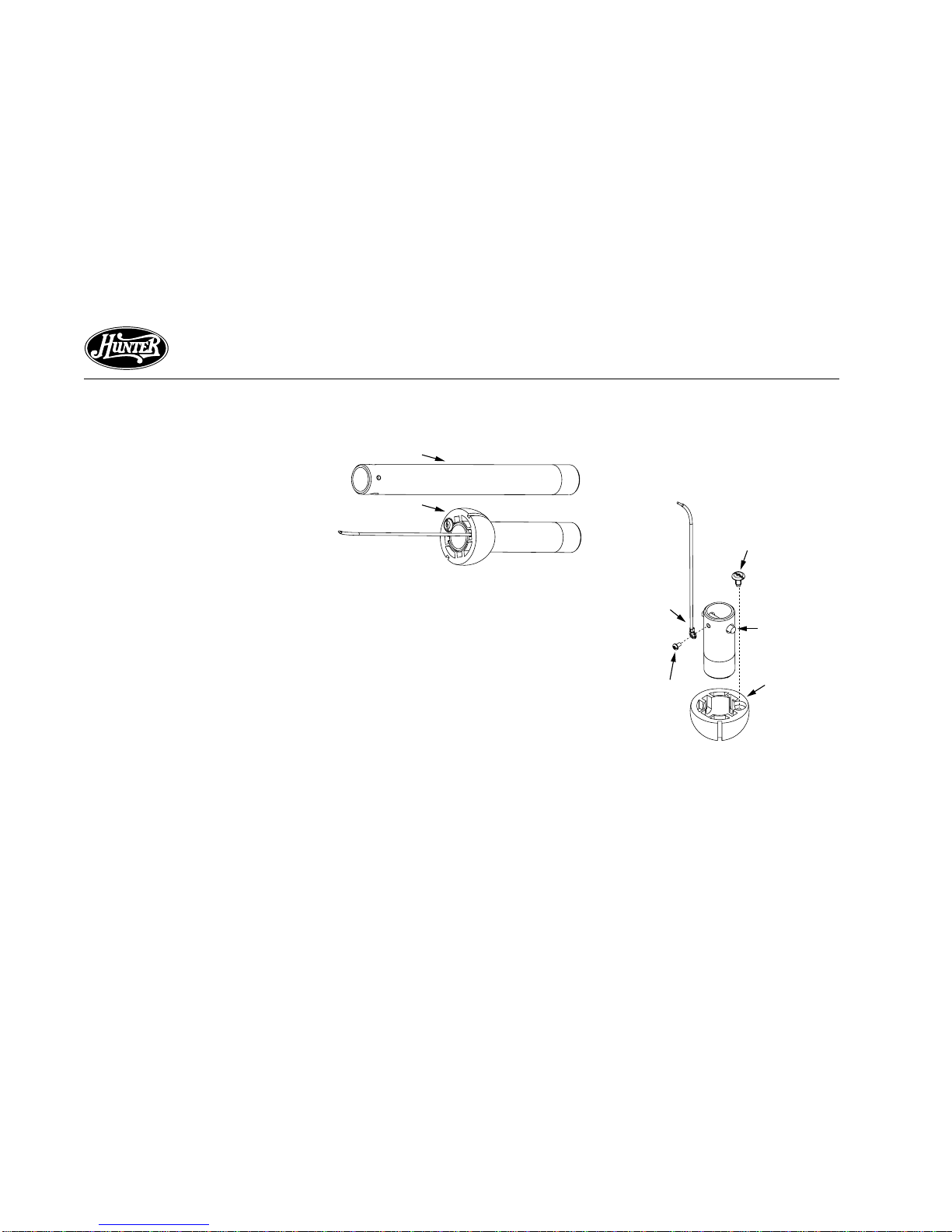

Figure 3a - Pipes
Figure 3b - Removing ball assem-
bly
REMOVING BALL ASSEMBLY
For the following steps refer to
Figures 3b and 3c.
1. Locate the 3" pipe/ball assembly.
2. Remove the positioning screw
from the top of the ball.
NOTE: The ball will become
loose and should slide down the
pipe.
3" Pipe/Ball
Assembly
12" Pipe
Pin
Positioning Screw
Leadwire
Assembly
Ball
Ground
Screw
