Hunter ICC2 Manual de usuario

ICC2

MODULAR RESIDENTIAL AND COMMERCIAL

IRRIGATION CONTROLLER

Owner’s Manual

• I2C-800-PL: 8-station base model, expandable to 38 stations, plastic outdoor cabinet

• I2C-800-M: 8-station base model, expandable to 54 stations, gray metal outdoor cabinet

• I2C-800-SS: 8-station base model, expandable to 54 stations, stainless steel outdoor cabinet

• I2C-800-PP: 8-station base model, expandable to 54 stations, plastic pedestal

Date/TimeSystem O

Start Times

Run Times

Water Days

Solar Sync®

Manual

Seasonal Adjust

4hunter.direct/ICC2help

Specications

OPERATING SPECIFICATIONS

• Number of Stations: Modular design expandable from

8 to 38 (plastic), 8 to 54 (metal)

• Station Run Time: 1 minute up to 12 hours

• Start Times: 8 per program, 4 independent

programs (A, B, C, and D)

• Simultaneous Program Operation: 2

• Sensor Inputs: 1

• Pump/Master Valve Outputs: 1

• Watering Schedule: 7-day calendar, interval watering up

to a 31-day interval or true odd or even day programming

DIMENSIONS

PLASTIC CABINET

• Height: 12" (30.5 cm)

• Width: 13.7" (34.8 cm)

• Depth: 5" (12.7 cm)

METAL CABINET GRAY OR SS

• Height: 16" (40.6 cm)

• Width: 13" (33 cm)

• Depth: 5" (12.7 cm)

METAL PEDESTAL GRAY OR SS

• Height: 36" (91.4 cm)

• Width: 11.5" (29.2 cm)

• Depth: 5" (12.7 cm)

PLASTIC PEDESTAL

• Height: 39" (99.1 cm)

• Width: 24" (61 cm)

• Depth: 17" (43.2 cm)

ELECTRICAL SPECIFICATIONS

• Transformer Input: 120 VAC, 60 Hz

(230 VAC, 50/60 Hz international use)

• Transformer Output: 24 VAC, 1.4 A

• Station Output: 24 VAC, up to 0.56 A

• Pump/Master Valve Output: 24 VAC, up to 0.56 A

• Battery: 9-volt alkaline battery (not included) used only

for non-AC programming; non-volatile memory maintains

program information

• Front Panel Battery: Internal CR2032 lithium (included)

for real-time clock

APPROVALS

• CE, UL, cUL, FCC, RCM

• Plastic Cabinet: IP44, NEMA 3R

• Metal Cabinet (Gray or SS): IP44, NEMA 3R

• Metal Pedestal (Gray or SS): IP44, NEMA 3R

• Plastic Pedestal: IP24, NEMA 3R

DEFAULT SETTINGS

• All stations are set to zero run time. This controller has a

non-volatile memory that retains all entered program data

even during power outages, without the need for a battery.

Built on Innovation®5

Components

Date/TimeSystem O

Start Times

Run Times

Water Days

Solar Sync®

Manual

Seasonal Adjust

ICC2 Components

DISPLAY SCREENS

1. Station Running: Indicates when watering occurs.

2. Sprinkler O Days: Indicates watering will not occur on

selected day.

3. Program Indicators: Identies the program in use (A, B,

C, or D).

4. Water Days Symbol: Choose desired watering days.

5. Solar Sync Symbol: Indicates optional Hunter Solar Sync

sensor is in use.

6. Days of the Week: Monday–Sunday.

7. Season Adjust %: Indicates seasonal adjustment

percentage (increments of 5%).

8. Time Mode (AM/PM/24): Select AM, PM, or 24 HR

display.

9. Rain Sensor Active/Override: Indicates if sensor is set to

active or bypass.

10. Run Time Symbol: User can set each station run time from

1 minute to 12 hours.

11. Start Time Symbol: Schedule up to 8 start times per

program in 15-minute increments.

12. Odd/Even/Interval Days: Indicates if odd, even, or interval

watering days are selected.

CONTROL BUTTONS

+Plus Button: Increases selected ashing display.

- Minus Button: Decreases selected ashing display.

►Forward Arrow: Advances selected ashing display to the

next item; also use to start manual cycle.

◄Back Arrow: Returns selected ashing display to the

previous item.

PRG Program Button: Selects and programs (A, B, C, or D);

also used to start a test program.

RAIN SENSOR Sensor Bypass Switch: Use to bypass optional

Hunter “Clik-type” sensors.

Control Buttons

Sensor Bypass Switch





















6hunter.direct/ICC2help

Components

Date/TimeSystem O

Start Times

Run Times

Water Days

Solar Sync®

Manual

Seasonal Adjust

CONTROL DIAL

1. Run: Normal dial position for automatic operation.

2. Date/Time: Set current date and time.

3. Start Times: Set 1 to 8 start times in each program.

4. Run Times: Set each station run time.

5. Water Days: Select individual, odd, even, or interval

watering days.

6. Pump: Turn pump or master valve on or o for each

station.

7. Seasonal Adjust: Change all run times in all programs by a

percentage (5% to 300%).

8. Solar Sync: Set up and adjust option for Hunter Solar

Sync sensor.

9. Manual: Immediately activate a one-time watering of a

single station.

10. System O: Used to stop all watering until the dial is

returned to the RUN position.

Date/TimeSystem O

Start Times

Run Times

Water Days

Solar Sync®

Manual

Seasonal Adjust



 



 





Built on Innovation®7

Components

WIRING COMPARTMENT

1. Facepack/Control Panel: Primary console for

programming the controller.

2. Power Module: Provides power to the controller and must

be in place for controller to operate; contains 24 VAC,

sensor, remote, and P/MV terminals.

3. SmartPort Connector: Enables use of Hunter ROAM and

ROAM-XL remotes.

4. Transformer: Pre-installed with 120 VAC, 230 VAC, neutral,

and ground wires (includes additional earth grounding lug

for supplemental lighting protection).

5. Battery Compartment: Without AC power, a 9-volt battery

(not included) allows programming, while a 3-volt CR2032

lithium battery (included) keeps real-time clock.

6. Ribbon Cable: Connects facepack to power module, and

transmits information from the control panel to the inner

controller assembly.

7. Station Output Modules: Plug-in station modules used to

expand controller capacity in increments of 4, 8, and 22

stations (ICM-400, ICM-800, and ICM-2200).

8. Door Lock: Pre-installed lock assembly with 751 key

(alternative 701, 702, or 703 key/lock assemblies also

available).

PLASTIC CABINET

METAL CABINET

















8hunter.direct/ICC2help

Mounting the Controller

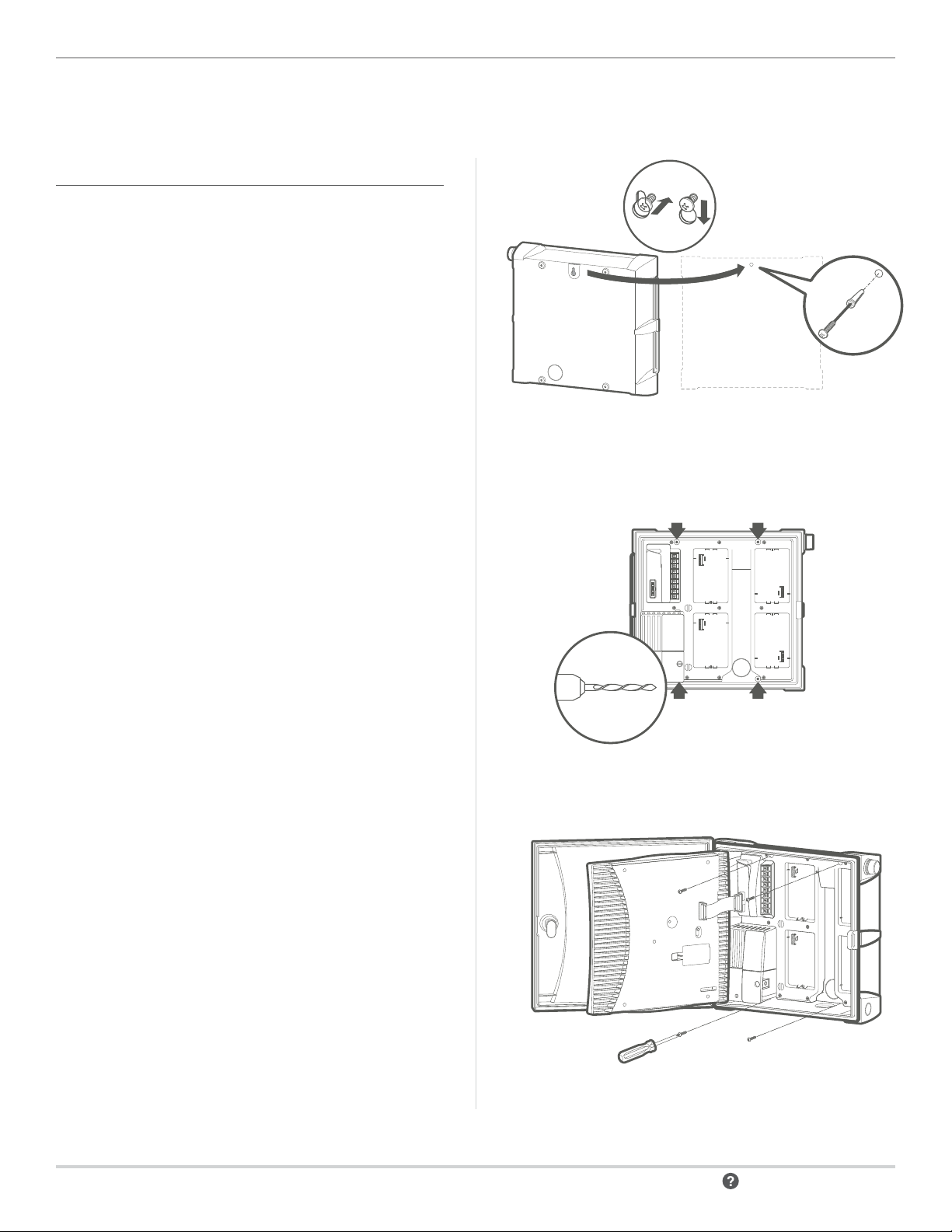

PLASTIC CABINET WALL MOUNTING

1. Remove door and control panel for easier access. Use the

enclosed hole template to mark and drill mounting holes.

Be sure to leave enough room to open the door. Install

screw anchors if attaching to drywall or masonry wall.

2. Secure a 1" (25 mm) screw into the wall, leaving ¼" (6 mm)

free of the wall. Slide the top center keyhole on the rear of

the controller over the screw and hang the cabinet on the

screw head.

-Drill four pilot holes for the remaining mounting screws.

-Secure the controller in place by installing screws in the

four remaining holes from inside the cabinet. Re-attach

the control panel and the door.

Wall Mounting

Wall Mounting, plastic box.2

Built on Innovation®9

Mounting the Controller

METAL CABINET WALL MOUNTING

1. Remove door and control panel for easier access. Use the

enclosed hole template to mark and drill mounting holes.

Be sure to leave enough room to open the door. Install

screw anchors if attaching to drywall or masonry wall.

2. Secure a 1" (25 mm) screw into the wall, leaving ¼" (6 mm)

free of the wall. Slide the top center keyhole on the rear of

the controller over the screw and hang the cabinet on the

screw head.

-Drill four pilot holes for the remaining mounting screws.

-Secure the controller in place by installing screws in the

four remaining holes from inside the cabinet. Re-attach

the control panel and the door.

Wall Mounting

Wall Mounting, Metal box.3

10 hunter.direct/ICC2help

Mounting the Controller

METAL PEDESTAL MOUNTING

1. ICC-PED or ICC-PED-SS

2. ICC Pedestal Door

3. Pedestal Mounting Template

4. Nut, #10-32 (qty: 2)

5. Screw, #10-32 x ⁄" (qty: 2)

6. Lock

7. Pedestal Mounting J-Bolt (qty: 4)

8. Nut, Hex ⁄" (qty: 8)

9. Washer, Flat ⁄" (qty: 8)

10. 2" Conduit Nipple

11. 2" Conduit Locknut

12. Hex Nut, Door Lock

13. ⁄" Conduit Coupler

14. ⁄" Conduit Nipple





























Built on Innovation®11

Mounting the Controller

PREPARE THE CONCRETE

1. Prepare a form for a concrete pad, approximately

20" W x 16" D x 4" H (50 cm W x 40 cm D x 10 cm H) at grade

level. Slope the concrete downward away from the pedestal.

2. Install the J-bolts and wire sweeps (power supply, ground

wire, and irrigation control conduits) in the template and

position them in the opening.

3. Remove the pedestal door and attach the base of the

pedestal to the J-bolts in the concrete slab.

INSTALL CONTROLLER ON THE PEDESTAL

Before installing controller to pedestal, ensure all necessary

conduit plugs are removed from the bottom of the controller.

1. Secure the controller by inserting 2" conduit nipple up

through the top of the pedestal into the bottom of the

controller, and tighten the locknut on the threads.

2. Remove the wiring compartment cover from the front of

the transformer junction box, and secure the controller

with ⁄" conduit coupler and nipple.

3. Insert two #10-32 screws down through screw holes on

the bottom right side of the cabinet, and tighten with

corresponding nuts.



  



PLASTIC PEDESTAL MOUNTING

1. Mount the irrigation controller pedestal to the

concrete form.

2. Electrical supply conduit: Connect to power source;

J-box inside controller.

3. Ground wire conduit: Ground per ASIC guidelines.

4. Run irrigation control wire through conduit per local codes.

5. Pedestal base per plan: Ensure positive drainage away

from pedestal.

Note: Controller shall be hardwired to grounded 120 VAC or

230 VAC (international) power source.

12 hunter.direct/ICC2help

Connecting AC Power

1. Turn o AC power at the source and verify it is o.

2. Disconnect the facepack ribbon cable, and remove the

facepack from the cabinet.

3. Remove the screw and wiring compartment cover from

the front of the transformer junction box.

Wiring Controller Power

Otros manuales para ICC2

Tabla de contenidos

Otros manuales de Controladores de Hunter

Hunter

Hunter Hydrawise HC-1200M Instrucciones de montaje

Hunter

Hunter Node Manual de usuario

Hunter

Hunter ACC2 Manual de instalación

Hunter

Hunter XC Hybrid Instrucciones de funcionamiento

Hunter

Hunter X-CORE XC-2 Instrucciones de funcionamiento

Hunter

Hunter X-Core XC-801i-E Instrucciones de funcionamiento

Hunter

Hunter X-CORE Instrucciones de funcionamiento

Hunter

Hunter i-core IC-600PL Manual de usuario

Hunter

Hunter Pro-C Instrucciones de funcionamiento

Hunter

Hunter Pro-C Manual de usuario

Hunter

Hunter i-core IC-600PL Instrucciones de funcionamiento

Hunter

Hunter NODE-100 Instrucciones de funcionamiento

Hunter

Hunter X-CORE Manual de usuario

Hunter

Hunter SRC Plus Manual de usuario

Hunter

Hunter PSC-Z Series Instrucciones de funcionamiento

Hunter

Hunter NODE-100 Manual de usuario

Hunter

Hunter 600-Z Manual de usuario

Hunter

Hunter Hydrawise HC-1200M Manual de usuario

Hunter

Hunter 99373 Manual de usuario

Hunter

Hunter PRO-C P2C Series Instrucciones de funcionamiento

Hunter

Hunter Hydrawise HC-1200M Manual de usuario

Hunter

Hunter Hydrawise Ready Manual de usuario

Hunter

Hunter ICC2 Manual de usuario

Hunter

Hunter ICC-800PL Instrucciones de funcionamiento

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
