REMOVING AN ARMREST

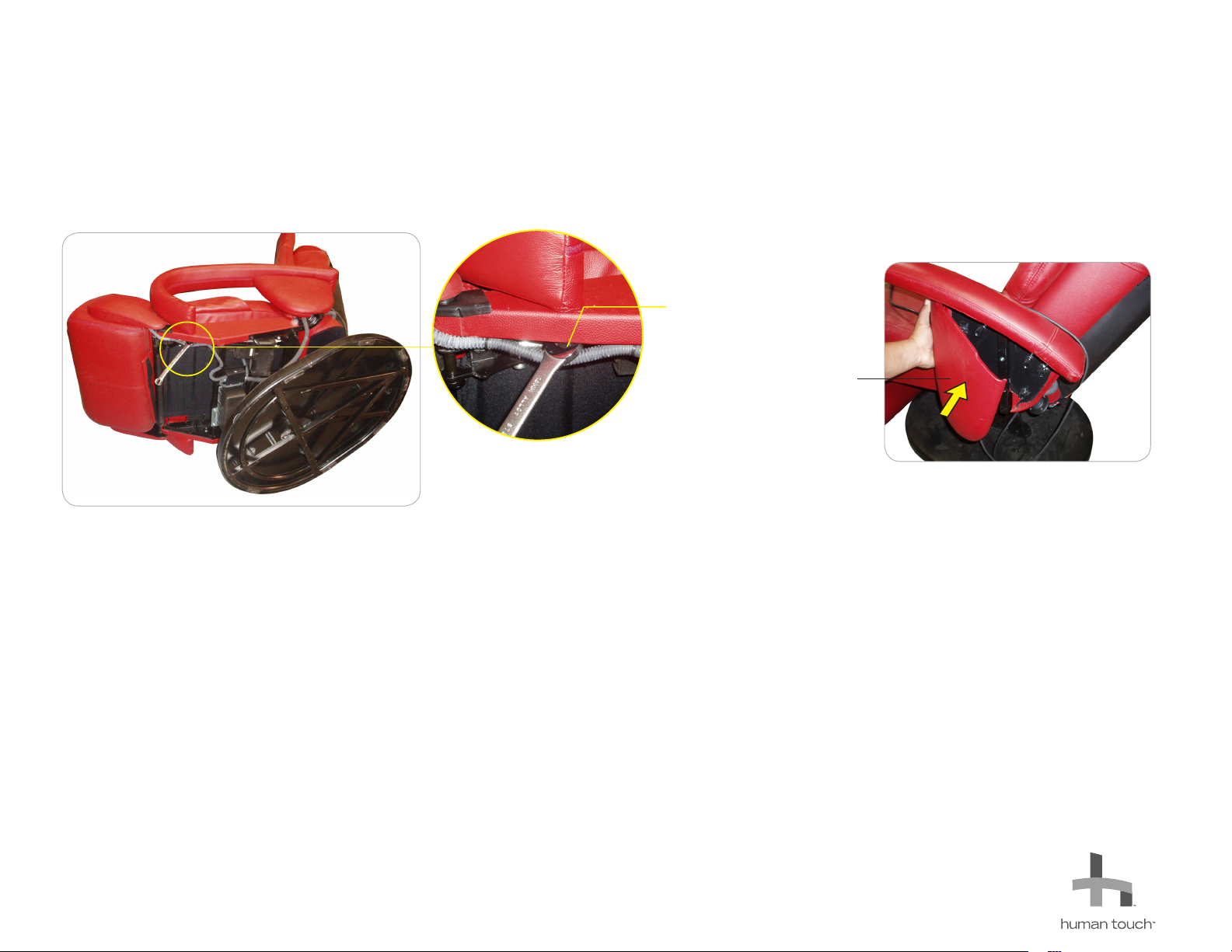

1. On the bottom of the chair near the front, locate the bolt

that secures the armrest to the chair frame, then loosen the

bolt as far as possible using a 16-mm wrench (Fig.2).

2. Pull up on the armrest to provide further access to the bolt,

then remove the bolt.

3. Using your hand, pry off the side panel (Fig.3).

1. Power off the chair and unplug it.

2. Using two people, turn the chair gently on its side, with the armrest you wish to

replace on top (Fig.1).

GET READY

(Fig.1)

X1103

October 17, 2010

Tools Required: Phillips-head screwdriver, 16-mm wrench. NOTE: SAVE ALL SCREWS FOR USE DURING REASSEMBLY.

REPLACING AN ARMREST

HT-125

It is imperative that Human Touch® products are repaired in a manner that ensures product safety and regulatory compliance and that is fully consistent with the practices used

during the manufacturing process. Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair

instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.

SERVICE LEVEL: 2

(Fig.2)

Front of chair

(Fig.3)

Side panel

Back of chair

Bolt here

1. Slide the new armrest into place. The tab at the bottom of the armrest installs into a slot on the chair frame (Fig.5).

2. Using a Phillips-head screwdriver, replace the screw to secure the new armrest to chair frame (Fig.5).

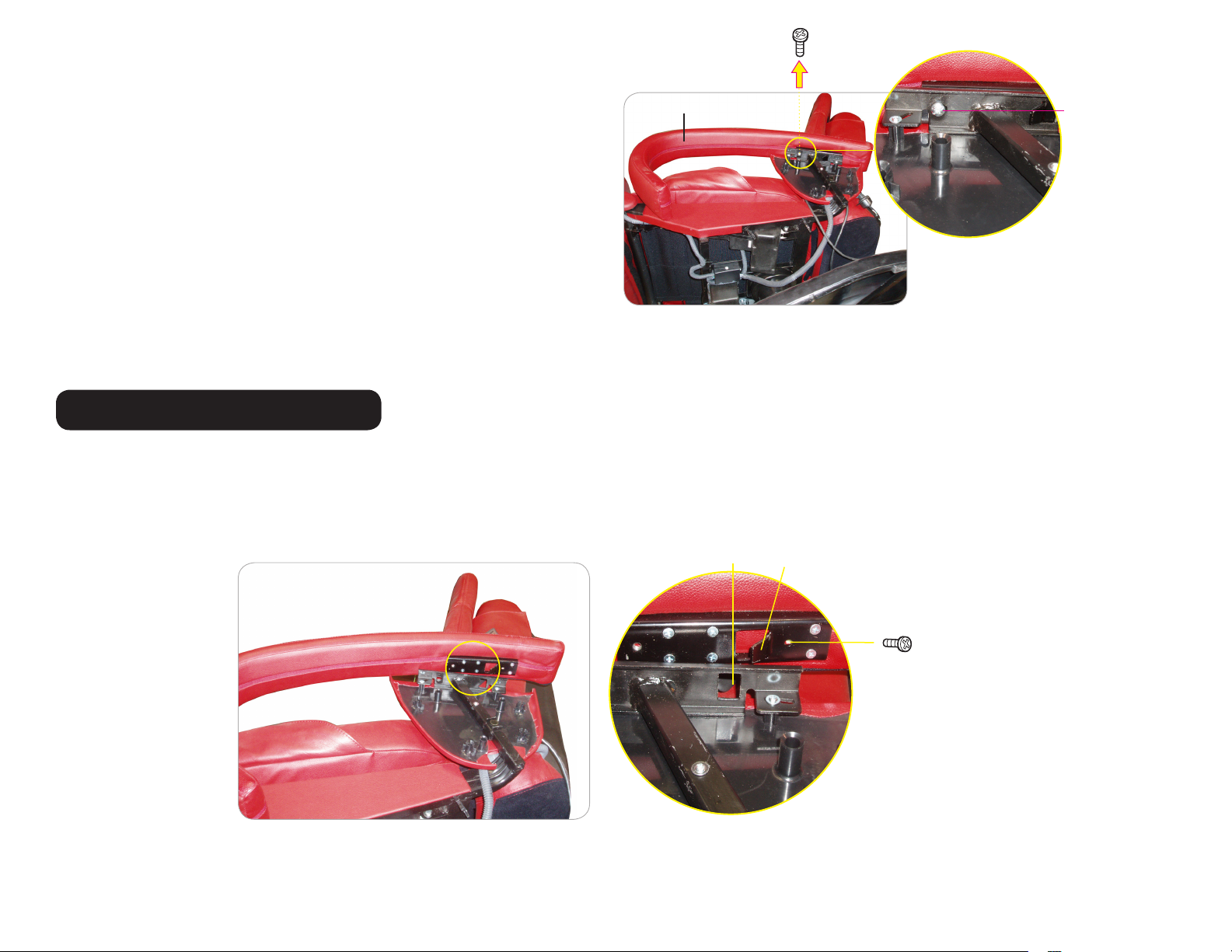

4. Locate the Phillips-head screw toward the back of the armrest that

secures the armrest to the chair frame (Fig.4).

5. Using a Phillips-head screwdriver, remove the screw and then push the

armrest toward the back of the chair to remove it.

(Fig.4)

Phillips-head screw

Armrest

INSTALLING THE NEW ARMREST

(Fig.5)

Phillips-head screw

goes here to secure

armrest to frame

Tab

Slot

3. Using a 16-mm wrench, replace the bolt that secures the armrest to the chair base (Fig.6).

4. Replace the side panel by aligning the post on the inside of the panel with the corresponding guides on the chair,

then pushing the cover into place (Fig.7).

(Fig.6)

(Fig.7)

Side panel

Please send any questions or comments regarding these instructions to: [email protected]

Bolt
