User Manual

Intended Use

Levanto

The Levanto is an electric sit-to-stand device

that encourages a natural standing motion

and is designed for standing, sitting, dressing,

toileting and balance training for users with low

core strength.

The Levanto can be used for transfer from the

following:

- To/from a wheelchair

- To/from a toilet

- To/from a bed/stretcher

Human Care’s products are continuously being

developed and updated and we reserve the

right to make design changes without prior

notice.

Important!

You must read the user manual for your

device prior to usage. Keep this booklet

and information handy for future use.

Symbols

Safety Instructions

WARNING symbol indicates a potentially

hazardous situation which, if not avoided,

could result in serious injury to the user

or damage to property and/or the device

itself.

INFORMATION symbol indicates

recommendations and information for

proper, trouble-free usage.

WEIGHT CAPACITY symbol indicates

maximum user weight for the product. Do

not exceed this weight in any circumstance.

CE MARKING symbol indicates product

meets requirements of EC directives.

RECYCLE packaging according to local

regulations.

READ INSTRUCTIONS and ensure you fully

understand them before using this product.

Product Benefits

For the patient

• Natural motion pattern

• Ideal for rehabilitation exercises

• Non-slip footplate surface

For the caregiver/facility

• Electronic leg spreading

• Shorter legs for easy maneouvring

• Helps prevent caregiver injury

4www.humancaregroup.com

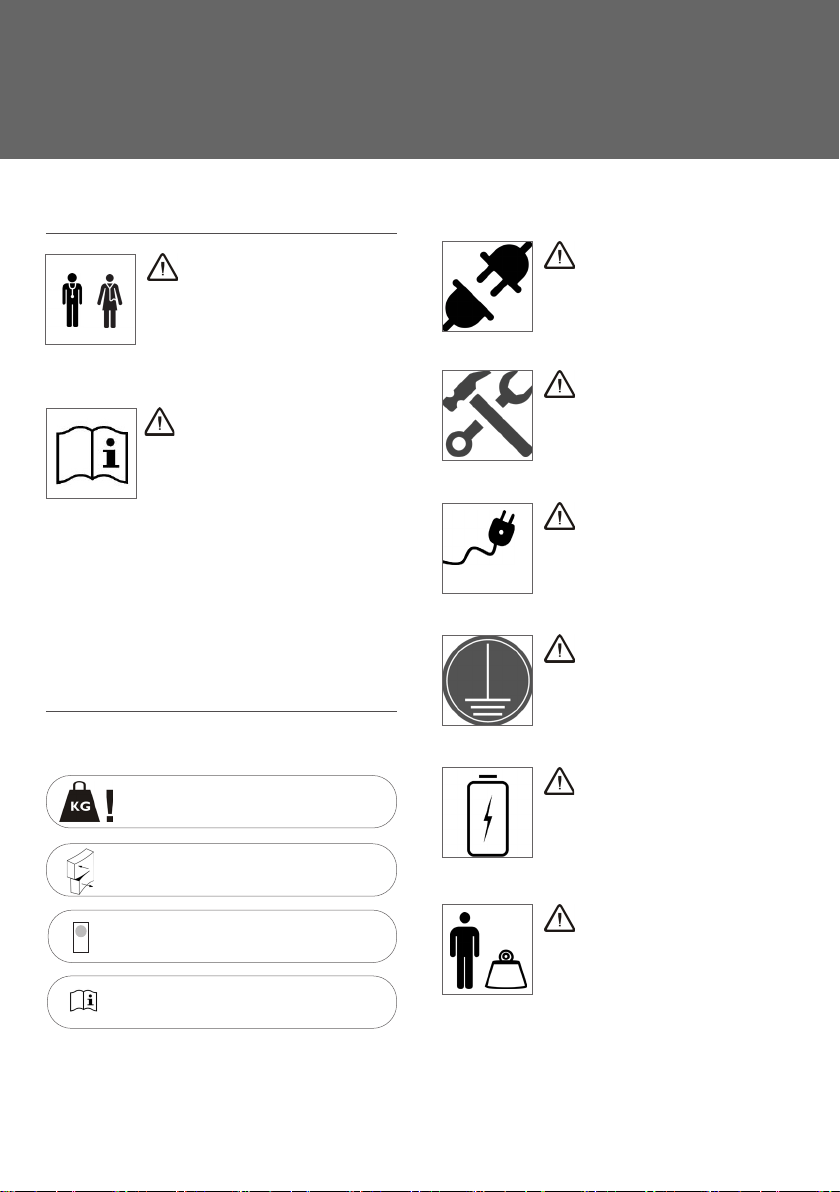

Warnings

The decision to use this equipment

must be made by a trained

professional. In all cases, this product

can only be articulate when the

patient is attended.

If you are unable to understand

the warnings, cautions and/or

instructions, contact a healthcare

professional, dealer or technical

personnel (if applicable) before

attempting to use this equipment.

Using this equipment without fully

understanding it may result in injury

or damage.

DO NOT USE the product if,

Weight capacity is exceeded.

Product is damaged in any way.

The sling clips are not securely and

adequately fastened.

You have not read and understood all

warnings and instrucons.

Warnings

Do not touch any parts which may

have leakage current and the patient

simultaneously.

Disconnect the power supply during

maintenance.

Product modification is not permitted

and will void the warranty. Service

and maintenance must only be done

by qualified personnel.

Use only the supplied power supply.

Use only replacement parts supplied

by Human Care.

To avoid the risk of electric shock, this

equipment must only be connected to

a supply main with protective earth.

Maximum user weight 160kg /

352.7lb.

ENGLISH

www.humancaregroup.com 5

Check the Levanto prior to each use to ensure it is not damaged in any way. Do not use if

there are any signs of wear and damage on any part of the device.

Only qualified persons should use

this equipment.

Under some circumstances, more

than one caregiver may be needed

to assist with the patient.

The Levanto should only be utilized

on a hard, even and clean floor clear

of any obstacles. It should never be

used on an incline or decline.

General Care and Use

Assess the patient’s ability prior to

using this product. Only use this

product for its intended purpose.

The right type, size, material and

design of accessories have been

selected by a professional with

respect to the client´s safety and

needs.

Facility administrator and/or risk

management department should

approve all patient handling

protocols associated with this

mobile lift prior to use.

Prior to using on a patient, it is

strongly recommended that training

or practice with other caregivers is

done until the user is comfortable

with using the product.

This product is intended for indoor

ambient environments. It is not

intended for use in high moisture

areas (i.e. showers, pool therapy),

extreme temperature, humidity or

pressure environments.

The Levanto may only be used with

Human Care products.

Charging of batteries should always

be done in a well ventilated space.

Inspect the charger regularly.

The Levanto is designed to be used

only with one patient at a time.

Never use this product to lift a

patient along with other furniture.

6www.humancaregroup.com

Components

6. Front Wheel

7. Rear Wheel (with brake)

8. Hand Control (not shown)

9. Footplate (not shown)

1. Lift Arm

2. Push Handle

3. Battery/Control Box Unit

4. Actuator

5. Shin Pads

ENGLISH

www.humancaregroup.com 7

Technical Specifications

Descripon

Part no. 20000170

Width 68.7cm / 27”

Length 110cm / 43.3”

Height Arm Lowered: 88.9cm / 35”

Arm Raised1: 164.8cm / 64.9”

Height (from oor) 11.9cm / 4.7”

Adjustable Leg2(Min- Max) 67.9cm- 113.1cm / 26.7”- 44.5”

Sound Level 48dB (loaded) while liing

52dB (loaded) while spreading legs

IP Rang IPX4

Turning Radius 128cm / 50.3”

Wheels Front: 10cm / 4”

Rear: 12.5cm / 5”, with brake

Baery 24V DC, 2 x 12V/2.9Ah

Li-Ion accu, 24V DC/2.9Ah

Motor Liing: 24V DC, 8A max, 8kN, 10% duty cycle

Spreading: 24Vdc, 2. 3A max, 1.5kN, 10% duty cycle (2x)

Control Box 24Vdc, 10A max, 10% duty cycle

Charger Primary: 100-240VAC50 / 60Hz, 400mA

Secondary: 28.5VDC 37-53W

Approvals EN60601-1, EN60601-2

Weight 49kg / 108lb

Weight Capacity 160kg / 352.7lb

1 Measurement based on arm mast at highest seng 2Outside measurement

8www.humancaregroup.com

The product label contains information about

the device and is located on the right side, close

to the mast.

This product has been tested by an accredited

test institute and complies with the necessary

requirements in accordance with medical

requirements as follows: EN 10535, EN 60601-1

(Electrical Safety) and EN 60601-1-2 (EMC). This

product is CE marked.

Product Label

Symbols on the unit and product label:

CE Marking

Date of manufacture

Manufactured for Human Care

Maximum load

Instrucons: Read the instrucons and

make sure you understand them before

use

Part number/reference number

Serial number

Warning

The device contains electronics and it

must be recycled appropriately

Applied part type B: approved for

physical contact with paents (IEC

60601-1)

Product Symbols

ENGLISH

www.humancaregroup.com 9

Understanding the Components

1. Arm up

2. Arm down

3. Open legs

4. Close legs

3 4

Understanding the Control Box

1. Control funcons up/down

2. Emergency Stop

3. Mains socket

Understanding the Hand Control Emergency Stop

Use the emergency stop to turn o the li when

not in use to reduce the baery discharge.

Press the emergency stop

button located on the side

of the control box to stop

the lift.

Turn the button clockwise to

release the emergency stop.

10 www.humancaregroup.com

Battery

Always ensure that baery is suciently charged

before using this li. The baery will not charge if

the emergency stop is engaged.

The baery in this device is located in the module

along with the control box.

These batteries have a tamper proof seal that is

located on the battery to make it easier to see if

the battery has been tampered/replaced by a non-

authorized person. This seal should be replaced

after battery replacement.

Changing the Battery

Remove all external cables

from the control box. Remove

from frame.

On the back side of the

module, unscrew and remove

the 7 torx screws on the rear

of the control box/battery

module to open.

Disconnect the battery

connectors and remove the

old batteries.

Insert the new batteries in

the same direction as the old

batteries, with the connectors

at the top and connect (Note:

+= red, - = black). Be careful

not to bend the connectors.

Do not cover the holes.

Ensure that none of the

wires are squeezed or caught

when reinstalling the cover.

Ensure the mains is not

connected.

Ensure that the silicone string

is in place and properly fitted

before reinstalling the cover.

Replace seal if necessary.

The silicone string separates the battery from the

electronics and must not be damaged or modified

as it will allow penetration of battery gas into the

electronics components with risk of explosion. Do

not use if this seal is damaged in any way.

Charging the Battery

The battery should be charged minimum 8 hours

before used for the first time.
