Quick Start

EchoLife Gateway GPON Terminal

Safety Precautions

To use the device properly and safely, read the safety precautions carefully

before using the device and strictly observe these precautions when using

the device.

Packing List

Do not look directly into the optical port without eye protection.

Keep the device out of the reach of children as the components or accessories

may be swallowed.

Install the device in strict compliance with the requirements of the supplier.

Reserve a space of at least 10 cm above and around the device for heat

dissipation. During the installation, keep the device away from electric appliances

that generate strong magnetic or electric ﬁelds, such as microwave ovens,

refrigerators, and mobile phones.

The power supply voltage of the device must meet the requirements on the input

voltage of the device.

Do not use any power adapters that are not in the standard conﬁguration.

Otherwise, the device may be abnormal or unsafe.

Dry your hands before connecting or disconnecting cables. Stop the device and

switch off the power before connecting or disconnecting cables.

Do not place any object on the device, so that the device will not be damaged

due to overheating or deformation.

Prevent objects, such as metal, from entering the device through the heat

dissipation hole.

Switch off the power and disconnect all cables, including the power cable, optical

ﬁber, and network cable, during periods of lightning activities.

Do not lead the strength member of the optical ﬁber or other metal parts indoors.

Do not install telephone lines, network cables, power adapters or power adapter

cables outdoors. Adopting these measures will help prevent device damage and

bodily injuries which are especially prone during thunderstorms.

If an abnormality occurs, for example, liquid entering the device, smoke, unusual

sound, and smell, stop the device immediately, switch off the power, disconnect

all cables (such as the power cable, optical cable, and network cable) to the

device, and contact the authorized service center.

Do not disassemble the device without permission. In the case of a device fault,

contact the authorized service center.

Dispose of the packing materials, expired batteries, and old or abandoned

devices in accordance to local laws and regulations (recycling them is strongly

recommended).

Do not change the structure, safety design, or performance design of the device

without prior authorization.

Product Overview

Product Function

HG8245 series

4 Ethernet ports

2 POTS ports

1 USB port

Wi-Fi access

HG8247 series

4 Ethernet ports

2 POTS ports

1 USB port

1 CATV port

Wi-Fi access

HG8447 series

4 Ethernet ports

4 POTS ports

1 USB port

1 CATV port

Wi-Fi access

Technical Specifications

GPON Terminal Weight

(Including the Power Adapter)

Maximum System

Power Consumption

HG8245 series About 550 g ≤14W

HG8247 series About 800 g ≤16W

HG8447 series About 800 g ≤18W

Power adapter input: 100–240 V AC, 50–60 Hz

System power supply: See the nameplate on the device.

Ambient temperature: 0ºC to +40ºC

Ambient humidity: 5%–95% (non-condensing)

For other technical speciﬁcations, see the following table.

NOTE

If the appearance of the product in this document differs from the actual product, the actual product

prevails.

NOTE

This document is updated to September 2011. If some device types are not in the preceding list, refer

to http://www.huawei.com.

Installing the GPON Terminal

1. Do not install GPON terminals outdoors or on the outdoor cabinets.

2. GPON terminals can be mounted onto a wall or be placed on a workbench. Do not install GPON

terminals in other modes, such as the ceiling.

3.The terminal cannot be connected to other devices such as GPON terminals, switch and router.

The schematic diagram for placing the device on a desk horizontally are as

follows:

Mounting a GPON terminal onto the wall

Step 1 Mark the positions of two holes (with a spacing listed in the following table) used

for mounting a GPON terminal.

Step 2 Select a proper drill according to the outer diameter of the screws. Use a

hammer drill to drill the marked positions on the wall. Then clean the wall and

install two expansion bolts.

Step 3 Use a screwdriver to fasten the screws into the expansion bolts, leaving the heads

of the screws 3 mm over the wall. Then install the GPON terminal to the screws.

Caution

Connecting Cables

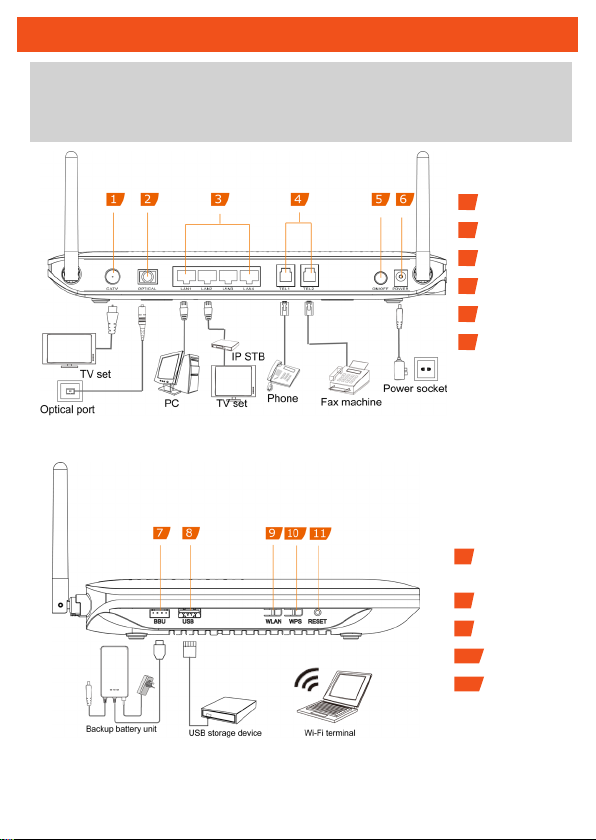

This document uses the HG8247 as an example to describe the connections. Ports on GPON

terminals of other types may be different. Therefore, connect cables based on the ports that

are actually supported by the device. If the external device is different from the device in the

figure, refer to the description for connections of the external device.

1CATV port

2Optical port

3Ethernet port

4POTS port

5Power switch

6Power port

7Backup battery

monitoring port

8USB port

9WLAN switch

10 WPS switch

11 Reset

Step 1 Use an optical fiber to connect the OPTICAL port on the GPON terminal to the

optical port in the wall.

Step 2 Use a coaxial cable to connect the CATV port to a TV set or set top box (STB).

Step 3 Use a network cable to connect the LAN port to a PC or the Ethernet port on

the IP STB.

Step 4 Use a phone line to connect the TEL port to a phone or fax machine.

Step 5 Use a power adapter to connect the POWER port to the power socket.

Step 6 Use a USB data cable to connect the USB port to the USB storage device.

Step 7 Press the ON/OFF power switch.

Step 8 Press the WLAN switch to enable the Wi-Fi access function. By default, this

function is enabled.

Step 9 Press the WPS switch to enable the WPS encryption function.

NOTE

1.The optical connector connected to the OPTICAL port is an SC/APC connector, and the

type of the optical connector connected to the optical port in the wall is determined by practical

conditions.

2.To ensure normal use of ﬁbers, make sure that the ﬁber bend radius is larger than 30 mm.

The preceding ﬁgure connects the power adapter as an example. When connecting the

backup battery unit , please see the usage guide to the backup battery for details .

Before enabling the WPS encryption function of a GPON terminal, ensure that the function is

set in the system software in advance. After successful setting, press the WPS switch for the

settings to take effect.

NOTE

Logging in to the Web Configuration Window

Step 1 Set the IP address of the PC in the same subnet as the management IP address

of the GPON terminal. For example,

-IP address: 192.168.100.100

-Subnet mask: 255.255.255.0

Step 2 Enter the management IP address of the GPON terminal in the address bar of

Internet Explorer and press Enter.

The login window is displayed.

Step 3 In the login window, select your preferred language, enter the user name and

password (default user name is root and default password is admin), and

click Login. After the password is authenticated, the Web configuration window

is displayed.

NOTE

The default management IP address and subnet mask of the GPON terminal are as follows:

-IP address: 192.168.100.1

-Subnet mask: 255.255.255.0

Configuring Wi-Fi Parameters

Step 1 Choose the WLAN tab and choose WLAN Configuration.

Step 2 In the pane, select the Enable WLAN option box. In the dialog box that is

displayed, set the basic Wi-Fi parameters, including the SSID, authentication

mode, and encryption mode. For example,

Step 3 Click Apply.

-SSID: WirelessNet

-Authentication Mode: WPA Pre-Shared Key

-Encryption Mode: TKIP

-WPA PreSharedKey: Password

SSID indicates the name of a wireless network searched by the Wi-Fi terminal; WPA

PreSharedKey indicates the authentication password for the Wi-Fi terminal to access a

wireless network.

Indicator Description

Table 1 Indicator status description 1

Indicator Status Description

CATV

Steady on The CATV function is enabled and CATV signals are

received.

Off The CATV function is disabled or CATV signals are not

received.

WPS

Steady on The WPS function is enabled.

Blinking A Wi-Fi terminal is accessing the system.

Off The WPS function is disabled.

WLAN

Steady on The WLAN function is enabled.

Blinking Data is being transmitted.

Off The WLAN function is disabled.

USB

Steady on The USB port is already connected but no data is

transmitted.

Blinks twice a

second Data is being transmitted.

Off The system is not powered on or the USB port is not

connected.

TEL1–

TEL4

Steady on The connection between the TEL port and the voice

server is set up.

Blinks twice a

second

The connection between the TEL port and the voice

server is set up and the phone is in the off-hook or

ringing state.

Blinks once

two seconds The TEL port is registering with the voice server.

Off The connection between the TEL port and the voice

server is not set up.

LAN1–

LAN4

Steady on The Ethernet connection is in the normal state.

Blinking Data is being transmitted on the Ethernet port.

Off The Ethernet connection is not set up.

LOS/PON See Table 2.

POWER

Steady green The terminal is powered on.

Steady yellow The backup battery is supplying power.

Off The power supply is cut off.

The LOS indicator blinks.

If the LOS indicator blinks once two seconds, check whether the pigtail fiber is

properly connected and the connector is clean.

If the GPON terminal blinks twice a second, contact the service provider for help.

The PON indicator is off.

Check whether the OPTICAL port and optical fiber is properly connected.

The GPON terminal fails to register with the upper-layer device. Contact the

service provider for help.

The phone does not ring upon an incoming call but communication is in

normal state when the phone is in off-hook state.

The GPON terminal provides a maximum of 60 V AC ringing current voltage.

Check whether the ringing current voltage of the phone is higher than 60 V AC.

If it is higher than 60 V AC, replace it with another phone.

How to reset the GPON terminal?

Press RESET by using a needle-type object.

How can I restore factory defaults?

Press RESET by using a needle-type object for longer than 10s to restore

factory defaults and reset the GPON terminal. If the indicator is off and then

is lit, the system restarts successfully.

FAQs

Indicator Description

Status

No.

Status Description

PON LOS

1 Off Off The GPON terminal is disabled by the

upper-layer device.

2Blinks twice

a second Off The GPON terminal attempts to set up a

connection with its upper-layer device.

3 Steady on Off A connection is set up between the GPON

terminal and its upper-layer device.

4 Off Blinks once

two seconds

The Rx optical power of the GPON terminal

is lower than the optical receiver sensitivity.

5Blinks twice

a second

Blinks twice a

second

The GPON terminal is a rogue terminal,

contact the service provider for help.

Table 2 Indicator status description 2

Otros manuales para EchoLife HG8245

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Huawei

Huawei

Huawei Quidway NetEngine 20 series Manual de usuario

Huawei

Huawei Quidway S3526 Manual de usuario

Huawei

Huawei OptiXstar HG8140H5 Manual de usuario

Huawei

Huawei AR1200-S Series Manual de usuario

Huawei

Huawei SUN2000-25KTL-M5 Manual de usuario

Huawei

Huawei NE05E Manual de usuario

Huawei

Huawei OptiXstar W626E Manual de usuario

Huawei

Huawei Quidway S3500 Series Manual de usuario

Huawei

Huawei NetEngine5000E Manual de usuario

Huawei

Huawei OptiXstar EN8145X6Ns Manual de usuario

Huawei

Huawei H112-370 Manual de usuario

Huawei

Huawei AR100 Series Manual de funcionamiento

Huawei

Huawei B681-54 Manual de usuario

Huawei

Huawei AR1200 Series Manual de usuario

Huawei

Huawei WIFI AX2 Manual de usuario

Huawei

Huawei Quidway S1700-8-AC Manual de usuario

Huawei

Huawei AR1200 Series Manual de usuario

Huawei

Huawei Vodafone B970 Manual de usuario

Huawei

Huawei EchoLife HG8245A Especificaciones técnicas

Huawei

Huawei Mobile wifi e5330 Manual de usuario

Huawei

Huawei V300R005 Manual de usuario

Huawei

Huawei Quidway NetEngine40E Guía

Huawei

Huawei Quidway S6502 Manual de usuario

Huawei

Huawei Enterprise S2700 Series Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
