Huawei ME01-MSUA Manual de usuario

Quidway® ME60-16/8 Multi Service Unit (MSU)

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://datacomm.huawei.com/ 1

Quidway®ME60-16/8 Multi Service Unit（MSU）

Overview

The Multi service unit line cards are the multi-service processing boards with Ethernet interfaces on

the ME60-16/8 series. Besides supporting routers and multiple VPN services, the MSUs provide

TRIPLE PLAY terminal management of large capacity, high performance and the function for

dynamic service selection.

The MSUs are compatible with the ME60-16 chassis and the ME60-8 chassis. The MSUs support

various Ethernet interfaces, such as GE/10GE optical interfaces and OC-3/12/48/192 POS optical

interfaces. You can use various SFP/XFP optical modules together with the MSUs based on the

optical transmission distance.

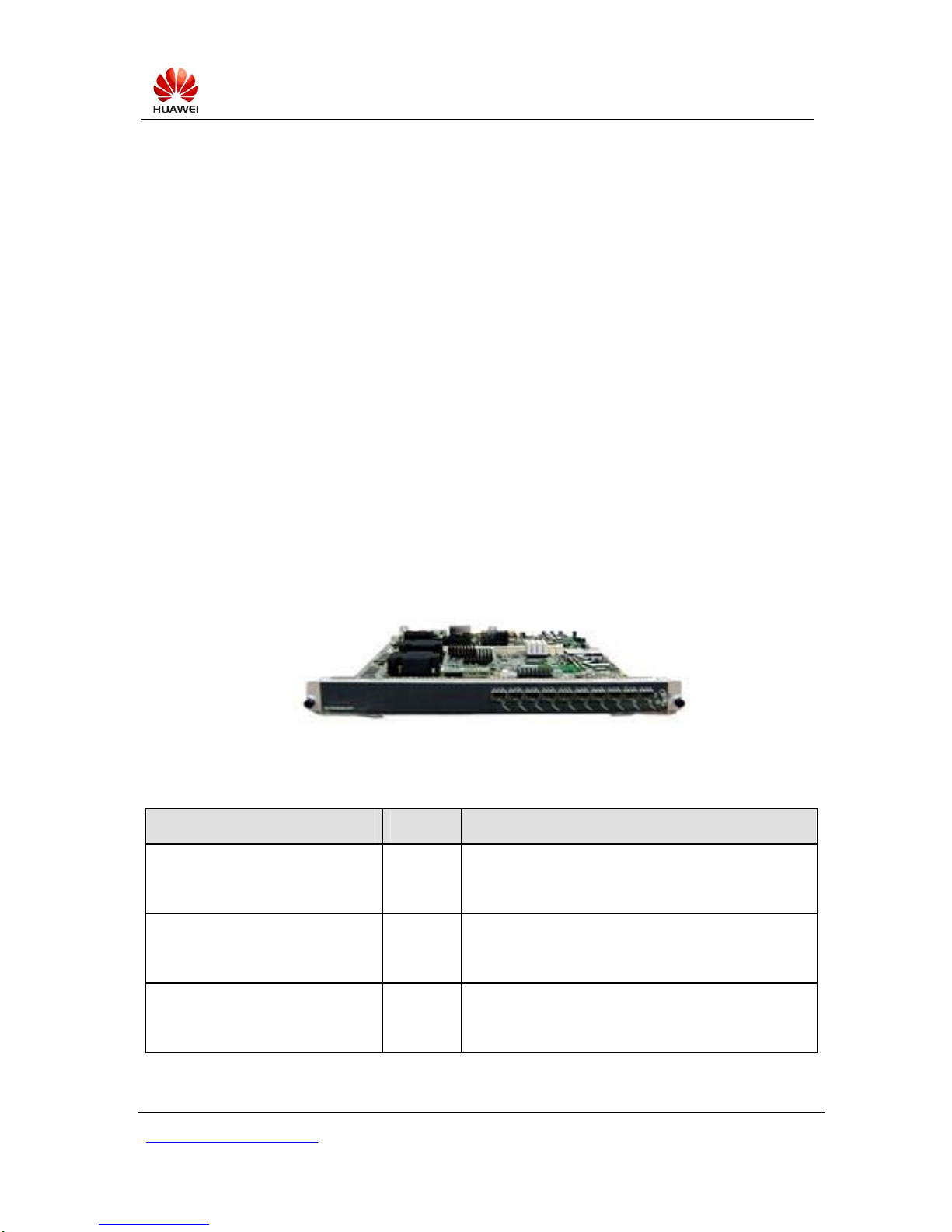

The following figure shows a kind of MSU that is 10-port GE SFP Optical Interface Line Card

(ME01-MSUA-10xGE-SFP).

Specifications

The types of MSUs that the ME60-16/8 series provide are detailed as follows:

Module Name Interface Description

ME01-MSUA-10xGE-SFP LC It is a 10-port GE Optical Interface Line Card.

You can choose different swappable SFP optical

modules based on the transmission distance.

ME01-MSUA-24xGE-SFP LC

It is a 24-port GE Optical Interface Line Card.

You can choose different swappable SFP optical

modules based on the transmission distance.

ME01-MSUA-1x10GE-XFP LC It is a 1-port 10 GE Optical Interface Line Card.

You can choose different swappable XFP optical

modules based on the transmission distance.

Quidway® ME60-16/8 Multi Service Unit (MSU)

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://datacomm.huawei.com/ 2

ME01-MSUA-2x10GE-XFP LC It is a 2-port 10 GE Optical Interface Line Card.

You can choose different swappable XFP optical

modules based on the transmission distance.

ME01-MSUA-8xPOS/STM1-SFP LC It is an 8-port OC-3 POS Optical Interface Line Card.

You can choose different swappable SFP optical

modules based on the transmission distance.

ME01-MSUA-4xPOS/STM4-SFP LC It is a 4-port OC-12 POS Optical Interface Line Card.

You can choose different swappable SFP optical

modules based on the transmission distance.

ME01-MSUA-1xPOS/STM16-SFP LC It is a 1-port OC-48 POS Optical Interface Line Card.

You can choose different swappable SFP optical

modules based on the transmission distance.

ME01-MSUA-2xPOS/STM16-SFP LC It is a 2-port OC-48 POS Optical Interface Line Card.

You can choose different swappable SFP optical

modules based on the transmission distance.

ME01-MSUA-4xPOS/STM16-SFP LC It is a 4-port OC-48 POS Optical Interface Line Card.

You can choose different swappable SFP optical

modules based on the transmission distance.

ME01-MSUA-1xPOS/STM64-XFP LC

It is a 1-port OC-192 POS Optical Interface Line

Card.

You can choose different swappable XFP optical

modules based on the transmission distance.

ME01-MSUA-2xPOS/STM64-XFP LC

It is a 2-port OC-192 POS Optical Interface Line

Card.

You can choose different swappable XFP optical

modules based on the transmission distance.

Note: For details about choosing an SFP/XFP optical interface module in the ME60-16/8 series, refer to

the description of Pluggable Interface Module in the Quidway ME60 Series Multi-Service Control

Gateway Product Order Information that is released on the website.
