Huawei MAP05A1 Manual de usuario

iSitePower-M V100R002C00

(MAP05A1, MAB05B1)

Quick Guide

Huawei Digital Power Technologies Co., Ltd.

Issue: 04

Date: 2022-07-15

System Description

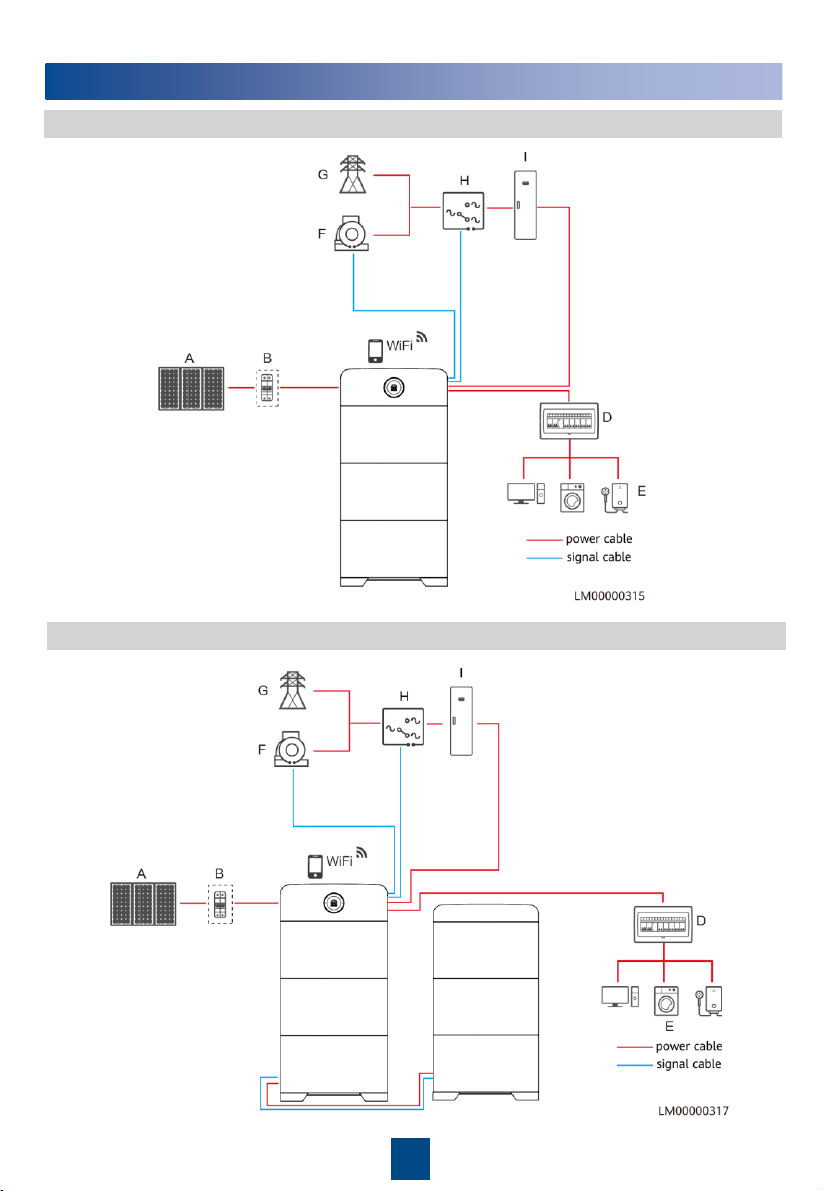

Single Product System (Typical Scenario)

Single Product System (Capacity Expansion Scenario)

Parallel System

Overview

•A maximum of three power modules can be connected in parallel. The following figure

shows two power modules in parallel.

•In parallel connection scenarios, the number of battery modules on the master and slave

products must be the same.

(A) PV string

(B) DC switch

(D)

PDB

(E) Load

(F) DG

(G) Power grid

(H) Power grid

(I)

PDC

Scenario

Number of Power Modules Number of Battery Modules Capacity

Single product

1 1 3kVA/5kW

2 6kVA/10kW

3 6kVA/15kW

Single Product

(Capacity

Expansion

Scenario)

4 6kVA/20kW

5 6kVA/25kW

6 6kVA/30kW

Parallel

products

2 2 10.8kVA/10kW

4 10.8kVA/20kW

6 10.8kVA/30kW

3 3 16.2kVA/15kW

6 16.2kVA/30kW

9 16.2kVA/45kW

2Overview

The iSitePower-M is a fuel-free hybrid power solution for areas with no or poor mains supply.

Base

Power module

Battery

modules

Heat sink

LED indicator

Note: The 15 kWh model is used as an example.

(1) PV maintenance

switch (DC SWITCH)

(2) PV inputs

(3) Power parallel ports

for battery modules

(4) COM

-PAR port

(5) COM

-BAT port

(6) Wireless

backhaul module

port

(7)

Maintenance

compartment door

(8)

Ground point

(9) AC input

(10)

AC output

(11) Reserved ports

(12) DIP switch

(13) FE ports

(14) COM port and

dry contacts

(15) WiFi button

(16) Manual ON/OFF

switch

iSitePower-M

2.1

Power Module

2.2

Left view Right view (door opened)

Decorative

cover

Right view

(1) Alignment

boss

(2) COM port

(3) Terminals

for battery

module

cascading

(4) Heat sink

(5) Ground

points

Battery Module

2.3

(1) Ground

point on the

door

(2) Ground

bar

(3) Cable bags

(4)

AC input

circuit breaker

(5) N wiring

terminal

(6) AC output

circuit breaker

AC Parallel Box

2.4

Left view Right view

3Installation Preparations

Installation Environment Requirements

3.1

If a battery module is dropped or violently impacted during installation, it may become

faulty and cannot be used. Using a faulty module will cause safety risks such as cell leakage

and electric shock.

Wall and Ground Requirements

3.2

•The product can be mounted on a concrete wall or brick wall and cannot be mounted on a

sandwich panel wall or a wooden wall.

•The bearing capacity of the ground must be greater than or equal to 500 kg/m2.

Installation Tools

3.3

Hammer drill Insulated torque socket

wrench (including an

extension bar)

Adjustable torque

wrench

Diagonal pliers Wire stripper

Flat-head insulated

torque screwdriver

Rubber mallet Utility knife Cable cutter

Crimping tool,

model: PV-CZM-

CZM41100

(preferred)/CZM22

100

Cord end terminal

crimping tool

Removal tool

(model: PV-MS-HZ

open-end wrench)

Cable tie Vacuum cleaner

Multimeter (DC voltage

measurement range ≥

600 V DC)

Marker

Heat gun Protective gloves Goggles Anti-dust mask

Work shoes

Steel measuring tape Level Hydraulic pliers

Heat shrink tubing

Phillips insulated

torque screwdriver

Installation Dimensions

3.4

Single Product Scenario

Parallel Connection or Capacity Expansion Scenarios

(Top view)

4Installing a Mounting Bracket

Ground Mounting

Two marking out templates are required for

ground mounting. A small marking out

template determines holes on the ground, and

a large marking out template determines

holes on the wall.

1. Cut the marking out template along the

dotted line.

3. Mark the mounting holes

for battery modules.

4. Drill holes and install expansion

bolts.

The base must be secured to the ground

using bolts. Otherwise, the device may tip

over, causing personal injury or device

damage.

2. Install the mounting base.

Level

Marking out

template

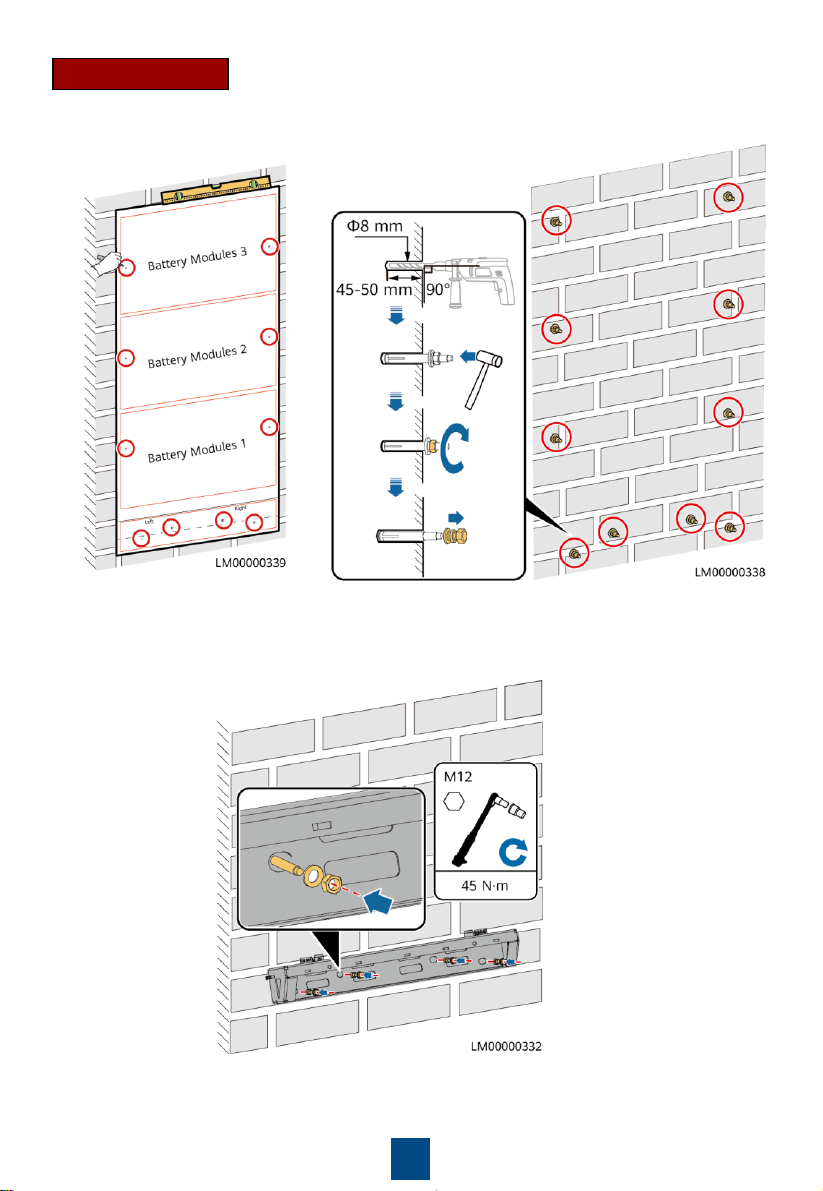

Wall Mounting

3. Install the wall-mounting base.

2. Drill holes and install expansion

bolts.

1. Mark the mounting holes for

the wall-mounting base and

battery modules.

5Installing Modules

Installing Battery Modules and Power Modules

5.1

•Two persons are required to move a module.

•Battery modules must be secured to the wall.

1. Install a battery module on the

mounting base.

This section describes how to install

modules in the ground mounting scenario.

2. Secure the battery module to the wall.

3. Install a wall-mounting base cover.

In the wall-mounting scenario,

install battery modules before

installing the wall-mounting

base cover.
