Huawei E1612 Manual de usuario

No part of this document may be reproduced or transmitted in any form or by any

means without prior written consent of Huawei Technologies Co., Ltd.

The product described in this manual may include copyrighted software of Huawei

Technologies Co., Ltd and possible licensors. Customers shall not in any manner

reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse

engineer, lease, assign, or sublicense the said software, unless such restrictions

are prohibited by applicable laws or such actions are approved by respective

Trademarks and Permissions

, HUAWEI, and

are trademarks or registered trademarks of Huawei

Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the

property of their respective owners.

Notice

Some features of the product and its accessories described herein rely on the

software installed, capacities and settings of local network, and may not be

activated or may be limited by local network operators or network service

providers, thus the descriptions herein may not exactly match the product or its

accessories you purchase.

Huawei Technologies Co., Ltd reserves the right to change or modify any

information or specifications contained in this manual without prior notice or

obligation.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED

BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN

RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL

HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL,

INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS,

REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations

and will obtain all necessary governmental permits and licenses in order to export,

re-export or import the product mentioned in this manual including the software

and technical data therein.

Table of Contents

What Is in Your Package ......................................................................... 1

Getting to Know Your E1612.................................................................... 2

Preparation........................................................................................... 5

Installation/Removal Guide...................................................................... 6

Safety Information................................................................................. 9

Thank you for choosing Huawei E1612 HSDPA USB

Stick (hereinafter referred to as the E1612). With

the E1612, you can access the Internet through

wireless network at a high speed.

Note:

This manual describes the appearance, installation and removal of the E1612. For

the operation of the management program, refer to the User Manual.

What Is in Your Package

The package of your E1612 contains the following items:

One E1612

One Quick Start

One USB cable

Getting to Know Your E1612

The following figure shows the appearance of the E1612. It is only for your

reference. The actual product may differ.

nUSB Interface

It connects the E1612 to a computer.

oIndicator

It indicates the status of the E1612.

Colour Status Meaning

Green Blinking (on for 100ms and

off for 100ms; then on for

100ms and off for

2700ms)

The E1612 is powered on.

Green Blinking (on for 100ms and

off for 2900ms) The E1612 is registered to a

GSM/GPRS/EDGE network.

Blue Blinking (on for 100ms and

off for 2900ms) The E1612 is registered to a UMTS

network.

Green On The E1612 is connected to a GPRS/EDGE

network.

Blue On The E1612 is connected to a WCDMA

network.

Cyan On The E1612 is connected to a HSDPA

network.

- Off The E1612 is removed.

pEarphone Interface

Connect the earphone.

qSIM/USIM Card Slot

It is where you insert the subscriber identity module/UMTS subscriber identity

module (SIM/USIM) card.

rMicro SD Card Slot

It is where you insert the Micro Secure Digital Memory (SD) card

sStrap Hole

Preparation

Requirements for the Computer

To use the E1612, the computer should meet the following requirements:

USB Type A Receptacle, Compatible with USB 2. 0 High Speed.

Windows 2000 SP4, Windows XP SP2, Windows Vista.

Your computer’s hardware system should meet or exceed the recommended

system requirements for the installed version of OS.

Resolution for the display: 800 × 600 or above.

Getting Your E1612 Ready

1. Remove the back cover of the E1612.

2. Insert the USIM/SIM card and the micro SD card into the card slots. Make sure

that the cards are properly inserted.

3. Install the back cover of the E1612.

Note:

Do not remove the Micro SD card when it is being used. Removing the card during

an operation maydamage the Micro SD card as well as the device, and data stored

on the card may be corrupted.

Installation/Removal Guide

On different operating systems (OSs), the installation and removal procedures

may differ. Follow the system prompts during operation.

Connecting the E1612 with a Computer

Note:

First, power on the computer. Then connect the E1612 with the computer.

Otherwise, the E1612 cannot be installed as normal.

1. Plug the E1612 into the USB interface of the laptop or desktop computer.

You can connect the E1612 to a laptop or desktop computer using the USB cable

for better signals.

2. The OS automatically detects and recognises new hardware and starts the

installation wizard.

3. Follow the prompts of the installation wizard.

4. After the program is installed, a shortcut icon for the E1612 management

program is displayed on the desktop.

Starting the Management Program

After the E1612 is installed, the management program is launched automatically.

Then every time the E1612 is connected to the PC, the management program is

Tabla de contenidos

Otros manuales de Módem de Huawei

Huawei

Huawei E303U-6 Manual de usuario

Huawei

Huawei EchoLife BM635 WiMAX CPE Manual de usuario

Huawei

Huawei E600 Manual de usuario

Huawei

Huawei E156C Manual de usuario

Huawei

Huawei E5785-330 Manual de usuario

Huawei

Huawei B686 Manual de usuario

Huawei

Huawei SoftBank 604HW Manual de usuario

Huawei

Huawei E270 Manual de usuario

Huawei

Huawei EC325 Manual de usuario

Huawei

Huawei E1786 Manual de usuario

Huawei

Huawei B932 series Manual de usuario

Huawei

Huawei B660 Manual de usuario

Huawei

Huawei E2010 Instrucciones de montaje

Huawei

Huawei Maxis E5832 Manual de usuario

Huawei

Huawei EC1261 Manual de usuario

Huawei

Huawei E1762 Guía de instalación

Huawei

Huawei B315s Manual de usuario

Huawei

Huawei E372 Manual de usuario

Huawei

Huawei HG532D Manual de usuario

Huawei

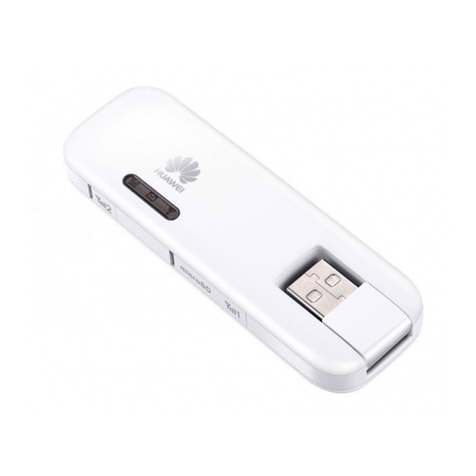

Huawei E8278 Manual de usuario
