Huawei SUN2000-5KTL-L0 Manual de usuario

HUAWEI TECHNOLOGIES CO., LTD.

SUN2000-(2KTL-5KTL)-L0

Quick Guide

Issue: 02

Part Number: 31509986

Date: 2019-04-27

1Packing List

1. The information in this document is subject to change without notice. Every effort has been

made in the preparation of this document to ensure accuracy of the contents, but all

statements, information, and recommendations in this document do not constitute a warranty

of any kind, express or implied.

2. Before installing the device, closely read the user manual to get familiar with product

information and safety precautions.

3. Only certified electricians are allowed to operate the device. Operation personnel must wear

proper personal protective equipment (PPE) all the time.

4. Before installing the device, check that the package contents are intact and complete against

the packing list. If any damage is found or any component is missing, contact your dealer.

5. Huawei shall not be liable for any device damage caused by the violation of instructions in this

document.

6. The cable colors involved in this document are for reference only. Select cables in accordance

with local cable specifications.

Solar inverter

(1 PCS) PV negative

connector

(black, 2 set)

PV positive

connector

(black, 2 set)

AC connector

(1 set) Signal cable

connector

(1 set)

Antenna

(1 set) Screw

(3 set) Expansion bolt

(3 PCS) Mounting bracket

(1 PCS) Screwdriver

(1 PCS)

Quick Guide

(1 PCS) Certificate

(1 PCS) Solar Inverter Delivery Inspection

Report and Packing List (1 PCS)

SDongleA-03 (1 PCS)

SUN2000

(Optional) 4G Smart Dongle

2Overview

(1)

LED

(2)

Front panel

(3)

Mounting bracket

(4)

Mounting plate

(5)

Heat sink

(6)

Ventilation valve

(7)

DC switch (DC SWITCH)

(8)

DC input terminals

(PV1+/PV1–)

(9)

DC input terminals

(PV2+/PV2–)

(10)

COM port (COM)

(11)

USB-4G port cover (USB-4G)

(12)

AC output port (AC)

(13)

Antenna port (ANT)

(14)

Ground point

For the model without an external WiFi antenna, the antenna port (ANT) is actually a cover and

there is no port inside.

NOTE

Installation Requirements

3.1

Tilt and Space

3Installing the Device

Dimensions

NOTE

If multiple inverters need to be installed, see SUN2000-(2KTL-5KTL)-L0 User Manual for the

installation dimensions.

Wall-mounted Installation

Installing the Mounting Bracket

3.2

Avoid drilling holes in the utility pipes and/or cables attached to the

back of the wall.

Prepare M8 stainless bolt assemblies (including flat washers, spring washers, and M8 bolts) with

appropriate lengths as well as matched flat washers and nuts based on the support specifications.

Support-mounted Installation

You are advised to apply anti-rust paint

on the hole positions for protection.

Installing the SUN2000

3.3

If the bottom of the mounting plate does not snap into place, push the SUN2000 from the front

until the bottom of the mounting plate snaps into the mounting bracket.

The anti-theft lock needs to be prepared by the customer.

1. Install the SUN2000 on the

mounting bracket. 2. Tighten screw assemblies. 3. (Optional) Install an

anti-theft lock.

(Optional) Installing the Smart Dongle

3.4

USB-4G port cover (USB-4G)

Reinstalling the Smart Dongle enclosure, ensure

that the buckle springs back to the original position.

2.4

The USB-4G port is available only for a Smart Dongle, rather than a USB data cable.

Install the SIM card in the direction shown by the silk screen and arrow on the slot.

Press the SIM card until it snaps into place and locked, which means that the SIM card is

installed correctly.

To remove the SIM card, push it inwards. The SIM card will spring out automatically.

The 4G Smart Dongle model is SDongleA-03. For details, see the quick

guide that is delivered with the Smart Dongle.

You can also scan the QR code to obtain it.

NOTE

(Optional) Installing the WiFi Antenna

3.5

Antenna port (ANT)

The Smart Dongle and WiFi antenna cannot be used at the same time.

Ensure that the WiFi antenna is installed

securely.

Prepare cables based on site requirements.

4Connecting Cables

Preparing Cables

4.1

No.

Cable

Type

Conductor Cross

sectional Area Range

Outer

Diameter

PE cable

Single

-core outdoor copper cable

–10 mm2

N/A

AC output power

cable

Two

-core (L and N) outdoor copper

cable or three

-core (L, N, and PE)

outdoor copper cable

–6 mm2

–21 mm

DC input power

cable

Standard outdoor PV cable in the

industry (recommended model: PV1

-F)

–6 mm2

4.5

–7.8 mm

Signal cable

(optional)

Outdoor shielded twisted pair

0.25

–1 mm2

–11 mm

Connect cables in accordance with the installation laws and regulations of the country or

region where the SUN2000 is located.

Before connecting cables, ensure that the DC switch on the SUN2000 and all the switches

connecting to the SUN2000 are OFF. Otherwise, the voltage of theSUN2000 may result in

electric shocks.

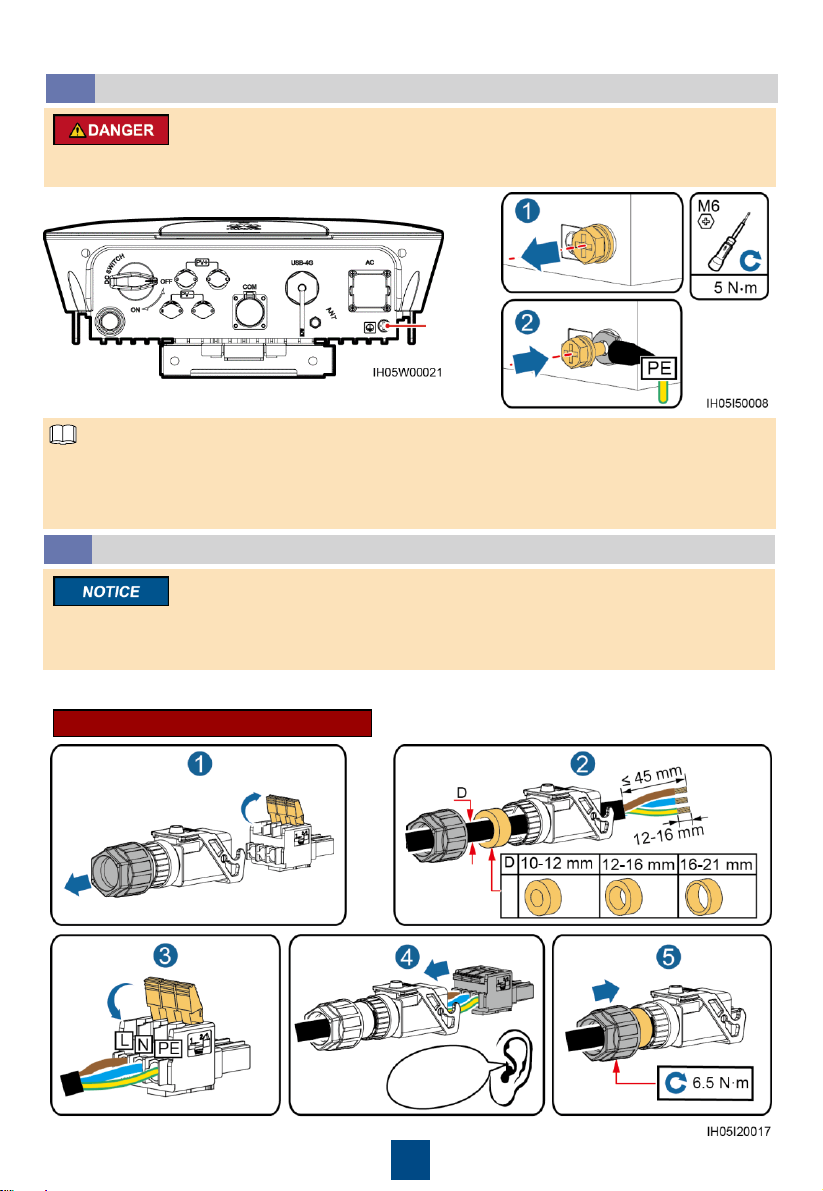

Installing the PE Cable

4.2

Ground

point

Click

Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks will be

caused.

Recommended: Apply silica gel or paint around a ground terminal after connecting the ground

cable.

The PE point at the AC output port is used only as a PE equipotential point, and cannot substitute

for the PE point on the enclosure.

NOTE

1. Connect the AC output power cable to the AC connector.

Installing the AC Output Power Cable

4.3

Ensure that the protection layer of the AC output power cable is in the connector, and that the

exposed core wire is totally inserted into the cable hole and connected securely. Failing to do so

may cause SUN2000 malfunction or damage.

Three-Core Cable (L, N, and PE)

Click

AC output port (AC)

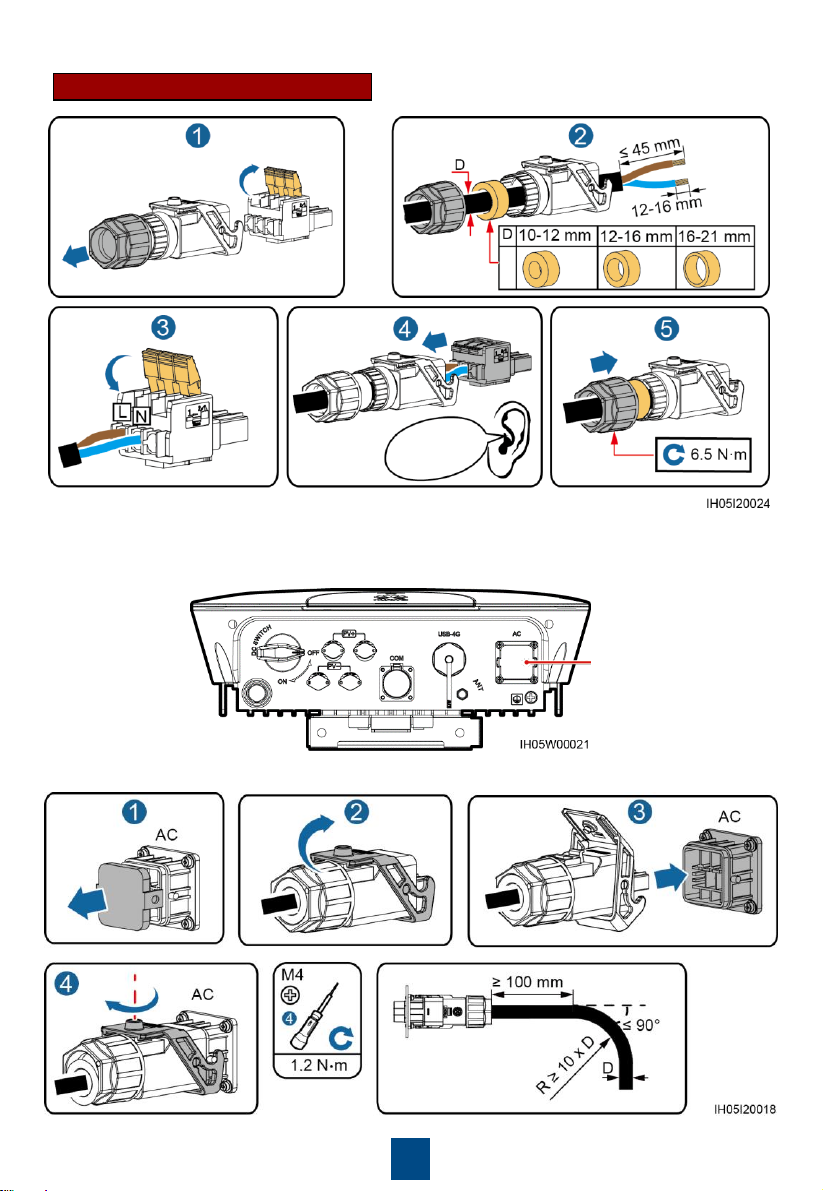

Two-Core Cable (L and N)

2. Connect the AC connector to the AC output port, and then Check the route of the AC output

power cable.

To remove the AC connector, follow the

steps of its installation in reverse order.

Then remove the plug insert as shown

in the right figure.

NOTE

Plug insert

using metal cold forming contacts

Installing the DC Input Power Cable

4.4

1. Ensure that the PV string is well insulated to ground.

2. The metal contacts supplied with the DC connectors are either cold forming contacts or

stamping forming contacts. Crimp the metal cold forming contacts using crimping tool

UTXTC0005 (Amphenol) or H4TC0001 (Amphenol). Crimp the metal stamping forming contacts

using crimping tool H4TC0003 (Amphenol, recommended) or H4TC0002 (Amphenol).

3. Choose the crimping tools that fit the metal contact types. Do not mix up the tools.

4. The SUN2000 open circuit voltage must always be lower than or equal to 600 V DC.

5. Before installing the DC input power cable, label the cable polarities correctly to ensure correct

cable connections.

6. Use the positive and negative metal terminals and black DC connectors supplied with the

inverter. Using incompatible positive and negative metal terminals and DC connectors may

result in serious consequences. The caused device damage is not covered under any warranty.

7. If polarity of the DC input power cable is reversed and the DC switch is ON, do not turn off the

DC switch immediately or unplug positive and negative connectors. The device may be

damaged if you do not follow the instruction. This damage is not covered under any warranty or

service agreement. Wait until the solar irradiance declines at night and the PV string current

reduces to below 0.5 A, and then turn off the DC switch and remove the positive and negative

connectors. Correct the string polarity before reconnecting the string to the SUN2000.

1. Assembling the DC Connector

Ensure that the cable will

not be extracted after

crimped.

Positive metal terminal

Negative metal terminal

Positive connector

Negative

connector

Ensure that the locking

nut is secured.

Ensure that the cables are

correctly connected.

Pull the DC input power

cable back to ensure that

it is connected securely.

Click
