Huawei HG523 Manual de usuario

HUAWEI HG523

Home Gateway Quick Start

1 Connecting the Cables

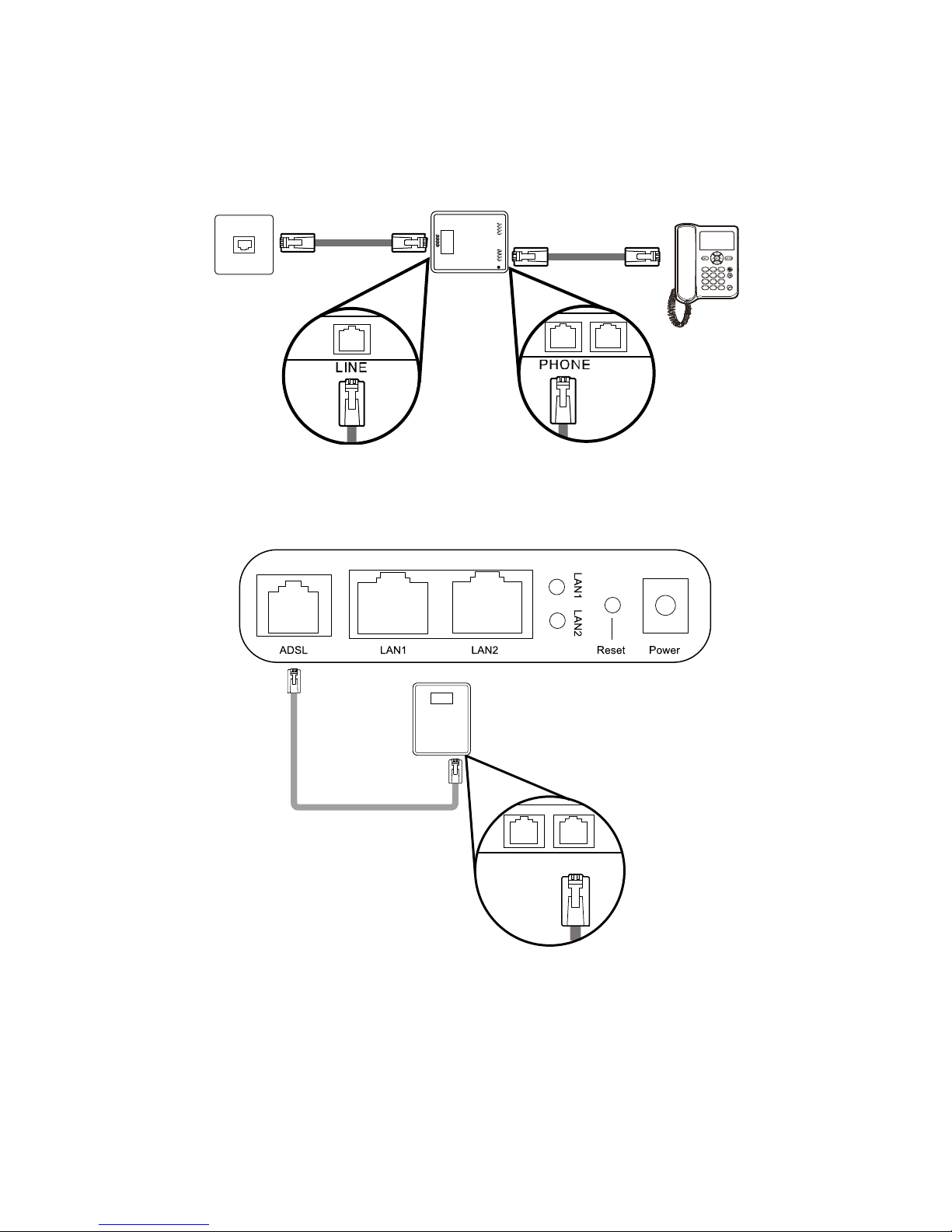

The following figure shows how to connect the cables of the HG523.

####

1 Power adapter

2 Set-Top Box

3 Computer

4 Telephone

5 Splitter

6 Telephone jack on the wall

To connect the cables, do as follows:

Step 1 Connect the telephone jack on the wall to the LINE interface on the splitter

with a telephone line. Connect the telephone to the PHONE interface on the

splitter with a telephone line.

Step 2 Connect the ADSL interface on the HG523 to the MODEM interface on the

splitter with a telephone line.

MODEM

####

Step 3 Connect the LAN interface on the HG523 to the Ethernet interface on the

computer with a network cable.

Step 4 Connect the Power interface on the HG523 to the power socket with the power

adapter.

2 Getting Started

To power on the HG523, press the power button on the top of the HG523.

After you power on the HG523, the ADSL indicator blinks (for less than three minutes),

which indicates that the HG523 is being activated. Later, the ADSL indicator turns solid

on. The Power indicator is also solid on, which indicates that the HG523 is working

properly.

3 Configuring the HG523

After you enable the embedded dial-up function of the HG523, if the

HG523 is not used for the network access, power off the HG523.

Otherwise, even if you have shut down your computer, the Internet

Service Provider may still charge you for the network access.

Step 1 Log in to the Web configuration page.

1. Launch the Internet Explorer on the computer. Enter http://192.168.1.1 in

the address bar and press Enter.

2. In the displayed dialog box, enter the user name and the password, and then

click OK.

By default, both the user name and the password are admin. After the password

authentication is passed, you can access the Web configuration page.

Step 2 Enable the embedded dial-up function.

1. In the navigation tree on the left of the Web configuration page, choose

Basic > WAN Setting.

2. Select a PVC number, such as 1, from the PVC drop-down combo box.

3. Enter the VPI and VCI parameters that are provided by the Internet Service

Provider in the VPI and VCI text boxes.

4. Select Yes from the Active drop-down combo box and select Routing from

the Mode drop-down combo box.

5. Select PPPoE from the Encapsulation drop-down combo box.

6. Enter the user name and password in the Login Information dialog box and

keep the default settings of other parameters.

7. Click Submit to save the settings.

After you complete the preceding settings, you can surf the Internet.

You need to perform the preceding operations on a computer only once. The next time

when you power on the computer, you can surf the Internet without performing any

configuration.

4 Indicators

Indicator

Status

Description

Power

Solid on

The HG523 is powered on.

Off

The HG523 is powered off.

ADSL

Blinking

The HG523 is being activated.

Solid on

The HG523 is activated.

Off

The HG523 is powered off.

WLAN

Blinking

The wireless network function is enabled.

Data is being transmitted through the WLAN.

Solid on

The wireless network function is enabled.

No data is being transmitted through the

WLAN.

Off

The wireless network function is disabled.

Internet

Blinking

The HG523 works in routing mode.

The WAN connection is set up.

Data is being transmitted.

Solid on

The HG523 works in routing mode.

The WAN connection is set up.

No data is being transmitted.

Off

The HG523 works in bridge mode.

The HG523 works in routing mode, but no

WAN connection is set up.

LAN

Blinking

Data is being transmitted through the Ethernet

interface.

Solid on

The Ethernet connection is set up.

Off

The Ethernet connection is not set up.

Trademarks and Permissions

, , and

are trademarks or registered trademarks of Huawei

Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the property of

their respective owners.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS

REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,

RELIABILITY OR CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO

CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY

SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR

LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED

SAVINGS.

Issue: 01 (2011-12-20)

Part Number: 201336
