Huawei CX116 Guía de referencia rápida

Huawei CX116 Pass Through Module

V100R001

White Paper

Issue 05

Date 2017-03-27

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the

customer. All or part of the products, services and features described in this document may not be within the

purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information,

and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://e.huawei.com

Issue 05 (2017-03-27) Huawei Proprietary and Confidential

About This Document

Purpose

The white paper of the CX116 GE pass through module of the E9000 server describes the

CX116 in terms of the functions, appearance, ports, physical structure, logical structure,

technical specifications, and certifications. You can learn about the CX116 by reading this

document.

Intended Audience

This document is intended for:

lHuawei presales engineers

lChannel partner presales engineers

lHuawei enterprise presales engineers

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol Description

DANGER

Indicates a hazard with a high level or medium level of

risk which, if not avoided, could result in death or serious

injury.

WARNING

Indicates a hazard with a low level of risk which, if not

avoided, could result in minor or moderate injury.

CAUTION

Indicates a potentially hazardous situation that, if not

avoided, could result in equipment damage, data loss,

performance deterioration, or unanticipated results.

TIP

Indicates a tip that may help you solve a problem or save

time.

NOTE

Provides additional information to emphasize or

supplement important points in the main text.

Huawei CX116 Pass Through Module

White Paper About This Document

Issue 05 (2017-03-27) Huawei Proprietary and Confidential

Change History

Issue 05 (2017-03-27)

This issue is the fifth official release.

Mode Change Description

Added Added product model descriptions to 1.2 Appearance.

Issue 04 (2017-02-17)

This issue is the fourth official release.

Mode Change Description

Modified Changed the altitude in 1.8 Technical Specifications.

Issue 03 (2016-11-22)

This issue is the third official release.

Mode Change Description

Added Added the description about the working temperature's compliance with the

ASHRAE Class A3 standard in 1.8 Technical Specifications.

Issue 02 (2016-08-20)

This issue is the second official release.

Mode Change Description

Delete

Deleted the "Hardware Structure" and "Architecture" sections.

Deleted some international standards and protocols in 2.2 Certifications.

Issue 01 (2015-11-03)

This issue is the first official release.

Huawei CX116 Pass Through Module

White Paper About This Document

Issue 05 (2017-03-27) Huawei Proprietary and Confidential

iii

Contents

About This Document.....................................................................................................................ii

1 Overview......................................................................................................................................... 1

1.1 Functions........................................................................................................................................................................ 2

1.2 Appearance..................................................................................................................................................................... 2

1.3 Ports................................................................................................................................................................................ 5

1.4 Indicators........................................................................................................................................................................ 7

1.5 Hardware Structure.........................................................................................................................................................8

1.6 Architecture.................................................................................................................................................................. 10

1.7 Compatibility................................................................................................................................................................ 11

1.8 Technical Specifications............................................................................................................................................... 11

2 Standards and Certifications.....................................................................................................13

2.1 Standards Compliance.................................................................................................................................................. 14

2.2 Certifications................................................................................................................................................................ 14

Huawei CX116 Pass Through Module

White Paper Contents

Issue 05 (2017-03-27) Huawei Proprietary and Confidential

1 Overview

About This Chapter

1.1 Functions

This topic describes the functions and ports of the CX116 pass through module.

1.2 Appearance

This topic describes the CX116 in terms of its appearance, panel, and installation positions in

the chassis.

1.3 Ports

This topic describes the ports on the CX116.

1.4 Indicators

This topic describes the indicators on the CX116.

1.5 Hardware Structure

This topic describes the components, mainboard layout, and connectors of the CX116.

1.6 Architecture

This topic describes the CX116 logical architecture.

1.7 Compatibility

This topic describes mezz modules that can work with the CX116 and cables supported by

ports on the CX116 panel.

1.8 Technical Specifications

This topic describes the CX116 technical specifications.

Huawei CX116 Pass Through Module

White Paper 1 Overview

Issue 05 (2017-03-27) Huawei Proprietary and Confidential

1.1 Functions

This topic describes the functions and ports of the CX116 pass through module.

The CX116 Pass Through Module (short for CX116) is the GE pass through module of the

E9000 server and provides external network ports for the compute nodes, storage nodes, or

service process nodes installed in the front slots of the E9000. Each CX116 provides a

maximum of 32 gigabit Ethernet (GE) ports.

1.2 Appearance

This topic describes the CX116 in terms of its appearance, panel, and installation positions in

the chassis.

CX116

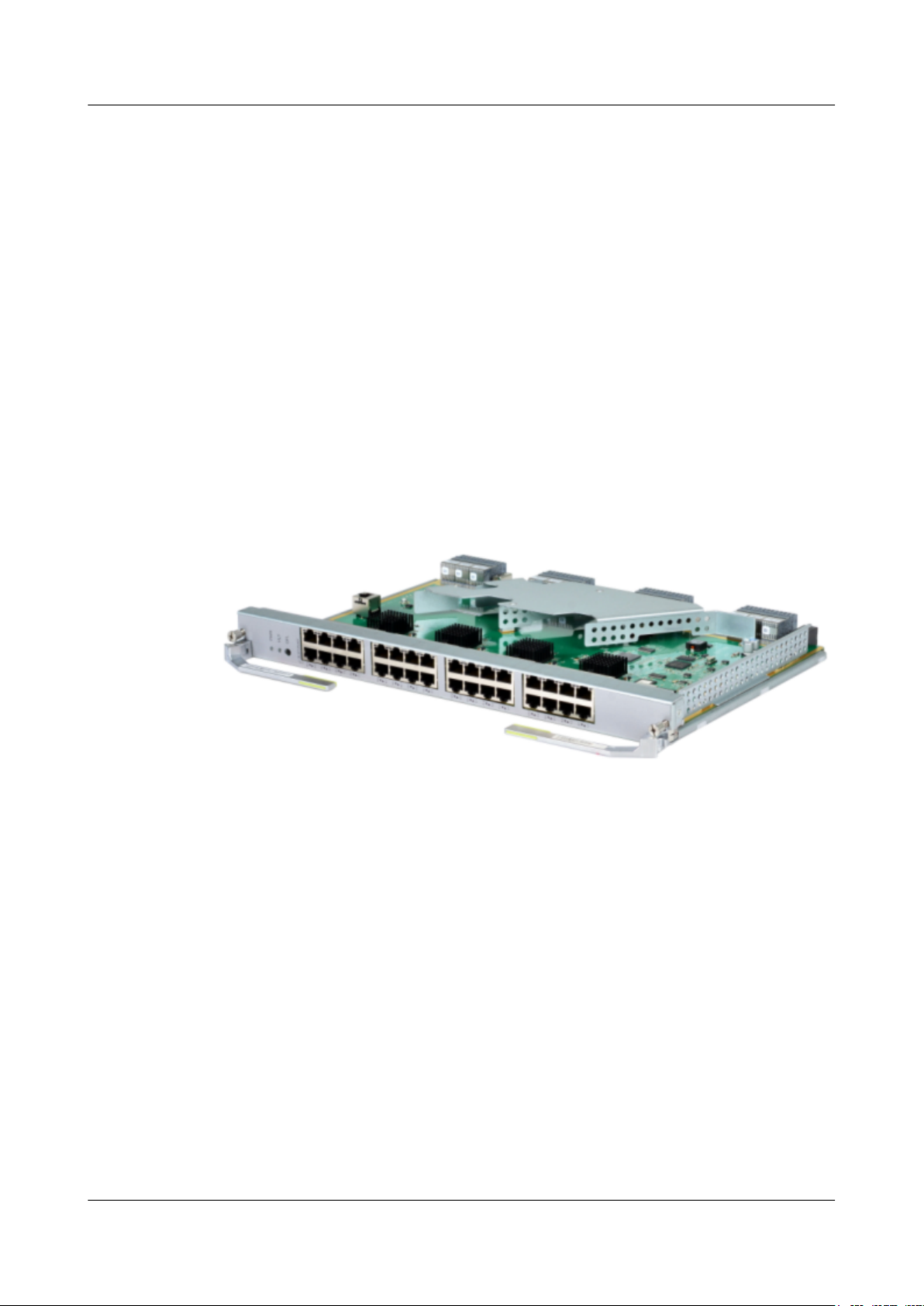

Figure 1-1 shows the CX116.

Figure 1-1 Appearance

Installation Positions

The CX116 is installed in a rear slot of the E9000 chassis. Figure 1-2 shows the positions and

slot numbers for installing the CX116s in a chassis.

Huawei CX116 Pass Through Module

White Paper 1 Overview

Issue 05 (2017-03-27) Huawei Proprietary and Confidential

Figure 1-2 Positions for installing the CX116s

NOTE

The CX116 panel provides more ports than other switch modules. For ease of cable routing and

maintenance, you are advised to install the CX116 in slot 1E or 4E.

Panel

Figure 1-3 shows the CX116 panel.

Huawei CX116 Pass Through Module

White Paper 1 Overview

Issue 05 (2017-03-27) Huawei Proprietary and Confidential

Figure 1-3 Panel

CX116

1 Product model 2 Customization label (with an ESN

label)

3 PWR indicator 4 HLY indicator

5 OFL button (reserved) 6 Status indicator for the right GE

electrical port

7 Status indicator for the left GE electrical

port

8 GE electrical port

9 Ejector lever 10 Captive screw

NOTE

The numbers on the left side are port serial numbers. The arrow direction of a triangle indicates the

direction of a port.

ESNs

An Equipment Serial Number (ESN) is a string that uniquely identifies a server. An ESN is

required when you apply for technical support from Huawei.

Figure 1-4 shows the ESN format.

Huawei CX116 Pass Through Module

White Paper 1 Overview

Issue 05 (2017-03-27) Huawei Proprietary and Confidential

Figure 1-4 ESN example

No. Description

1 Indicates the ESN ID (two digits).

2 Indicates the item identification code (eight characters).

3 Indicates the vendor code (two characters).

4 Indicates the year and month (two characters).

The first character indicates the year. The digits 1 to 9 indicate

2001 to 2009, and the letters A to Z indicate 2010 to 2035. The

second character indicates the month. The digits 1 to 9 indicate

January to September, and the letters A to C indicate October to

December.

5 Indicates the sequence number (six digits).

6 Indicates RoHS compliance (one character).

7 Indicates the internal model number of the board.

1.3 Ports

This topic describes the ports on the CX116.

Overview

Table 1-1 describes the ports on the CX116.

Table 1-1 Ports

Port Type Quantity Description

electric

al port

RJ45 32 The panel provides four 2*4 RJ45 connectors.

Each CX116 provides 32 GE electrical ports.

Each port has one green indicator.

Figure 1-5 shows the CX116 port naming rules.

Huawei CX116 Pass Through Module

White Paper 1 Overview

Issue 05 (2017-03-27) Huawei Proprietary and Confidential
