USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle

could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal

waste; it should be taken to a specialized company for recycling. This device should be returned

to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into

service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Be very careful during the installation: touching live wires can cause life-threatening

electroshocks.

Always disconnect mains power when device not in use or when servicing or

maintenance activities are performed. Handle the power cord by the plug only.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping

liquids. Never put objects filled with liquids on top of or close to the device.

Keep this device away from children and unauthorized users.

Caution: device heats up during use.

Do not stare directly at the light source, as this may cause

epileptic seizure in sensitive people

temporarily loss of sight (flash blindness)

permanent (irreversible) eye damage.

There are no user-serviceable parts inside the device. Refer to an authorized dealer for

service and/or spare parts.

Respect a minimum distance of 0.5 m between the device’s light output and any

illuminated surface.

This is a Safety Class 1 device. It is therefore essential that the device be earthed.

Have a qualified person carry out the electric connection.

Make sure that the available voltage does not exceed the voltage stated in the specifications of this

manual.

Protect the power cord against damage. If the external cable or cord of this luminaire is damaged, it

shall be replaced by a special cord or cord exclusively available from the manufacturer or its service

agent.

The light source contained in this luminaire shall only be replaced by the manufacturer, its service

agent or a similar qualified person.

Use an appropriate safety cable to fix the device (e.g. VDLSC7N or VDLSC8N).

Install the device at a minimal distance of 0.5 m from flammable and explosive objects or

substances.

HQLE10002

V. 01 –18/10/2016 5 ©Velleman nv

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures. Make sure the ventilation

openings are clear at all times. For sufficient air circulation, leave at least 1" (± 2.5 cm)

in front of the openings.

Protect this device from shocks and abuse. Avoid brute force when operating the

device.

Familiarise yourself with the functions of the device before actually using it. Do not allow operation

by unqualified people. Any damage that may occur will most probably be due to unprofessional use

of the device.

All modifications of the device are forbidden for safety reasons. Damage caused by user modifications

to the device is not covered by the warranty.

Only use the device for its intended purpose. All other uses may lead to short circuits, burns,

electroshocks, lamp explosion, crash, etc. Using the device in an unauthorised way will void the

warranty.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and

the dealer will not accept responsibility for any ensuing defects or problems.

Mechanical wear and LEDs are not covered by warranty.

A qualified technician should install and service this device.

Do not switch the device on immediately after it has been exposed to changes in temperature.

Protect the device against damage by leaving it switched off until it has reached room temperature.

This device is designed for professional use on stage, in discos, theatres, etc. The device should only

be used indoors with an alternating current of 110-240 V~, 50/60 Hz.

Lighting effects are not designed for permanent operation: regular operation breaks will prolong their

lives.

Use the original packaging if the device is to be transported.

Keep this manual for future reference.

4. Features

Intense tight beams and insane laser like effects: the Rocket 2R delivers high-energy action to any

event. The scanner’s amazing effects include a tri-axis scanning mirror system, multi-facet rotating

prism, variable speed shutter, dimmer, strobe, 14 dichroic colours and several patterns, enabling you to

create incredible laser effects that will blow away any live event.

multi-effect luminaire: beam, scanner, laser

3° precision beam

X/Y and Z high-speed mirror system

17 gobos + open

effects:

ostrobe

oelectronic dimmer

o3-facet rotating prism

omultiple pattern macros

5. Overview

Refer to the illustrations on page 2 of this manual.

display

power input

DMX input

power output

DMX output

fuse

HQLE10002

V. 01 –18/10/2016 6 ©Velleman nv

6. Installation

Choose a suitable mounting spot. Mount the device in the desired angle using the included bracket.

Connect the power cord to the mains. Disconnect after use.

6.1 Mounting the Device

Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.

The carrying construction must be able to support 10 times the weight of the device for 1 hour

without deforming.

Never stand directly below the device when it is being mounted, removed or serviced. Have a

qualified technician check the device once a year and once before you bring it into service.

Install the device in a location with few passers-by that is inaccessible to unauthorised persons.

Overhead mounting requires extensive experience: calculating workload limits, determining the

installation material to be used… Have the material and the device itself checked regularly. Do not

attempt to install the device yourself if you lack these qualifications as improper installation may

result in injuries.

For truss mounting, use an appropriate clamp (not incl.) and fit an M10 bolt through the centre of the

(folded) bracket.

Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.

Make sure there is no flammable material within a 0.5 m radius of the device.

Have a qualified electrician carry out the electric connection.

Connect the device to the mains with the power plug. All devices must be powered directly off a

grounded switched circuit. Do not connect to a dimmer pack.

The device has a power output to supply power to another device. When connecting several devices

in a daisy chain via this output, make sure that the total current does not exceed the power line’s

nominal current. Use power cables with an adequate section.

The installation has to be approved by an expert before the device is taken into service.

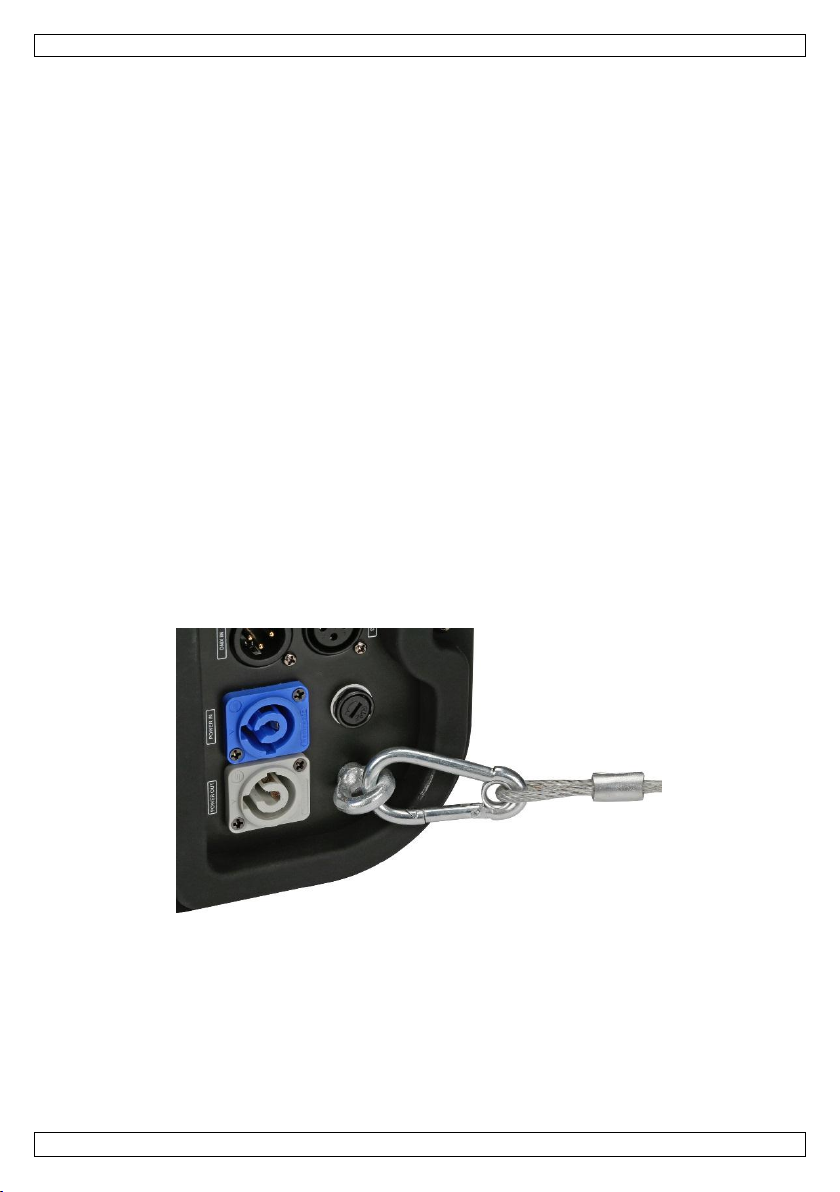

6.2 Second Attachment

When hung, the luminaire must always be secured with a secondary attachment e.g. a safety cable.

HQLE10002

V. 01 –18/10/2016 7 ©Velleman nv

6.3 Connecting the Device

Power

Connect the device to the mains with the power plug.

Power all devices directly off a grounded switched circuit.

Do not connect the device to a rheostat or dimmer circuit, even when using the rheostat or dimmer

channel solely for 0 % to 100 % switching.

Have a qualified electrician carry out the electric connection.

DMX-512 Connection

When applicable, connect an XLR cable to the female XLR output of a controller (not incl.) and the

other side to the male XLR input of the device. Multiple devices can be linked through serial linking.

The linking cable shall be a dual core, screened cable with XLR input and output connectors.

A DMX terminator is recommended for installations where the DMX cable has to run a long distance

or is in an electrically noisy environment (e.g. discos). The terminator prevents corruption of the

digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω

resistor between pins 2 and 3, which is then plugged into the XLR output socket of the last device in

the chain.

7. Operation

The device can be used in the following modes:

stand-alone mode

master/slave

with a DMX-512 controller.

7.1 Control Panel

Access the control panel functions using the four panel buttons located around the display. From left to

right:

Button

Function

access the menu

return to a previous menu option

hold pressed to enter the hidden menu

scroll through the menu options in ascending order

increase value

DOWN

scroll through the menu options in descending order

decrease value

ENTER

select menu option

store the current menu or option within the menu

Refer to the illustrations on page 2 of this manual.

7.2 Stand-Alone Mode

The device starts running in stand-alone mode after connection to the mains. This mode allows you to

use the device without controller.

7.3 Master/Slave Mode

The master/slave mode allows for connecting several devices to a single master device in a daisy

chain.

All slave devices will then work synchronously with the master device.

Configure all slave units before connecting the master unit to the daisy chain.

The maximum number of slave units you can connect to a master unit is 18.

HQLE10002

V. 01 –18/10/2016 8 ©Velleman nv

7.4 DMX Mode

The DMX mode allows you to control the device with any universal DMX controller.

All DMX-controlled devices need a digital start address so that the correct device responds to the

signals. This digital start address is the channel number from which the device starts to “listen” to

the DMX controller. The same starting address can be used for a whole group of devices or an

individual address can be set for every device.

When all devices have the same address, all the units will “listen” to the control signal on one

particular channel. In other words: changing the settings of one channel will affect all devices

simultaneously. If you set individual addresses, each device will “listen” to a separate channel

number. Changing the settings of one channel will only affect the device in question.

7.5 DMX Channel Values

channel mode

from

function

pan

255

pan

pan/pan shaking

127

pan

128

255

pan shaking, slow > fast

tilt/tilt shaking

127

tilt

128

255

tilt shaking, slow > fast

pan fine

255

pan fine (16 bit)

tilt

255

tilt

tilt fine

255

tilt fine (16 bit)

pan shaking

no function

255

pan shaking, slow > fast

tilt shaking

no function

255

tilt shaking, slow > fast

colour

white

white + colour 1

colour 1

colour 1 + colour 2

colour 2

colour 2 + colour 3

colour 3

colour 3 + colour 4

colour 4

colour 4 + colour 5

colour 5

colour 5 + colour 6

colour 6

colour 6 + colour 7

colour 7

colour 7 + colour 8

colour 8

colour 8 + colour 9

colour 9

HQLE10002

V. 01 –18/10/2016 9 ©Velleman nv

colour 9 + colour 10

colour 10

colour 10 + colour 11

colour 11

colour 11 + colour 12

colour 12

colour 12 + colour 13

colour 13

colour 13 + colour 14

colour 14

colour 14 + white

white

white + colour 1

colour 1

colour 1 + colour 2

colour 2

colour 2 + colour 3

colour 3

colour 3 + colour 4

colour 4

colour 4 + colour 5

colour 5

colour 5 + colour 6

colour 6

colour 6 + colour 7

colour 7

colour 7 + colour 8

101

colour 8

102

colour 8 + colour 9

103

105

colour 9

106

colour 9 + colour 10

107

109

colour 10

110

colour 10 + colour 11

111

113

colour 11

114

colour 11 + colour 12

115

117

colour 12

118

colour 12 + colour 13

119

121

colour 13

122

colour 13 + colour 14

123

125

colour 14

126

colour 14 + white

127

128

white

129

190

colour CCW rotation, fast > slow

191

193

stop

194

255

colour CW rotation, slow > fast

HQLE10002

V. 01 –18/10/2016 10 ©Velleman nv

gobo

open

gobo 1

gobo 2

gobo 3

gobo 4

gobo 5

gobo 6

gobo 7

gobo 8

gobo 9

gobo 10

gobo 11

gobo 12

104

gobo 13

105

112

gobo 14

113

119

gobo 15

120

126

gobo 16

127

133

gobo 17

134

194

CW gobo rotation, fast > slow

195

255

CCW gobo rotation, slow > fast

pattern macro

off

pattern macro 1

pattern macro 2

pattern macro 3

pattern macro 4

pattern macro 5

pattern macro 6

pattern macro 7

pattern macro 8

pattern macro 9

pattern macro 10

101

pattern macro 11

102

110

pattern macro 12

111

118

pattern macro 13

119

127

pattern macro 14

128

135

pattern macro 15

136

144

pattern macro 16

145

152

pattern macro 17

153

161

pattern macro 18

162

169

pattern macro 19

170

178

pattern macro 20

179

186

pattern macro 21

187

195

pattern macro 22

196

203

pattern macro 23

204

212

pattern macro 24

213

220

pattern macro 25

221

229

pattern macro 26

230

237

pattern macro 27

238

246

pattern macro 28

247

255

pattern macro 29

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Equipo de DJ de HQ Power

HQ Power

HQ Power VDLL300MR Manual de usuario

HQ Power

HQ Power VDPL303WQD Manual de usuario

HQ Power

HQ Power VDL25ST Manual de usuario

HQ Power

HQ Power HQLB10003 Manual de usuario

HQ Power

HQ Power HQPE10003 Manual de usuario

HQ Power

HQ Power VDL10MB Manual de usuario

HQ Power

HQ Power VDP1000SW Manual de usuario

HQ Power

HQ Power HQLP10015 Manual de usuario

HQ Power

HQ Power VDPLP64B4RGB Manual de usuario

HQ Power

HQ Power VDP7510S2 Manual de usuario

HQ Power

HQ Power VDPLOW2403 Manual de usuario

HQ Power

HQ Power VDP600HZ Manual de usuario

HQ Power

HQ Power VDL7510S Manual de usuario

HQ Power

HQ Power ILJ1025 Manual de usuario

HQ Power

HQ Power HQLP10002 Manual de usuario

HQ Power

HQ Power MULTIGOBO & MULTICOLOURS Manual de usuario

HQ Power

HQ Power HQLE10025 Manual de usuario

HQ Power

HQ Power HQLE10050 Manual de usuario

HQ Power

HQ Power VDPLW460 Manual de usuario

HQ Power

HQ Power HQLP10026 Manual de usuario

HQ Power

HQ Power HQPE10001 Manual de usuario

HQ Power

HQ Power VDP100BM Manual de usuario

HQ Power

HQ Power VDPLMS1 Manual de usuario

HQ Power

HQ Power HQLE10032 Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
