HPRT HD100 Manual de usuario

Quick Start Guide

Packing List

HD100

Printer AC Adapter

CD

Power Cord

Quick Start Guide

Quick Start Guide

USB Cable

Appearance and Components

Front View

Printer Cover

Feed Buon

(Status Indicator)

Cover Open Levers

Rear View

Inside View

Printhead Module

Moveable Roll Holders

Kick-stand Cover Lock

Locking Tab

Platen Moveable Label Guides

Moveable Label Sensor

Power Switch

Power Receptacle

USB Port

Serial Port

Ethernet Port

-1-Rev.1.0 -2-

Thermal Label Roll

！Note: The packing materials are actually based on the order.

Note: The views above are for your reference. Ports vary by your choice.

！

Xiamen Hanin Electronic Technology Co.,Ltd

ADD:

TEL:

FAX:

WEB:

5F, 8#, Aide Airport Industrial Park, Huli

District,Xiamen, China 361009

+86-(0)592-5885993

+86-(0)592-5885992

www.hprt.com

HD130

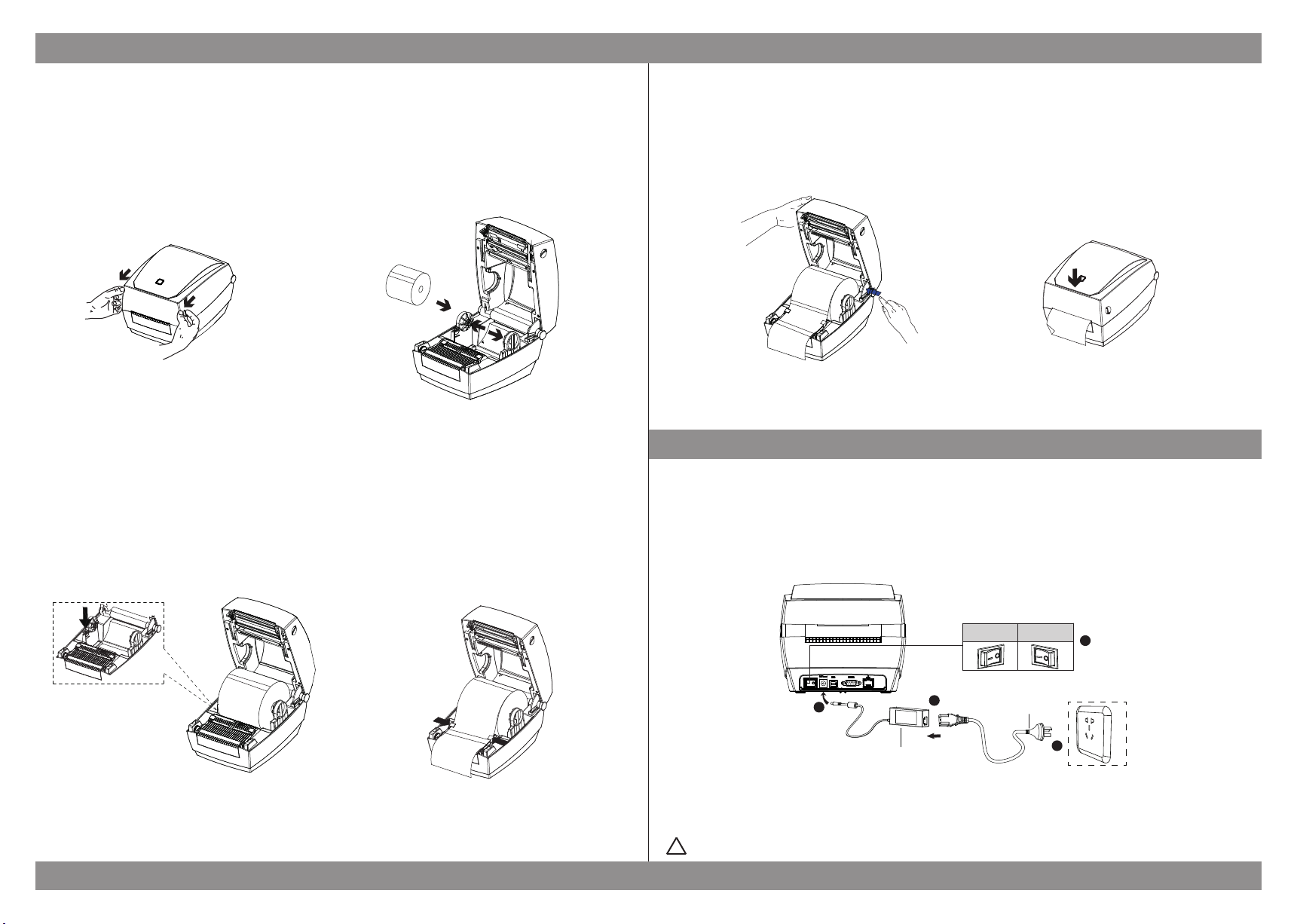

Loading the Roll

1.Press the le and right cover open lever

with hands simultaneously and li the

printer cover.

2.Pull the roll holders open and place the roll

between them.

3.Make sure the roll paper close to paper

roll holders and press down the locking tab.

4.Pass the labels through label guides and adjust

label guides to label’s width.

6.Press down the cover unl it closes.

Connecng the Power

5.Press the lock and close the cover slightly.

1.Make sure the printer’s power switch is “OFF”.

2.Connect the AC adapter to power receptacle.

3.Connect the power cord to AC adapter.

4.Connect the other end of power cord to the outlet.

！Note: Please refer to windows driver installaon in HD100 and HD130 User Manual.

Rev.1.0 -3- -4-

Varies by regions

Power Cord

AC Adapter

OFF ON 1

2

3

4
