HPE LSWM124XG2Q Manual de usuario

HPE LSWM124XG2Q (JH181A) &

LSWM124XG2QL (JH180A) Interface

Modules User Guide

Part number: 5998-7150t

▌Introduction

Product code HPE description Alias

JH181A

HPE 5930 24-port SFP+ and

2-port QSFP+ with MACsec

Module

LSWM124XG2Q

JH180A HPE 5930 24-port SFP+ and

2-port QSFP+ Module LSWM124XG2QL

Overview

The LSWM124XG2Q and LSWM124XG2QL interface modules are

similar in appearance. Each interface module provides 24 SFP+ ports

and two QSFP+ ports. The SFP+ ports on the LSWM124XG2Q

interface module support MACsec.

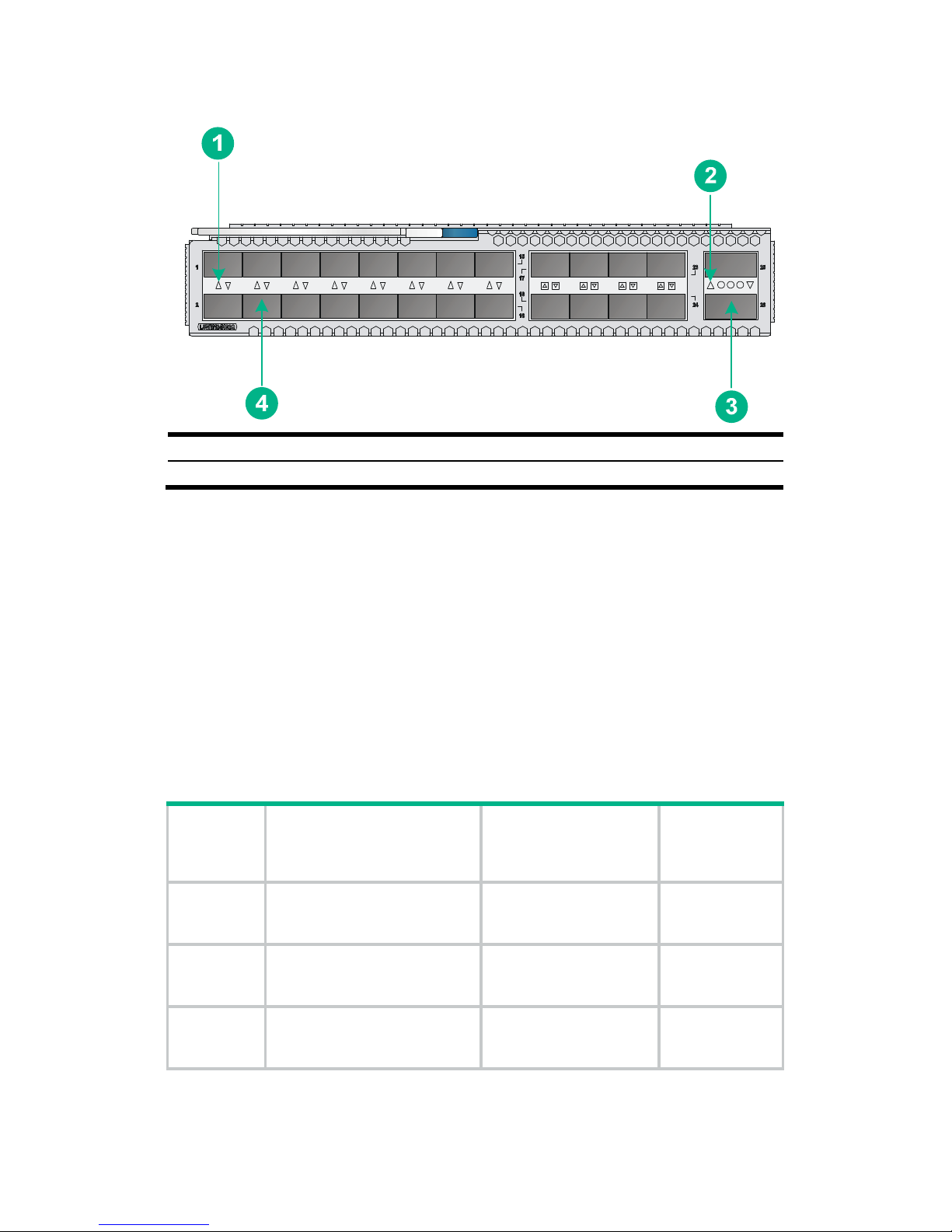

Figure 1 LSWM124XG2Q interface module front panel

(1) SFP+ port LED (2) QSFP+ port LED

(3) QSFP+ port (4) SFP+ port

SFP+ ports

The SFP+ ports on the LSWM124XG2Q and LSWM124XG2QL

interface modules support the following transceiver modules and

cables:

•SFP transceiver modules in Table 1 and Table 2.

•SFP+ transceiver modules in Table 3 and Table 4.

•SFP+ cables in Table 5.

Table 1 1000 Mbps SFP transceiver modules available for the

SFP+ ports (1)

Product

code HPE description Central

wavelength (nm) Connector

JD089B HPE X120 1G SFP

RJ45 T Transceiver N/A RJ-45

JD118B HPE X120 1G SFP

LC SX Transceiver 850 LC

JD119B HPE X120 1G SFP

LC LX Transceiver 1310 LC

Product

code HPE description Central

wavelength (nm) Connector

JD061A

HPE X125 1G SFP

LC LH40 1310nm

Transceiver

1310 LC

JD062A

HPE X120 1G SFP

LC LH40 1550nm

Transceiver

1550 LC

JD063B HPE X125 1G SFP

LC LH70 Transceiver 1550 LC

Table 2 1000 Mbps SFP transceiver modules available for the

SFP+ ports (2)

Product

code

Cable/fiber

diameter (µm)

Modal

bandwidth

(MHz × km)

Max transmission

distance

JD089B Category-5 twisted

pair N/A 100 m (328.08 ft)

JD118B

Multi-mode, 50/125

500 550 m (1804.46 ft)

400 500 m (1640.42 ft)

Multi-mode,

62.5/125

200 275 m (902.23 ft)

160 220 m (721.78 ft)

JD119B

Single-mode, 9/125 N/A 10 km (6.21 miles)

Multi-mode, 50/125 500 or 400 550 m (1804.46 ft)

Multi-mode,

62.5/125 500 550 m (1804.46 ft)

JD061A Single-mode, 9/125 N/A 40 km (24.86

miles)

JD062A Single-mode, 9/125 N/A 40 km (24.86

miles)

Product

code

Cable/fiber

diameter (µm)

Modal

bandwidth

(MHz × km)

Max transmission

distance

JD063B Single-mode, 9/125 N/A 80 km (49.71

miles)

Table 3 10G SFP+ transceiver modules available for the SFP+

ports (1)

Product

code HPE description

Central

waveleng

th (nm)

Connector

JD092B HPE X130 10G SFP+ LC

SR Transceiver 850 LC

JD094B HPE k X130 10G SFP+

LC LR Transceiver 1310 LC

Table 4 10G SFP+ transceiver modules available for the SFP+

ports (2)

Product

code

Fiber diameter

(µm)

Modal

bandwidth

(MHz × km)

Max transmission

distance

JD092B

Multi-mode,

50/125

2000 300 m (984.25 ft)

500 82 m (269.03 ft)

400 66 m (216.54 ft)

Multi-mode,

62.5/125

200 33 m (108.27 ft)

160 26 m (85.30 ft)

JD094B Single-mode,

9/125 N/A 10 km (6.21 miles)

Table 5 SFP+ cables available for the SFP+ ports

Product

code HPE description Cable length Data rate

JD095B HPE X240 10G SFP+

SFP+ 0.65m DA Cable 0.65 m (2.13 ft) 10.31 Gbps

JD096B HPE X240 10G SFP+

SFP+ 1.2m DA Cable 1.2 m (3.94 ft) 10.31 Gbps

JD097B HPE X240 10G SFP+

SFP+ 3m DA Cable 3 m (9.84 ft) 10.31 Gbps

JG081C HPE X240 10G SFP+

SFP+ 5m DAC Cable 5 m (16.40 ft) 10.31 Gbps

NOTE:

s a best practice, use HPE transceiver modules and cables for

the SFP+ ports. The available transceiver modules and cables

might change over time. For the most recent list of available

transceiver modules and cables, contact Hewlett Packard

Enterprise Support or marketing staff.

For more information about HPE SFP transceiver modules, SFP+

transceiver modules, and SFP+ cables, see HPE Comware-Based

Devices Transceiver Modules User Guide.

QSFP+ ports

The QSFP+ ports on the LSWM124XG2Q and LSWM124XG2QL

interface modules support the following transceiver modules and

cables:

•QSFP+ transceiver modules in Table 6 andTable 7.

•QSFP+ cables in Tabl e 8.

•QSFP+ to SFP+ cables in Table 9.

Table 6 40G QSFP+ transceiver modules available for the QSFP+

ports (1)

Product

code HPE description Central

wavelength (nm)

Conne

ctor

JG325B HPE X140 40G QSFP+

MPO SR4 Transceiver 850 MPO

JG709A

HPE X140 40G QSFP+

MPO MM 850nm CSR4

300m Transceiver

850 MPO

JG661A HPE X140 40G QSFP+

LC LR4 SM 10km

1310nm Transceiver

Four lanes:

•1271

•1291

•1311

•1331

Table 7 40G QSFP+ transceiver modules available for the QSFP+

ports (2)

Product

code

Cable/fiber

diameter (µm)

Modal

bandwidth

(MHz × km)

Max transmission

distance

JG325B Multi-mode, 50/125

2000 100 m (328.08 ft)

4700 150 m (492.13 ft)

JG709A Multi-mode, 50/125

2000 300 m (984.25 ft)

4700 400 m (1312.34 ft)

JG661A Single-mode, 9/125 N/A 10 km (6.21 miles)

Table 8 40G QSFP+ cables available for the QSFP+ ports

Product

code HPE description Cable length Data rate

JG326A

HPE X240 40G QSFP+

QSFP+ 1m Direct Attach

Copper Cable

1 m (3.28 ft) 40 Gbps

JG327A

HPE X240 40G QSFP+

QSFP+ 3m Direct Attach

Copper Cable

3 m (9.84 ft) 40 Gbps

JG328A

HPE X240 40G QSFP+

QSFP+ 5m Direct Attach

Copper Cable

5 m (16.40 ft) 40 Gbps

Table 9 40G QSFP+ to SFP+ cables available for the QSFP+

ports

Product

code HPE description Cable

length Data rate

JG329A

HPE X240 40G QSFP+ to

4x10G SFP+ 1m Direct

Attach Copper Splitter Cable

1 m (3.28 ft) 40 Gbps

JG330A

HPE X240 40G QSFP+ to

4x10G SFP+ 3m Direct

Attach Copper Splitter Cable

3 m (9.84 ft) 40 Gbps

JG331A

HPE X240 40G QSFP+ to

4x10G SFP+ 5m Direct

Attach Copper Splitter Cable

5 m (16.40 ft) 40 Gbps

NOTE:

•When you install the interface modules on the HPE FlexFabric

5930 4-Slot Switch (JH179A), HPE FlexFabric 5930 4-Slot

TAA Switch (JH188A), and HPE FlexFabric 5940 4-Slot

Switch (JH398A) the 40-GE QSFP+ ports on the interface

modules cannot be split into four 10-GE SFP+ ports.

•As a best practice, use HPE transceiver modules and cables

for the QSFP+ ports. The available transceiver modules and

cables might change over time. For the most recent list of

available transceiver modules and cables, contact Hewlett

Packard Enterprise Support or marketing staff.

For more information about QSFP+ transceiver modules, QSFP+

cables, and QSFP+ to SFP+ cables, see HPE Comware-Based

Devices Transceiver Modules User Guide.

LEDs

Table 10 describes SFP+ port LEDs. Table 11 describes QSFP+ port

LEDs.

Table 10 SFP+ port LED description

LED status Description

Steady green

A transceiver module or cable has been correctly

installed. The port has a link and is operating at 10

Gbps.

Flashing green The port is sending or receiving data at 10 Gbps.

Steady yellow

A transceiver module or cable has been correctly

installed. The port has a link and is operating at 1

Gbps.

Flashing

yellow

The port is sending or receiving data at 2 Gbps or

4 Gbps.

Off No transceiver module or cable has been installed

or no link is present on the port.

Table 11 QSFP+ port LED description

LED status Description

Steady green

A transceiver module or cable has been correctly

installed. The port has a link and is operating at 40

Gbps.

Flashing green The port is sending or receiving data at 40 Gbps.

Steady yellow

A transceiver module or cable has been correctly

installed. The port has a link and is operating at 10

Gbps.

Flashing

yellow The port is sending or receiving data at 10 Gbps.

Off No transceiver module or cable has been installed

or no link is present on the port.

NOTE:

The SFP+ port LEDs and QSFP+ port LEDs are not affected by

the port mode switching button on your switch. For more

information about the port mode switching button, see the

installation guide of the switch.

▌Installing and removing the interface module

CAUTION:

•Before you install or remove the interface module, wear an

ESD wrist strap and make sure the strap makes good skin

contact and is reliably grounded.

•To avoid device damage, do not use excessive force when you

install or remove the interface module.

The installation and removal procedures are the same for the

LSWM124XG2Q and LSWM124XG2QL interface modules. This

section uses the LSWM124XG2Q interface module as an example.

Installing the interface module

Before you install the interface module, remove the filler panel (if any)

from the target slot. Keep the removed filler panel for future use.

To install the interface module:

1. Unpack the interface module.

Figure 2 LSWM124XG2Q interface module

(1) Ejector lever (2) Latch

2. Press the latch on the interface module to release the ejector

lever.

3. Insert the interface module slowly into the slot along the guide

rails, as shown by callout 1 in Figure 3.

4. Rotate inward the ejector lever until the latch locks the ejector

lever in place, as shown by callout 2 in Figure 3.

Figure 3 Installing the interface module
