Connectivity Quick Reference

for the HP AdvanceStack Switch 2000

100VG Connectivity

•Basic Configuration Guidelines:

The default Mode setting for the 100VG ports on the Switch 2000 and Switch-16 is

Auto Detect. When connecting these switches to other network devices, such as hubs

or other switches, the Auto Detect setting works in most cases and should be tried

before making any configuration changes. When connecting these switches to PCs and

workstations that have HP 10/100VG LAN Adapters, HP recommends setting the

Mode to Master.

Other allowable Mode settings are shown in the illustrations on the following pages

under “Port Mode”. The port Mode can be set through the Configuration menu using

the Switch 2000 console interface.

•Connections: 100VG ports on the Switch 2000 must not be connected to any 100VG

ports labeled “Uplink”. These ports are reserved for hub-to-hub connections.

Note that the illustrations show only twisted-pair connections; devices supporting

fiber-optic connections are connected similarly.

To connect to Set 100VGPort Modeto

Network device Auto Detect

PC orworkstation Master

☞

sd4pdf.fm5 Page 1 Thursday, February 20, 1997 4:31 PM

100VG Connectivity

Switch 2000 to 100VG Hub

Switch 2000 to PC

Use any Downlink port

Port Mode

Auto Detect

End Node

Any End Node

(ForExample, a

PC or Server)

sd4pdf.fm5 Page 2 Thursday, February 20, 1997 4:31 PM

100VG Connectivity

Switch 2000 to Switch 2000

Switch 2000 to Switch-16

Auto

Detect

Auto

Detect

Master

End

Node Master

End

Node

OR OR

PortModes

Auto

Detect

Auto

Detect

Master

End

Node Master

End

Node

OR OR

Port Modes

sd4pdf.fm5 Page 3 Thursday, February 20, 1997 4:31 PM

100VG Connectivity

Switch 2000 to Switch 200

Switch 2000 to Router 650

0ORT-ODE

Auto Detect

End Node

Use Downlink Port

Port Mode

Auto Detect

Master

sd4pdf.fm5 Page 4 Thursday, February 20, 1997 4:31 PM

UTP Ethernet/10Base-T Connectivity

Ethernet connectivity includes twisted pair (UTP) cabling (below), and fiber-optic cabling (page 9).

Twisted Pair Cabling

The Ethernet module for the Switch 2000 has 10Base-T ports that operate as MDI-X ports, and a slot to install a

10Base-T transceiver that operates as an MDI port.

•MDI-X Operation: The four 10Base-T ports built into the module are designed for MDI-X operation (that is, for

connecting end nodes to the switch). Thus, if you connect any of these ports to an MDI-X port on another device,

use a “crossover” cable. But if the connection is to an MDI port, use a “straight-through” cable.

•MDI Operation: An optional 10Base-T transceiver in the transceiver slot operates in MDI mode (that is, for con-

necting hubs or other switches to the Switch 2000). In this case, use a “straight-through” cable to connect the

transceiver to an MDI-X port on another device, or a “crossover cable” to connect the transceiver to another trans-

ceiver or other MDI port on another device.

Note that if the connection from the 10Base-T transceiver is to another HP 10Base-T transceiver (requiring a cross-

over cable), the “long cable” option can be set on both transceivers, allowing the connection to be up to 200 meters.

See the transceiver documentation for more information. (For more on straight-through and crossover cables, see

appendix A, “Cables and Connectors”, in the HP AdvanceStack Switch 2000 Installation Guide.)

Switch 2000 to AdvanceStack 10Base-T 48-Port Hub

CrossoverCable

sd4pdf.fm5 Page 5 Thursday, February 20, 1997 4:31 PM

UTP Ethernet/10Base-T Connectivity

Switch 2000 to PC

Switch 2000 to Switch 2000, Switch-16, or Switch 200

Any End Node

(ForExample, a

PC or Server)

Straight-Through Cable

Note: This illustration also applies

whenconnectingaSwitch2000toa

Switch-16 or a Switch 200.

Crossover Cable

sd4pdf.fm5 Page 6 Thursday, February 20, 1997 4:31 PM

UTP Ethernet/10Base-T Connectivity

Switch 2000 to Switch 208T

Switch 2000 to Switch 800T

Crossover Cable

Illustrates use of Switch 800T’s 10/100

capability for a 10 Mbit/connection.

Port Mode

Switch 2000:Half Duplex

Switch 800T:Auto Detector 10/Half Dx

Switch 2000:Full Duplex

Switch 800T:Auto Detector 10/Full Dx

Crossover Cable

sd4pdf.fm5 Page 7 Thursday, February 20, 1997 4:31 PM

UTP Ethernet/10Base-T Connectivity

Switch 2000 to Switch 200

Switch 2000 to Router 650

Crossover Cable

Note:As shown in this illustration,

a straight-through cable isused to

connect the Router650 to a built-in

RJ-45port in theSwitch 2000 Ether-

net module. If the connection from

the Router 650 is to a 10Base-T

transceiver in the Switch 2000

Ethernet module, use a crossover

cable instead.

Straight-Through Cable

sd4pdf.fm5 Page 8 Saturday, February 22, 1997 12:00 PM

Fiber Optic 10Base-FL Connectivity

The 10Base-FL module for the Switch 2000 has four ports offering half-duplex or full-duplex operation. The module

supports the following fiber cable and connector types:

• 62.5/125 µm multimode graded-index fiber cable

• ST connectors

Switch 2000 to an AdvanceStack Hub

sd4pdf.fm5 Page 9 Thursday, February 20, 1997 4:31 PM

Fiber Optic 10Base-FL Connectivity

Switch 2000 to Another Switch 2000

Switch 2000 to a Switch-16

sd4pdf.fm5 Page 10 Thursday, February 20, 1997 4:31 PM

Tabla de contenidos

Otros manuales de Cambiar de HP

HP AM866B Manual de usuario

HP Class MMS and MRS Manual de usuario

HP Procurve Series 4100GL Manual de usuario

HP 86060C Series Manual de usuario

HP StorageWorks Brocade Manual de usuario

HP invent ProCurve J4908A Manual de usuario

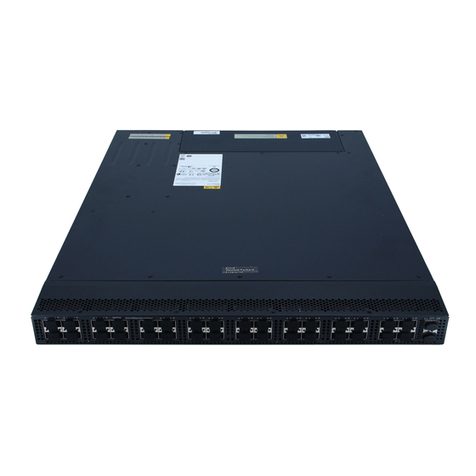

HP JH321A Instrucciones de montaje
