HP StorageWorks MSL6000 series Instrucciones de uso

StorageWorks

MSL6000

Series

Tape Library

Inspect the contents of the kit:

Documentation CD – User guide and Web links

for product registration, drivers, and technical

support.

Warranty Card – Information about accessing

product warranty details.

Safety Booklet – Important product safety

information.

SCSI Terminator(s) – Used in cabling the library.

SCSI Cable(s) – Used in cabling the library.

MSLUtil Diagnostic Software – Product

diagnostic utility.

Serial Cable – Used in conjunction with MSLUtil

diagnostic software.

Note: Accessory kit contents may vary

by product. Optional accessories include

rack mounting hardware for mounting the

library into an HP Rack 10,000 Series

enclosure and a rack system/e or

AlphaServer H9A rack enclosure.

Refer to the documentation for those kits.

1. Left magazine door

2. Left magazine

3. Mail slot

4. Viewing window

5. GUI touch screen

6. Library status LED

7. Right magazine

8. Right magazine door

Setting Up

Your Library

FRONT VIEW:

REAR VIEW:

1. Power supply

2. Power switch

3. Pass-through

mechanism interface

controller

4. Pass-through

mechanism mounting

location

5. Blank cover

6. Tape drive 0

7. Accessory PCI slots (2)

8. Library controller

board

Getting Connected

Install the Mounting Rails

Getting Connected

4-drive models

Drive 1 Drive 0

Drive 3

Drive 1

Drive 0

Drive 2

18"

(50 cm)

Depending on the model, your library may

look different from the ones illustrated in this

procedure.

Refer to the HP StorageWorks MSL6000 Series

Tape Library User Guide for additional

procedures.

Note: Save the packing materials for use in

moving and shipping the library in the future.

Select a location that is flat, sturdy, and level.

Ensure that the cooling grills at the front and

the fans at the rear are not obstructed. Do not

place the library on its side or stack items on top

of the library.

Use the template shipped

with the library to mark the rack with the

attachment locations of the mounting hardware.

a. Push back the tabs on the top of the template and place them in the holes of the mounting rails. Match up

the hole pattern printed on the sides of the template with the hole pattern in the mounting rails.

b. Make sure to begin measuring in the correct place. If a component is already installed immediately below

the planned position of the new component, place the template against the front mounting rails and rest it

on top of the previously installed component.

c. Use the front of the template to mark the attachment points on the front of the rack enclosure for mounting

brackets, rails, components, or clip nuts.

d. Use the back of the template to mark the attachment points on the back of the rack enclosure for mounting

brackets, rails, components, or cage nuts.

e. Remove the template and attach the rails using the supplied fasteners.

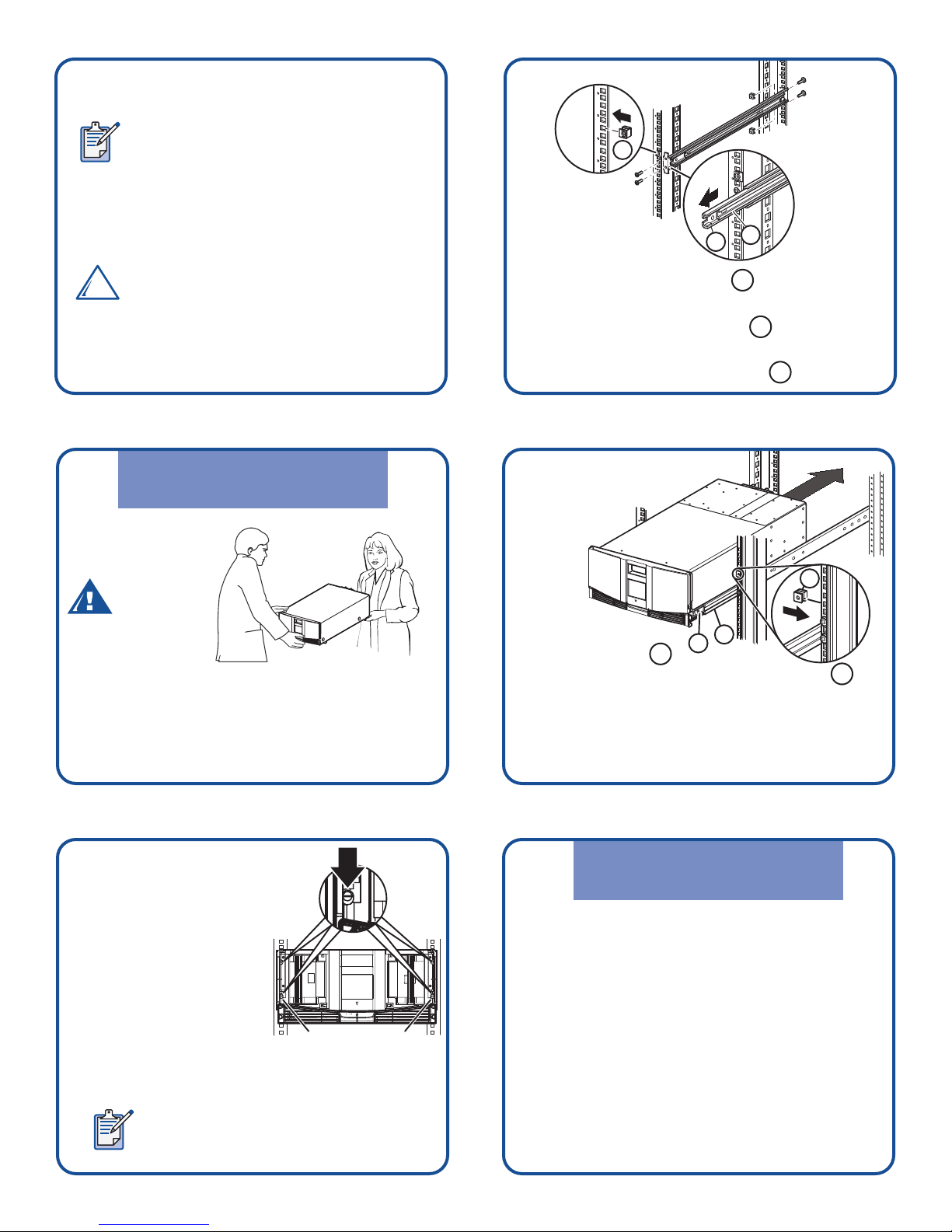

Install the Library

into the Rack

Connecting the

SCSI Cables

Note: Rail front brackets are threaded to

directly accept screws. Rear brackets are

not threaded and require installation of

cage nuts in the rack enclosure’s rear

vertical rails. See the documentation

provided with your rack enclosure for

detailed installation instructions.

Caution: Fully tighten the front rail

screws. Leave the rear rail screws finger

tight to prevent binding when installing

the library.

Front of rack

Back of rack

f. Fully extend the slide rails 1on both sides

of the rack enclosure until they lock.

g. Slide the inner bearing race 2as far as

possible to the front of the rail assembly.

h. Install the two slide-on clip nuts 3.

Warning:

Two people

should

perform the

next step.

When the library is fully extended, ensure

that the rack enclosure does not

overbalance.

a. Using two people, lift the library and visually

align the inner and intermediate slide rails.

b. Carefully

insert the library’s

inner slide rails 3

into the extended intermediate slide rails 2.

c. Slide the library into the rack enclosure until

the rail locks are engaged.

d. Level the rear of the library and fully tighten

the rear rail screws.

Retaining screws

e. Remove the tape

securing the library

doors in place.

f. Remove and discard the

pull-tabs used to block

the latch mechanism

when closing the doors.

g. Secure the front panel

to the rack enclosure using the retaining

screws and then close the doors.

Note: Two-drive libraries require four

retaining screws; four-drive libraries

require two retaining screws.

Use the following guidelines when configuring your

SCSI cables:

•Use the highest quality SCSI cables. Bus errors

caused by excessive length or poor quality

cables can significantly degrade performance

and reliability.

•Each tape drive in the library (and the library

controller) is a separate SCSI target. When

more than one device is connected to the same

bus, each separate device must be assigned a

unique SCSI ID.

To Host

•SCSI IDs are set at the factory. Use the GUI touch

screen to change any of the factory defaults.

•To connect a library to a host, the host must have at

least one Wide LVD/SE controller and the appropriate

driver software.

•For best performance, do not attach more than two

drives per bus. A maximum of one tape drive per bus

is recommended for Ultrium 460 and 960 tape drives.

•HP recommends that the robot and drive 0

be attached to host bus 0.

•For Windows servers, power on the library before

powering on the server.

Power On the Library

Connect each power cord and turn on the

master power switch for each power supply.

If necessary, turn the library on by touching

the GUI touch screen.

Note: For

4-drive libraries,

the left power receptacle goes with the

bottom power supply and the right power

receptacle goes with the top power supply.

Getting Help

• HP product information:

http://www.hp.com/go/storage

• HP technical support and phone numbers:

http://www.hp.com/support

• HP StorageWorks Library and Tape Tools

(L&TT) diagnostic software:

http://www.hp.com/support/tapetools

After you install and configure the library,

complete the following setup tasks. Refer to the

HP StorageWorks MSL6000 Series Tape Library

User Guide for more information.

• Set the mailslot (optional). The default is

mailslot enabled.

• Set the SCSI IDs (if needed to avoid conflicts).

• Set the library's IP address for Web access

(optional).

• Change the default passwords (optional).

• Load tapes into the library.

• Configure your application software.

Navigating the GUI Menu

EDIT OPTIONS

UTILITIES

Factory

Security Level

MaintenanceDiagnostics

Clean Drive

Replace Drive

Drive Format

Set User Defaults

Force Reconfiguration

Reboot Library

Flash Drive From Tape

Flash Drive From SCSI

Cartridge Cycle

(service only)

Drive Cycle

(service only)

BarCode Cycle

(service only)

Inventory*

Sensor Test*

Vertical Calibration

(4-drive models only)

View Error Log*

Touch Screen Calibrate*

Tachometer Diagnostic*

Friction Diagnostic*

Library

SCSI

Network

Passwords

* Visible with a service password

VIEW SYSTEM DATA

Library Options

SCSI Options

Network Options

Library Info

Cartridge Map

Third Edition (January 2007)

Part Number: 331707-003

*331707-003*

331707-003
