Configuring SATA and SAS in HP ProLiant

SL6000 servers

How to

Abstract.............................................................................................................................................. 2

Introduction......................................................................................................................................... 2

SL6000 Scalable System ...................................................................................................................... 2

SL6000 cabling options ....................................................................................................................... 3

SATA cables ....................................................................................................................................... 5

SAS cables ......................................................................................................................................... 5

Connector types .................................................................................................................................. 6

SL6000 System disk drive installation kits ............................................................................................... 7

P212 SAS cable installation kit .......................................................................................................... 7

P410 SAS cable installation kit .......................................................................................................... 8

SL2x170z SATA cable installation kit ............................................................................................... 10

For more information.......................................................................................................................... 11

Call to action .................................................................................................................................... 11

Abstract

This paper provides guidance for users reconfiguring hard disk drives in any of the SL6000 Scalable

System server nodes. The SL6000 server nodes are primarily intended for SATA hard drives, but SAS

options are available. The hardware required to connect the disk drives depends on the type of server

node, the type of drive (SATA or SAS), the drive form factor (LFF or SFF), and the number of hard

drives in the configuration. The paper describes the required controllers, cables, and components for

each SL6000 server node and disk drive configuration.

Introduction

The SL6000 Scalable System is optimized for extreme scale-out computing applications, such as High

Performance Computing, large-scale enterprise server deployments, and the latest web and cloud

computing applications. Based on industry-standard components, these servers provide extreme

density and high performance at low acquisition costs. The SL6000 server family consists of the

SL160z, SL170z, and SL2X170z server nodes. Installed in easily serviceable 1U server trays, these

nodes are optimized for power and cooling efficiency. For more information on the SL6000 Scalable

System, refer to the HP ProLiant SL6000 Scalable System technology brief at

http://h20000.www2.hp.com/bc/docs/support/SupportManual/c01938587/c01938587.pdf.

SL6000 server nodes can be configured for high storage densities. While this ultra dense, relatively

low cost rack environment is primarily intended for LFF SATA drives. SFF drives, SAS controllers and

SAS disk drives are optional configurations.

SL6000 Scalable System

A ProLiant SL6000 Scalable System consists of a 2U ProLiant z6000 G6 chassis and two

self-contained 1U server trays, each with its own industry-standard processors, Double Data Rate-3

(DDR3) memory, I/O, and storage (Figure 1). The rack-mountable chassis includes a modular power

and cooling infrastructure that supports the slide-in pluggable server trays.

Figure 1. HP ProLiant SL6000 Scalable System

SL6000 cabling options

The SL160z, SL170z, and SL2X170z server nodes all have an embedded SATA controller and

include SATA cabling for standard LFF SATA drive configurations. Optional Smart Array P212 or

P410 SAS controllers are available for each SL6000 server node.

Each SL6000 server node disk drive configuration depends on the server node, the type of disk drives

used, the number of disk drives to be installed, and the disk drive form factor. SFF disk drives require

the SFF disk drive kit to convert the server tray from LFF to SFF support. Cable kits may require some

or all the components supplied in the SFF disk drive kit. Each SFF disk drive kit contains one Y Power

Distribute Cable and one stacked, two drive SFF cage. The Y Power Distribute Cable connects two

SFF disk drive power cables to a single power connector on the server node personality board.1The

SFF drive kit is an option and is purchased separately.

Table 1 is a matrix detailing the required SATA and SAS cable kits for SL6000 server node

configurations and, where needed, the SFF disk drive kit. Each cable kit contains the required cables

for the specified server node and hard drive configuration. The cables included with standard SATA

configurations are compatible with LFF and SFF SATA drives. Table 1 also specifies when SFF disk

drive kits are required and how many SFF disk drive kits are needed for each installation.

1The personality board or module provides connectivity for peripheral components and interface connectors. In this case, the personality board

provides connections between the hard drives and the voltage regulator.

Table 1. SL6000 SAS/SATA hard disk drive (HDD) cable options

Server

node

Controller Max HDD

supported

Required cable kit Qty Required number of

SFF disk drive kits

SL170z

P410 6 LFF HP z6000 P410 / SAS 4HDD Cable Kit

(PN- 583997-B21) 1 None

P410 8 SFF HP z6000 P410 / SAS 4HDD Cable Kit

(PN- 583997-B21) 1 4

P212 4 LFF HP P212 / SAS 4HDD Cable Kit

(PN-574001-B21) 1 None

SAS

P212 4 SFF HP P212 / SAS 4HDD Cable Kit

(PN-574001-B21) 1 2

Embedded 6 LFF Use the cables that come with the server 6 NoneSATA

Embedded 6 SFF Use the cables that come with the server 6 3

SL2X170z

P212 4 LFF HP P212 / SAS 2HDD 2x170 Cable Kit

(PN- 589234-B21) 1 None

SAS

P212 4 SFF HP P212 / SAS 2HDD 2x170 Cable Kit

(PN- 589234-B21) 2 2

Embedded 6 LFF Use the cables that come with the server 2 NoneSATA

Embedded 6 SFF HP SATA / PW CBL SL160/170 G6 KIT

(PN- 574005-B21) 1 3

SL160z

P212 2 LFF HP P212 / SAS 4HDD Cable Kit

(PN- 574001-B21) 1 None

SAS

P212 4 SFF HP P212 / SAS 4HDD Cable Kit

(PN- 574001-B21) 1 2

Embedded 2 LFF Use the cables that come with the server 2 NoneSATA

Embedded 4 SFF HP P212 / SAS 4HDD Cable Kit

(PN- 574001-B21) 1 2

SL165z

P212 2 LFF HP P212 / SAS 4HDD Cable Kit

(PN- 574001-B21) 1 None

SAS

P212 4 SFF HP P212 / SAS 4HDD Cable Kit

(PN- 574001-B21) 1 2

Embedded 2 LFF Use the cables that come with the server 2 NoneSATA

Embedded 4 SFF HP SATA / PW CBL SL160/170 G6 KIT

(PN- 574005-B21) 4 2

For more information on the Smart Array P212 and P410 controllers, go to

www.hp.com/products/smartarray.

SATA cables

LFF SATA drives are the default configuration for storage in the SL6000 and SATA cables are

supplied with each server node.

SAS cables

Multi-drive cables connect SAS drives in the various configurations identified in the Table 1 cabling

matrix. Each SL6000 server node hard drive configuration requires cables with specific cable lengths

and connector types to permit adequate air flow and accommodate space restrictions within the

server node. The example in Figure 2 shows a SAS cable with a straight Mini SAS connector and four

SAS disk drive connectors.

Figure 2. Example of SAS cable with a straight Mini SAS connector

Each of the SAS disk drive connectors is labeled with the number of the drive to be connected. Each

SAS disk drive connector also has a power cable. The power cable uses the same number and is

attached to the corresponding connector on the server node personality board.

Connector types

To accommodate space constraints, cable assemblies may have unique mini SAS connectors.

Figure 3 displays the available Mini SAS connector types for SL6000 server nodes. The Mini SAS

connector types are specified to accommodate each server node configuration and are determined by

the cable kit SKU.

Figure 3. Mini SAS connector types

Straight connector Right angle connector U connector

SL6000 System disk drive installation kits

Each kit contains SAS or SATA cables with power cables and installation instructions. This section

provides example illustrations from some of the available installation kits.

NOTE:

The installation kits contain the SAS cables for the specific hard drive configuration

and the instructions. The installation kits do not include the SFF disk drive kit. The SFF

disk drive kit must be purchased separately and the configuration being considered

may require more than one kit. Consult Table 1 to verify the number of SFF hard drive

kits required for each hard drive configuration.

P212 SAS cable installation kit

Figure 4 is a sample illustration from the P212 Smart Array controller SAS disk drive installation kit.

The kit includes Illustrations and detailed instructions for installing SAS cables in HP ProLiant

SL160z/SL170z/SL2x170z G6 servers. The installation kit covers all available hard drive

configurations employing SAS disk drives and the P212. Figure 4 shows an example installation for

connecting the SAS cables for four SFF disk drives with a X4 riser card in an SL160z server node.

Figure 4. Connecting the SAS cables for four SFF disk drives with a X4 riser card in an SL160z server node

P410 SAS cable installation kit

Figure 5 is a sample illustration from the P410 Smart Array controller SAS disk drive installation kit.

The kit includes Illustrations and detailed instructions for installing SAS cables in the HP ProLiant

SL170z G6 server, the only SL6000 server node to support the P410. The installation kit covers all

available hard drive configurations employing SAS disk drives and the P410. Figure 5 shows an

example installation for connecting the SAS cables for six LFF disk drives in an SL170z server node.

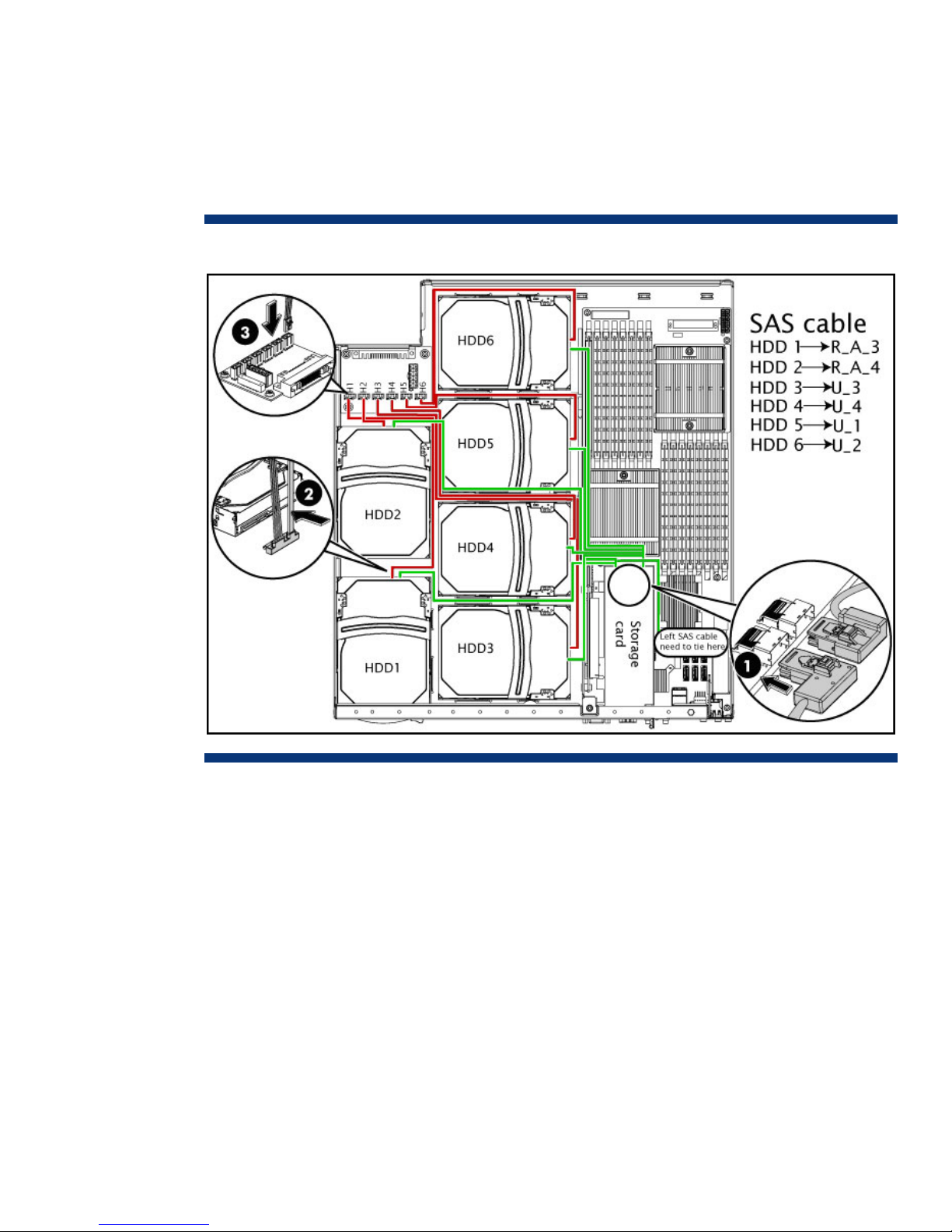

Figure 5. Connecting the SAS cables for six LFF disk drives in an SL170z server node

Figure 6 is another illustration from the P410 Smart Array controller SAS disk drive installation kit

showing the installation of eight SFF SAS drives in an SL170z server node.

Figure 6. Connecting the SAS cables for eight SFF disk drives in an SL170z server node

This installation also requires the use of the stacked, two drive SFF cage shown in Figure 7.

Figure 7. Stacked, two drive SFF cage

SL2x170z SATA cable installation kit

SATA cable installation kits are available for all SL6000 server nodes. Figure 8 is a sample illustration

from the SATA option installation kit showing connection of the SATA cables to LFF SATA disk drives

on each of the two SL170z server nodes. This installation requires additional SATA cables included in

the cable kit. The kit includes Illustrations and detailed instructions for installing SATA cables in the

SL2x170z server.

Figure 8. Connecting the cables for LFF SATA disk drives for two SL170z server nodes
