HP ProLiant ML350p G9 Instrucciones de montaje

Product End-of-Life Disassembly Instructions

Product Category: Servers

Marketing Name / Model

[List multiple models if applicable.]

HP ProLiant ML350p G9

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

Depending on Power Supply model

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1 Screw Driver, Philip #2

Description #2 Screw Driver, T15

T15

Description #3 Screw Driver, T10

T10

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. System Board Battery - Locate the battery on the system board. Use a medium flat head screwdriver or fingers to

remove the battery and dispose of properly.

2. Mega-cell - Use a medium flat head screwdriver or fingers to remove the Mega-cell and dispose of properly.

3. Capacitors=>2.5 cm - Remove the PSU from the system. With screw driver, remove the screws securing the top cover,

locate the capacitors and use a medium flat head screwdriver to remove them and dispose of properly.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

Attachment 1.

Attachment 1– System Board Battery and Mega-cell Location

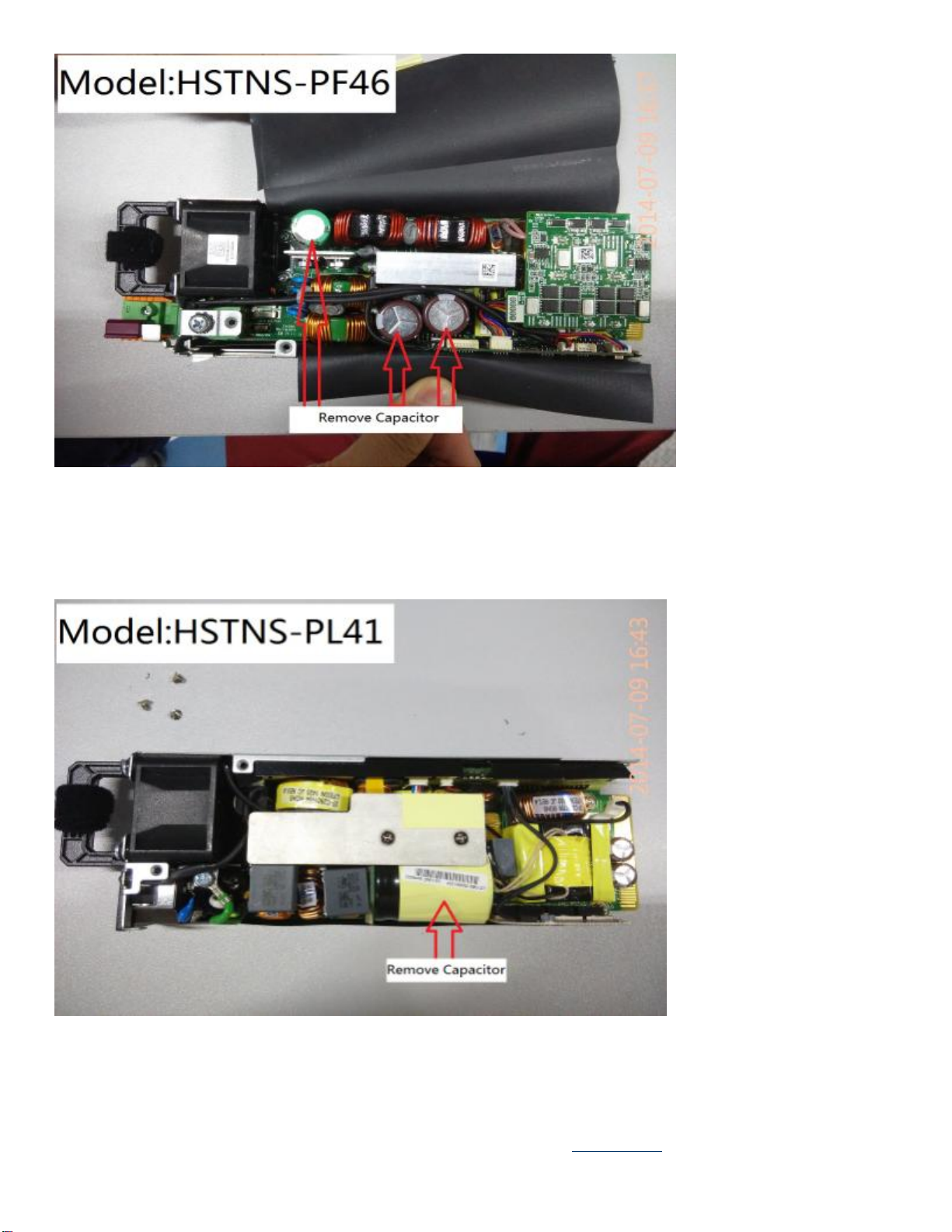

Attachment 2-12 – Capacitors=>2.5 cm location.

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachment 2

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachment 3

Attachment 4

Attachment 5

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachment 6

Attachment 7

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachment 8

Attachment 9

EL-MF877-00 Page 6

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachment 10

Attachment 11

EL-MF877-00 Page 7

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachment 12

EL-MF877-00 Page 8

Template Revision B

PSG instructions for this template are available at EL-MF877-01
