HP ProLiant BL495c Server

Blade

Installation Instructions

Overview

Installation of a server blade requires the following steps:

1. Install and configure an HP BladeSystem c-Class enclosure.

2. Install any server blade options.

3. Install interconnect modules in the enclosure.

4. Connect the interconnect modules to the network.

5. Install a server blade.

6. Complete the server blade configuration.

For definitions of the acronyms used in this document, refer to

"Acronyms and abbreviations" in the server blade user guide.

Installing an HP BladeSystem c-

Class enclosure

Before performing any server blade-specific procedures, install an

HP BladeSystem c-Class enclosure.

The most current documentation for server blades and other

HP BladeSystem components is available at the HP website

(http://www.hp.com/go/bladesystem/documentation).

Documentation is also available in the following locations:

•Documentation CD that ships with the enclosure

•HP Business Support Center website

(http://www.hp.com/support)

•HP Technical Documentation website (http://docs.hp.com)

Installing server blade options

Before installing and initializing the server blade, install any server

blade options, such as an additional processor, hard drive, or

mezzanine card. For server blade options installation information,

see the HP ProLiant BL495c Server Blade User Guide on the HP

website (http://www.hp.com/go/bladesystem/documentation).

Installing interconnect modules

For specific steps to install interconnect modules, see the

documentation that ships with the interconnect module.

The information contained herein is subject to change without notice. The

only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing

herein should be construed as constituting an additional warranty. HP shall

not be liable for technical or editorial errors or omissions contained herein.

Part Number 466196-003

April 2009 (Third Edition)

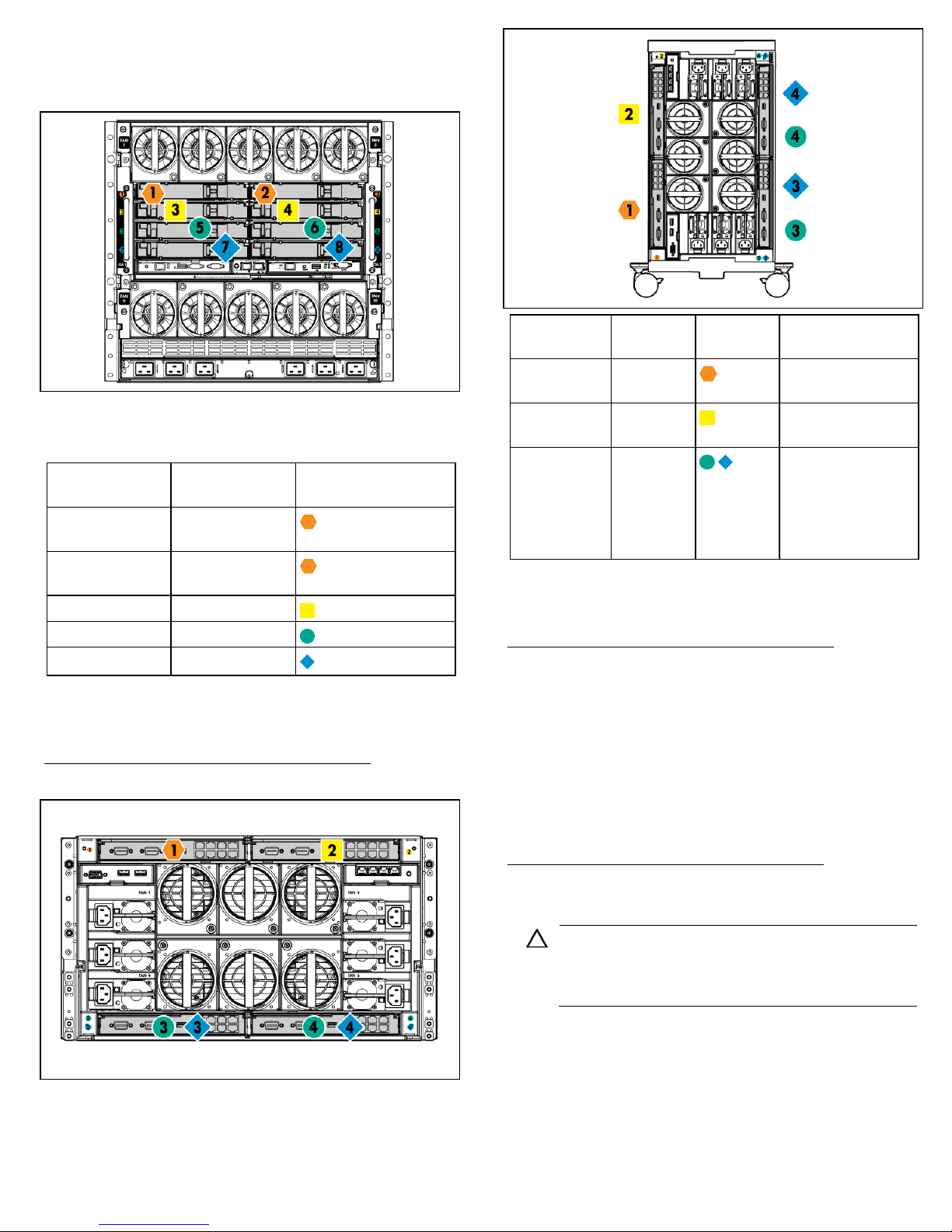

Interconnect bay numbering and device

mapping

•HP BladeSystem c7000 Enclosure

To support network connections for specific signals, install an

interconnect module in the bay corresponding to the embedded

NIC or mezzanine signals.

Server blade

signal

Interconnect bay Interconnect bay labels

Flex-10 NIC 1

(embedded) 1

Flex-10 NIC 2

(embedded) 2

Mezzanine 1 3 and 4

Mezzanine 2 5 and 6

7 and 8

For detailed port mapping information, see the HP BladeSystem

enclosure installation poster or the HP BladeSystem enclosure setup

and installation guide on the HP website

(http://www.hp.com/go/bladesystem/documentation).

•HP BladeSystem c3000 Enclosure and Tower Enclosure

Server blade

signal Interconnect

bay number Interconnect

bay label Notes

Flex-10 NIC 1,

2 (embedded)

1 —

Mezzanine 1 2 Four port cards

connect to bay 2

Mezzanine 2 3,4 •Four port cards

•Ports 1 and 3

connect to bay 3

•Ports 2 and 4

connect to bay 4

For detailed port mapping information, see the HP BladeSystem

enclosure installation poster or the HP BladeSystem enclosure setup

and installation guide on the HP website

(http://www.hp.com/go/bladesystem/documentation).

Connecting to the network

To connect the HP BladeSystem to a network, each enclosure must

be configured with network interconnect devices to manage

signals between the server blades and the external network.

Two types of interconnect modules are available for HP

BladeSystem c-Class enclosures: Pass-thru modules and switch

modules. For more information about interconnect module options,

see the HP website

(http://www.hp.com/go/bladesystem/interconnects).

Installing a server blade

CAUTION: To prevent improper cooling and thermal

damage, do not operate the server blade enclosure unless

all bays are populated with either a component or a

blank.

1. Remove the device bay blank.

2. Remove the enclosure connector cover.

3. Prepare the server blade for installation.

4. Install the server blade.

Completing the configuration

To complete the server blade and HP BladeSystem configuration,

see the overview card that ships with the enclosure.
