HP EliteDisplay E223 Instrucciones de instalación

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Monitors and Displays

Marketing Name / Model

[List multiple models if applicable.]

HP EliteDisplay E223 21.5-inch Monitor

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

refractory ceramic fibers

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1 SCREW DRIVER(Plum flower head)

Description #2 screwdriver

PH2

Description #3 Hex nut screwdriver

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Quick release Base stand

2. Strip the screws from rear cover so that the rear metal cover can be removed , after be turn back

3. Strip the keypad line and led line and all tapes

4. Strip the screws so that the speaker can be removed

5. To remove the shielding(contain the other material )

6. Strip the screws from PCBA

7. Release all materials

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

Below action which may easily damage product .please notice it

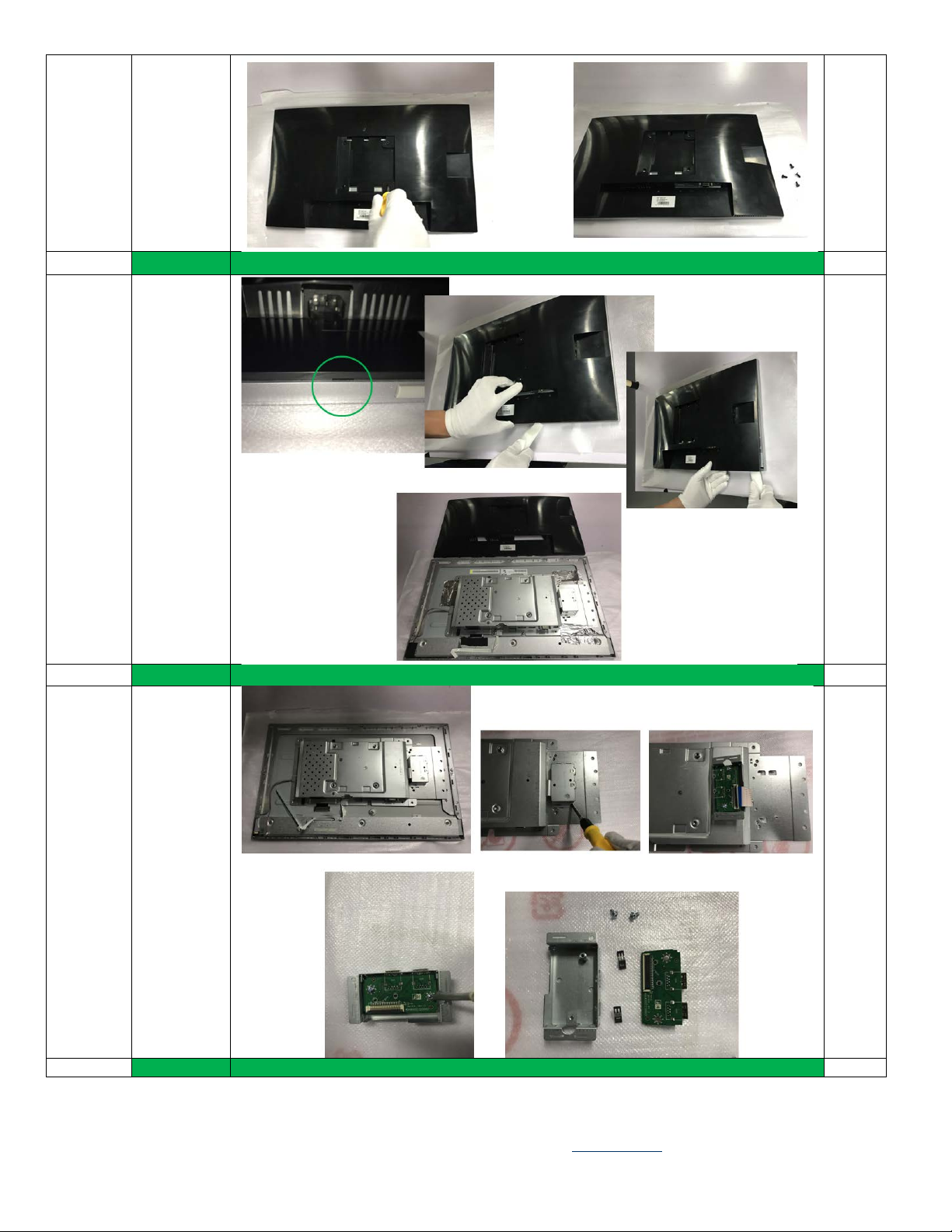

Take out

the

monitor

and

external

cable from

carton,

then put

them onto

the desk

horizontall

y, separate

stand from

monitor as

picture.

N/A

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Remove

the bucket

screws Screwdriver

Use

disassembl

e tool to

separate

back cover

from

monitor

(started

from the

disassembi

ing hole as

the first

picture)

Disassembly

Tool (Better)

Taking off

the LVDS

cable and

Lightbar

cable

firstly,then

separate

USB cover

and

chassis ,

(use

screwdiver

disassembl

e screws

picture).

Screwdriver

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Taking

off PI

mylar,disa

ssemble

power

board and

IF board

screws ,as

the VGA

bolt

screws.

P Cross

Screwdriver

& Bolt

screwdriver

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Separating

chassis

assy all

parts as


N/A

Separating

Mid

frame

and

panel ,

Use

screwdri

ver to

remove

nine

screws

Screwdriver
