HP EliteBook 820 G2 Instrucciones de instalación

Product End-of-Life Disassembly Instructions

Product Category: Notebooks and Tablet PCs

Marketing Name / Model

[List multiple models if applicable.]

HP Elitebook 820 G2 Notebook PC

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Screwdriver #1

Cross head

of screwdriver

Support fixture

Description #3

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Follow steps described in Disassembly instruction (file attached)

2. If parts can be removed without using a tool, remove it first.

3. Use correct screwdriver and torque value before unlock the screw.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

MANUFACTURING PROCESS INSTRUCTIONS

MECHANICAL ASSEMBLY

MODEL :Snicker

Auditor ：AliciaChien

Tabulator：

A. Current station version list

B. Version Modify list

Revision Date Station Content Ver. Design

0.1 2014/11/12 ALL FIRST VERSION 0.1 Nydia Lee

Sub-assembly name: FA DIS ASS‘Y

Document No.: Snicker FA DIS ASS'Y SOP

Written by: Nydia Lee Revision: 0.1

Date: 2014/11/12 Page: 1

Station Ver. Station Ver. Station Ver. Station Ver.

1 0.1 10 0.1

2 0.1 11 0.1

3 0.1 12 0.1

4 0.1 13 0.1

5 0.1 14 0.1

6 0.1 15 0.1

7 0.1 16 0.1

8 0.1

9 0.1

Nydia Lee

Notes : If finding anything uncommon, notice foreman or assistant at once.

Standard Operation Procedure

Document No. : Snicker FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Step：

Tabulator：Issue department：

AliciaChien NPSU-PPE

Auditor ：Nydia Lee

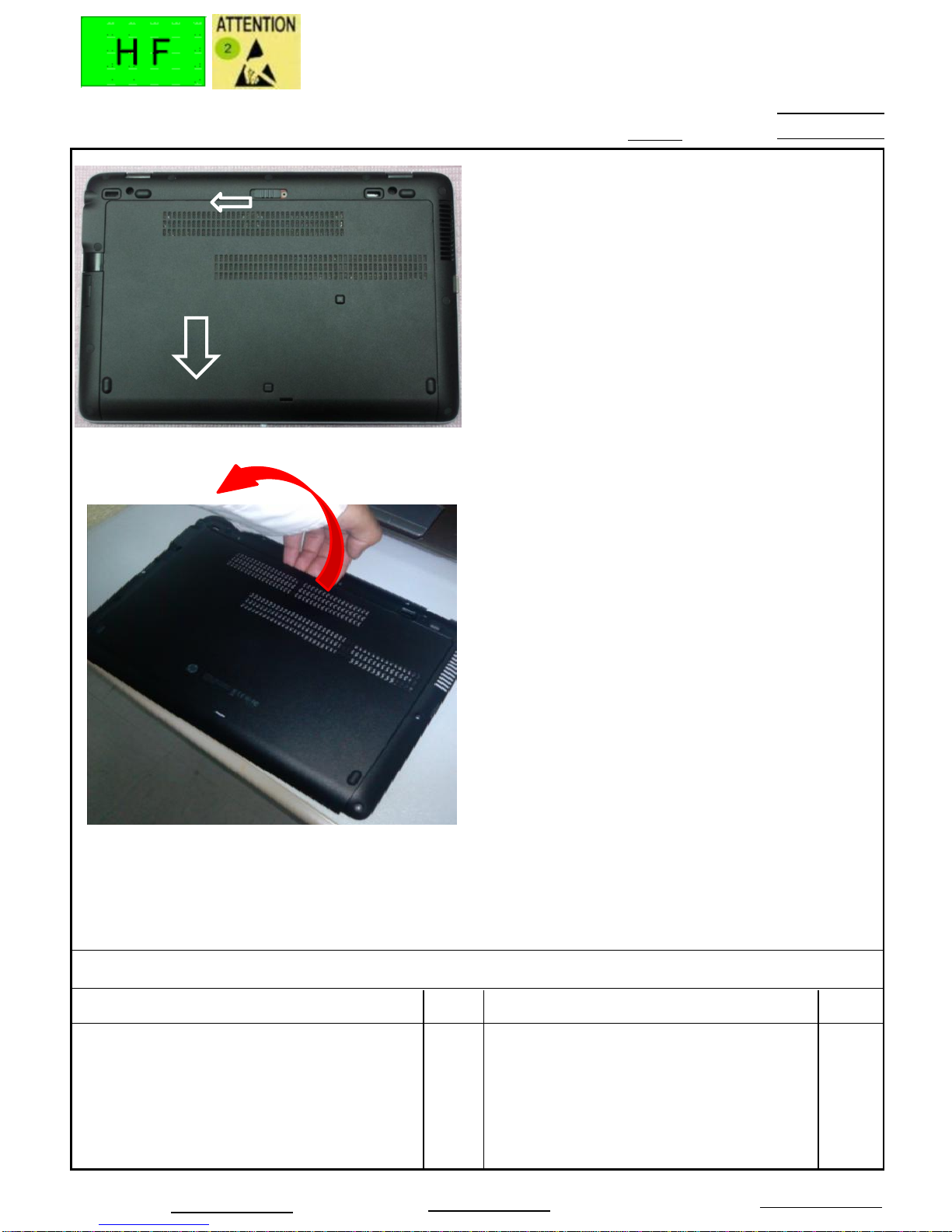

Disassemble Service Door

1. Press and slide the release button to left, at

the same time, slide the service door

downward. (Fig.1)

2. Disassemble the service door. (Fig.2)

1(1/1)

0.1 2014/11/12

Fig.2

Fig.1

Notes : If finding anything uncommon, notice foreman or assistant at once.

Standard Operation Procedure

Document No. : Snicker FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Step：

Tabulator：Issue department：

AliciaChien NPSU-PPE

Auditor ：Nydia Lee

Disassemble Battery

1. Slide the two knobs to the unlocked position.

(Fig.1)

2. Disassemble the battery. (Fig.2)

2(1/1)

Fig.1

“Unlocked”

Fig.1

Fig.2

0.1 2014/11/12

Notes : If finding anything uncommon, notice foreman or assistant at once.

Standard Operation Procedure

Document No. : Snicker FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Step：

Tabulator：Issue department：

AliciaChien NPSU-PPE

Auditor ：Nydia Lee

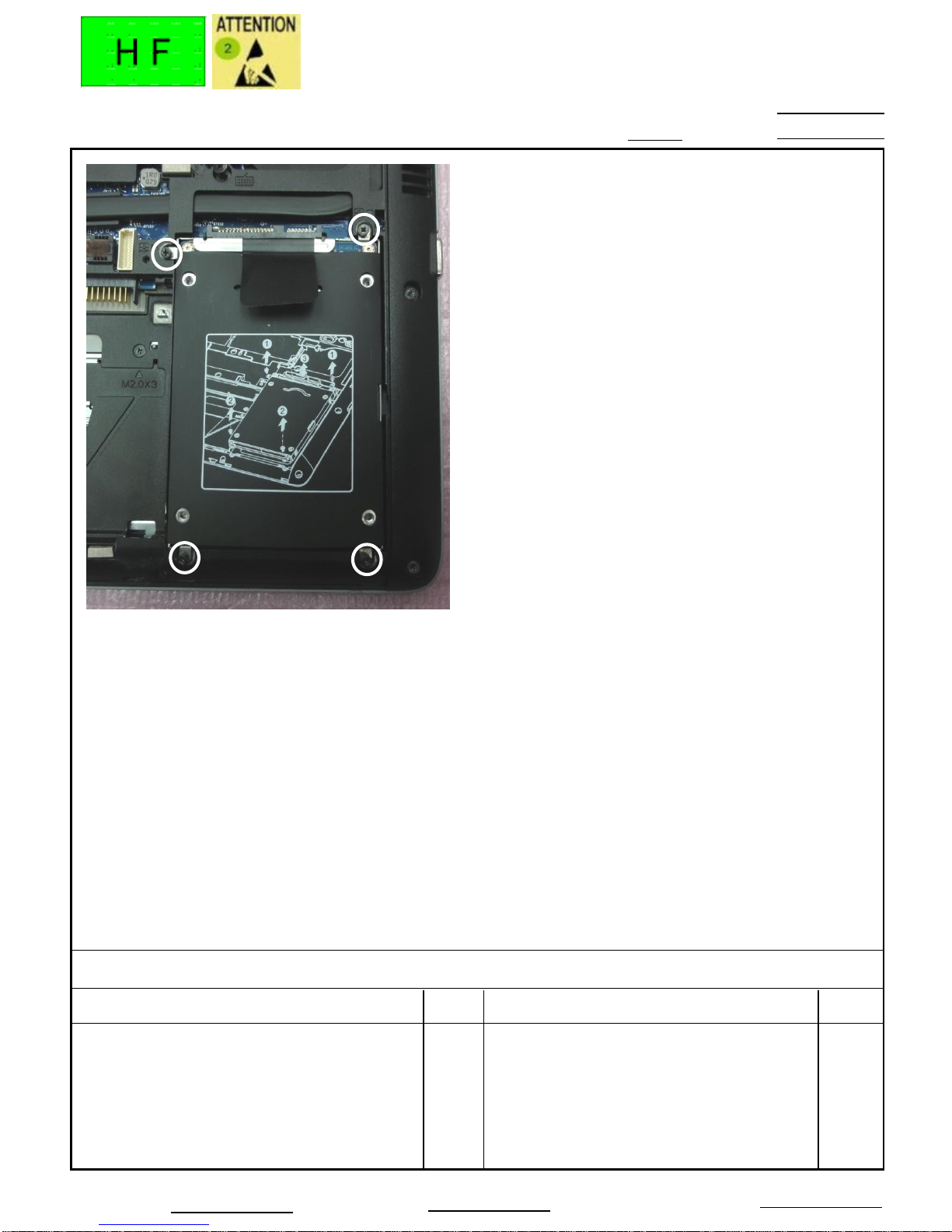

Disassemble HDD

3(1/1)

Electric cross screwdriver(#1) 1

1. Loosen HDD bracket set screw * 4.

2. Disassemble the HDD.

Fig.1

0.1 2014/11/12

Notes : If finding anything uncommon, notice foreman or assistant at once.

Standard Operation Procedure

Document No. : Snicker FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Step：

Tabulator：Issue department：

AliciaChien NPSU-PPE

Auditor ：Nydia Lee

Disassemble SSD Card & DDR

4(1/1)

Electric cross screwdriver(#1) 1

1. Loosen screw * 1, then disassemble SSD

card. (Fig.1)

2. Disassemble DDR. (Fig.2)

Fig.1

Fig.2

0.1 2014/11/12

Notes : If finding anything uncommon, notice foreman or assistant at once.

Standard Operation Procedure

Document No. : Snicker FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Step：

Tabulator：Issue department：

AliciaChien NPSU-PPE

Auditor ：Nydia Lee

Disassemble WWANcard

5(1/1)

Electric cross screwdriver(#1) 1

1. Disassemble WWANcable. (Fig.1)

2. Loosen screw * 1. (Fig.2)

3. Disassemble the WWAN.(Fig.3)

Fig.1

Fig.3

Fig.2

0.1 2014/11/12

Notes : If finding anything uncommon, notice foreman or assistant at once.

Standard Operation Procedure

Document No. : Snicker FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Step：

Tabulator：Issue department：

AliciaChien NPSU-PPE

Auditor ：Nydia Lee

1. Loosen screw * 3. (Fig.1)

2. Loosen KB set screw * 2. (Fig.2)

Loosen Bottom Case Screws

6(1/1)

Electric cross screwdriver(#1) 1

Fig.1

Fig.2

0.1 2014/11/12

Notes : If finding anything uncommon, notice foreman or assistant at once.

Standard Operation Procedure

Document No. : Snicker FA DIS ASS’Y SOP Station :

Name : Ver. : Date :

Holding fixture list (holding fixture standard) Qty Holding fixture list (holding fixture standard) Qty

Step：

Tabulator：Issue department：

AliciaChien NPSU-PPE

Auditor ：Nydia Lee

Disassemble WLAN Card & CNTR

7(1/1)

Electric cross screwdriver(#1) 1

1. Disassemble WLAN cable, loosen screw * 1,

disassemble the WLAN. (Fig.1/Fig.2)

2. Disassemble e-DP CNTR. (Fig.3)

Fig.1

Fig.2

Fig.3

0.1 2014/11/12
