HP Compaq Presario Manual

3-44

Volume Two

Presario 3000

System Board Assembly Spare Part System

System Board 005492-001 240906-001 All

Configuration Jumper Settings (005492)

Jumper Pins Function

P7 Replacement Battery Connector

P8 Processor

75MHz

90MHz, 120MHz, 150MHz

100MHz, 133MHz, 166MHz, 200MHz

1 - 2

2 - 3

3 - 4

Clock Speed Select

50MHz

60MHz

66MHz

P9 Processor

75MHz, 90MHz, 100MHz

120MHz, 133MHz

150MHz, 166MHz

200MHz

A1-A2

B1-B2

A2-A3

B1-B2

A2-A3

B2-B3

A1-A2

B2-B3

CPU Clock Multiplier

1.5x

2.0X

2.5X

3.0X

P11 CMOS Erase/Password Clear

Configuration

Code Assembly System Board

Spare Part Model

GZC5 005492-001 240906-001 3060

GZF2 005492-001 240906-001 3020

GZF3 005492-001 240906-001 3020

GZF4 005492-001 240906-001 3020

GZF5 005492-001 240906-001 3020

GZF6 005492-001 240906-001 3020

GZF9 005492-001 240906-001 3020

Microprocessor Assembly Spare Part System

P54C/166, 66MHz 251591-003 243134-001 All

P55C/166MMX, 66MHz 240167-001 240181-001 3060 (JPN)

P55C/200, 66MHz 240167-002 240181-002 3060

P54C Heat Sink 172944-001 214097-001 3020

P55C Heat Sink 240167-001 238247-001 3060

Memory Assembly Spare Part System

4 MB SIMM, EDO, 60ns, Tin/Lead

Contacts1185173-002 236512-001 All

8 MB SIMM, EDO, 60ns, Tin/Lead

Contacts 185172-002 236513-001 All

1 MB Video Memory 004827-001 213859-001 All

Cache, 256K, 16OP 237716-001 243117-001 All

1Two each shipped in each model.

Volume Two

3-45

Presario 3000

Miscellaneous Assembly Spare Part System

Keyboard, NA English 237743-401 240992-401 All

Speaker Kit 239511-001 240989-001 All

Riser Board 005556-001 240908-001 All

Mouse Remote 241015-001 241028-001 All

Mouse Remote Receiver 241016-001 241029-001 All

Display Panel 240925-001 241195-001 All

Display Enclosure * 241196-001 All

Display Bezel, Front 240929-001 241197-001 All

Microphone w/ Cable 241525-004 241068-001 All

* Complete assembly (except display).

Controller Boards Assembly Spare Part System

Graphics 240907-001 All

Wavetable 004824-001 213858-001 All

Hard Drives Spare Part System

3.8 GB, IDE 238475-001 3060

2.0 GB, IDE 241174-001 3020

CD-ROM Drive Assembly Spare Part System

CD-ROM, IDE, 6-spd, Multiplatter,

Ivory 185679-406 185680-406 All

Diskette Drives Spare Part System

1.44 MB, 3.5,” Gray 160788-301 All

33.6k-bps Modem

(+FDSP+TAM ISA) Assembly Spare Part Cable

Spare Part System

APD 221500-001 221506-371 137256-001 All

Australia 005671-103 225259-011 165224-012 All

France 005671-102 225259-051 165224-051 All

Germany 005671-103 225259-041 165224-041 All

Italy 005671-102 225259-061 165224-061 All

JPN/LTNA 221500-001 221506-191 137256-001 All

NA 221500-001 221506-001 165224-001 All

Netherlands 005671-104 225259-331 165224-331 All

Sweden 005671-103 225259-101 165224-101 All

Switzerland 005671-103 225259-111 165224-111 All

U Kingdom 005671-101 225259-031 165221-032 All

Cables Spare Part System

Diskette Drive Cable, 15” 241097-001 All

Cable Kit: CD-Audio, CD, HD, Diskette, Serial Port, Mic

Intermediate, RF Module, RF Antenna, Button Board 241095-001 All

Hard Drive Cable, 10” 241096-001 All

Audio Cable 241176-001 All

Mic Intermediate 241094-001 All

Serial Port 171141-002 All

CD-ROM Drive 241177-001 All

RF Module Cable 241180-001 All

RF Antenna Cable 241179-001 All

Button Board Cable 241178-001 All

3-46

Volume Two

Presario 3000

ROM Information Spare Part System

System ROMPaq 148218-001 All

Power Supply/Battery Spare Part System

Power Supply, 230 VAC PCF 241071-001 All

Real-Time Clock Battery (4.5 v alkaline) 160274-001 All

Volume Two

3-47

Presario 3000

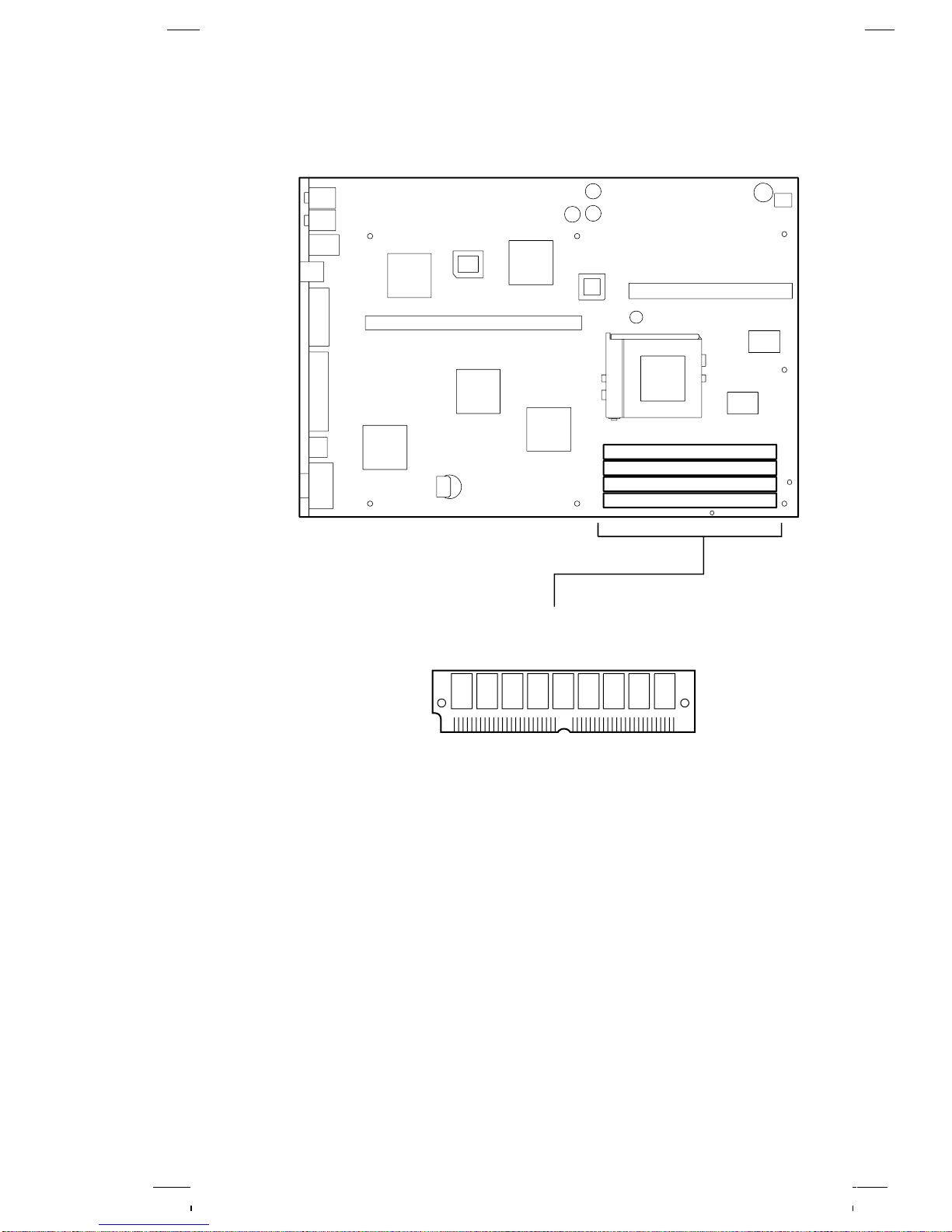

MEMORY UPGRADE CHART

I/O BOARD

005492

(8 MB)

MAXIMUM SYSTEM MEMORY IS 128 MB

8-MB EDO 60ns - OPTION PN 236548-001

Memory upgrade SIMMs must be installed in pairs.

Use SIMMs with tin/lead contacts only. EDO Simms

are recommended for all system boards.
