HP Compaq nx6125 Hoja de especificaciones

Notebook Tour

Document Part Number: 383364-001

May 2005

This guide explains the notebook hardware features.

Notebook Tour ii

Contents

Notebook Tour

Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Buttons, Switches and Readers . . . . . . . . . . . . . . . . . . . 7

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Hotkey Quick Reference . . . . . . . . . . . . . . . . . . . . . . . 14

Front Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Rear Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Right-Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Left-Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Display Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Wireless Antennae (Select Models Only) . . . . . . . . . . . . . 28

Additional Hardware Components. . . . . . . . . . . . . . . . . . . 29

Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . 31

Rated Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Index

Notebook Tour 1

Notebook Tour

This guide explains the hardware features of the notebook.

✎Components included with your notebook may vary by

geographical region and by model. The illustrations in this

guide identify the standard external features included in most

notebook models. Refer to the illustrations that most closely

match your notebook.

2NotebookTour

Top Components

Lights

✎Refer to the illustration that most closely matches your

notebook.

Component Description

1Power/standby lights* (2) Green: The notebook is on.

Blinking green: The notebook is in

standby mode.

Off: The notebook is off or

in hibernation.

(Continued)

Notebook Tour 3

2Wireless lights†(2) On: An integrated wireless device,

such as a wireless local area network

(LAN) device and/or a Bluetooth®

device is turned on.

3Caps lock light On: Caps lock is on.

4Num lock light On: Num lock is on or the embedded

numeric keypad is enabled.

5Volume mute light On: System sound is turned off.

6IDE (Integrated Drive

Electronics) drive light

Blinking: The hard drive or optical drive

is being accessed.

7Battery light Amber: A battery pack is charging.

Green: A battery pack is close to full

charge capacity.

Blinking amber: A battery pack that is

the only available power source has

reached a low-battery condition. When

the battery reaches a

critical

low-battery condition, the battery light

begins blinking more quickly.

Off: If the notebook is connected to an

external power source, the light is

turned off when all batteries in the

notebook are fully charged. If the

notebook is not connected to an

external power source, the light is

turned off until the battery reaches a

low-battery condition.

*There are 2 power/standby lights. Both display the same information. The

light on the power button is visible only when the notebook is open; the

other power/standby light is always visible on the front of the notebook.

†There are 2 wireless lights. Both display the same information. The light

on the wireless button is visible only when the notebook is open; the other

wireless light is always visible on the front of the notebook.

Component Description

4NotebookTour

Component Description

1Power/standby lights* (2) Green: The notebook is on.

Blinking green: The notebook is in

standby mode.

Off: The notebook is off or

in hibernation.

2Wireless lights†(2) On: An integrated wireless device,

such as a wireless LAN device and/or

a Bluetooth device is turned on.

3Caps lock light On: Caps lock is on.

4Num lock light On: Num lock is on or the embedded

numeric keypad is enabled.

(Continued)

Notebook Tour 5

5IDE drive light Blinking: The hard drive or optical drive

is being accessed.

6Battery light Amber: A battery pack is charging.

Green: A battery pack is close to full

charge capacity.

Blinking amber: A battery pack that is

the only available power source has

reached a low-battery condition. When

the battery reaches a

critical

low-battery condition, the battery light

begins blinking more quickly.

Off: If the notebook is connected to an

external power source, the light is

turned off when all batteries in the

notebook are fully charged. If the

notebook is not connected to an

external power source, the light is

turned off until the battery reaches a

low-battery condition.

*There are 2 power/standby lights. Both display the same information. The

light on the power button is visible only when the notebook is open; the

other power/standby light is always visible on the front of the notebook.

†There are 2 wireless lights. Both display the same information. The light

on the wireless button is visible only when the notebook is open; the other

wireless light is always visible on the front of the notebook.

Component Description

6NotebookTour

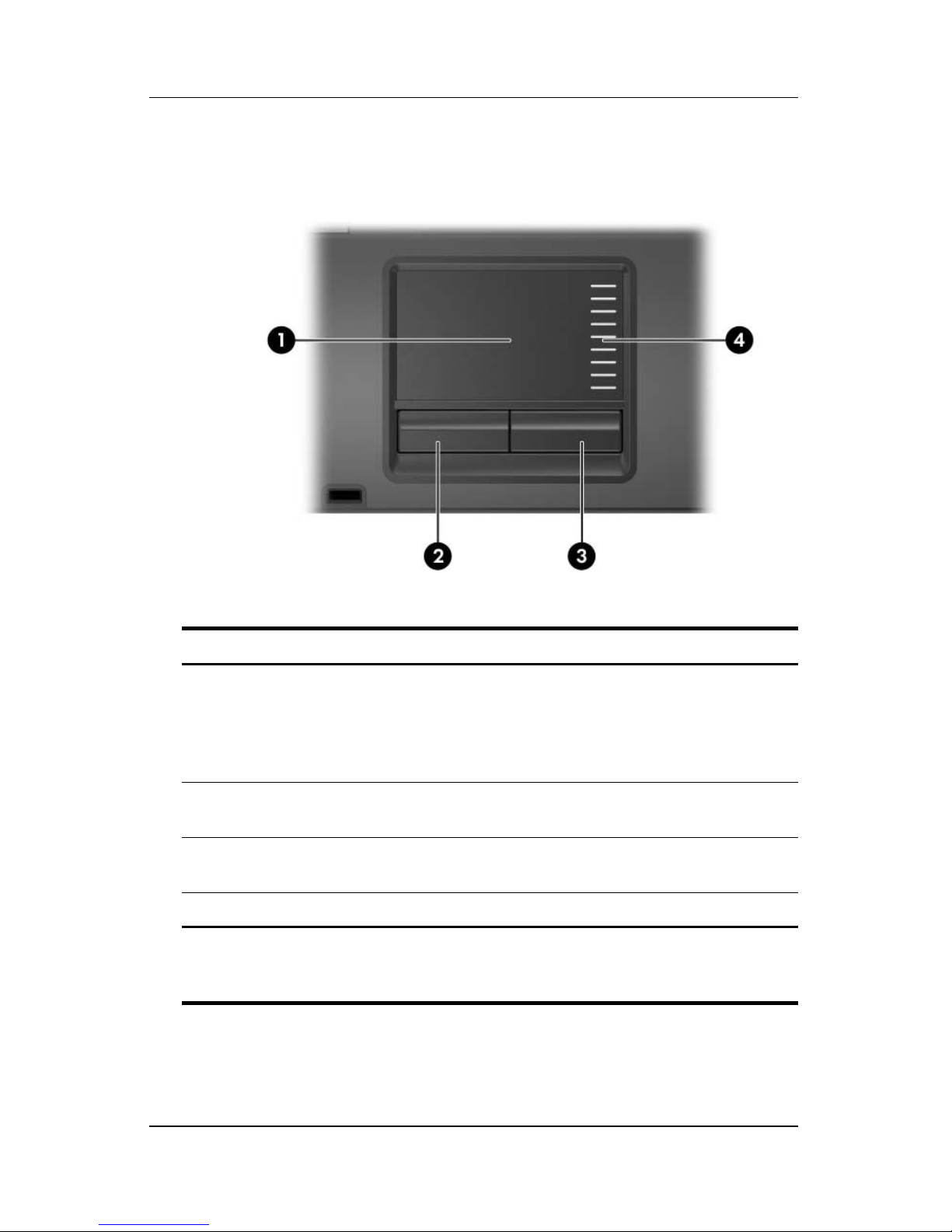

TouchPad

Component Description

1TouchPad* Moves the pointer and selects or

activates items on the screen. Can be

set to perform other mouse functions,

such as scrolling, selecting, and

double-clicking.

2Left TouchPad button* Functions like the left button on

an external mouse.

3Right TouchPad button* Functions like the right button on

an external mouse.

4TouchPad scroll zone* Scrolls upward or downward.

*This table describes default settings. For information about changing

default settings, refer to the user guides located in the Help and Support

Center. Select Start > Help and Support > User Guides.

Notebook Tour 7

Buttons, Switches and Readers

✎Refer to the illustration that most closely matches your

notebook.

8NotebookTour

Component Description

1Power/standby button* When the notebook is

■Off, press the button to turn on

the notebook.

■In standby, briefly press the button

to exit standby.

■In hibernation, briefly press the

button to exit hibernation.

If the notebook has stopped

responding and Microsoft® Windows®

shutdown procedures cannot be used,

press the power/standby button and

hold for at least 5 seconds to turn off

the notebook.

2Display switch Initiates standby mode if the display

is closed while the notebook is

turned on.

3Info Center button Launches Info Center, which enables

you to open the following software

solutions: Altiris Local Recovery,

Contact HP, Help and Support,

Accessories Product Tour (Options

Demo), ProtectTools Security

Manager, Software Setup, System

Information, and Wireless Assistant.

4Wireless button* Turns the wireless functionality on

or off, but does not create a wireless

connection.

✎To establish a wireless

connection, a wireless network

must already be set up. For more

information about establishing a

wireless connection from

Windows, visit

http://www.hp.com/go/wireless.

(Continued)
