HP CA340
Digital Camera
Quick Start Guide
Dijital Kamera
Kullanım Kılavuzu
1
Getting Started
Full User Manual located on installation CD. File name: CA340 Manual_ENG

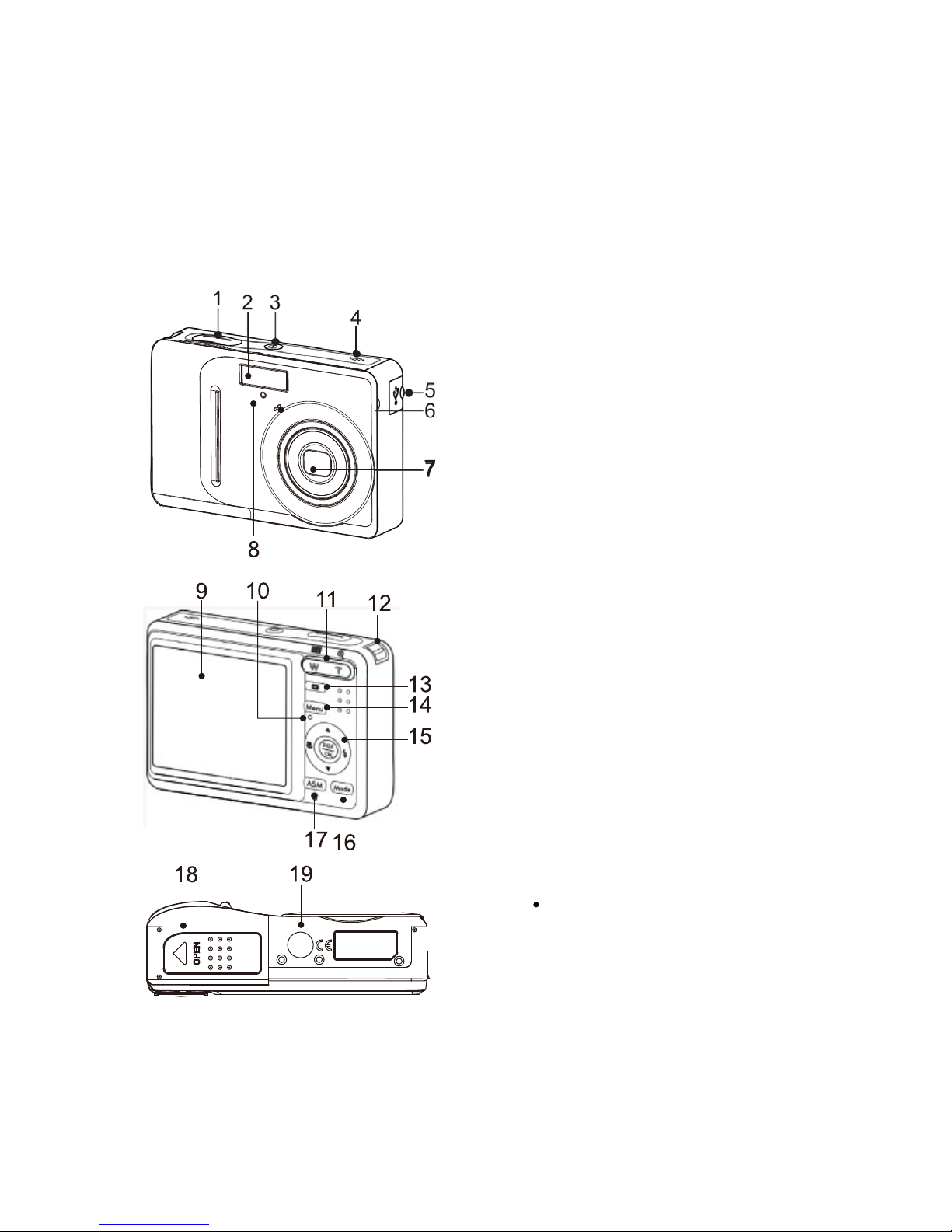

Parts of the Camera
1. Shutter Button
2. Flash
3. Power Button
4. Speaker
5. USB/AV Terminal
6. Microphone
7. Lens
8. Self-timer Lamp
9. LCD Monitor
10. Operation Lamp
11. Zoom Button
12. Strap Ring
13. Playback Button
14. Menu Button
15. Flash Button / Macro Button /
DISP/ OK Button
16. Mode Button
17. ASM / Delete Button
18. Battery Cover
The memory card slot is located
beneath the battery cover, adjacent
to the battery compartment.
19. Tripod Hole
2
Setting the Display Language / Date & Time
When using the camera for the first time after purchasing, be sure to choose a language and set
the date & time before using the camera.
Setting the Display Language
1Turn the power on, and set the
camera to the Setup Menu.
Select [ Language].
Press or to select
[LANGUAGE] then press or the
OK button to launch the submenu.
Select a language.
Press or to select a language and press or the OK button to apply
the setting.
Press the MENU button to close the menu.
3
2
4
3
Setting the Date & Time
1Turn the power on, and set the
camera to the Setup Menu.
Select [ Date & Time].
Press or to select [Date &
Time] then press or the OK
button to launch the submenu.
Set date and time.
Press or to change the value of the cursor located. Press or
button to move the cursor between settings.
Apply the setting.
After adjusting the settings, press the OK or the MENU button to apply the
setting.
Once the date, time and language have been set, changing the batteries or removing
the SD card will NOT reset these settings.
If the batteries are removed for longer than 48 hours, the Date and Time will need to
be re-set.
2
3
4
C
Ca
au
ut
ti
io
on
n
To ensure the camera displays battery level correctly, after batteries are loaded, set
the battery type in Setup Menu to match the batteries used:
Alkaline / NiMH / Lithium / Qxyride
C
Ca
au
ut
ti
io
on
n
4
Inserting the Batteries
1Open the battery cover.
Slide the battery cover in the
direction indicated by the arrow.
Insert the batteries.
Insert two AA-size batteries with
the positive (+) and negative (-)
poles matching the directions
indicated inside the battery room.
Close the battery cover.
2
3
5
Switching between REC mode and PLAYBACK mode
In REC mode, press the PLAYBACKbutton
() to switch to the PLAY mode.
In PLAY mode, press the PLAYBACK () or
the MODE ( ) button to switch to the REC
mode.
Selecting the REC mode
Set the camera to the REC mode
Launch the mode palette.
Press the MODE button ( ) to
show the scene mode palette.
Select a mode.
Use the four-way control to
select a desired mode and press
the OK button to confirm the setting.
3
1
2
Changing the Mode
You can record images and voices in the REC mode. And using the PLAYBACK mode to
replay, delete, or edit images on the LCD monitor.
6
Using the Menus
When a menu is displayed, the four-way control and the OK button are used to make the
desired settings.
REC menu
Turn the power on, and set the
camera to the REC mode.
Open the REC menu.
Press the MENUbutton to
display the menu.
1
2
Select an item.
Press or button to select a menu item.
Change the setting.
Press or to change the setting.
Press the MENU or the OK button to save the settings and close the menu.
3
4
5
7
Setup menu
Turn the power on, and set the
camera to the REC or PLAYBACK
mode.
Press the MENU button to open
the REC or PLAYBACK menu.
The menu displays depends on
whether you are in the REC
mode or the PLAY- BACK
mode.
1
2
3Open the Setup menu.
Press four-way control to select SETUP ( ) and then press the OK button to
display the Setup menu.
4Select an item.
Press or to select a menu item and then press or the OK button to
launch the submenu.
Change the setting.
5
Press or to select an option and press or the OK button to apply the
setting.
6Press the MENU button to close the menu.
8
Getting Help
Should you have a technical support question or your HP Digital Camera require service
within the warranty period, please contact the original point of purchase or an authorized HP
reseller in your country. If service is not available at those locations, please contact an HP
Branded Product warranty agent from the support contact list provided below. A service agent
will work with you to troubleshoot your issue and if necessary, issue a Return Material Autho-
rization (RMA) number in order to replace your HP Branded Product. For warranty claims,
you will be required to provide a copy of your original dated sales receipt as proof of purchase
and the issued RMA number.
You will be responsible for shipping charges when shipping the product to the service center.
The service agent will provide you with an address and you will also be responsible for any
shipping charges to the warranty service center. Once your product is received by this service
center, a replacement unit will be shipped back to you typically within 5 business days.
Email Support:
Language Email Address
Dutch hollands@hpodd.com
simp.chinese@hpodd.com
Chinese
trad.chinese@hpodd.com
English english@hpodd.com
Français francais@hpodd.com
Deutsch deutsch@hpodd.com
Italiano italiano@hpodd.com
Japanese nippon@hpodd.com
Korean korean@hpodd.com
Portuguese portugues@hpodd.com
Espanol espanol@hpodd.com
Svenska svensk@hpodd.com
