Getting Started Guide

hp workstation zx2000

Document Part Number: A7844-90050

July 2004

This guide provides an overview of the system front and rear panel

connectors, instructions on how to set up and configure your system,

and troubleshooting tips. The appendix includes regulatory notices.

wp0103gs.book Page i Tuesday, June 8, 2004 3:08 PM

Microsoft®, Windows®, Windows 2000®, and Windows XP®are registered

trademarks of Microsoft Corporation in the U.S. and other countries.

Intel®and Itanium®are registered trademarks of Intel Corporation in the U.S.

and other countries.

All other product names mentioned herein may be trademarks of their respective

companies.

Hewlett-Packard Company shall not be liable for technical or editorial errors or

omissions contained herein or for incidental or consequential damages in

connection with the furnishing, performance, or use of this material. The

information in this document is provided “as is” without warranty of any kind,

including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose, and is subject to change without notice. The

warranties for HP products are set forth in the express limited warranty

statements accompanying such products. Nothing herein should be construed as

constituting an additional warranty.

This document contains proprietary information that is protected by copyright.

No part of this document may be photocopied, reproduced, or translated to

another language without the prior written consent of Hewlett-Packard

Company.

Getting Started Guide

hp workstation zx2000

First Edition (July 2004)

Document Part Number: A7844-90050

ÅWARNING: Text set off in this manner indicates that failure to follow

directions could result in bodily harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

wp0103gs.book Page ii Tuesday, June 8, 2004 3:08 PM

Important Safety Warnings

ÅWARNING: Avoiding Electrical Shocks. To avoid electrical shock, do not

open the power supplies. There are no user-serviceable parts inside.

To avoid electrical shock and harm to your eyes by laser light, do not

open the DVD laser module. The laser module should be serviced by

service personnel only. Do not attempt to make any adjustment to the laser

unit. Refer to the label on the DVD for power requirements and

wavelength. This product is a class I laser product.

ÅWARNING: Removing and Replacing the Cover. For your safety, never

remove the system side cover without first disconnecting the power cord

from the power outlet and removing any connection to a

telecommunications network. If a Power Protection Device is fitted to your

system, you must shut down your computer using its on/off switch, then

remove the power cord before removing the system’s side cover. Remove

the Power Protection Device cables before any servicing operation. Always

replace the side cover before switching the system on again.

ÅWARNING: Battery Safety Information. There is a danger of explosion if

the battery is incorrectly installed. For your safety, never attempt to

recharge, disassemble, or burn an old battery. Replace the battery with

the same or equivalent type, as recommended by the manufacturer.

The battery in this system is a lithium battery that does not contain any

heavy metals. However, to protect the environment, do not dispose of

batteries in household waste. Return used batteries either to the shop from

which you bought them, to the dealer from whom you purchased your

system, or to HP so that they can either be recycled or disposed of in the

correct way. Returned batteries will be accepted free of charge.

ÅWARNING: Avoiding Burn Injuries. Some parts inside the computer will

be hot. Wait approximately three to five minutes for them to cool down

before touching them.

wp0103gs.book Page iii Tuesday, June 8, 2004 3:08 PM

ÄCAUTION: Avoiding Static Electricity. Static electricity can damage

electronic components. Turn OFF all equipment before installing an

accessory card. Don’t let your clothes touch any accessory card. To

equalize the static electricity when replacing an accessory card, rest the

accessory card bag on top of the system unit while you are removing the

card from the bag. Handle the card as little as possible and with care.

ÄCAUTION: Information on Ergonomic Issues. It is strongly recommended

that you read the ergonomics information, available in the “Working In

Comfort” section of this manual, before using your system. You can access

more extensive ergonomics information at: www.hp.com/ergo

NOTE: Recycling Your System. HP has a strong commitment toward

the environment. Your HP system has been designed to respect the

environment as much as possible. HP can also take back your old

system for recycling when it reaches the end of its useful life. HP has

a product take-back program in several countries. The collected

equipment is sent to an HP recycling facilities in Europe or the U.S.A.

As many parts as possible are reused. The remainder is recycled.

Special care is taken for batteries and other potential toxic substances,

these are reduced into non-harmful components through special

chemical processes. If you require more details about the HP product

take-back program, contact your local dealer or your nearest HP Sales

Office.

wp0103gs.book Page iv Tuesday, June 8, 2004 3:08 PM

Getting Started Guide v

Contents

1 Setting Up and Using Your System

System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Setting Up Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Connecting Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Starting and Stopping Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Starting Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Turning Off Your System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

Installing Hardware Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12

Firmware and Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–14

Configuring Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–15

Extensible Firmware Interface (EFI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–15

Baseboard Management Controller (BMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–22

2Troubleshooting

Your System Does Not Start Properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

You Find a Hardware Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Mouse Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Troubleshooting with the System LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Troubleshooting with the e-buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

Software Diagnostics Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

HP e-DiagTools Hardware Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

Additional Diagnostics Tools for HP-UX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

Recovering the OS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

wp0103gs.book Page v Tuesday, June 8, 2004 3:08 PM

vi Getting Started Guide

Contents

Where to Get Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16

Information To Collect Before You Contact Support . . . . . . . . . . . . . . . . . . . . . 2–16

Online Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

Phone Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

Additional Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

A Regulatory Information

Federal Communications Commission Radio Frequency Interference Statement

(for USA only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Notice for Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Safety Warning for the USA and Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Notice for France. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Notice for the Netherlands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Notice for Germany. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Noise Declaration for Germany . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Notice for Japan (Class A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Notice for Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Notice for Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Index

wp0103gs.book Page vi Tuesday, June 8, 2004 3:08 PM

Getting Started Guide 1–1

setting up and using your system

This section provides:

■description of front and rear panel

■setup instructions

■system configuration instructions

■troubleshooting tips

wp0103gs.book Page 1 Tuesday, June 8, 2004 3:08 PM

1–2 Getting Started Guide

Setting Up and Using Your System

system description

The zx2000 workstation is available in tower and rack-mount

configurations.

front panel

The hp workstation zx2000 front panel has the following features:

■Two front-access USB connectors.

■Two front-access optical drive bays.

■Power button to turn system on or off.

■Power LED: green when the power is on or the power button is

pushed in. If the power is on and the button is pushed in, the light

will stay on even after the system is powered down. When the

button is released, the green light turns off.

■Activity LED: indicates whether the system is accessing any of

the hard drives or optical drives (IDE or SCSI). If the LED is:

❏off, the system is off, or the system is not accessing internal

drives

❏blinking green, the system is accessing an internal drive

NOTE: The Activity LED is only active on systems purchased after

March 2003.

NOTE: The Activity LED automatically communicates with IDE

HDD or optical drives. To communicate with SCSI drives, a SCSI

LED activity cable must connect the SCSI card and the system board.

■System and Diagnostic LEDs provide information about system

errors.

■Locator Button and LED (rack-mount configuration only)

identifies the rack position of the workstation.

wp0103gs.book Page 2 Tuesday, June 8, 2004 3:08 PM

Getting Started Guide 1–3

Setting Up and Using Your System

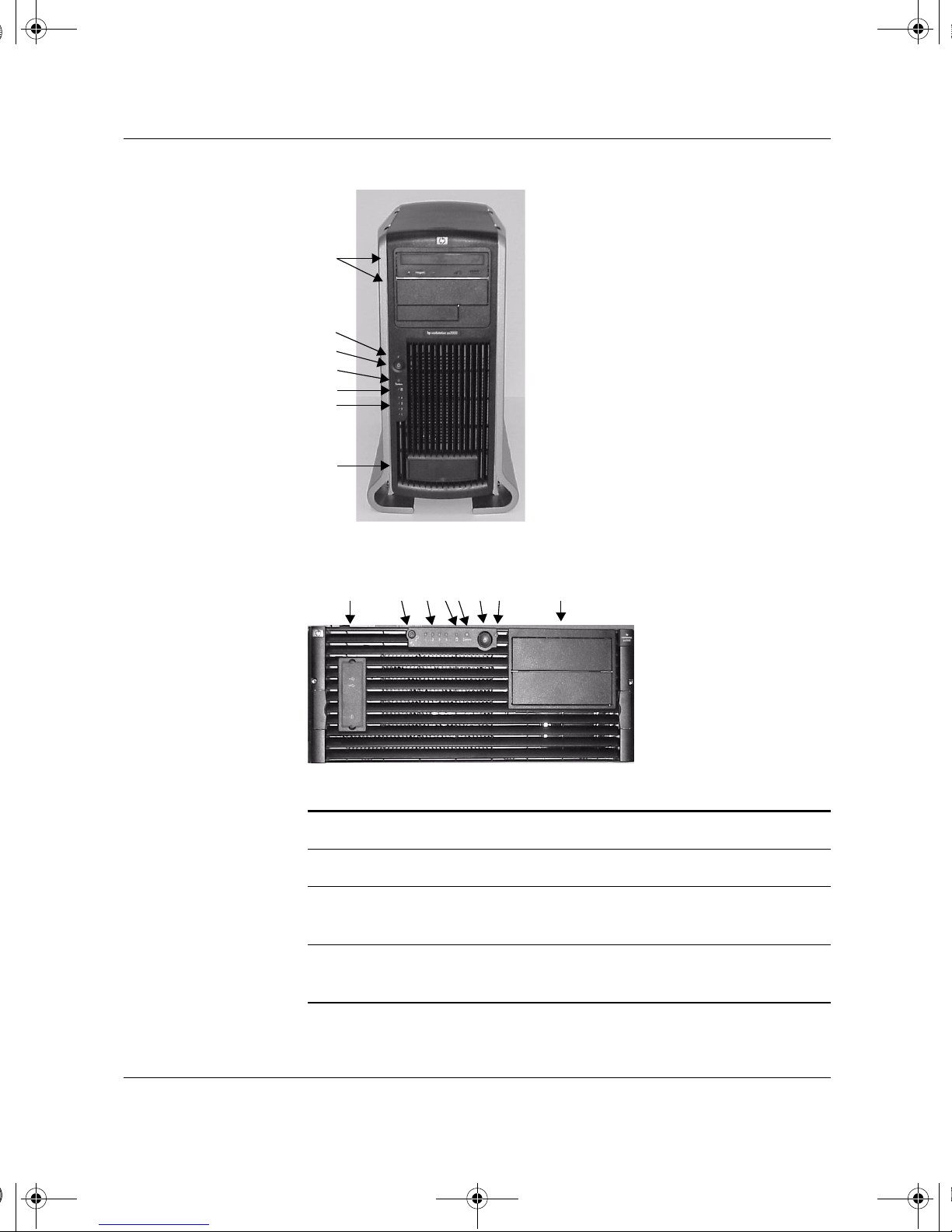

Front Panel, Tower Configuration

Front Panel, Rack Configuration

12345678

1 Optical drive bays 5 Activity LED

2 Power LED 6Diagnostic LEDs 1-4

3 Power button 7Front-access USB connectors

(behind door)

4 System LED 8Locator LED and Button

(rack-mounted system only)

wp0103gs.book Page 3 Tuesday, June 8, 2004 3:08 PM

1–4 Getting Started Guide

Setting Up and Using Your System

rear panel

The connectors are shaped to go in one way only. Refer to the label on

the back of the workstation.

Rear Panel Connectors, Tower Configuration

Rear Panel Connectors, Rack-mounted Configuration

12 4

1 Power 5 LAN LEDs

2 Serial ports 6Built-in LAN and optional

second LAN ports

3 Audio

(headphone, microphone)

7Monitor port(s) on graphics card

4 USB

wp0103gs.book Page 4 Tuesday, June 8, 2004 3:08 PM

Otros manuales para ZX2000

Tabla de contenidos

Otros manuales de De oficina de HP

HP Compaq Microtower Business PC dx2300 Instrucciones de uso

HP 512n - Pavilion - 128 MB RAM Manual de usuario

HP ProDesk 490 G1 Instrucciones de uso

HP Kayak XW A2-U2-W2 Manual

HP Kayak XU800 Series Manual de usuario

HP B132L+ Manual de usuario

HP Vectra 510 Manual del producto

HP dc72 - Blade Workstation Client Instrucciones de instalación y mantenimiento

HP EliteDesk 880 G1 Instrucciones de instalación

HP Pavilion a5000 - Desktop PC Cómo utilizar

HP Compaq dx2400 Manual de operación y mantenimiento

HP Presario SR1100 - Desktop PC Manual de usuario

HP Pavilion Slimline s7300 - Desktop PC Cómo utilizar

HP EliteDesk 800 G1 Desktop Mini Manual de operación y mantenimiento

HP Xw4400 - Workstation - 2 GB RAM Guía de referencia rápida

HP EliteDesk 880 G3 TWR Instrucciones de instalación

HP Pavilion Slimline s5310f Manual de usuario

HP Vectra VEC 7 Manual de funcionamiento

HP Brio 8172 Manual de usuario

HP Compaq Presario Manual de usuario

HP Neoware c50 - Thin Client Guía del usuario

HP Workstation xw6000 Manual de usuario

HP EliteDesk 800 Manual de usuario

HP TouchSmart IQ820 Manual de usuario

Manuales populares de De oficina de otras marcas

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario

Everex

Everex eXplora Manual de usuario

Lenovo

Lenovo ThinkCentre M75e Manual de usuario

Dell

Dell Alienware Area-51 R4 Manual de usuario
