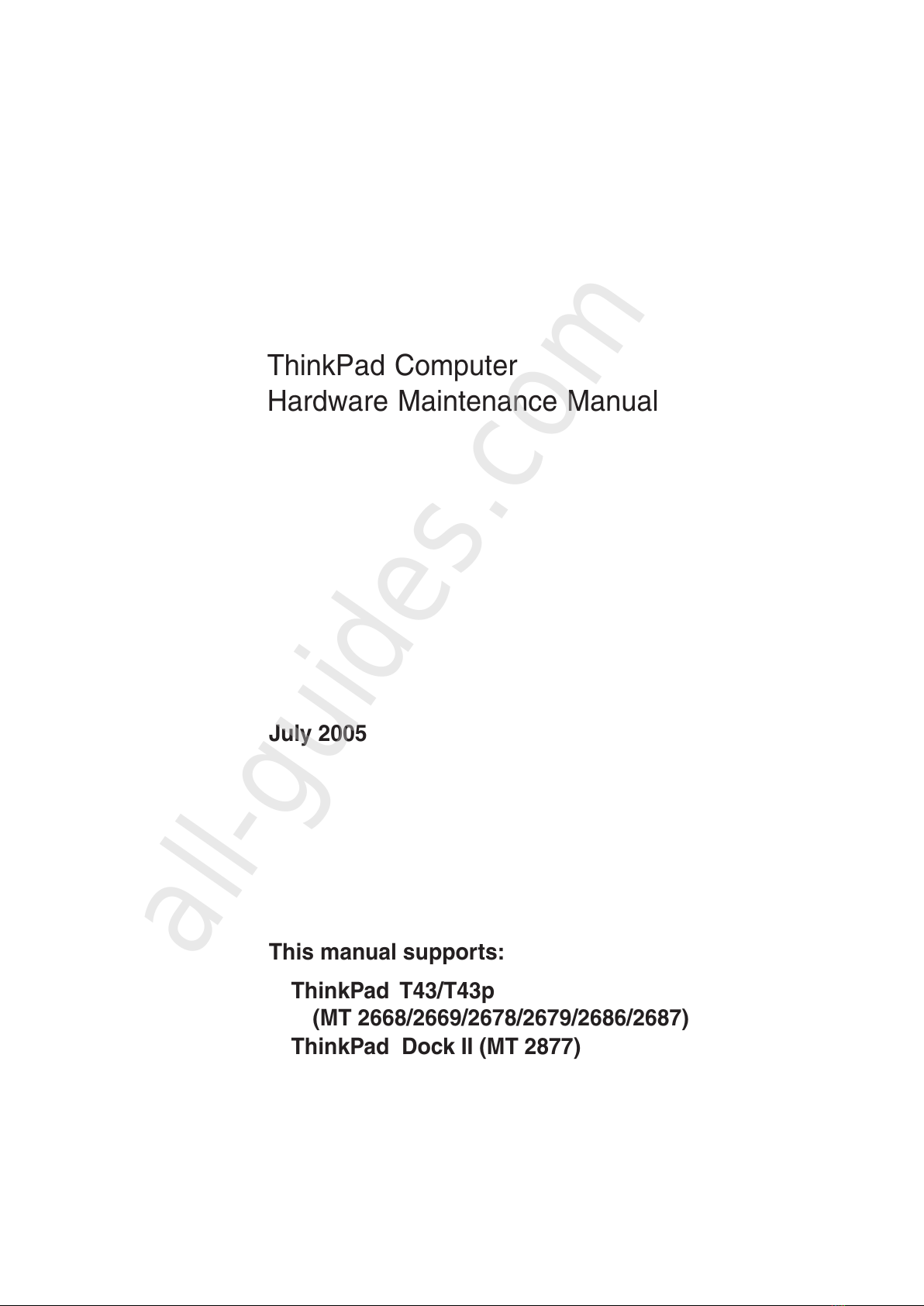

ThinkPad Computer

Hardware Maintenance Manual

July 2005

This manual supports:

ThinkPad T43/T43p

ThinkPad Dock II (MT 2877)

(MT 2668/2669/2678/2679/ )

2686/2687

All manuals and user guides at all-guides.com

all-guides.com

Note

Before using this information and the product it

supports, be sure to read the general information

under “Notices” on page 244.

First Edition (July 2005)

©Copyright Lenovo 2005.

Portions ©Copyright International Business Machines

Corporation 2005.

U.S. GOVERNMENT USERS –RESTRICTED RIGHTS:

Our products and/or services are provided with

RESTRICTED RIGHTS. Use, duplication or disclosure by

the Government is subject to the GSA ADP Schedule

contract with Lenovo Group Limited, if any, or the standard

terms of this commercial license, or if the agency is unable

to accept this Program under these terms, then we provide

this Program under the provisions set forth in Commercial

Computer Software–Restricted Rights at FAR 52.227-19,

when applicable, or under Rights in Data-General, FAR

52.227.14 (Alternate III).

All manuals and user guides at all-guides.com

Contents

About this manual ...........1

Introduction .............3

Important service information .........3

Strategy for replacing FRUs .........3

Strategy for replacing ahard disk drive .....4

How to use error messages ........4

Strategy for replacing FRUs for CTO, CMV, and GAV 4

Product definition ...........4

FRU identification for CTO, CMV, and GAV products 5

Important information about replacing RoHS compliant

FRUs ...............7

Diskette compatibility matrix .........8

Safety notices: multilingual translations ......8

Safety information............20

General safety ............20

Electrical safety ...........21

Safety inspection guide .........23

Handling devices that are sensitive to electrostatic

discharge ............24

Grounding requirements .........25

Laser compliance statement.........26

General descriptions ..........29

Read this first .............29

What to do first ...........29

Related service information .........31

Service Web site ...........31

Restoring the pre-installed system ......31

Passwords .............32

Power management ..........35

Checkout guide ............38

Testing the computer ..........38

Detecting system information with PC-Doctor...41

Power system checkout .........42

ThinkPad T43/T43p Series .........45

Product overview ............47

Specifications ............47

Status indicators ...........50

FRU tests .............53

Fn key combinations ..........55

Symptom-to-FRU index ..........58

Numeric error codes ..........58

Error messages ...........63

Beep symptoms ...........64

No-beep symptoms ..........64

LCD-related symptoms .........65

Intermittent problems ..........66

Undetermined problems .........66

©Lenovo 2005. Portions ©IBM Corp. 2005. iii

All manuals and user guides at all-guides.com

FRU replacement notices .........67

Screw notices ............67

Retaining serial numbers.........68

Removing and replacing aFRU........71

1010 Battery pack (14.1-in. LCD models) ....72

1020 Battery pack (15.0-in. LCD models) ....74

1030 Ultrabay Slim device ........75

1040 Hard disk drive ..........76

1050 DIMM (optional) .........78

1060 Keyboard ...........80

1070 DIMM (standard) .........85

1080 Modem daughter card (MDC-2) .....86

1090 Bluetooth/Modem daughter card (BMDC-3) 88

1100 Palm rest or Palm rest with fingerprint reader

(14.1-in. LCD models).........90

1110 Keyboard bezel or Keyboard bezel with

fingerprint reader (15.0-in. LCD models) ...93

1120 Mini PCI adapter .........99

1130 Fan assembly .......... 101

1140 Backup battery ......... 105

1150 Speaker assembly ........ 107

1160 Keyboard bezel (14.1-in. LCD models) 109

1170 PC Card/ExpressCard slots (14.1-in. LCD

models) ............ 111

1180 PC Card/ExpressCard slots (15.0-in. LCD

models) ............113

1190 LCD assembly (14.1-in. LCD models) ...115

1200 LCD assembly (15.0-in. LCD models) ... 120

1210 CPU ............ 125

1220 Ultrabay Slim guide rail assembly (14.1-in.

LCD models) ........... 126

1230 Ultrabay Slim guide rail assembly (15.0-in.

LCD models) ........... 128

1240 VGA and Ultrabay Slim device eject button

cable ............. 131

1250 System board and base cover (14.1-in. LCD

models) ............ 133

1260 System board, interposer card, and base

cover (15.0-in. LCD models) ...... 140

2010 LCD front bezel (14.1-in. LCD models) 148

2020 LCD front bezel (15.0-in. LCD models) 150

2030 Inverter card (14.1-in. LCD models) ... 152

2040 Inverter card (15.0-in. LCD models) ... 154

2050 Wireless antenna assemblies, LCD panel,

LCD cable assembly, hinges, and LCD cover

(14.1-in. LCD models) ........ 155

2060 Wireless antenna assemblies, LCD panel,

LCD cable assembly, hinges, and LCD cover

(15.0-in. LCD models) ........ 169

3010 ThinkPad Dock II PCI cover...... 176

3020 ThinkPad Dock II top cover ...... 177

Locations .............. 180

Front view ............ 180

iv MT 2668/2669/2678/2679/2686/2687

All manuals and user guides at all-guides.com

Rear view ............. 182

Bottom view ............ 183

Parts list .............. 184

Overall ............. 185

14.1-in. LCD FRUs .......... 215

15.0-in. LCD FRUs .......... 222

Keyboard ............. 231

Recovery CDs ........... 233

Miscellaneous parts .......... 236

AC adapters ............ 239

Optional FRUs ........... 240

Common parts list .......... 241

Notices .............. 244

Trademarks ............. 246

Contents v

All manuals and user guides at all-guides.com

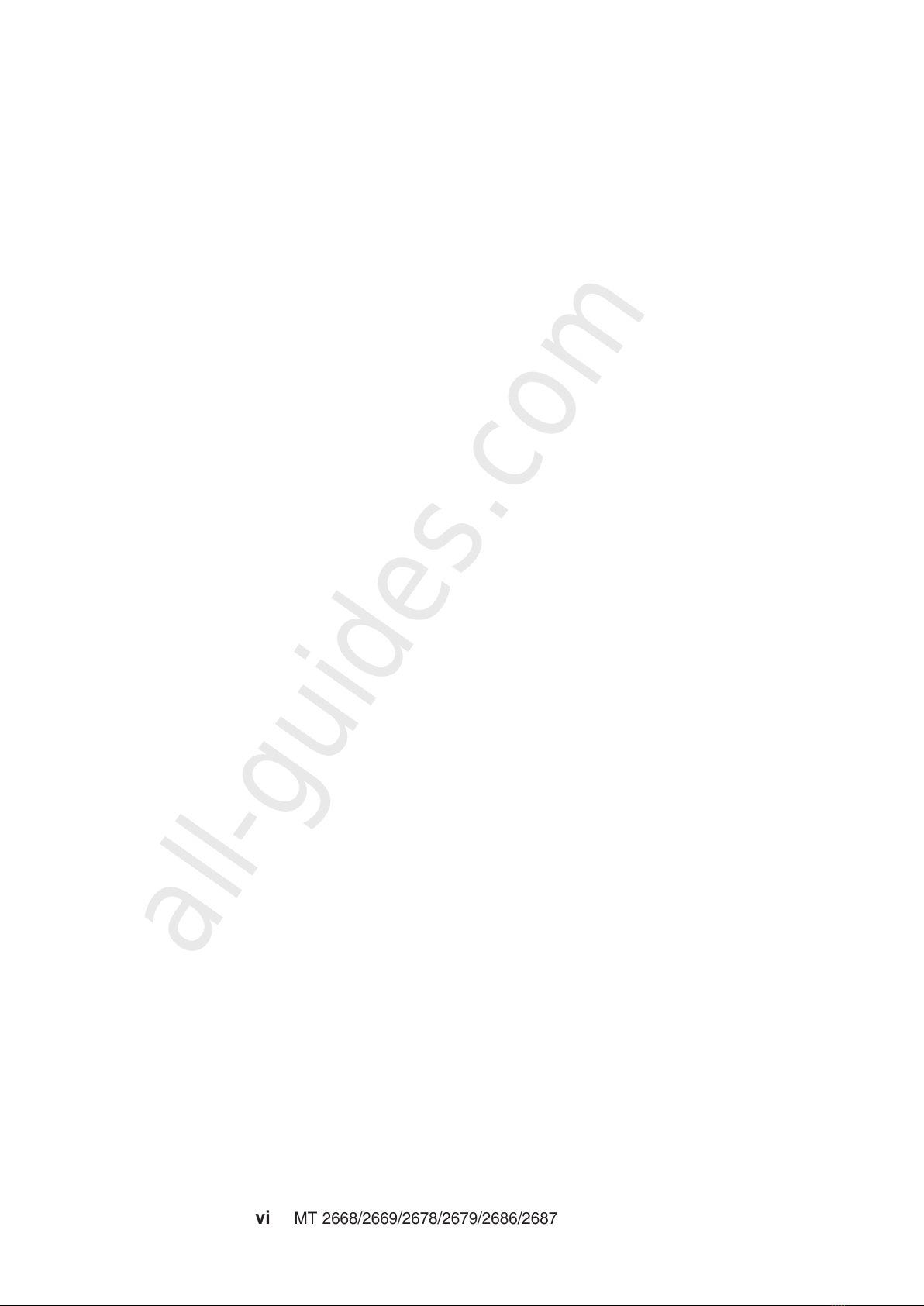

vi MT 2668/2669/2678/2679/2686/2687

All manuals and user guides at all-guides.com

all-guides.com

About this manual

This manual contains service and reference information for

ThinkPad®T43/T43p series (MT 2668, 2669, 2678, 2679,

2686, and 2687), and ThinkPad Dock II (MT 2877)

products. Use this manual along with the advanced

diagnostic tests to troubleshoot problems.

The manual is divided into sections as follows:

vThe common sections provide general information,

guidelines, and safety information required in servicing

computers.

vThe product-specific section includes service, reference,

and product-specific parts information.

Important

This manual is intended for trained service

personnel who are familiar with ThinkPad products.

Use this manual along with the advanced diagnostic

tests to troubleshoot problems effectively.

Before servicing aThinkPad product, be sure to

review the safety information under “Safety notices:

multilingual translations” on page 8, “Safety

information” on page 20, and “Laser compliance

statement” on page 26.

©Lenovo 2005. Portions ©IBM Corp. 2005. 1

All manuals and user guides at all-guides.com

2MT 2668/2669/2678/2679/2686/2687

All manuals and user guides at all-guides.com

Introduction

Important service information

Important

BIOS and device driver fixes are

customer-installable. The BIOS and device drivers

are posted on the customer support site

http://www.lenovo.com/think/ support

Advise customers to contact the Customer Support

Center at 800-426-7378 if they need assistance in

obtaining or installing any diskette fixes.

Customers in Canada should call the Customer

Support Center at 800-565-3344 for assistance or

download information.

Strategy for replacing FRUs

Before replacing parts

Make sure that all diskette fixes are installed before

replacing any FRUs listed in this manual.

Use the following strategy to prevent unnecessary expense

for replacing and servicing FRUs:

vIf you are instructed to replace aFRU but the

replacement does not correct the problem, reinstall

the original FRU before you continue.

vSome computers have both aprocessor board and a

system board. If you are instructed to replace either the

processor board or the system board, and replacing one

of them does not correct the problem, reinstall that

board, and then replace the other one.

vIf an adapter or adevice consists of more than one

FRU, any of the FRUs may be the cause of the error.

Before replacing the adapter or device, remove the

FRUs, one by one, to see if the symptoms change.

Replace only the FRU that changed the symptoms.

Attention: The setup configuration on the computer you

are servicing may have been customized. Running

Automatic Configuration may alter the settings. Note the

current configuration settings (using the View Configuration

option); then, when service has been completed, verify that

those settings remain in effect.

©Lenovo 2005. Portions ©IBM Corp. 2005. 3

All manuals and user guides at all-guides.com

Strategy for replacing ahard disk drive

Always try to run alow-level format before replacing ahard

disk drive.

Attention: The drive startup sequence in the computer

you are servicing may have been changed. Be extremely

careful during write operations such as copying, saving, or

formatting. If you select an incorrect drive, data or

programs can be overwritten.

How to use error messages

Use the error codes displayed on the screen to diagnose

failures. If more than one error code is displayed, begin the

diagnosis with the first error code. Whatever causes the

first error code may also cause false error codes. If no

error code is displayed, see whether the error symptom is

listed in the Symptom-to-FRU Index for the computer you

are servicing.

Strategy for replacing FRUs for CTO,

CMV, and GAV

Product definition

Dynamic Configure To Order (CTO)

This provides the ability for acustomer to configure an

IBM

solution from an eSite, and have this configuration

sent to fulfillment, where it is built and shipped directly to

the customer. The machine label, PC Entitlement

Warehouse (PEW), eSupport, and the HMM will load these

products as the 4-digit MT and 3-digit model, where model

=“CTO” (Example: 1829-CTO).

Custom Model Variant (CMV)

This is aunique configuration that has been negotiated

between IBM and the customer. Aunique 4-digit MT and

3-digit model is provided to the customer to place orders

(Example: 1829-W15). ACMV is aspecial bid offering.

Therefore, it is NOT generally announced.

vThe MTM portion of the machine label is the 4-digit MT

and 3-digit model, where model =“CTO” (Example:

1829-CTO). The PRODUCT ID portion of the machine

label is the 4-digit MT and 3-digit CMV model (Example:

1829-W15).

vThe PEW record is the 4-digit MT and 3-digit model,

where model =“CTO” (Example: 1829-CTO).

veSupport will show both the CTO and CMV machine

type models (Example: 1829-CTO and 1829-W15 will be

found on the eSupport site.)

Important service information

4MT 2668/2669/2678/2679/2686/2687

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de De oficina de HP

HP Pro 3500 Series Guía de configuración

HP E-PC C10 Manual de usuario

HP Pro 3010 - Microtower PC Manual de usuario

HP Pavilion t100 - Desktop PC Instrucciones de instalación

HP A1210n - Pavilion - 512 MB RAM Manual de funcionamiento

HP Kayak XA-s 02xx Manual de usuario

HP dx2358 - Microtower PC Manual de usuario

HP i2000 Instrucciones de montaje

HP dc72 - Blade Workstation Client Manual de operación y mantenimiento

HP ProDesk 400 G2.5 Manual

HP TouchSmart IQ700 - Desktop PC Instrucciones de funcionamiento

HP Compaq Presario Manual de instrucciones

HP TouchSmart 300-1300 - Desktop PC Manual de usuario

HP Kayak XA Manual del producto

HP Media Center m300 - Desktop PC Manual de usuario

HP Compaq Evo D500 Series Manual de usuario

HP Compaq dx6050 MT Manual de usuario

HP Compaq dx7500 Instrucciones de instalación

HP 117755-003 - ProSignia - 740 Guía de instalación

HP EliteDesk 705 G4 Manual de operación y mantenimiento

HP Pavilion t600 - Desktop PC Manual de usuario

HP -380467-003 - COMPAQ PRESARIO C300 C500 C700 F500 F700 LAPTOP... Manual de usuario

HP Kayak XW A2-U2-W2 Manual

HP s5120f - Pavilion - Slimline Manual de instrucciones

Manuales populares de De oficina de otras marcas

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario

Everex

Everex eXplora Manual de usuario

Lenovo

Lenovo ThinkCentre M75e Manual de usuario

Dell

Dell Alienware Area-51 R4 Manual de usuario
