HP Kayak XA-s 02xx PC Workstation -

Setting Up and Using Your

HP Minitower PC Workstation

M02sett.fm Page 1 Thursday, February 18, 1999 3:51 PM

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

Connecting the Mouse, Keyboard, Display and Printer

2English

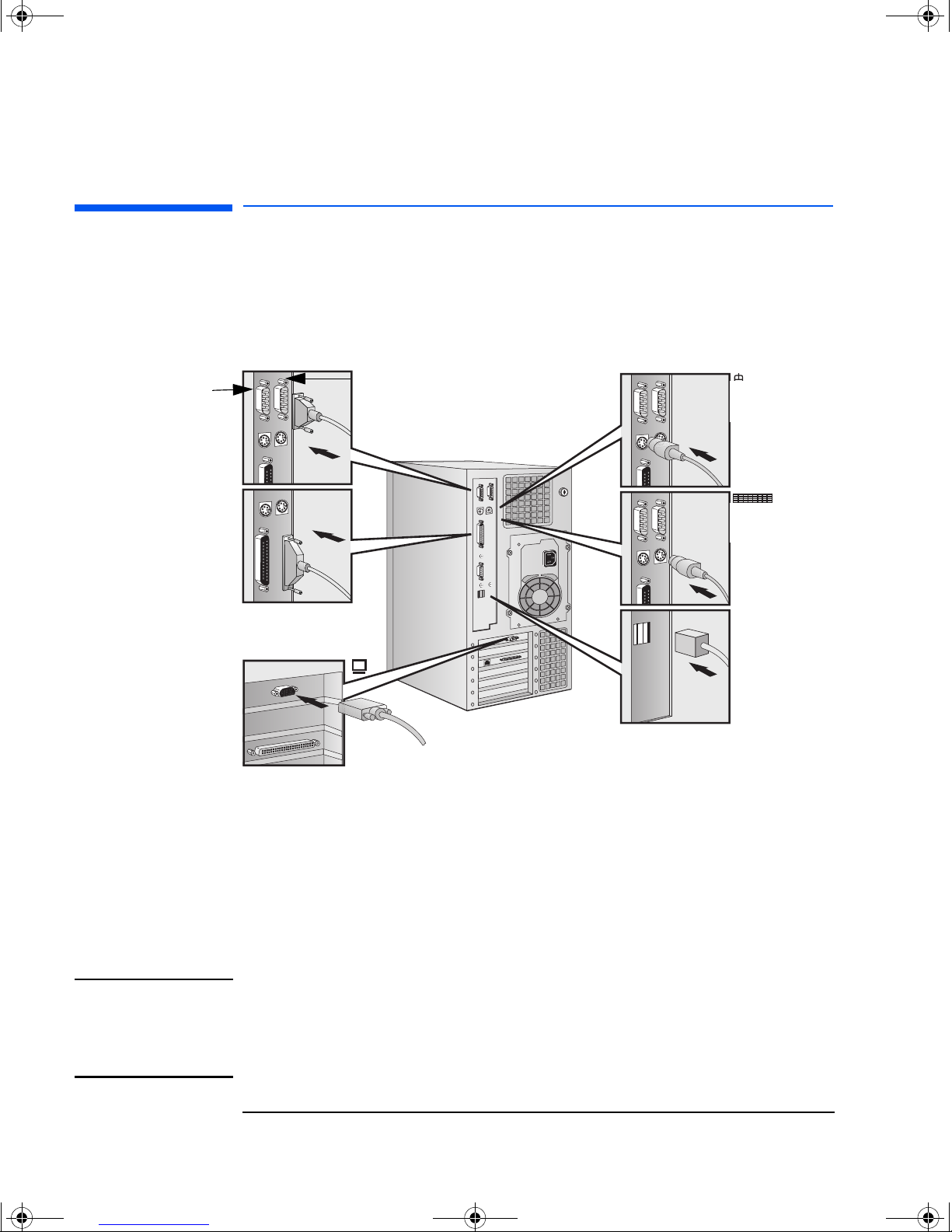

Connecting the Mouse, Keyboard, Display and Printer

Connect the mouse, keyboard, and display to the back of the

PC workstation. The connectors are shaped to go in one way only.

Tighten the display cable attachment screws.

Connect the printer cable to the back of the computer and tighten the

attachment screws. Use the connector labeled:

•Parallel (25-pin parallel connector) for a parallel device.

•Serial A (9-pin serial connector) for a serial device.

•Serial B (9-pin serial connector) for a second serial device.

NOTE The Universal Serial Bus (USB) connectors can be used for USB

accessories. Most USB accessories are automatically configured as soon

as they are physically attached to the PC Workstation. USB accessories

are not supported by all operating systems.

Mouse

Connector

Keyboard

Connector

2 USB Connectors

(see note below)

Serial B

Port

Serial A

Port

Parallel

Connector

Monitor

Connector

M02sett.fm Page 2 Thursday, February 18, 1999 3:51 PM

English 3

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

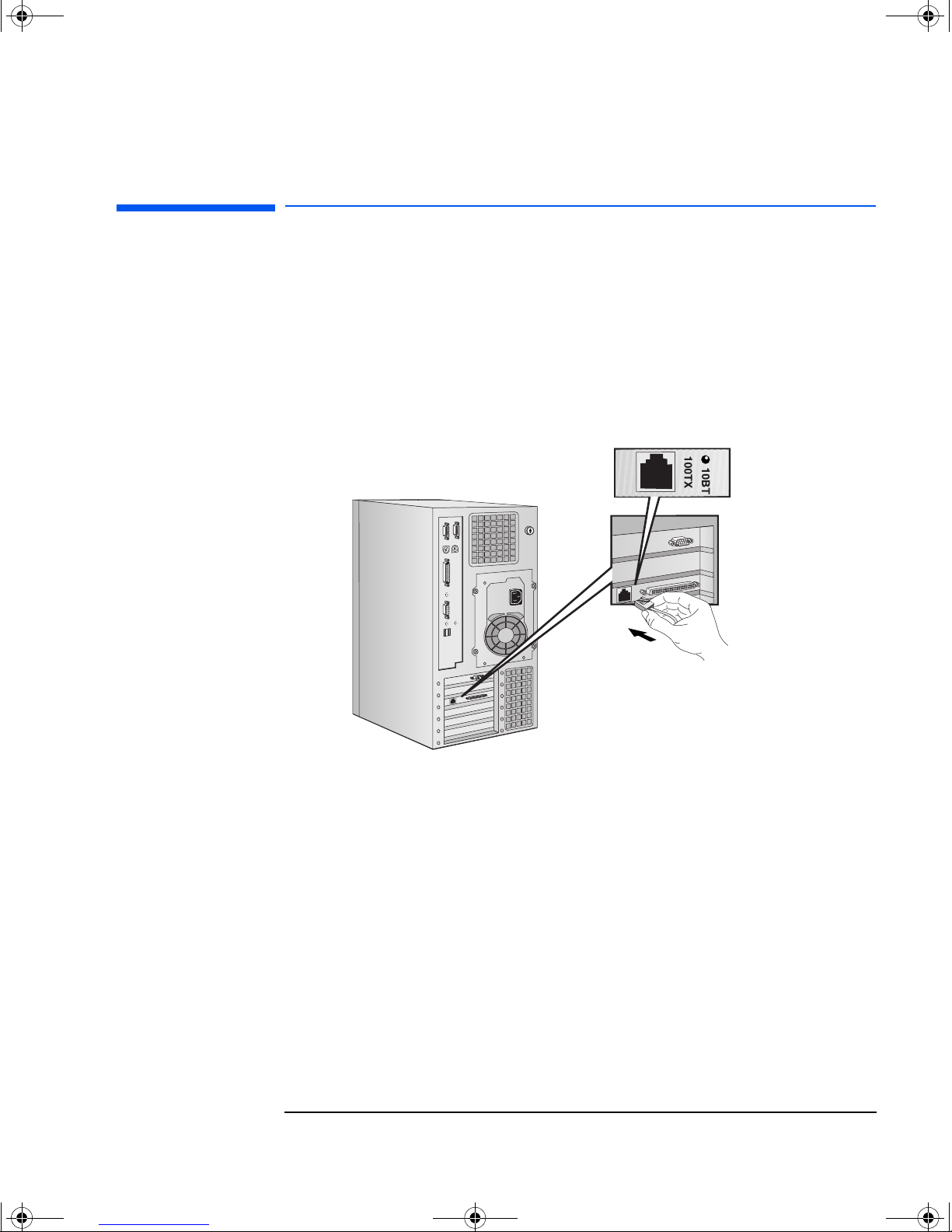

Connecting to a Network

Your PC Workstation has a 10BT/100TX LAN interface adapter.

The LAN adapter supports both 10 Mbit/s and 100 Mbit/s operations

and automatically detects which network type is being used.

1Connect the RJ-45 plug on your network cable to the LAN connector

on your LAN PC Workstation Adapter. Push the plug into the

connector until the plug clicks into place.

2Attach the other end of the LAN cable to a hub (or into a wall socket

that is connected to a hub).

Let your Network Administrator know that you are connecting your

PC Workstation to the network.

Refer also to the online Network Administrator’s Guide (preloaded

on your PC Workstation) for further instructions on setting up your PC

Workstation for a LAN connection.

The board shown here is a

combined SCSI/LAN board.

Some models do not have

the SCSI option.

M02sett.fm Page 3 Thursday, February 18, 1999 3:51 PM

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

Connecting Audio Accessories

4English

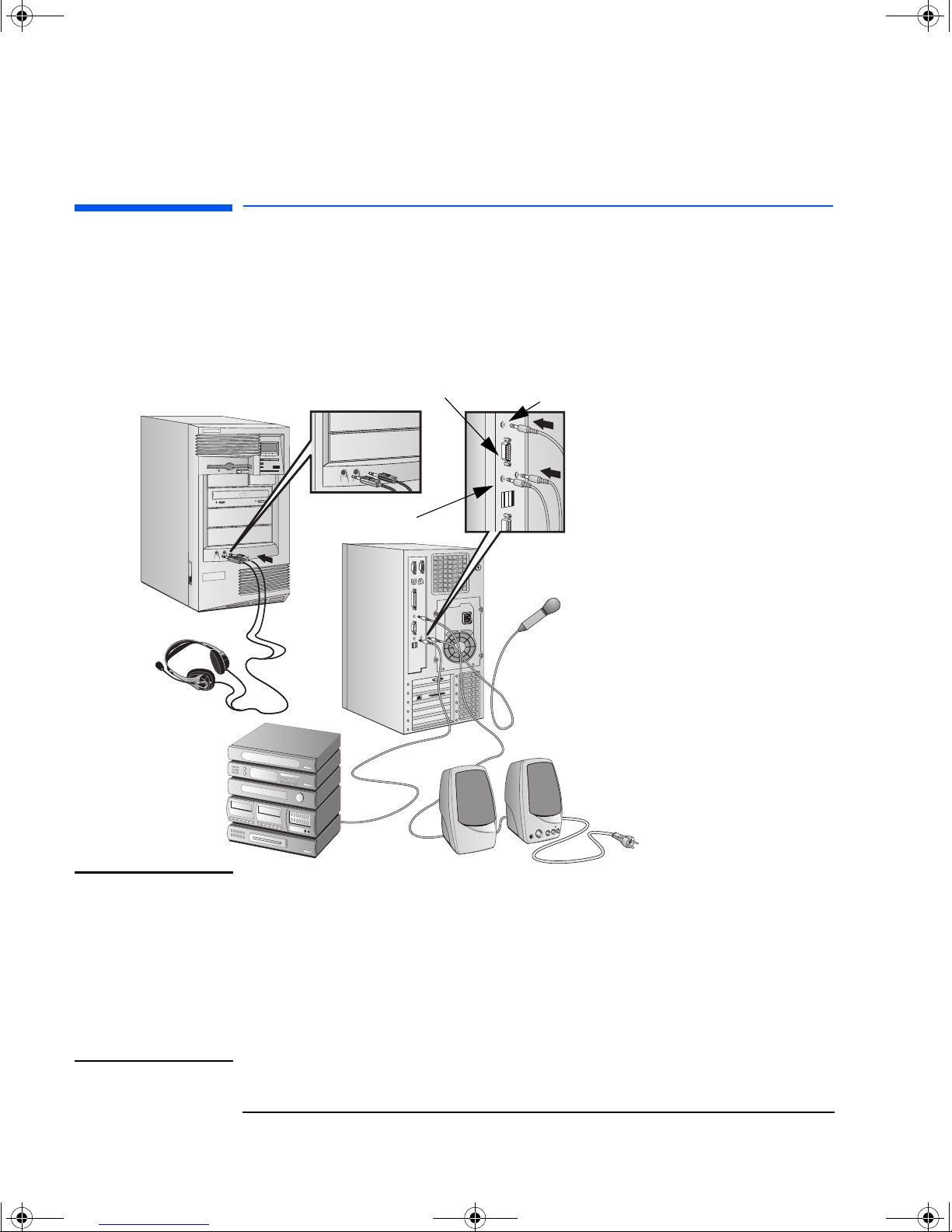

Connecting Audio Accessories

Your PC Workstation has a Headphone Out jack and a Microphone In

jack on the Audio Front Panel. A LINE IN jack, LINE OUT jack, MIC IN

jack, and MIDI/Joystick connector are located on the rear panel.

WARNING To avoid discomfort from unexpected noise or static, always turn

down the volume before connecting headphones or speakers.

Listening to loud sounds for prolonged periods may permanently

damage your hearing.

Before putting on headphones, place them around your neck and turn

down the volume. When you put on the headphones, slowly increase

the volume until you find a comfortable listening level, then leave the

volume control in that position.

MIDI/Joystick

connector

LINE IN jack

LINE OUT jack

Audio Front Panel

MIC IN

jack

NOTE

The internal speaker and LINE OUT

jack on the rear panel of your

PC Workstation are deactivated

when you use the Headphones jack

on the Audio Front Panel.

The internal speaker is deactivated

when you use the LINE OUT jack.

External speakers you connect

should have a built-in power

supply.

The audio accessories shown

here (microphone, speakers, and

audio system) are not supplied

with your PC Workstation.

Volume can be controlled through

the HP enhanced keyboard or the

software volume control.

M02sett.fm Page 4 Thursday, February 18, 1999 3:51 PM

English 5

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

Connecting an External SCSI Accessory (Selected Models Only)

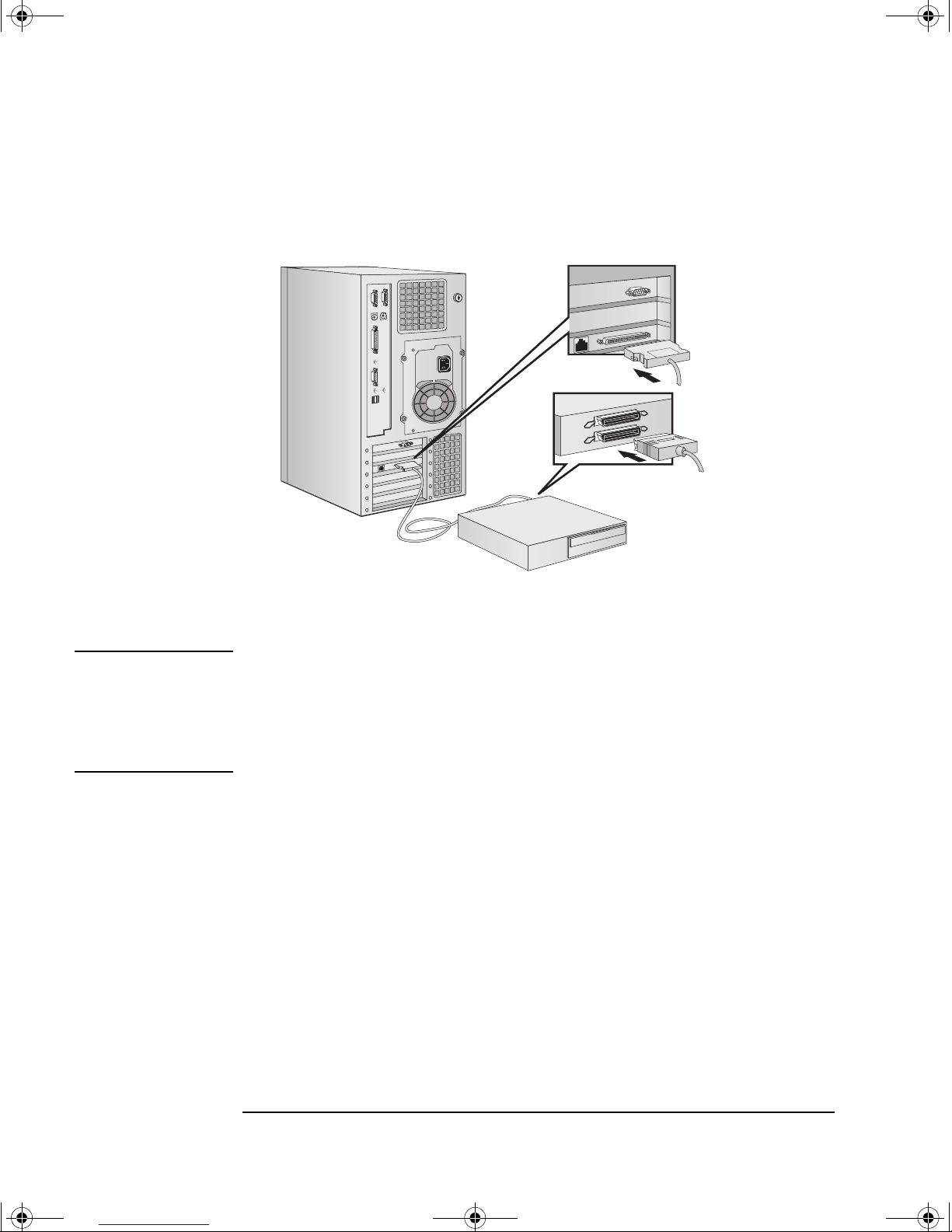

Connecting an External SCSI Accessory

(Selected Models Only)

Your PC Workstation is equipped with an UltraWide 16-bit SCSI

connector for external SCSI devices.

When an external SCSI device is connected, the UltraWide 16-bit SCSI

controller automatically switches to non-Ultra mode (maximum

capacity of 20 MBs per second).

An external SCSI device is connected as follows:

1You should assign an unused SCSI address to the accessory. SCSI

addresses range from 0 to 15 for wide 16-bit SCSI. The SCSI

address 0 is reserved for the first SCSI hard disk drive and SCSI

address 7 is reserved for SCSI controller (the default for narrow and

wide SCSI devices).

Refer to the manual provided with the SCSI accessory for

instructions on selecting a SCSI address.

NOTE You don’t need to set a SCSI address for Plug and Play SCSI devices

(SCSI devices which support the SCAM protocol).

2Make sure the SCSI accessory is terminated correctly—either

internally or by a terminating resistor (refer to the manual provided

with the SCSI accessory).

Make sure the SCSI

accessory is terminated

M02sett.fm Page 5 Thursday, February 18, 1999 3:51 PM

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

Connecting an External SCSI Accessory (Selected Models Only)

6English

3Connect the SCSI accessory to your PC Workstation’s external

16-bit SCSI connector with a shielded SCSI cable.

4Refer to the manual provided with the SCSI accessory to learn how

to install any software that may be necessary to use it.

NOTE The total length of the external SCSI cables should not exceed 3 meters

(approximately 10 feet).

Contact your dealer to order shielded HP SCSI cables to connect

external SCSI accessories.

M02sett.fm Page 6 Thursday, February 18, 1999 3:51 PM

English 7

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

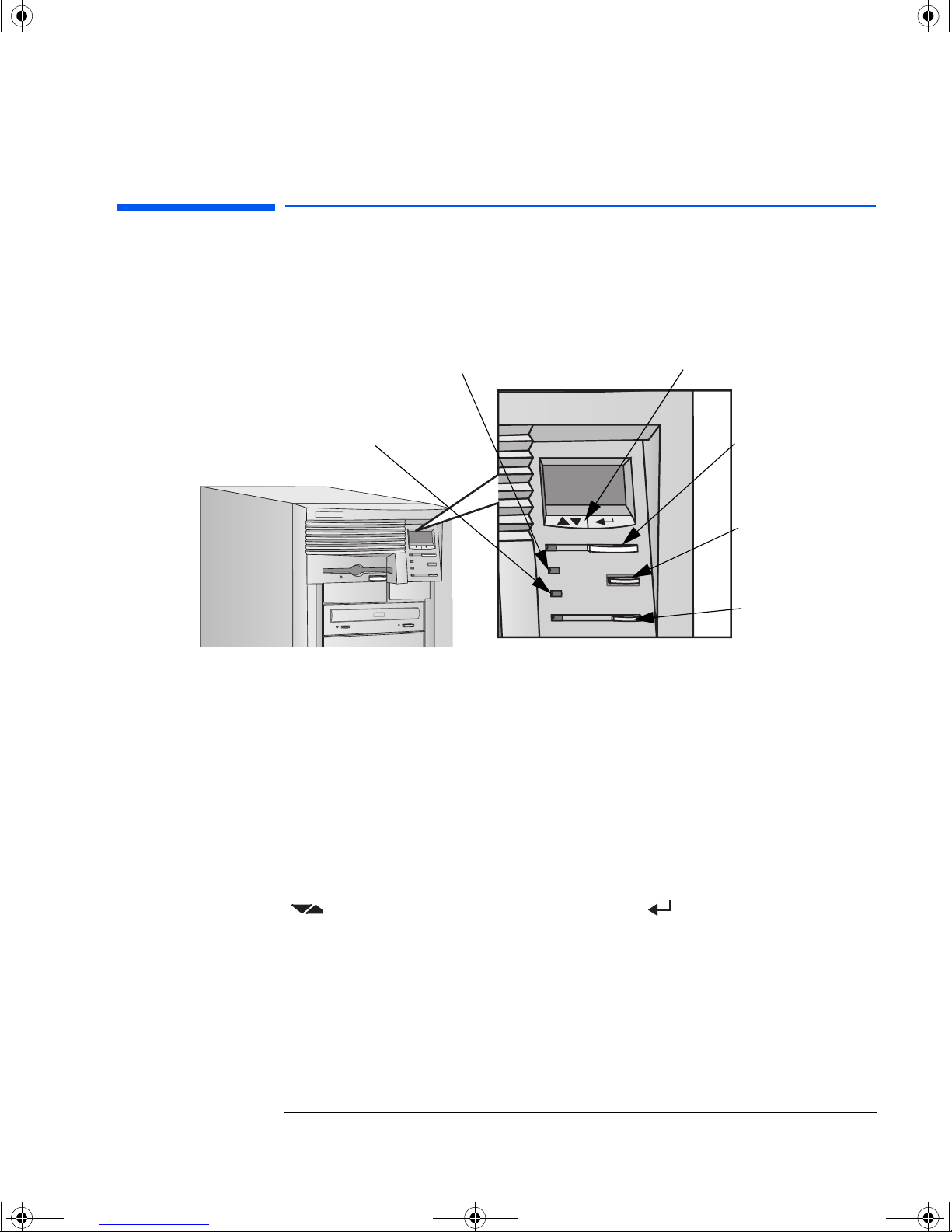

Your PC Workstation’s Hardware Control Panel

The hardware control panel is located on the front of your

PC Workstation.

PC Lock Button With HP Lock installed, you can use this button to prevent

unauthorized access of your PC Workstation during your absence.

Your applications will remain active. To unlock the PC Workstation,

enter the Windows login password (refer to Window’s Help in the

Start menu to set or change this password).

HP MaxiLife and it’s

Liquid Crystal Display

(LCD)

HP MaxiLife and its LCD helps you diagnose problems with your PC

Workstation and provides system information you may need to obtain

support. Press one of the LCD control buttons to display the menu. Use

to scroll through the menu items and to select the item

required.

Network Activity Light This light glows/flickers when your PC Workstation is accessing

the network.

Hard Disk Activity

Light

This light glows/flickers when your hard disk drive is being accessed.

Power On/Off Button

and LED

PC Lock Button

and LED

Network Activity Light

Hard Disk Activity Light

Reset Button

LCD Control Buttons

M02sett.fm Page 7 Thursday, February 18, 1999 3:51 PM

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

Using Your HP Enhanced Keyboard

8English

Using Your HP Enhanced Keyboard

The HP enhanced keyboard includes soft keys you can use to:

•Display and configure the actions assigned to keys.

•Perform one-touch shortcuts to start applications, open files, or

open sites on the WWW.

•Launch the Internet browser supplied with your system.

•Lock or suspend your PC Workstation.

•Access HP TopTools and customer information.

•Mute or adjust the volume of the audio system.

Menu Key Pressing the Menu soft key displays the soft key section of the HP

enhanced keyboard on your screen. Click any of the keys on the screen

to display the action assigned to an individual key or to change or assign

an action to a key. Shortcut keys are provided specifically for user-

defined actions.

Menu key

Lock/Suspend key

Internet key

HP TopTools

Shortcut key HP Customer

Information

Volume

control

keys

Shortcut keys

Mute key

M02sett.fm Page 8 Thursday, February 18, 1999 3:51 PM

English 9

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

Using Your HP Enhanced Keyboard

Shortcut Keys The shortcut soft keys can be used to start an application, open a

document, or open a site on the Internet. Actions can be assigned to the

shortcut keys by pressing the Menu key and clicking the key you want

to configure in the keyboard displayed on your screen.

Internet Key This soft key is used to start the Netscape™ Communicator 4.0

browser configured on the PC Workstation (default setting). The

Microsoft®Internet Explorer is also available.

Lock/Suspend Key The action of the Lock/Suspend key is configured by pressing the Menu

Key, and then clicking on Configure, the Extended Keys tab and the

onscreen Lock button. With HP Lock installed, the actions you can

specify for the Lock/Suspend key are:

•Launch screen saver

•Lock the front panel.

HP TopTools Pressing this soft key opens HP TopTools. This application helps you

manage your PC Workstation, reduce overall ownership costs, and

provides advanced PC management tools. For example, be used for

remote BIOS updates and security management.

NOTE Before using HP TopTools for the first time, you must install it as

follows: From the Start menu, select Programs, then HP DMI, then

Setup. The HP TopTools application is installed automatically.

HP Customer

Information

This soft key accesses HP Customer Information, which includes:

•Information on product features

•The preloaded software on the system

•Details on how to configure the HP enhanced keyboard

•Information on how to configure the WWW browser

•Detailed HP support information

•Links to the HP PC and PC Workstation website.

Mute and Volume

Keys

Pressing the Mute key mutes the audio, or restores the audio if it has

been muted. The Volume keys can be used to control the volume level.

For more information on controlling audio on your system, refer to the

Using Sound guide preloaded on your PC Workstation.

M02sett.fm Page 9 Thursday, February 18, 1999 3:51 PM

HP Kayak XA-s 02xx PC Workstation - Setting Up and Using Your HP Minitower PC Workstation

Using Your HP Enhanced Mouse

10 English

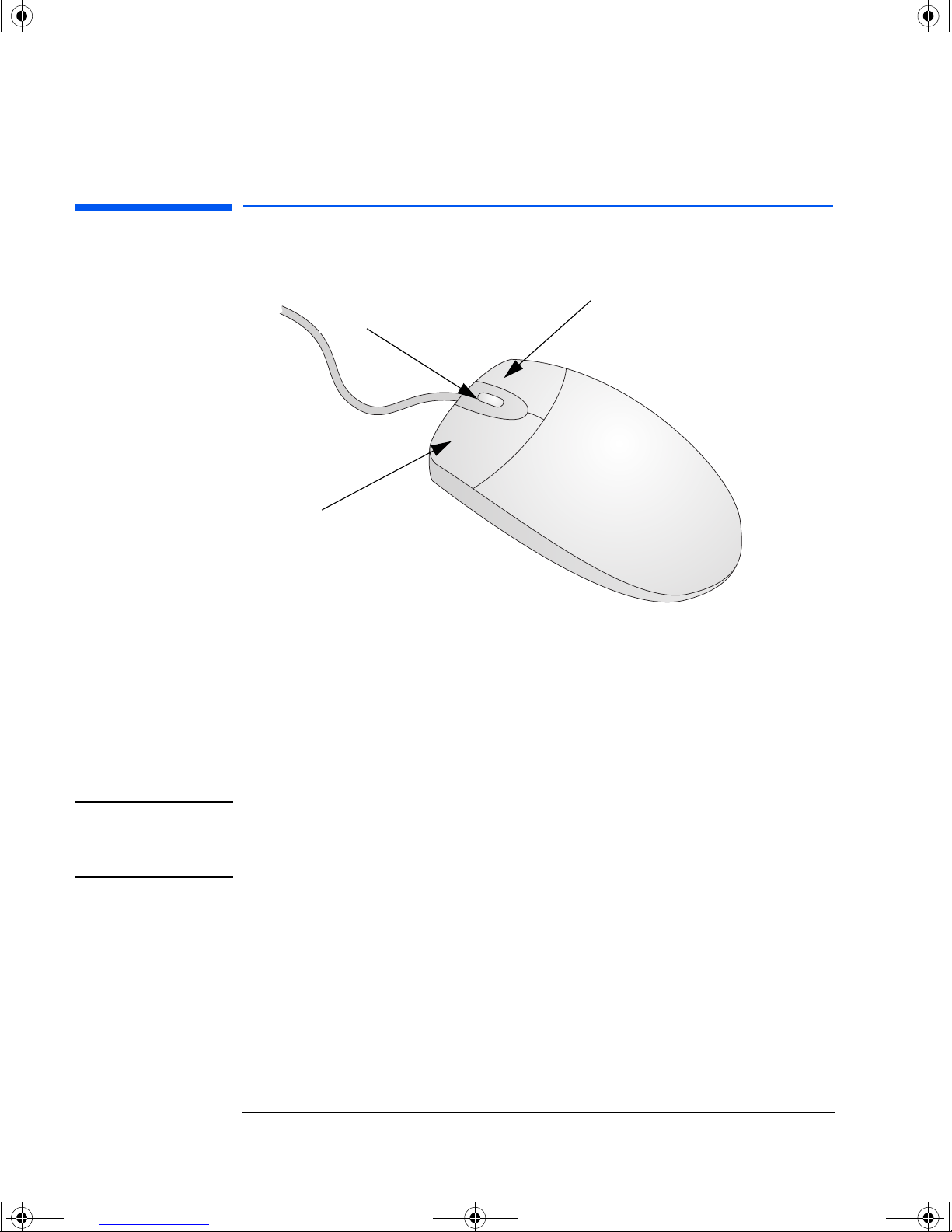

Using Your HP Enhanced Mouse

Your HP enhanced mouse enables you:

•To scroll down by pushing the mouse wheel forwards and scroll up

by pushing it backwards.

•To zoom in (enlarge) by holding the Ctrl key down and pushing the

mouse wheel forwards or zoom out (reduce) by holding the Ctrl key

down and pushing it backwards.

NOTE The scroll functions only work in Windows NT and Windows 95

applications that support scrolling. The zoom function works only in

Microsoft Office 97 compatible applications that support zoom.

To change the mouse setup, click the Start button, select Settings—Control

Panel, double-click Mouse, and select the Buttons tab.

Context Menu/Alternate

Select Button

Click/Select Button

Scroll/Zoom Wheel

M02sett.fm Page 10 Thursday, February 18, 1999 3:51 PM

Otros manuales para Kayak XA-s 02xx

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de De oficina de HP

HP P6210f - Pavilion - 6 GB RAM Manual de uso y mantenimiento

HP Media Center Manual de instrucciones

HP 8000 - Elite Convertible Minitower PC Instrucciones de uso

HP TouchSmart IQ520 Manual de instrucciones

HP Evo d520 Instrucciones de instalación

HP b2600 Manual de usuario

HP Compaq Presario Guía de inicio rápido

HP Z200 - Small Form Factor Workstation Guía de referencia

HP Compaq d330 DT Manual de usuario

HP Xw4550 - Workstation - 2 GB RAM Manual de usuario

HP Pavilion t100 - Desktop PC Manual de uso y mantenimiento

HP Vectra 510 Manual del producto

HP 512n - Pavilion - 128 MB RAM Manual de usuario

HP Elite 7500 Microtower Manual de usuario

HP dx2358 - Microtower PC Manual de usuario

HP Z200 - Small Form Factor Workstation Manual de usuario

HP EliteDesk 705 G1 Instrucciones de instalación

HP Compaq Presario Manual de instrucciones

HP Pavilion Elite e9180f Manual de usuario

HP Compaq d330 DT Manual de operación y mantenimiento

HP Z240 Small Form Factor Manual

HP dx2250 - Microtower PC Manual de usuario

HP TouchSmart 310-1000 - Desktop PC Cómo utilizar

HP 744 Manual de usuario

Manuales populares de De oficina de otras marcas

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario

Everex

Everex eXplora Manual de usuario

Lenovo

Lenovo ThinkCentre M75e Manual de usuario

Dell

Dell Alienware Area-51 R4 Manual de usuario
