HP Kayak XA-s 02xx Manual de usuario
HP Kayak XA-s 02xx PC Workstation -
Installing Accessories In Your
HP Desktop PC Workstation
Explains in detail how to install accessories, such as extra memory,
accessory boards, and additional disk drives.
D02inst.fm Page 1 Thursday, February 18, 1999 12:23 PM
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Supported HP Accessories
2English
Supported HP Accessories
Contact your dealer for an up-to-date list of supported accessories.
Main Memory Upgrade DIMM
slots for 100 MHz SDRAM:
- 32 MB Non-ECC (D6501A)
- 64 MB Non-ECC (D6502A)
- 128 MB Non-ECC (D6503A)
- 32 MB ECC (D6521A)
- 64 MB ECC (D6522A)
- 128 MB ECC (D6523A)
- 256 MB ECC (D6524A)
Front Access Drives, for example:
- 5.25-inch CD-ROM drive (half height)
- 3.5-inch 1.44 MB floppy disk drive
(one third height)
Internal Mass
Storage Devices
Up to six accessory boards
can be installed:
- One AGP slot (graphics)
- Three 32-bit PCI slots
- One combination PCI or ISA slot
- One 16-bit ISA slot
D02inst.fm Page 2 Thursday, February 18, 1999 12:23 PM
English 3
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Removing and Replacing the Cover
Removing and Replacing the Cover
WARNING For your safety, never remove the PC Workstation’s cover without first
removing the power cord from the power outlet, and any connection to
a telecommunications network. Always replace the cover on the
PC Workstation before switching it on again.
Removing the Cover
1Switch off the display and computer.
2Disconnect all power cables and any telecommunications cables.
3If necessary, unlock the cover using the key on the back panel, and
remove any floppy diskettes from the floppy drive.
4Push the two latches on the sides of the computer upwards.
5Grasp the cover on both sides of the computer, and carefully slide it
forwards and off the computer.
D02inst.fm Page 3 Thursday, February 18, 1999 12:23 PM
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Removing and Replacing the Cover
4English
Replacing the Cover
1Ensure that you have installed all your accessories and that all
internal cables are properly connected and safely routed.
2Lower the cover completely onto the computer (aligning the back of
the cover with the inner back edge of the PC Workstation’s case),
and firmly slide it backwards into place. Ensure that the retaining
latches click into position.
3If required, lock the cover using the key provided.
4Reconnect all the power cables.
Intrusion Monitor Your PC Workstation is equipped with an intrusion monitor, which is
located on the front of the PC Workstation, behind the Hardware
Control Panel. It is designed to detect whether your PC Workstation
has been opened since the last time it was used.
•If your PC Workstation has been opened, it is assumed that the
system configuration has changed and a full start-up check is carried
out.
•If your PC Workstation has not been opened, it is assumed that the
system configuration has not changed and a reduced start-up check
is carried out.

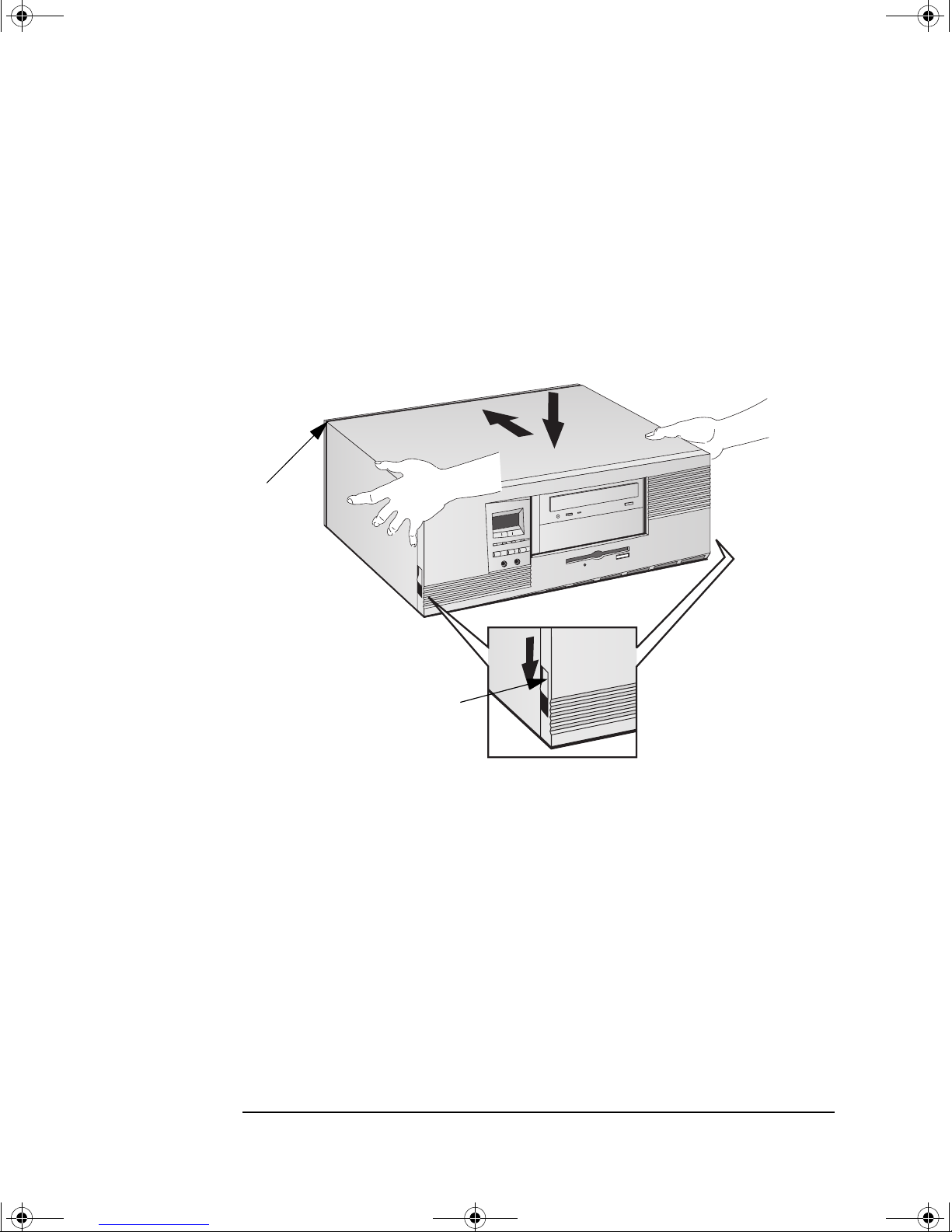

Align the back of the cover
with the inner back edge of
the PC Workstation’s case.
Ensure that the retaining
latches on either side of
the PC Workstation’s
case click into position.
D02inst.fm Page 4 Thursday, February 18, 1999 12:23 PM
English 5
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Moving the Power Supply
Moving the Power Supply
You can move the power supply unit out of the computer to improve
access to the system board and the cables at the rear of the disk
drives.
1Disconnect the computer’s power cord and any telecommunications
cable.
2Remove the computer’s cover (refer to page 3).
3Lift the front of the power supply up and move it forwards to
disengage the hinge on the rear.
4Rotate the power supply and lay it upside down on the drive unit.
WARNING To avoid electrical shock, do not open the power supply. There are no
user-serviceable parts inside the power supply unit.
Lift the front of the
power supply up
and forwards.
D02inst.fm Page 5 Thursday, February 18, 1999 12:23 PM
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Moving the Power Supply
6English
Replacing the Power
Supply after Installing
Accessories
1Check that all internal cables are safely routed.
2Rotate the power supply into the computer. Tilt the back of the
power supply unit until it engages with the computer’s case. Adjust
the power supply’s cable to ease replacement of the unit.
3Carefully lower the front of the power supply completely into
the computer, until it clicks into position.
Tilt the back of the power
supply until it engages with
the computer’s case.
D02inst.fm Page 6 Thursday, February 18, 1999 12:23 PM
English 7
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Installing Memory
Installing Memory
Main Memory Modules
If you need more main memory to run your application software, you
can install up to 768 MB of memory in three 100 MHz DIMM slots.
Main memory upgrades are available in single Unbuffered 32 MB,
64 MB and 128 MB Non-ECC and ECC SDRAM memory modules, or
256 MB Registered Non-ECC and ECC memory modules.
CAUTION You should not combine 256 MB Registered memory modules with
Unbuffered SDRAM.
Static electricity can damage electronic components. Turn off all
equipment. Do not let your clothes touch the accessory.
To equalize the static electricity, rest the accessory bag on top of the
power supply while you are removing the accessory from the bag.
Handle the accessory as little as possible and with care.
To install a main memory module:
1Disconnect the computer’s power cord and any LAN or
telecommunications cable.
2Remove the computer’s cover (refer to page 3).
3To enable better access, remove the power supply (refer to page 5)
and the hard drive unit (refer to the illustrations on page 13).
4Remove the floppy drive data cable from the system board.
D02inst.fm Page 7 Thursday, February 18, 1999 12:23 PM
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Installing Memory
8English
The location of the memory module slots is shown below.
5Slide the memory module into the slot at 90° to the system board
(with the cutouts furthest away from the processor).
6Firmly press the memory module completely into the connector
until the retaining clips click into position.
Slide the memory module into the
slot at 90oto the system board
Push the module until the
retaining clips click into position
Memory module
cutouts
D02inst.fm Page 8 Thursday, February 18, 1999 12:23 PM
English 9
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Installing Memory
7Repeat this procedure for each additional memory module you want
to install.
8Install any other accessories if necessary, then replace all units and
reconnect all cables and power cords. Replace the cover (refer to
page 4).
9Check the HP Summary Screen to verify the new configuration.
Video Adapter
Accessories Available
from Other Sources
Additional accessories, including a video MPEG module, are available
for your video adapter. However, these accessories cannot be ordered
from HP. Contact your dealer for more details about these accessories.
D02inst.fm Page 9 Thursday, February 18, 1999 12:23 PM
HP Kayak XA-s 02xx PC Workstation - Installing Accessories In Your HP Desktop PC Workstation
Installing Mass Storage Devices
10 English
Installing Mass Storage Devices
The computer has two internal shelves (for hard disk drives) and two
front-access drive shelves (for front-access drives).
Your computer is supplied with a 3.5-inch floppy disk drive and a
CD-ROM drive. If your computer is supplied with a hard disk, the hard
disk will be installed in the top internal shelf.
Connecting Devices
If you add an IDE Zip drive, hard disk drive, CD-ROM drive, CD-RW
drive, or tape drive, you need to connect it to power and data cables.
The data cables and connectors provided are shown below:
Two IDE data cables each with
two 40-pin connectors for IDE
Drives, such as CD-ROM Drives,
Zip Drives or Hard Disk Drives.
34-pin connector
Cable with one connector for
3.5-inch Floppy Disk Drive
40-pin connectors
On selected models, a 16-bit
External 68-pin SCSI
connector
On selected models, a 16-bit
SCSI cable with four 68-pin
connectors.
D02inst.fm Page 10 Thursday, February 18, 1999 12:23 PM
