Medium-Profile

Desktop

PC Workstations

HP Kayak XA Desktop Series 05xx PC

Workstations 9-1

HP Kayak XA Desktop Series 05xx

PC Workstations

Models and Accessories

Product

Number

Cache

Memory

Std.

RAM

Hard

Drive

Video Controller Multi-media LAN

HP Kayak XA 6/xxx PC Workstation

HP Kayak XA Series 0503 PC Workstation 6/350 MHz 100 FSB1(CPL: 10/98 )

D6721N

and

D6721T

Pentium

II with

512 KB

of L2

cache

memory

64MB

SDRAM

100 MHz

non-ECC

4.3 GB

Ultra

ATA

5.4 krpm

Matrox

Millennium G200

8 MB video

memory fitted.

Upgradable to

16 MB of memory

32✕ Max IDE

CD-ROM.

Bolero add-on

audio board.

None

HP Kayak XA Series 0541 PC Workstation 6/350 MHz 100 FSB (CPL: 10/98 )

D6722N

and

D6722T

Pentium

II with

512 KB

of L2

cache

memory

64 MB

SDRAM

100 MHz

non-ECC

6.4 GB

Ultra

ATA

7.2 krpm

ELSA GLoria

Synergy+ AGP,

8 MB on board,

not upgradable

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

HP Kayak XA Series 0503 PC Workstation 6/400 MHz 100 FSB (CPL: 10/98 )

D6723N

and

D6723T

Pentium

II with

512 KB

of L2

cache

memory

64 MB

SDRAM

100 MHz

non-ECC

4.3 GB

Ultra

ATA

5.4 krpm

Matrox

Millennium G200

8 MB video

memory fitted.

Upgradable to

16 MB of memory.

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

HP Kayak XA Series 0503 PC Workstation 6/450 MHz 100 FSB (CPL: 10/98 )

D6726N

and

D6726T

Pentium

II with

512 KB

of L2

cache

memory

64 MB

SDRAM

100 MHz

non-ECC

6.4 GB

Ultra

ATA

7.2 krpm

Matrox

Millennium G200

8 MB video

memory fitted

Upgradable to

16 MB of memory

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

Ka_sh_1.bk Page 1 Thursday, June 15, 2000 7:27 PM

HP Kayak XA Desktop Series 05xx PC Workstations

9-2 HP Kayak XA Desktop Series 05xx PC

Workstations

Medium-Profile

Desktop

PC Workstations

HP Kayak XA Series 0541 PC Workstation 6/400 MHz 100 FSB (CPL:03/99 )

D6729N

and

D6729T

Pentium

II with

512 KB

of L2

cache

memory

128 MB

SDRAM

100 MHz

ECC

6.4 GB

Ultra

ATA

7.2 krpm

ELSA GLoria

Synergy+ AGP,

8 MB on board,

not upgradable.

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

Product

Number

Cache

Memory

Std.

RAM

Hard

Drive

Video Controller Multi-media LAN

HP Kayak XA 7/xxx PC Workstation

HP Kayak XA Series 0503 PC Workstation 7/450 MHz 100 FSB (CPL:10/98 )

D6720N

and

D6720T

Pentium

III with

512 KB

of L2

cache

memory

64 MB

SDRAM

100 MHz

non-ECC

6.4 GB

7.2 krpm

IDE

Matrox

Millennium G200

8 MB video

memory fitted.

Upgradable to

16 MB of memory

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

HP Kayak XA Series 0503 PC Workstation 7/500 MHz 100 FSB (CPL:03/99 )

D6731N

and

D6731T

Pentium

III with

512 KB

of L2

cache

memory

128 MB

SDRAM

100 MHz

ECC

10.1 GB

7.2 krpm

IDE

Matrox

Millennium G200

8 MB video

memory fitted.

Upgradable to

16 MB of memory.

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

HP Kayak XA Series 0541 PC Workstation 7/500 MHz 100 FSB (CPL:06/99 )

D6734N

and

D6734T

Pentium

III with

512 KB

of L2

cache

memory

128 MB

SDRAM

100 MHz

ECC

6.4 GB

7.2 krpm

IDE

ELSA GLoria

Synergy+ AGP,

8 MB on board,

not upgradable

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

HP Kayak XA Series 0503 PC Workstation 7/500 MHz 100 FSB (CPL:11/99 )

D6738N

and

D6738T

Pentium

III with

512 KB

of L2

cache

memory

64 MB

SDRAM

100 MHz

non-ECC

6.5 GB

7.2 krpm

IDE

Matrox

Millennium G200

8 MB video

memory fitted.

Upgradable to

16 MB of memory

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

Product

Number

Cache

Memory

Std.

RAM

Hard

Drive

Video Controller Multi-media LAN

Ka_sh_1.bk Page 2 Thursday, June 15, 2000 7:27 PM

HP Kayak XA Desktop Series 05xx PC Workstations

Medium-Profile

Desktop

PC Workstations

HP Kayak XA Desktop Series 05xx PC

Workstations 9-3

HP Kayak XA Series 0503 PC Workstation 7/550 MHz 100 FSB (CPL:06/99 )

D6735N

and

D6735T

Pentium

III with

512 KB

of L2

cache

memory

128 MB

SDRAM

100 MHz

ECC

13.5 GB

7.2 krpm

IDE

Matrox

Millennium G200

8 MB video

memory fitted.

Upgradable to

16 MB of memory

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

HP Kayak XA Series 0503 PC Workstation 7/600 MHz 100 FSB (CPL:06/99 )

D7994N

and

D7994T

Pentium

III with

512 KB

of L2

cache

memory

128 MB

SDRAM

100 MHz

ECC

10.1 GB

7.2 krpm

IDE

Matrox

Millennium G200

8 MB video

memory fitted.

Upgradable to

16 MB of memory

32✕Max IDE

CD-ROM.

Bolero add-on

audio board.

None

1. FSB = Front Side Bus

Product

Number

Cache

Memory

Std.

RAM

Hard

Drive

Video Controller Multi-media LAN

Ka_sh_1.bk Page 3 Thursday, June 15, 2000 7:27 PM

HP Kayak XA Desktop Series 05xx PC Workstations

9-4 HP Kayak XA Desktop Series 05xx PC

Workstations

Medium-Profile

Desktop

PC Workstations

Supported Accessories

Memory Upgrades

SDRAM 32MB 72bit 100MHz main memory unbuffered ECC) D6521A

SDRAM 64MB 72bit 100MHz main memory unbuffered ECC) D6522A

SDRAM 128MB 72bit 100MHz main memory (unbuffered ECC) D6523A

SDRAM 256MB 72bit 100MHz main memory (unbuffered ECC) D6743A

Processor Upgrades

Intel Pentium II Slot 1 Processor 350/512 KB D6527A

Intel Pentium II Slot 1 Processor 400/512 KB D6528A

Intel Pentium II Slot 1 Processor 450/512 KB D6529A

Intel Pentium III 450 MHz containing 512 KB internal L2 cache D7510A

Intel Pentium III 500 MHz containing 512 KB internal L2 cache D7511A

Intel Pentium III 550 MHz containing 512 KB internal L2 cache D7512A

Intel Pentium III 600 MHz containing 512 KB internal L2 cache D7516A

Input Devices

HP keyboard for Windows® C4735A

HP standard 2-button mini-din mouse C3751B

HP mouse with scrolling wheel C4736A

Video Displays

All current HP PC Displays (refer to the Displays section of the Vectra

Accessory Service Handbook)

Mass Storage—Hard Disk Drives

4.3-GB 5400 rpm Ultra ATA/33 hard disk D2677A

6.4-GB 7200 rpm Ultra ATA/33 hard disk D6452A

10.1-GB 7200 rpm Ultra ATA/33 hard disk D6627A

9.1-GB 7200 rpm Ultra SCSI hard disk D6938A

Removable Mass Storage

32✕Max-speed IDE CD-ROM drive D4384A

SureStore CD-Writer Plus 8100i internal CD-RW drive C4400A

SureStore Tape 5000i, 4 GB DAT drive C1526H

SureStore DAT 8i, 8 GB DAT drive C1528H

SureStore DAT 24i, 24 GB DAT drive C1555B

Atapi 100 MB Internal Iomega Zip Drive D6650A

Ka_sh_1.bk Page 4 Thursday, June 15, 2000 7:27 PM

HP Kayak XA Desktop Series 05xx PC Workstations

Medium-Profile

Desktop

PC Workstations

HP Kayak XA Desktop Series 05xx PC

Workstations 9-5

System Board, BIOS, and Memory

LAN Interfaces

HP NightDirector/Plus 10/100 Base-T Ethernet board (x1) D6936A

HP NightDirector/Plus 10/100 Base-T Ethernet board (bulk pack of 10) D6937A

Mounting Rails

5.25-inch CD-ROM side mounting rails, pack of 5 D2880A

3.5-inch floppy disk mounting rails, pack of 5 (for Desktop models only) D3566A

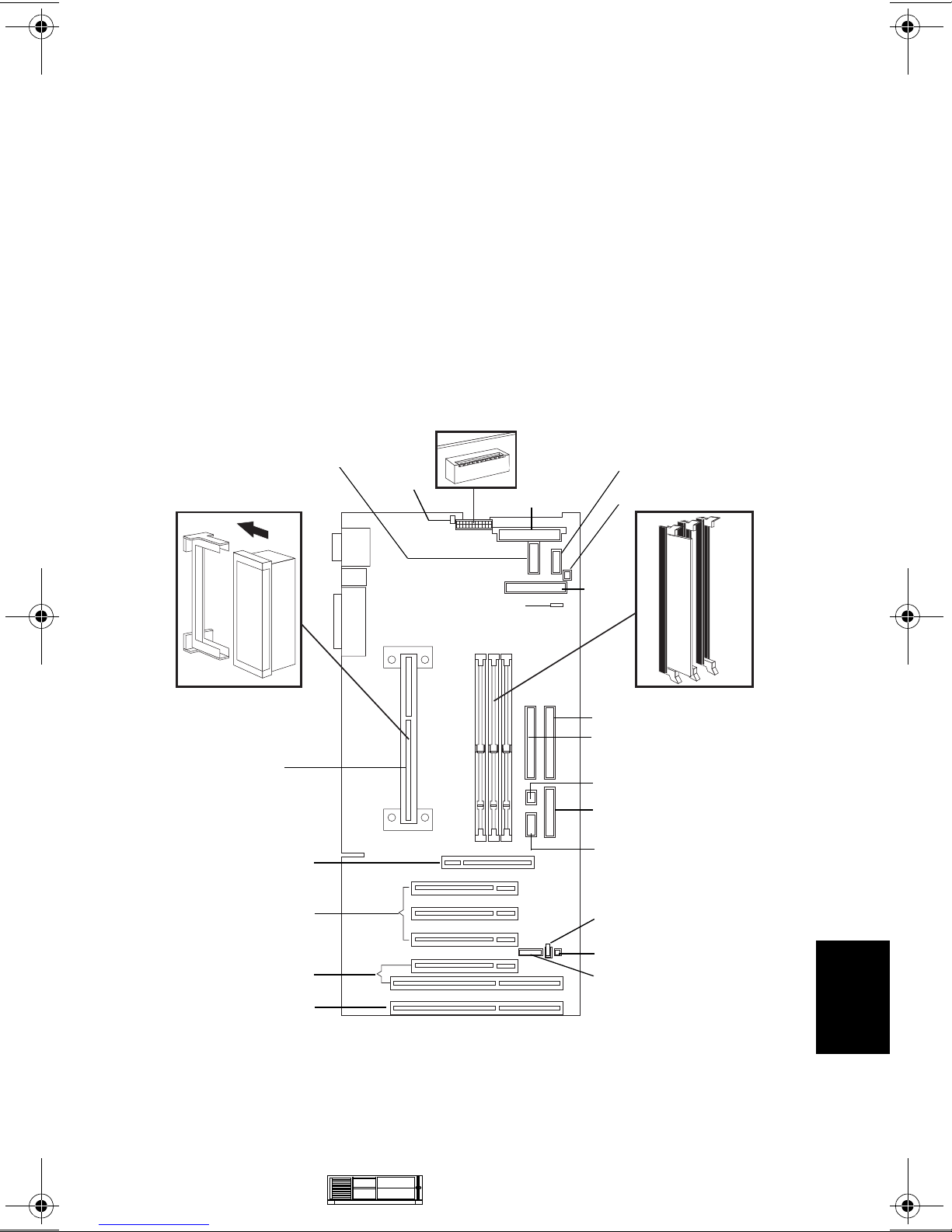

Switches

Processor

Memory Modules

Power Fan Disk Drive

Not used on the Desktop

(MT LCD status panel connectors)

Floppy

Disk

Drive

IDE 1 Connector

I/O Fan

Processor

Fan

PCI Slots

PCI/ISA Combination Slots

AGP Slot

External Start

Wake On LAN

IDE 2 Connector

Desktop MaxiLife and

LCD Status Panel

Buzzer

Desktop Audio Connector

ISA Slot

External Battery

Not used on the Desktop

(MT status panel)

Ka_sh_1.bk Page 5 Thursday, June 15, 2000 7:27 PM

HP Kayak XA Desktop Series 05xx PC Workstations

9-6 HP Kayak XA Desktop Series 05xx PC

Workstations

Medium-Profile

Desktop

PC Workstations

System Board Switches

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site. The BIOS is in the form HU11yyzz

yy= BIOS version number

zz = is the selected language to be downloaded

Switch Function Default

1Up

1. Up=Off, Down=On.

Reserved Up

2-5 - Processor frequency, see the following table -

6Up Retains Configuration Up

Down Clears CMOS (to reload the Setup program defaults)

7Up Enables passwords Up

Down Clears passwords

8Up Disables keyboard power-on Down

Down Enables keyboard power-on (normal operation)

9Up Minitower Down

Down Desktop

10 Up Enables BIOS normal mode Up

Down Enables BIOS recovery mode

Processor

Frequency

Local Bus

Frequency

(FSB)1

1. FSB = Front Side Bus

Switch Switch

2345

350 MHz 100 MHz Up Up Down Down

400 MHz 100 MHz Up Down Up Up

450 MHz 100 MHz Up Down Up Down

500 MHz 100 MHz Up Down Down Up

550 MHz 100 MHz Up Down Down Up

600 MHz 100 MHz Up Down Down Up

http://www.hp.com/go/kayaksupport

Ka_sh_1.bk Page 6 Thursday, June 15, 2000 7:27 PM

HP Kayak XA Desktop Series 05xx PC Workstations

Medium-Profile

Desktop

PC Workstations

HP Kayak XA Desktop Series 05xx PC

Workstations 9-7

Replacing the Processor

The PC Workstation has only one processor slot on the system board and is

supplied with either a Pentium II or Pentium III processor which includes an

integrated heatsink, level-1 and level-2 cache memory.

The processors are contained on a module which is installed in the processor

socket and is held in place by a bracket. To remove the processor, press the two

plastic clips towards each other and pull the processor out of its connector.

Cache Memory

512 KB of level-two cache memory is integrated in the Pentium II Slot 1

processor package.

Main Memory

The PC Workstation has three DIMM slots on the system board for installing

main memory; slots Mem 1, Mem 2 and Mem 3. Models are supplied with 64 MB

of non-ECC main memory. Memory upgrades are only available in single 32 MB,

64 MB, 128 MB or 256 MB unbuffered ECC SDRAM modules.

Memory can be upgraded to a maximum of 768 MB using multiples of

(3 x 256 MB) of unbuffered ECC memory modules.

A serial EEPROM on each DIMM contains data on the memory speed. This

information is read at each power on, and access time settings are set

accordingly.

Video Memory Upgrade

The graphics controller installed on the PC Workstation could be either an

ELSA GLoria Synergy™ or a Matrox Millennium G200.

The Matrox Millennium G200 has a total of 8 MB of video memory already

supplied on the graphics controller board. Memory may be upgraded to a

maximum of 16 MB by installing a memory module of 8 MB onto the board. No

switch or jumper settings need to be changed.

The ELSA GLoria Synergy includes 4 MB of video SGRAM memory installed on

the graphics board. Added to this, there is a pre-installed 4 MB SO_DIMM video

memory module, giving a total of 8 MB (this is the maximum amount of video

memory possible).

Ka_sh_1.bk Page 7 Thursday, June 15, 2000 7:27 PM

HP Kayak XA Desktop Series 05xx PC Workstations

9-8 HP Kayak XA Desktop Series 05xx PC

Workstations

Medium-Profile

Desktop

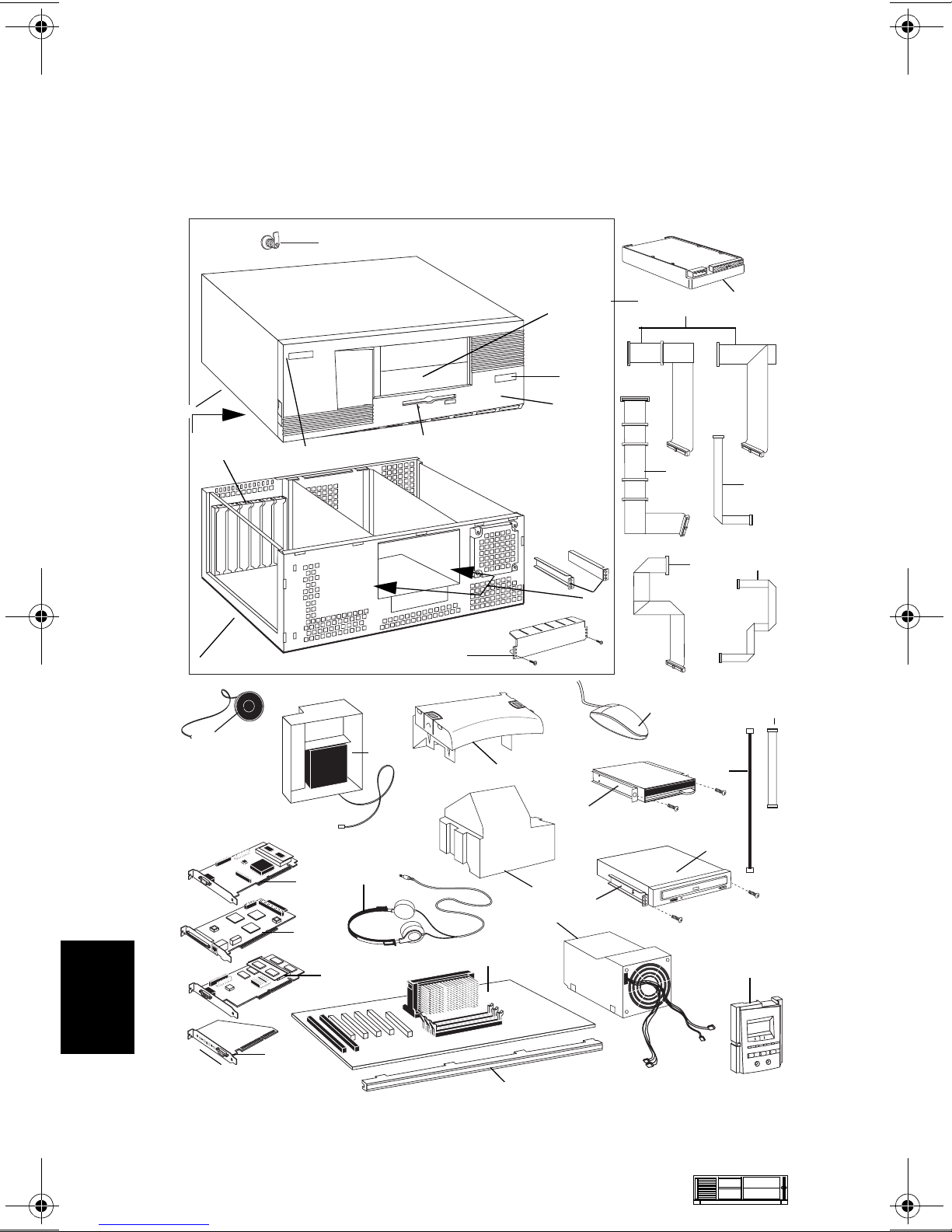

PC Workstations

Parts and Part Numbers

1part of chassis

11a

11b

Ka_sh_1.bk Page 8 Thursday, June 15, 2000 7:27 PM

HP Kayak XA Desktop Series 05xx PC Workstations

Medium-Profile

Desktop

PC Workstations

HP Kayak XA Desktop Series 05xx PC

Workstations 9-9

Parts List

Item Description Repl.

Part Number

Exchange

Part Number

0 Box assembly 5065-1250 —

1 Chassis assembly:

a Cover lock assembly

b System board guide

c Speaker

d I/O Card Guide and fan assembly

e I/O blank panel

f 5 ¼ device rails

Not shown

Bumper Foot

3.5-inch rails

5064-3392

5062-5590

5042-1859

5063-4559

5064-6721

45935-00004

5002-4717

5042-2479

5063-7922

—

2 Cover Assembly

a Filler Panel

b Front bezel assembly

c XA PC Workstation logo

d HP Logo

5064-3394

5042-1178

5064-6058

5042-3066

5042-3030

—

3 a Upper processor airflow guide

b Lower processor airflow guide + fan

5042-3001

5064-6705

—

4 Standard hard disk drive1

4.3 GB IDE 5400 rpm D2677-63001 D2677-69001

6.4 GB IDE 7200 rpm D6452-63101 D6452-69001

10.1 GB IDE 7200 rpm D6627-63001 D6627-69001

9.1 GB UW-SCSI 7.2k rpm (Low Profile) D6455-63101 D6455-69001

5 Cable kit contains:

Ultra ATA hard disk cable

IDE CD-ROM cable

5064-6092 —

6 Cables:

a Flexible disk drive cable

b CD-ROM to audio connector cable

c SCSI cable (16-bit data) for SCSI

models only

d LAN-to-CPU internal cable (3 COM)

e Audio cable

f External Start cable

5183-6069

5182-1857

5183-2702

5183-2769

5183-6072

5183-6090

—

7Standard 32X IDE CD-ROM drive D4384-63031 D4384-69031

8 Power supply units - 200W 0950-2892 —

9 Status panel with LED display 5064-6727 —

10 System board See PC’s system board parts list

Ka_sh_1.bk Page 9 Thursday, June 15, 2000 7:27 PM

Otros manuales para Kayak XA 05xx

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de De oficina de HP

HP Z220 Manual de usuario

HP DF300A - Portable Digital Picture Frame Manual de usuario

HP Computer Cards & Components / Motherboards Manual de usuario

HP Xw4550 - Workstation - 2 GB RAM Manual de usuario

HP Compaq d330 DT Manual de usuario

HP Pavilion t278d Manual de usuario

HP Desktop Pro A G2 Manual

HP Xw6600 - Workstation - 2 GB RAM Instrucciones de uso

HP Pavilion Slimline s7200 - Desktop PC Manual de usuario

HP Net PC 20 Manual de usuario

HP dc5700 - Microtower PC Manual de usuario

HP All-in-One Instrucciones de montaje

HP Vectra VLi 8SF Manual de usuario

HP A524x - Pavilion - 512 MB RAM Manual de instrucciones

HP Elite 7200 - Microtower PC Manual de usuario

HP Compaq Presario Manual

HP Net PC 20 Manual de usuario

HP Presario SR1200 - Desktop PC Manual de usuario

HP dc7900 - Convertible Minitower PC Guía de configuración

HP Xw9400 - Workstation - 16 GB RAM Guía de referencia

HP Xw4200 - Workstation - 1 GB RAM Manual de usuario

HP Pavilion t458d Manual de usuario

HP m9400f - Pavilion - Elite Manual de usuario

HP e-PC c10/s10 Manual de usuario

Manuales populares de De oficina de otras marcas

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario

Everex

Everex eXplora Manual de usuario

Lenovo

Lenovo ThinkCentre M75e Manual de usuario

Dell

Dell Alienware Area-51 R4 Manual de usuario
