HP Compaq 6005 Pro MT Instrucciones de montaje

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Personal Computers

Marketing Name / Model

[List multiple models if applicable.]

HP Compaq 6005 Pro Small Form Factor Desktop PC

Name / Model #2

Name / Model #3

Name / Model #4

Name / Model #5

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description

Notes

Quantity of

items

included in

product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

This project have four vendors as Below:

Acbel ,Chicony , Lite-on ,Delta

EPA

Liteon: 13

API :9

Chicony :12

Delta:TBC

nonEPA:

Liteon :13

API:10

Chicony:14

Delta:TBC

External electrical cables and cords

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

PSU (Acbel ,Delta , Liteon ) and System fan

containing brominated flame retardants,

Mother board

TBC

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

Components, parts and materials containing

radioactive substances

1.3 Markings for plastic parts greater than 25 grams

Plastic Part Name

Plastic Part

Description

Weight (grams)

ISO 11469:2000 Plastic

Part Mark

Optional:


Main Bezel

Main bezel of desktop

product

89g

>ABS<

Fan Duct

System fan holder of

desktop product

58.7g

>PC+ABS FR(40)<

Fan Holder

Fan holder of desktop

product

44.9

>PC+ABS FR(40)<

System Fan

Frame_ADDA

System Fan Frame of

desktop product

45g

>PBT-GF30 FR(17)<

System Fan

Frame_DELTA

System Fan Frame of

desktop product

45g

>PBT-GF30-FR(17)<

Chassis Stand

Chassis Stand of

desktop product

78.0g

>ABS<

DC Fan Frame_ADDA

DC Fan Frame of

desktop or tower

product

40g

>PBT-GF30 FR(17)<

DC Fan Frame_DELTA

DC Fan Frame of

desktop or tower

product

40g

>PBT-GF30-FR(17)<

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1 Philips Screw Driver

100mm

Description #2 Diagonal cutting pliers

130mm

Description #3 Long nose pliers

Description #4 Unsolder tool

Description #5 Solder machine

230mm

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

1. Remove the access panel (see figure 1-2)

2. Remove the front bezel (see figure 3-4)

3. Remove Fan duct and heatsink (see firgure 5-11)

4. Remove CPU (see figure 12-13)

5. Remove Memory Module (see figure 14-15)

6. DIsconnect all internal cable from PCA (see figure 16)

7. Remove ODD and rotate ODD cage (see figure 17-18)

8. Remove 1st HDD (see figure 19-20

9. Remove PCA (see figure 22-23)

10. Remove Battery (see figure 24-25)

11. Release PSU case (see figure26-28)

12. Remove PSU PCA and Fan (see figure29-32)

13. Remove electrical capacitors from PCA (see figure33)

14.

15.

16.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Figure 1:Pull Lock

Figure 2:Rise access panck Press front panel clip

Figure 3: Pull 3 retaining clips on the bezel top side

Figure 4: Release the front bezel. Rotate the bezel outward

to remove it from the chassis

Figure 5: Remove all cable from cable clamp

Figure 6: Release Fan duct

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Figure 7: Press 2 clip to Remove Fan holder from

front chassis,

Figure 8: Disconnect Fan connector from PCA

header

Figure 9 : Remove fan and fan holder from chassis

Figure 10 : Wresting screw with screw driver release

4 qyt’s screw

Figure 11: Remove Heat sink from PCA

Figure 12: Press CPU chassis lock

EL-MF877-00 Page 6

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Figure 13: Remove CPU

Figure 14: Unlock Memory DIMM lock

Figure 15 :Remove Memory DIMM from PCA

Figure 16: Remove all internal cable from PCA

Figure 17: Release ODD from ODD cage

Press ODD latch and push ODD toward PSU.

Figure 18: Rotage ODD cable to vertical

EL-MF877-00 Page 7

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Figure 19: Rotate PSU to Vertical

Figure 20: Release HDD Press HDD latch and push

HDD toward Front side.

Figure21: Remove PSU from Chassis

Figure 22: Release PCA 8 screws by wresting screw

with screw driver

Figure 23: Remove PCA from Chassis

Figure 24: Press Battery holder and Pull battery

EL-MF877-00 Page 8

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Figure 25: Remove Battery

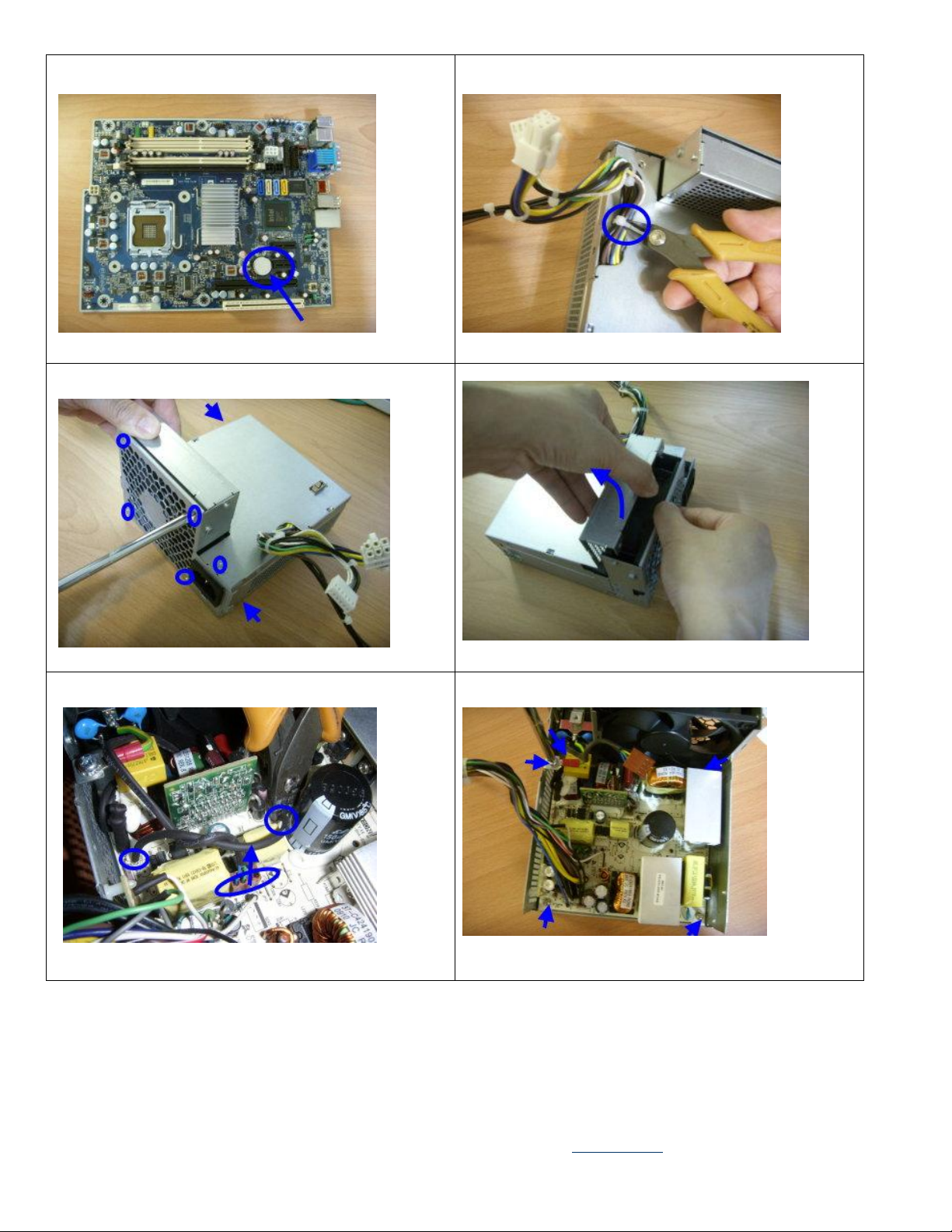

Figure 26: Cut the plastic cable tie from PSU case

Figure 27: Release PSU 7 screws by wrest screw

driveer

Figure 28: Remove PSU the top of case

Figure 29: Cut PSU PCA wire (2) and disconnect Fan

connector

Figure 30: Remove PSU PCS 5 screws

EL-MF877-00 Page 9

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Figure 31 : : Remove PSU FAN

Figure 32: Remove PSU PCA from case

Figure 33 Remove electrical capacitors
