HP Brio BA210 Manual

Microtower Brios hp brio ba210 4-1

hp brio ba210

models and accessories

Product

Number

Hard

Drive

Video

Controller

Std.

RAM

Multi-

media1

1. All models have an integrated full-duplex PCI audio controller.

Modem/

LAN

OS2

2. Operating system preloaded on these models, as indicated in the table.

Soft-

ware3

3. In addition to the HP Brio pre-loaded software.

Models with Intel Celeron Processor PPGA4package (socket 370) and

66MHz System Bus Speed

4. PPGA=Plastic Pin Grid Array.

533MHz / 128k (CPL: 05/00 )

P1564T 4.3 GB

IDE

Integrated

Direct AGP

8MB

64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

56K W98

2nd

Microsoft

Office

20005

5. Word, Excel, SMB Tools preloaded

566MHz / 128k (CPL: 05/00 )

D1565T 10 GB

IDE

Integrated

Direct AGP

8MB

64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

56K &

10/100

Base-T

W98

2nd

Microsoft

Office

20005

hp brio ba210

4-2 hp brio ba210 Microtower Brios

supported accessories

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6502T/A

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20)

D6505T/A

128-MB, 32-bit SDRAM, 100 MHz non-ECC main memory module D6503T/A

256-MB, 32-bit SDRAM, 100 MHz non-ECC main memory module D9525T/A

Recovery CD-ROM

HP Brio Assist CD-ROM System Recovery (Windows 98) 5970-2040-EN

HP Brio Assist CD-ROM - Drivers 5970-8010

Input Devices

HP Windows Keyboard C4735A

HP Standard 2 button Mouse C3751B

HP Scrolling Mouse C4736A

HP Cordless Scrolling Mouse C4740A

HP Multimedia Keyboard C4742A

Monitors

All current HP Monitors (see the HP Monitors Service Handbook)

Mass Storage

4.3-GB IDE, Ultra ATA/66 Hard Disk Drive D8371A

6.4-GB IDE, Ultra ATA/66 Hard Disk Drive D8372A

8.4-GB IDE, Ultra ATA/66 Hard Disk Drive D8373A

10-GB IDE, Ultra ATA/66 Hard Disk Drive D9623A

13.5-GB IDE, Ultra ATA/66 Hard Disk Drive D8092A

Backup Accessories

HP Colorado 8GB Travan Drive — internal C4387A

hp brio ba210

Microtower Brios hp brio ba210 4-3

Multimedia / Audio Accessories



Max IDE CD-ROM drive D9444A



Max IDE CD-ROM drive (pack of 10) D9445A

HP W95\W98 8x Video DVD-ROM D7521A/B

HP Amplified Speakers by Labtec — 10WRMS D4545A

HP Amplified Speakers by Labtec — 4WRMS D6861A

HP Amplified Speakers by Labtec — 4WRMS (pack of 4) D6860A

HP Standard headset D8387A

Data Communications and LAN Adapter Boards

HP 56K V90 PCI Fax Modem D8384B

HP 10/100 3Com 3C905B-TX RWU D7522A

HP 10/100 3Com 3C905B-TX RWU (pack of 10) D7523A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter D7506A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter (pack of 10) D7507A

HP 10/100 Base-T PCI Ethernet Adapter D7508A

HP 10/100 Base-T PCI Ethernet Adapter (pack of 10) D7509A

HP USB Hub Accessory Kit D6804A

N.B. For manuals and documentation refer to the Brio Support web where PDF files are

available for download at http://www.hp.com/briosupport

hp brio ba210

4-4 hp brio ba210 Microtower Brios

system board, BIOS, and memory

Power supply

Processor

Up to Three PCI

Expansion Card

Slots:

Some slots may

come with pre-

installed cards

Main memory modules

(2 slots):

100 MHz SDRAM

64 MB kit; 128 MB kit;

256MB kit

Hard drive

One Free Front Access

Device Shelf:

CD-ROM drive, DVD,

Zip or Tape drive

Floppy drive

hp brio ba210

Microtower Brios hp brio ba210 4-5

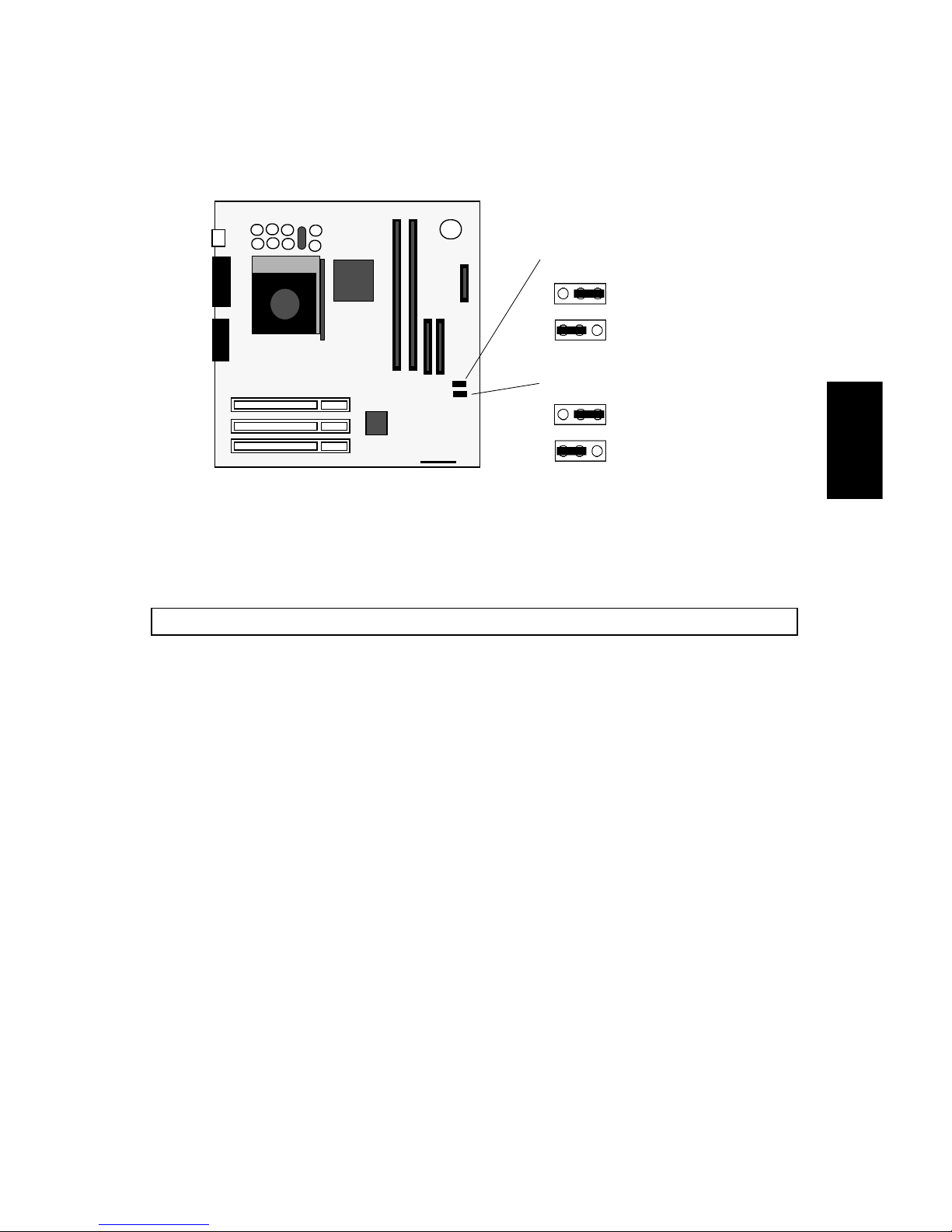

system board jumpers

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

http://www.hp.com/go/briosupport/

Clear CMOS

Default position

Clear CMOS

Clear Passwords Only

Default position

Clear Password

hp brio ba210

4-6 hp brio ba210 Microtower Brios

part numbers

hp brio ba210

Microtower Brios hp brio ba210 4-7

parts list for hp brio ba210 pcs

Item Description Repl.

Part Number

Exchange

Part Number

1 Chassis assembly15002-6253 —

2 Front bezel assembly25042-4454 —

3 Power supply D9644-63102 —

4 HDD cable

Floppy Drive cable

CD-ROM cable

5183-9425

5183-9427

5183-9426

—

5 Floppy disk drive (bezel-less) D2035-60391 —

6 IDE hard disk drive3

4.3GB

8.4 GB

10.0GB

—

D8604-69001

D8605-69001

D9811-69001

7 48X IDE CD-ROM drive D4389-63001 D4389-69021

8 CD-ROM to audio connector cable 5182-1857 —

9 Scrolling mouse C4748-63001 —

HP Cordless Scrolling mouse (not shown) C4740-63001

Standard keyboard (not shown) C4744-60101 —

Multimedia keyboard (not shown) C4759-601xx —

10 Battery type CR2032 1420-0356 —

11 56K PCI Modem P1565-63101

12 Power Cord -US\Canada (not shown) 8120-1378

hp brio ba210

4-8 hp brio ba210 Microtower Brios

13 Telephone Cable for:

US, Canada 5182-5432 —

Portugal\Latin America 5182-5432 —

14 HP Amplified Speakers — 4WRMS

US D6861-63101 —

Argentina D6861-63144 —

HP Amplified Speakers — 10WRMS

US D4545-63101 —

15 System board See PC’s system board parts list

164Recovery CD-ROM (Windows 98)

Recovery CD-ROM (Drivers)

5970-2040-EN

5970-8010

1. Includes chassis frame, top cover, front bezel with ON/OFF circuitry, FDD & HDD frames,

I/O Plate.

2. Includes front bezel with ON/OFF circuitry, and two 5.25 inch fillers.

3. For optional disk drive information, see the Accessory Service Handbook — 5969-1945.

4. Not shown

parts list for hp brio ba210 pcs

Item Description Repl.

Part Number

Exchange

Part Number

hp brio ba210

Microtower Brios hp brio ba210 4-9

system board parts list for hp brio ba210 pcs

Description Repl.

Part Number

Exchange

Part Number

1 System board:

Brio BA210 system board with SiS super

AGP video controller

— P1564-63001

2 Processors (socket 370):

Intel Celeron 533/66 128KB L2 cache, 370p D8748-63001 —

Intel Celeron 566/66 128KB L2 cache, 370p D9903-63001 —

Thermal interface material 6040-0939 —

3 Heatsink (Passive heatsink for 566 MHz

shown)

5065-2539 (533)

5065-1296 (566)

—

4 Main memory modules:



64MB, 100 MHz non-ECC SDRAM D6502-63001 —



128MB, 100 MHz non-ECC SDRAM D6503-69001 —



256MB, 100 MHz non-ECC SDRAM D9525-63001 —

5 Battery type CR2032: 1420-0356

hp brio ba210

4-10 hp brio ba210 Microtower Brios

Notes:

____________________________________________________________________
