HP TouchSmart IQ510 Instrucciones de instalación

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Personal Computers

Marketing Name / Model

[List multiple models if applicable.]

HP TouchSmart IQ510 PC Series

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA) With a surface greater than 10 sq cm 10

Batteries All types including standard alkaline and lithium coin

or button style batteries 1

Mercury-containing components For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries 4

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm Includes background illuminated displays with gas

discharge lamps 1

Cathode Ray Tubes (CRT) 0

Capacitors / condensers (Containing PCB/PCT) 0

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height 0

External electrical cables and cords 3

Gas Discharge Lamps 0

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner Include the cartridges, print heads, tubes, vent

chambers, and service stations. 0

Components and waste containing asbestos 0

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

refractory ceramic fibers 0

Components, parts and materials containing

radioactive substances 0

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description Tool Size (if

applicable)

Description #1 M3 Screwdriver

Description #2 M2 Screwdriver

Description #3

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. See detailed instructions attached below

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

Standard Operation Procedure JAN Process: Rework

Item Name Q'ty Item Version Issue Date Difference

1SCREW M3*5L (P) W-ZN #2 1 1DVT-R00 2008/2/14 Initial

2JAN_LOWER_REAR_COVER 1 2

3 3

4 4

5 5

6 6

Item Name Q'ty Item Version Issue Date Difference

1#2(5.0±0.5kgf/cm ) 1

2 thin/thick gauge 1

3第1頁

4共63 页

electricl screw driver

tool

P/N

disassemble lower plastic rear cover

Form NO.:ISZ-5P5001-001 Rev.01(C)

页碼

Action

P/N Pegatron 文號

PM3-00601-C7H002

13GMAP4F050S

13GP157AP060-1H2

Model:

Rotate unit, and put the unit on the

shutter table .

Disassemble screw on rear cover with

electrical screw driver and place it in material

box.

Attention: 1. Do not scratch rear cover.

2 Do not mi scre s

1.Pull plastic rear cover out as the pic3.

2. put the rear cover palce in material

box.

Attention: Do not scratch plastic rear

co er

Put stand upward ,

Standard Operation Procedure JAN Process: Rework

Item Name Q'ty Item Version Issue Date Difference

1SCREW M4*8L (K) W-ZN #2 4 1DVT-R00 2008/2/14 Initial

2 2

3 3

4 4

5 5

6 6

Item Name Q'ty Item Version Issue Date Difference

1#2(5.0±0.5kgf/cm ) 1

3第2頁

4共63 頁

页碼

Form NO.:ISZ-5P5001-001 Rev.01(C)

Action disassemble screw

P/N

electricl screw driver

P/N Pegatron 文號

PM3-00601-C7H002

13GMAK4J080S

Model:

2.Put stand downward ,

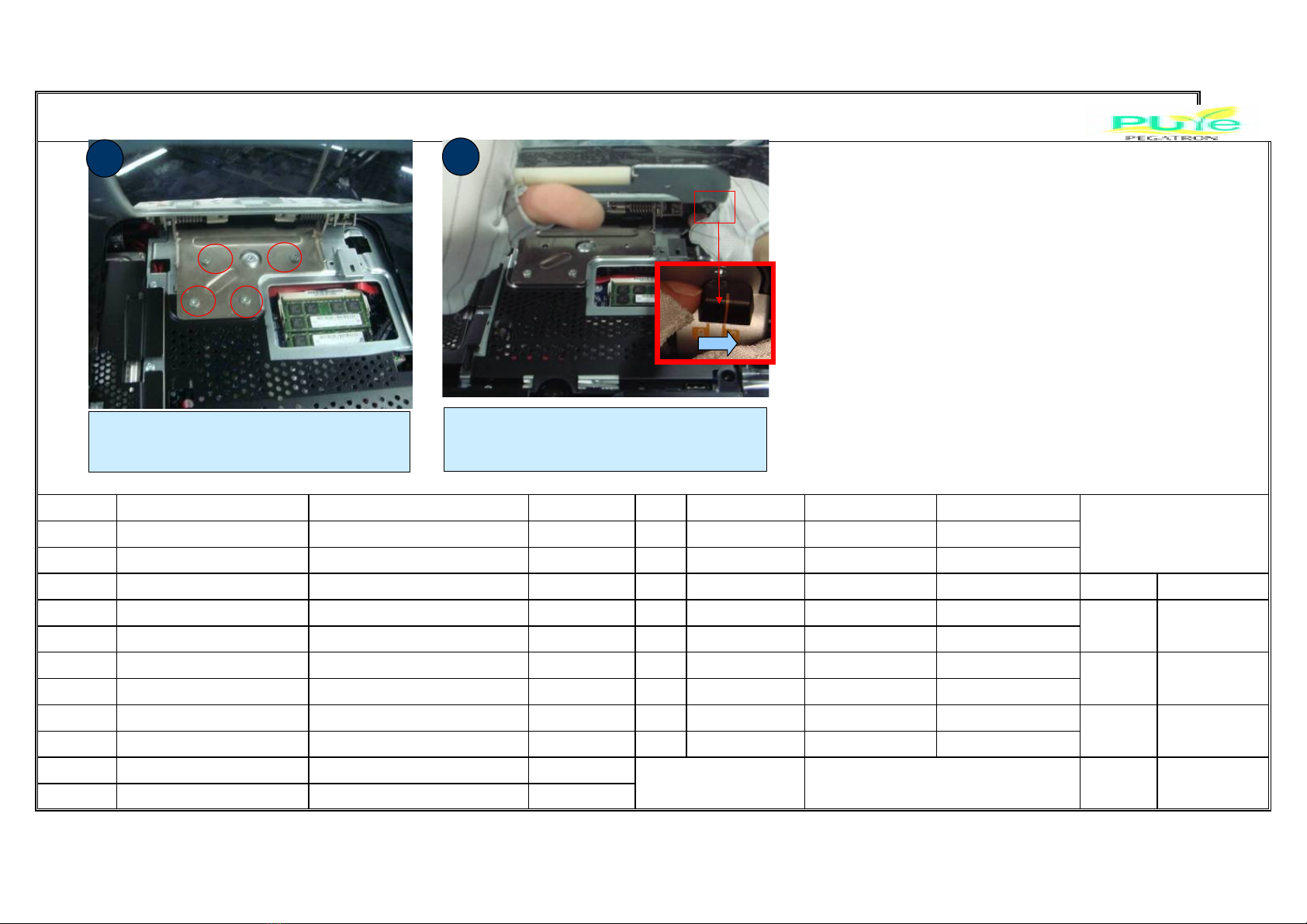

1.Remove four screws and place them in

material box.

Attention: Do not mix screw.

Standard Operation Procedure JAN Process: Rework

Item Name Q'ty Item Version Issue Date Difference

1JAN_IO_CLIP 1 1DVT-R00 2008/2/14 Initial

2JAN_HINGE 1 2

3 3

4 4

5 5

6 6

Item Name Q'ty Item Version Issue Date Difference

3第3頁

4共63 頁

Form NO.:ISZ-5P5001-001 Rev.01(C)

Action disassemble rear cover stand&IO_CLIP 页碼

P/N

13GP1570P310-1H2

570M300-1H2S:13GP1570M3

Model:

P/N Pegatron 文號

PM3-00601-C7H002

1.Take stand out of chassis.

2.Put the chassis in material box.

Attention: Do not scratch plastic parts.

Press two hooks on IO_CLIP plastic part

& pull plastic part out.

Attention: Do not break hooks

Standard Operation Procedure JAN Process: Rework

Item Name Q'ty Item Version Issue Date Difference

1MAIN_REAR_COVER_ASM(后蓋)11DVT-R00 2008/2/14 Initial

2SCREW M3*5L (P) W-ZN #2 9 2

3 3

4 4

5 5

6 6

Item Name Q'ty Item Version Issue Date Difference

1#2 (5.0+/-0.5kgf/cm) 1

3第4頁

4共63 頁

Form NO.:ISZ-5P5001-001 Rev.01(C)

Action disassemble main rear cover&odd cover 页碼

electric screw driver

P/N

Model:

P/N Pegatron 文號

PM3-00601-C7H002

13GP157AP040-1H2

13GMAP4F050S

Disassemble 7 screws on plastic part as picture. Place screws in material box.

Attention: Do not scratch rear cover &mix screws.

3 4

1 2

Take ODD cover and place them in temporary

area.Disassemble 2 screws on plastic part as picture.

Attention: Do not scratch ODD and plastic rear cover.

Standard Operation Procedure JAN Process: Rework

Item Name Q'ty Item Version Issue Date Difference

1SCREW M3*5L (P) W-ZN #2 2 1DVT-R00 2008/2/14 Initial

2JAN_AMP_BOARD_SHIELDING 1 2

3 3

4 4

5 5

6 6

Item Name Q'ty Item Version Issue Date Difference

1#2-6(5.0+/-0.5kgf/cm) 1

3第5頁

4共63 頁

Form NO.:ISZ-5P5001-001 Rev.01(C)

Action disassemble AMP SHIED 页碼

electric screw driver

P/N

Model:

P/N Pegatron 文號

PM3-00601-C7H002

13GMAP4F050S

13GP1570M240-1H2

Pull aparts all hooks on plastic of main

rear cover.Attention: 1.Pull apart from

down to up.2.Do not break hooks.3.Do

not scratch rear cover.

Tear two cable routing tape as picture.

1.Remove AMP SHIED as picture.

2.Put AMP SHIED in the material box

Attention: Do not scratch AMP SHIED

rear cover.

Disassemble 2 AMP Board shield

screws vertically and place them in the

box.

Attention: Do not mix screws

Standard Operation Procedure JAN Process: Rework

Item Name Q'ty Item Version Issue Date Difference

1SCREW M3*5L (P) W-ZN #2 11 1DVT-R00 2008/2/14 Initial

2HP_JAN_REAR_SHIELD_ASM 1 2

3 3

4 4

5 5

6 6

Item Name Q'ty Item Version Issue Date Difference

1#2-6(5.0+/-0.5kgf/cm) 1

3第6頁

4共63 頁

Form NO.:ISZ-5P5001-001 Rev.01(C)

Action disassemble rear shied 页碼

electric screw driver

P/N

Model:

P/N Pegatron 文號

PM3-00601-C7H002

13GMAP4F050S

13GP157AM030-1H2

1.Disassemble rear shied metal parts from chassis.

2.put rear shied in box.

Attention:1.Do not touch the electrical components &

scratch cables.

Disassemble 11 screws on rear shied as picture ,put

them in box.

Attention: Prevent screws fall off in unit , do't mix

screws

11 12

345

Standard Operation Procedure JAN Process: Rework

Item Name Q'ty Item Version Issue Date Difference

1 1 DVT-R00 2008/2/14 Initial

2 2

3 3

4 4

5 5

6 6

Item Name Q'ty Item Version Issue Date Difference

3第7頁

4共63 頁

Form NO.:ISZ-5P5001-001 Rev.01(C)

Action pull out ODD SATA& power&switch cable 页碼

P/N

Model:

P/N Pegatron 文號

PM3-00601-C7H002

1.Cut 1pcs cable tie with nipper and put it into the

waste parts box;

2.Press ODD SATA cable hook, and then pull out

ODD SATA cable vertically from MB port, as the

blue mark in PIC show.(Note:Don't damage

,pa

cab

1 2

Take ODD power cable out along cable routig

way.

(Note:Don't damage other component on MB)

Pull out ODD switch cable vertically from MB port,as the

blue mark in PIC shown.

(Note:Don't damage port,parts and cable)

Standard Operation Procedure JAN Process: Rework

Item Name Q'ty Item Version Issue Date Difference

ATA CBL 4P/7P TO 13P,L:410mm 1 1DVT-R00 2008/2/14 Initial

2W.H CBL 4P TO SW,L:250mm 1 2

3 3

4 4

5 5

6 6

Item Name Q'ty Item Version Issue Date Difference

3第8頁

4共63 頁

Form NO.:ISZ-5P5001-001 Rev.01(C)

Action take ODD 页碼

P/N

Model:

P/N Pegatron 文號

PM3-00601-C7H002

H2 S:14G000111800H2S:14G

H2 S:14G030037201H2 S:14

Route ODD sata cable,ODD power cable and ODD

switch cable separatly.

Note:Don't damage cable.

Un-lock the screw vertically with electric

screwdriver,and put it into parts box.

Note:Don't damage parts and mix parts.

Take ODD and grasp it to right direction. And

then make ODD frame out of .

Note:Don't damage parts.
