HP F720 Manual de usuario

f720

Caution



Use the authorized charger only.



Never disassemble or attempt repair of this product. Doing so may

damage the camcorder, cause electric shock and void your product

warranty.



Never short-circuit the battery.



Set up time and date accurately before you use this camcorder.



xposing the camcorder to open flames can cause explosion.



Due to local laws and vehicles safety considerations, do not manually

operate the camcorder while driving.



The values displayed in this system, such as speed, position, and the

distance warning to the speed camera set points, may be inaccurate

due to the influence of surrounding environment. They are for your

reference only.



Hewlett-Packard Company is NOT responsible for the loss of any

data/content during operation.

Before you start using the

ar Camcorder it is

assumed that you agree to the above statements.

1Introduction

Thank you for purchasing this advanced camcorder. This camcorder is

specifically designed for real time video and audio recording when

driving.

1.1 Features

•High Dynamic Range Imaging (HDR)

•Super HD 2304*1296

•Up to 150 Degree Wide Angle Glass Lens &IR-Filter

•Built-in G-sensor

•Motion Detection

•Collision Detection

•mergency Recording File

•Advanced Driver Assistance Systems (ADAS)

1.2 Package Contents

The package contains the following items. If there are any missing or

damaged items, contact your dealer immediately.

Car camcorder Hook+Band CD-ROM

Quick start guide Car adapter

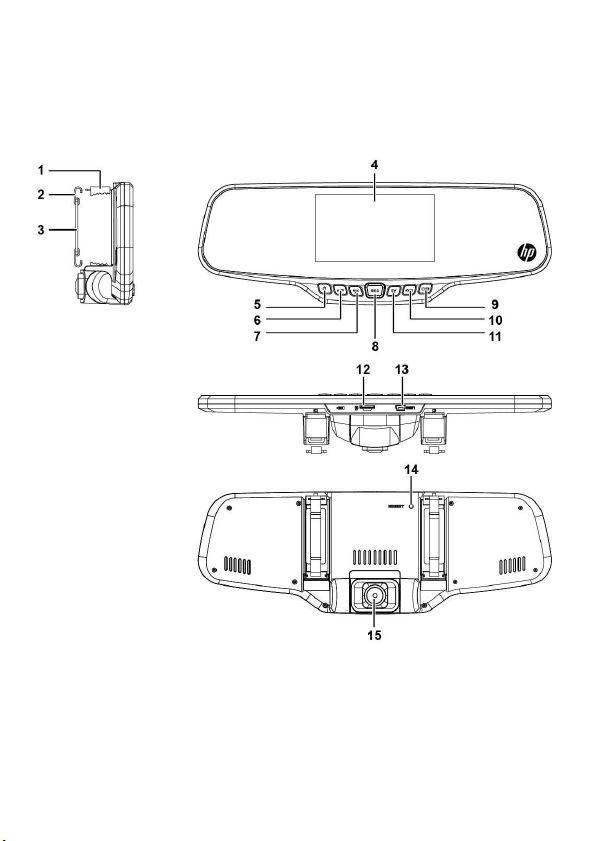

1.3 Product Overview

No.

Item

1 Rearview mirror clip

2 Hook

3 Band

4 Display

5 Power on/off( )

6 Settings Menu and Delete button ( )

7 Microphone enable/ disable and Up navigation button.

( )

8 Record Stop/Start and Select button ( )

9 Press to turn LCD on or off. ( )

10 Mode Select ( )

11 xposure Value setting and Down navigation button ( )

12 MicroSD memory card port

13 Car power adapter and PC connection USB port

14 Reset

15 Lens

2Getting Started

2.1 Inserting the Memory Card

Insert the memory card with the gold contacts facing the back of the

camcorder. Push the memory card until it clicks into place. (Use class 6 or

greater speed micro SD cards for this camcorder; It is recommended to

format the micro SD cards before the initial use.)

To remove the memory card

Push the edge of the memory card inward until you hear/feel it click,

then allow it to push out until you can remove it from the slot.

Note:

1. Do not remove or insert the memory card when the camcorder is powered on. This may damage

the memory card.

2. It is recommended to use a 32 GB, Class 6 speed or above micro SD card.

3. It is recommended to format the micro SD cards before the initial use.

2.2 Insta ing in Vehic es

1. Chip on to your original car mirror.

2. Circle the clip with the band.

3. Adjust the camcorder lens.

2.3 Connecting to Power

Use only the supplied car adapter to power up the camcorder and charge

the built-in battery.

1. Connect one end of the car adapter to the USB connector of the

camcorder.

2. Plug the other end of the car charger to the cigarette lighter socket

of your vehicle. Once the vehicle engine is started, the camcorder

automatically powers on.

Note:

Please take note if the environment temperature reaches 45°C or above, the car adapter still can

supply power to camcorder, but it may not charge the battery. This is characteristic of Lithium

polymer battery and is not a malfunction.

2.4 Powering the Camcorder On / Off

2.4.1 Auto Power On/Off

Once the vehicle engine is started, the camcorder automatically powers

on. And the recording will automatically start.

Once the vehicle engine shuts down, the camcorder automatically saves

the recording and turns off the power within 10 seconds.

Note:

Automatic power up and shut down assumes the power socket is linked to the car ignition.

2.4.2 Manua Power On/Off

To manually turn on the power, press the POWER button.

To turn off, press and hold the POWER button for at least 2 seconds.

To reset, press and hold the RESET button on the back of the camcorder

for at least 5 seconds.

2.5 Initia Settings

2.5.1 Set the Date and Time

To set the correct date and time, do the following:

1. Press the button twice

to enter the OSD menu .

2. Press the

or button to

select Date / Time and press the

button.

3. Press the

or button to

adjust the value and press the

button to move to another

field.

4. Repeat step 3 until the date and time setting is complete.

5. Press the button to exit the Date/Time settings. Press the

button again to exit the settings menu and return to the live

view mode.

Note:

When the battery is depleted, you must reset the date/time before the function -automatic record is

started. If the user doesn't reset the date/time, the camcorder will give you an alert after one minute

and the automatic record will be started.

3Using the Camcorder

3.1 Recording Videos

3.1.1 Record videos whi e driving

When the vehicle engine starts up and the Automatic Record function is

enabled, the camcorder automatically turns on and starts recording.

Recording will automatically stop when the engine is switched off.

Or, press the button to stop recording manually.

Note:

With some vehicle models, the automatic power up and off feature of this car camcorder will not

function because the cigarette lighter/power socket is not linked to the ignition system.

To work around this issue, please do one of the following:

- Manually turn on or off the cigarette lighter/power socket if this is possible with your vehicle model.

- Manually plug in the power adapter into the socket to turn on the car camcorder and unplug from

the socket to turn off the car camcorder.

3.1.2 Emergency Recording

This Car Camcorder is equipped with a sensor that is designed to detect

collisions and automatically trigger the mergency Recording feature.

The mergency Recording icon will be displayed if this feature is

initiated as illustrated. The mergency Recording video will not be

overwritten via the normal loop recording function of this product.

To manually initiate the mergency

Recording feature, press the

button during the normal recording

function.

To stop the recording, press the

button.
