HP F550g Manual de usuario

f550g

f550g 完整版產品使用者手冊請至

f550g 完整版產品用戶手冊請至

Battery warning



Never dismantle, crush, or pierce the battery, or allow the battery to

short-circuit. Do not expose battery being placed in high temperature

environment, if battery leaks or bulges, stop continue to use.



Always charge using the system. isk of explosion if battery is

replaced by an incorrect type.



Keep the battery out of reach of children.



Batteries may explode if exposed to open fire. Never dispose of

batteries in a fire.



Never replace the battery on your own; have the dealer do it for

you.



Disposed of used batteries observing local regulations.

Notes on Installation

This product shall be installed near the rear view mirror, at the center

and top of windshield for optimal viewing.

Make sure that the lens is within the wiping range of the windscreen

wiper to ensure a clear view even when it rains.

Do not touch the lens with your fingers. Finger grease may be left on

the lens and will result in unclear videos or snapshots. Clean the lens

on a regular basis.

Do not install the camcorder on a tinted window. Doing so may

damage the tint film.

Make sure that the installation position is not hindered by the tinted

window.

To use the products of the attached power charger only, please do

not use other brand power charger, in order to avoid equipment burn

or cause the battery explosion.

For more operation details, please refer to CD ROM.

1Introduction

1.1 Package Contents

The package contains the following items. In case there is any missing

or damaged item, contact your dealer immediately.

Car ecorder Quick start guide

CD- OM Bracket Car adapter

1.2 Product Overview

No.

Item

No.

Item

1 Bracket Socket

8 Enter Button ( )

2 Power Switch

9 GPS Antenna

3 Memory Card Slot

Speaker

4 USB / Power Connector

Wide Angle Lens

5 Back Button ( )

Microphone

6 Up Button ( )

LED Indicator

7 Down Button ( )

LCD Panel

2Getting Started

2.1 Inserting the Memory Card

Insert memory card with the gold section facing upward and the

screen of the camcorder facing upward too, as illustrated. Push the

memory card in until a click sound is heard, indicating the card is in

position.

To remove the memory card

Push to eject the memory card out of the slot.

Note:

1. Do not remove or insert the memory card when the camcorder is turned on. This

may damage the memory card.

2. Please use a Class 10 or higher rating Micro SD card, max. up to 32GB.

3. Please format the micro SD cards before the initial use.

4. When removing the memory card, please take note that the memory card will be

ejected quickly and may get lost. This is a characteristic of the memory card ejection

slot to facilitate easy removal by the user.

2.2 Installing in Vehicles

2.2.1 Mount to Windshield

1. Attach the bracket to the camcorder.

Slide it into the bracket holder until you

hear a click.

2. Before installing the bracket, please use

alcohol to clean the windshield and

suction cup of the bracket. Wait for dry

and press suction-cup on the

windshield.

3. Hold the base firmly on the

windshield and press down the clamp to

mount the car holder to the windshield.

Make sure the base is securely locked in

place.

2.2.2 Adjust the camcorder position

1. Loose the knob to swivel the

camcorder vertically or horizontally.

2. Then tighten the knob to make sure

the camcorder is securely locked in

place.

Knob

2.3 Connecting to Power

Use only the attached power connector for activating the camcorder

and charging the built-in battery.

1. Connect one end of power connector to USB/Power connector

port on the camcorder.

USB port input: DC 5V / 1A.

2. Plug the other end of the car adapter to the cigarette lighter

socket of your vehicle. Once the vehicle engine is started, the

camcorder automatically turns on. Car charger input: DC 12 /

24V.

Note:

This camcorder shall be installed near the rear view mirror, at the center and top of

windshield for optimal viewing.

2.4 Powering the Camcorder On / Off

2.4.1 Auto Power On/Off

Once the vehicle engine is started, the camcorder automatically turns

on. If the Automatic Record function is enabled, the recording will

automatically start right after the camcorder turns on.

2.5 Initial Settings

Before using the camcorder, we recommend you to set up the correct

Date and Time and Automatic Record.

2.5.1 Setting the Universal Time Code (UTC)

Depending on your location, you may need to change the current UTC

setting of the camcorder so that the correct date and time are

updated when a GPS signal is detected.

1. If recording is in progress, press the button to stop

recording.

2. Press the button to open the OSD menu.

3. Use the or buttons to navigate to the Satellite

Synchronization option and press the OK button. Ensure that

the On setting is selected and press the OK button again to view

the UTC setting.

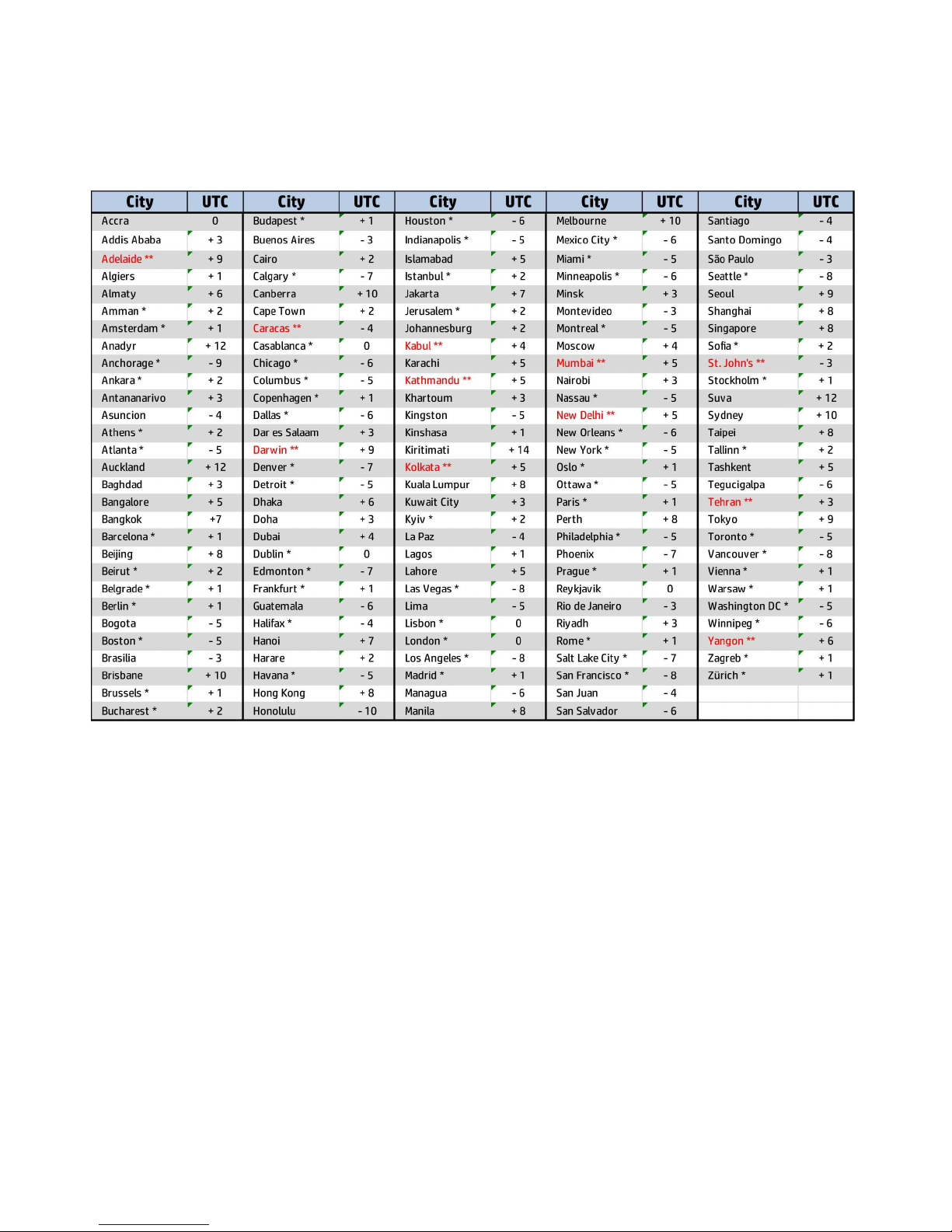

4. efer to the UTC Map below and use the or button to

select the desired setting and press the OK button to confirm

the setting.

5. Press the button to exit the menu.

* Be sure to adjust for daylight saving time (DST) by adding +1 hour to

the UTC offset.

** These areas may observe half hour increments and daylight saving

time (DST).

3Using the Car Camcorder

3.1 Recording Videos

3.1.1 Record videos while driving

When the vehicle engine starts up and the Automatic Record function

is enabled, the camcorder automatically turns on and starts recording.

ecording stops and shut down after the engine is switched off.

Note:

On some cars, the recording will continue when the engine is switched off. If this

happens, please manually turn off the cigarette lighter or remove the car adapter

from the cigarette lighter.

3.1.2 Emergency Recording

To start Emergency ecording, do the following:

1. During the recording period,

press the button to enter

emergency recording mode.

The wordings, “Emergency”,

will be displayed on the top

right-hand corner of the

display screen. Files that are

saved during the emergency

recording mode will be

protected.

2. Press the to stop recording immediately.
