HP nx9100 - Notebook PC Manual de usuario
Reference Guide
HP Notebook Expansion Base
Document Part Number: 336449-001
August 2003
This document provides instructions on how to use the
HP Notebook Expansion Base with select models of HP and
Compaq notebooks.
336449-001.book Page i Thursday, July 3, 2003 11:47 AM
© 2003 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks of Microsoft Corporation in the
U.S. and/or other countries.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Reference Guide
HP Notebook Expansion Base
First Edition August 2003
Document Part Number: 336449-001
336449-001.book Page iii Thursday, July 3, 2003 11:47 AM
Reference Guide iii
Contents
1 Getting Started
Identifying the Front Components . . . . . . . . . . . . . . . . . . 1–1
Identifying the Rear Components . . . . . . . . . . . . . . . . . . 1–2
Identifying the Side Components. . . . . . . . . . . . . . . . . . . 1–3
Identifying the Wireless Accessories. . . . . . . . . . . . . . . . 1–5
Getting More Information . . . . . . . . . . . . . . . . . . . . . . . . 1–6
2 Connecting and Removing the Notebook
Connecting to AC Power . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Connecting the Notebook to the Expansion Base . . . . . . 2–3
Removing the Notebook . . . . . . . . . . . . . . . . . . . . . . . . . 2–8
3 Using the Expansion Base
Turning the Notebook On and Off. . . . . . . . . . . . . . . . . . 3–1
Following Expansion Base Guidelines . . . . . . . . . . . . . . 3–2
Using the Wireless Keyboard and Mouse . . . . . . . . . . . . 3–3
Connecting the Expansion Base to a Television . . . . . . . 3–8
Using a Modem Through the Expansion Base. . . . . . . . . 3–9
Connecting the Expansion Base to a Network. . . . . . . . 3–10
Using the Security Cable Locks. . . . . . . . . . . . . . . . . . . 3–10
A Troubleshooting
Using the World Wide Web. . . . . . . . . . . . . . . . . . . . . . . A–1
Preparing to Call Technical Support . . . . . . . . . . . . . . . . A–1
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–2
Connection Problems and Solutions . . . . . . . . . . . . . A–2
Removal Problems and Solutions . . . . . . . . . . . . . . . A–3
336449-001.book Page iii Thursday, July 3, 2003 11:47 AM
Reference Guide 1–1
1
Getting Started
Identifying the Front Components
Component Description
1Stereo speakers Provide the sound from the notebook.
2Volume control buttons: up,
down, and mute Control the volume of the sound from
the notebook.
3Connection indicator light Illuminates solid blue when the
notebook is connected correctly.
336449-001.book Page 1 Thursday, July 3, 2003 11:47 AM
1–2 Reference Guide
Getting Started
Identifying the Rear Components
Component Description
1Expansion cable Connects the Expansion Base to a notebook.
2RJ-11 jack Connects a modem cable from the Expansion
Base to a notebook.
3USB connectors (3) Connect USB devices; USB 2.0 compatible.
4Ethernet network
(RJ-45) jack Connects a network cable from the Expansion
Base to an RJ-45 wall jack.
5RJ-11 jack Connects the Expansion Base to an RJ-11
telephone wall jack.
6S/PDIF (Sony/Philips
Digital Interface) audio
connector
Connects high-end digital systems such as
surround sound or a home theater.
7TV out/Composite jack Connects the Expansion Base to a television.
8TV out/S-Video jack Connects the Expansion Base to a television.
9Serial connector Connects a serial device such as a mouse.
-Power connector Connects the Expansion Base to electrical
power.
336449-001.book Page 2 Thursday, July 3, 2003 11:47 AM
Getting Started
Reference Guide 1–3
Identifying the Side Components
Right-side components (viewed from the front of the
Expansion Base)
Component Description
1Headphone jack Connects a headphone.
2USB connectors (3) Connect USB devices; USB 2.0
compatible.
3Kensington security slot Connects an optional security cable.
336449-001.book Page 3 Thursday, July 3, 2003 11:47 AM
1–4 Reference Guide
Getting Started

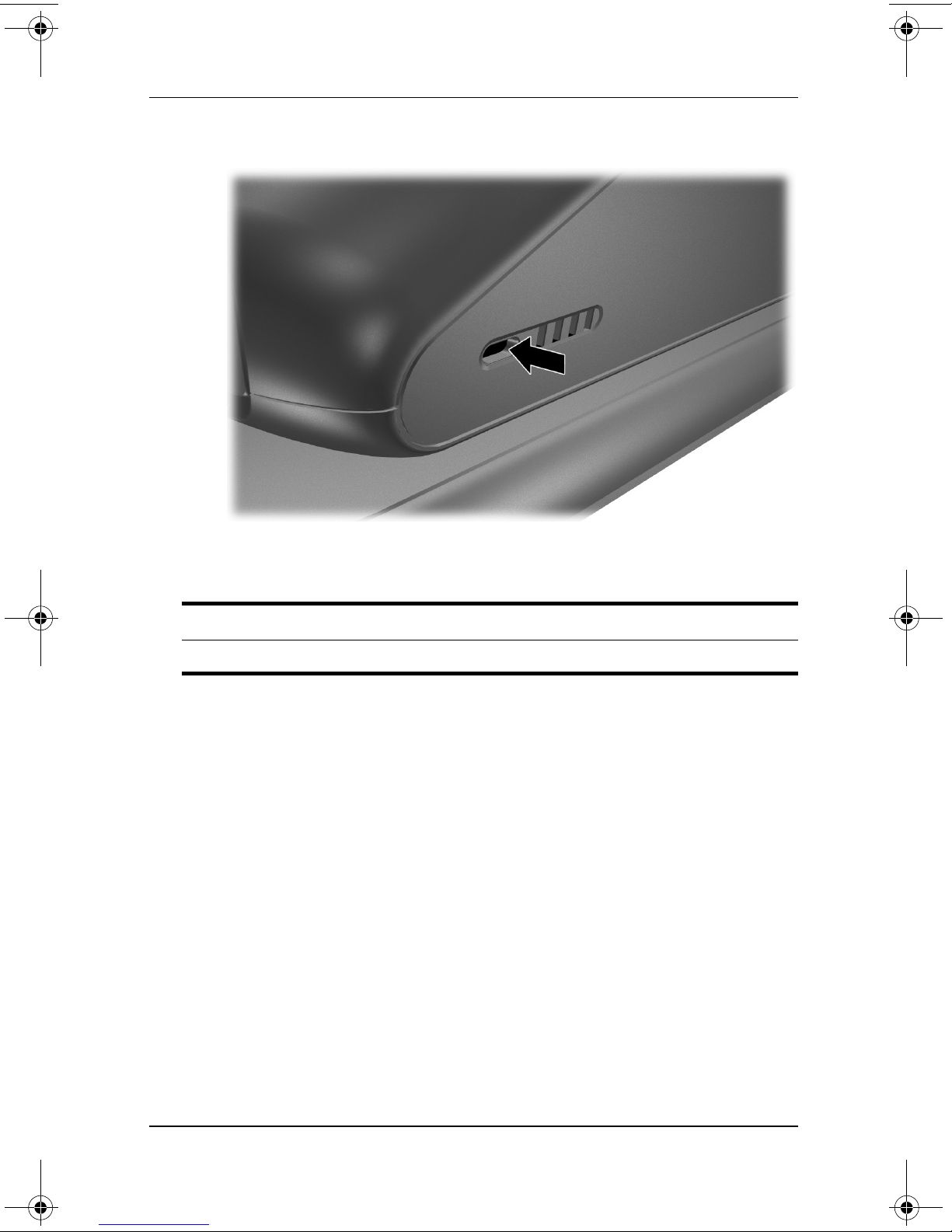

Left-side components (viewed from the front of the Expansion Base)
Component Description
Kensington security slot Connects an optional security cable.
336449-001.book Page 4 Thursday, July 3, 2003 11:47 AM
Getting Started
Reference Guide 1–5
Identifying the Wireless Accessories
Component Description
1Wireless Keyboard Connects to the Expansion Base
without a cable.
2Batteries Batteries that are inserted in the
wireless keyboard and mouse.
3Receiver Allows connection between the
Expansion Base and the wireless
keyboard or mouse.
4Wireless Mouse Connects to the Expansion Base
without a cable.
✎The wireless accessories may be included with the
Expansion Base.
336449-001.book Page 5 Thursday, July 3, 2003 11:47 AM
1–6 Reference Guide
Getting Started
Getting More Information
■The Documentation Library CD, included with the notebook,
contains comprehensive information about your notebook as
well as governmental agency and safety information about
the use of your notebook.
■The CD, included with the Expansion Base, contains
governmental agency and safety information about the use of
the Expansion Base.
■The HP Web site (http://www.hp.com) provides product news
and software udpates.
ÅWARNING: To reduce the risk of serious injury, read the Safety &
Comfort Guide. It describes proper workstation setup, posture, and
health and work habits for computer users, and provides important
electrical and mechanical safety information. This guide is located on
the Web at http://www.hp.com/ergo and on the Documentation Library
CD that is included with the product.
336449-001.book Page 6 Thursday, July 3, 2003 11:47 AM
Reference Guide 2–1
2
Connecting and Removing the
Notebook
Connecting to AC Power
ÅWARNING: To reduce the risk of personal injury, electric shock, fire,
or damage to your equipment:
■Do not disable the power cord grounding plug. The grounding plug
is an important safety feature.
■Plug the equipment into a grounded (earthed) electrical outlet that
is easily accessible at all times.
■Disconnect power from the equipment by unplugging the power
cord from the electrical outlet.
■Do not place anything on power cords or cables. Arrange them so
that no one can accidentally step on or trip over them.
■Do not pull on a cord or cable. When unplugging a cord from the
electrical outlet, grasp the cord by the plug.
336449-001.book Page 1 Thursday, July 3, 2003 11:47 AM
