Hover-1 FALCON-1 Manual de usuario
OPERATION MANUAL
H1-F1-BGY
H OV E R B OA R D AT TAC H M EN T
FALCON
-
1
HELMETS SAVE LIVES!
Always wear a properly fitted helmet that complies with CPSC or CE safety standards when you
ride.
Correct Fit:
Make sure your helmet
covers your forehead.
Incorrect Fit:
Forehead is exposed and
vulnerable to serious injury.
1
This manual is designed to provide you the information you need for the safe operation and maintenance of
your new Falcon-1. Please read it thoroughly before riding your Falcon-1.
INTRODUCTION
WARNING
Make sure you read this complete manual before riding
your Falcon-1. Even if you are an experienced rider, it is
important that you read this manual to ensure your
safety. Failure to do read the manual or follow its
guidelines could lead to serious injury or death.
Please visit
www.hover-1.com/troubleshoot
to request replacements for
missing or defective parts
2
FALCON-1 DIAGRAM
SPECIFICATIONS
1. Seat
2. Fog Blaster & Mount
3. Right Handlebar
4. Handlebar Mount
5. Hook and Loop Strap
6. Left Handlebar
7. Seat Frame
8. Twist Knob
9. Front Frame
10. Foot Rests
11. Caster Wheel
12. Flag
13. Flag Tube
Compatibility: Most 6.5” hoverboards
Max Supported Weight: Refer to your hoverboard’s manual
Wheel Size: 4” swivel caster wheel
Seat Material: Polypropylene
1
4
3
12
2
13
5
6
7
8
9
10
11
3
PARTS LIST
(1) Twist Knob
Tool Set:
(4) M8 Long Screw
(4) Short Screw
(4) M8 Short Screw
(4) Anti-Slip M8 Nuts
(2) Large Metal Washers
(4) Rubber Washers
ABWrench Hex Key &
Screwdriver
AB
3 Pairs of Hook & Loop
Straps with Rubber
Protectors (Preassembled)
(1) Seat
(1) Seat Frame
(1) Front Frame
(1) Fog Blaster Mount
(1) Right Handlebar
(1) Left Handlebar
(1) Fog Blaster
(1) Charging Cable
(1) Flag Set
(1) Flag Tube (4) Small Metal Washers
4
ASSEMBLING YOUR FALCON-1
Remove all Falcon-1 contents from the box. Ensure all contents from the “PARTS LIST” section are accounted
for.
1. Locate the 2 M8 long screws, 2 large metal washers, and 4 rubber washers. Slide 1 large metal washer and 1
rubber washer onto 1 M8 long screw. Insert the screw into the side of a handlebar mount and attach another
rubber washer to the end of the screw. Align the hole on the side of the seat frame with the screw and insert the
screw. Insert the hex key into the head of the screw and turn it clockwise to tighten the screw. Repeat these steps
for the other screw and handlebar mount.
x 4
x 2
Tools
needed
5
Large
2. Insert the front frame into the seat frame. Adjust the front frame to the desired length. Secure it in place by
inserting the twist knob as shown below. Twist the knob clockwise to tighten it.
Make sure the front frame does not move.
6
Flag Tube
X 4 X 4
Tools
needed
7
Small
3 Attach the fog blaster to the fog blaster mount as shown below. Screw in the 4 black short screws using the
screwdriver at the end of the included hex key. Make sure the 2 larger holes of the fog blaster mount are facing
forward.
4. Insert the 4 small metal washers into the holes of the seat. Align the hole of the ag tube to one of the rear seat
frame holes. Align the larger holes of the fog blaster mount with the hole of the ag tube and the rear holes of the
seat frame as shown below.

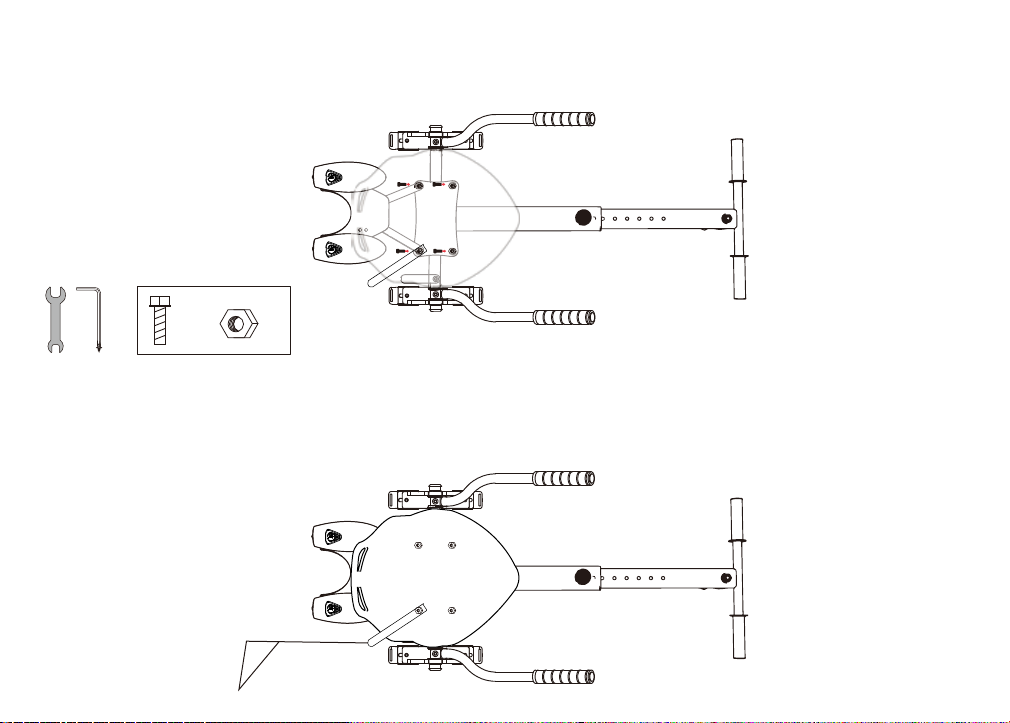

5. Align the holes of the seat with the holes of the fog blaster mount, ag tube, and seat frame. Insert the 4 M8
short screws. Attach the lug nuts to the bottom of each screw. To tighten the screws, hold the lug nuts in place with
the wrench, then use the hex key to turn the screws clockwise. Make sure all the screws are fully tightened.
6. Assemble the ag by inserting one of the included ag rods into the opening in the ag fabric. Combine
the remaining rods together by attaching them at the coupling points. Insert the assembled ag set into the
ag tube. Your Falcon-1 is now assembled and should look like the image below.
x 4
x 4
Tools
needed
8
Carefully follow the instructions on the following pages to attach the Falcon-1 to your hoverboard. Read this
entire manual before riding your Falcon-1.
Your Falcon-1 must be completely assembled before attaching it to your hoverboard. Please refer to the
“ASSEMBLING YOUR FALCON-1” section of the manual for assembly instructions.
1. Place the handlebar mounts onto the footpad sensors of your hoverboard. Ensure the handlebar mounts
are centered on the footpad sensors of your hoverboard as much as possible.
ATTACHING THE FALCON-1 TO YOUR HOVERBOARD
SPACE EVENLY
9
