LARDER FRIDGE - MODEL RLA81, RLM81

INSTRUCTIONS FOR INSTALLATION & USE

GETTING STARTED:

To ensure that your fridge runs reliably and efficiently follow these steps.

SAFETY &

INSTALLATION CONTROLS USEFUL ADVICE

CLEANING &

MAINTENANCE

SERVICE &

GUARANTEE

TROUBLESHOOTING

Choose a location for

your fridge, away from

any heat sources and

allow adequate

ventilation - 100mm

(4 inches) gap above.

To prevent the fridge

tilting forwards it must be

held in place with the

stability bracket supplied.

NB.This is the responsibility of

the customer.

Level the fridge by

adjusting the front feet.

This will stop rocking or

vibration and keep the

door aligned.

NB.The spanner is for illustration

only and is not supplied with the

fridge.

Plug in and switch on.

Allow the fridge to cool

before placing food

inside.

All food in the fridge

should be covered.

Move the fridge into

position, using the sides

of the cabinet. Take care

to avoid damaging the

refrigerant circuit pipe

work on the rear.

STEP 1 STEP 2

STEP 3

STEP 5

STEP 4

STEP 6

Your fridge is now

working.

If after 24 hours your

fridge is not operating as

you want, refer to the

TROUBLESHOOTING

section.

STEP 7

Read the rest of these instructions to get the best from your appliance

and remember to fill in your guarantee registration.

Keep this Book in a safe place for quick reference.

Before plugging in and

switching on, leave the

fridge in its final

location for at least 15

minutes to allow it to

settle.

For Your Safety

For your safety, read the following advice:

The fridge cooling system contains a small amount of gas which is environmentally

friendly but flammable. To avoid any risk :-

●Install the fridge following the installation instructions and ensure

that ventilation openings are kept clear of obstruction.

●Take care when installing or moving the fridge to avoid damaging

the pipes on the rear.

●If you suspect a leak, do not switch on the fridge, but open the

windows and doors to ventilate the room.

●Do not use any mechanical or electrical devices inside the fridge, for

instance for manual defrosting, they may cause damage.

●Only use this fridge for storing domestic foodstuffs.

When installing your fridge :-

●The stability bracket must be installed securely, in accordance to the

instructions, before using the fridge.This is the responsibility of the

customer.

●Ensure that the mains cable is not trapped underneath or behind the fridge

when you install or move it.

●Do not stack any other appliance on top of this fridge as they may

damage the fridge or become unstable.

When using your fridge :-

●Do not sit or stand on top of your fridge.

●Do not store poisonous, flammable or dangerous substances in your fridge.

●Do not use aerosol sprays for defrosting or cleaning your fridge.

If you sell the fridge, pass on this booklet to the new owner.

SAFETY &

INSTALLATION

Installation

Location & Air Circulation

Locate your fridge away from sources of heat e.g. cookers,

radiators, direct sunlight as extreme temperature will

affect its performance.

Allow a minimum 100mm (4 inches) between the top of

the fridge and the ceiling or the underside of a wall

cupboard.

Providing you follow the recommended ventilation

requirements you will :-

●Prolong the life of the fridge.

●Minimise the risk of condensation on the outside of

the fridge.

●Minimise the running costs.

●Minimise operating sounds caused by vibration.

Minimum space required to open door

The fridge needs a space of 600mm (24 inches) in front to allow the door to open.

When positioning the fridge next to a unit, a gap of 30mm (11/4inch) can be left

at the hinge side of the door to allow the easy removal of furniture. If preferred

the fridge can be positioned so that a gap is not left.This will restrict how far the

door can be opened but the furniture can still be removed (see diagrams below).

The door hinge side can be changed to make it easier to open (see ‘Door Reversal’

in the CLEANING & MAINTENANCE section).

SAFETY &

INSTALLATION

100mm

(4 inches)

TOP VIEW TOP VIEW

less than 30mm

30mm or more

600mm

Installation

Stability bracket:

WARNING: To prevent the fridge from tilting forwards, it must be held in place

with the stability bracket supplied. This is the responsibility of the customer.

SAFETY &

INSTALLATION

1. Position the fridge in its chosen

location.

2. Looking from the front of the fridge,

mark the position of the left hand

panel.

3. Move the fridge far enough away to

get clear access to the back wall.

4. In order to clear components on the

compressor mounting plate, the

stability bracket must be positioned

on the floor between 100 - 200mm

to the right of the left hand panel

mark.

Note: The fridge is heavy so care must be taken when moving it.

Fixed to the floor or wall at the rear of the

fridge, the stability bracket hooks onto the

compressor mounting plate holding the

fridge secure.

The stability bracket must be installed

securely in accordance with these

instructions BEFORE using the fridge.

position stability bracket

100 - 200mm away from

left hand panel mark.

5. Mark and drill the fixing holes and insert suitable fixings to hold the bracket firm.

6. Carefully re-position the fridge. Make sure that the compressor mounting plate

locates into the stability bracket.

Installation

SAFETY &

INSTALLATION

Levelling:

Level the fridge when it is in its final location by adjusting the front feet, until firm

contact is made with the floor. This will stop rocking or vibration and keep the door

aligned which helps the fridge run reliably and efficiently.

Note: Before plugging in and switching on, leave the fridge standing

in its final location for at least 15 minutes to allow it to settle.

Bottle Retainer:

To fit the bottle rack retainer:

Locate the retainer groove at one end of

the bottle rack and then gradually press

down along the top edge until the

retainer is fully in the home position.

Installation

Electrical Supply

WARNING: This appliance must be earthed.

The appliance must be positioned so that the plug is accessible after

installation.

Fuses

Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the

fuse, only use those rated at 13A and ASTA approved to BS1362.

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING: To avoid a shock hazard do not insert the discarded plug into a socket

anywhere else.

IMPORTANT WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE

FOLLOWING CODE :

Green/Yellow - Earth

Blue - Neutral Brown - Live

If you change the plug, the colour of wires in the mains lead may not correspond with

the colour of the markings identifying terminals in the plug. You should therefore

wire it as shown above.

Changing the Mains Lead

This appliance is fitted with a special mains lead. If you need to replace the mains

lead due to damage one can be bought from Hotpoint Service (see KEY CONTACTS,

back page). It is strongly advised that this work is carried out by a qualified

electrician.

CE Marking certifies that this appliance conforms to the following EEC

directives : Low Voltage Equipment - 72/23/EEC & 93/68 EEC

Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC

SAFETY &

INSTALLATION

Controls

Controlling the Temperature of the Fridge Compartment

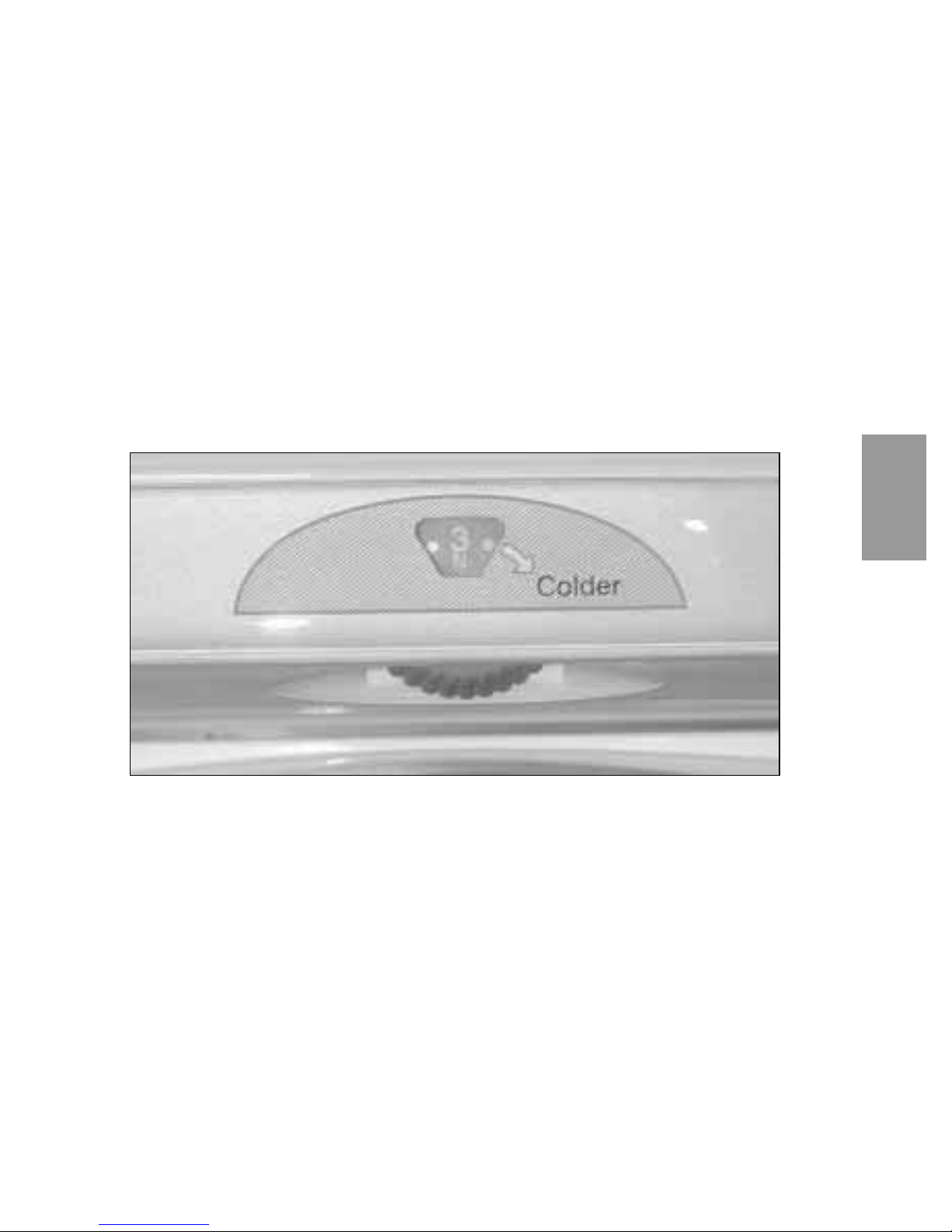

The control wheel on the front of the worktop adjusts the internal fridge

compartment temperature. The internal temperature should be 5˚C or colder

although some sections such as the salad bins will be slightly warmer.

The setting of the control wheel will depend on the location of the fridge, the room

temperature and how often the door is opened. The normal set point (marked by a 3

and N on the dial) is usually suitable. If you need to adjust the temperature turn the

control wheel:

Clockwise (higher number) - Colder

Anti-clockwise (lower number) - Warmer

You can check the temperature of the fridge compartment by using a Fridge Freezer

Thermometer available from Hotpoint Genuine Parts and Accessories Mail Order

Hotline (see KEY CONTACTS back page).

WARNING: Do not use a mercury filled thermometer, as breakage would cause a

health hazard.

Your fridge must NOT be placed in a room where the temperature goes below 6˚C or

above 38˚C for prolonged periods, as the internal fridge temperature will not be

maintained.

CONTROLS

Useful Advice

STORAGE ZONES

Zone Type Food Storage

A Cool Dairy products, Cheese, butter, margarine,

Low fat spreads, cooking fats / lards

Preserves - Jam, curd, marmalade,

spread, salad dressing or sauces.

B Colder General food storage

C Coldest Meat fish & poultry

Pre-cooked / chilled food

D Salad Bins / Vegetables, fruit and salad items

Vegetable Flap (Not recommended for the storage of

bananas or onions).

Note:

The Rating Plate, which lists the appliance Model Number and Serial

Number can be found near the bottom of the interior wall.

USEFUL ADVICE

Making the best use of your Fridge

Note : Always use the handle provided to open the fridge door.

To ensure that your fridge operates as efficiently as possible :

●Follow food packaging “best before/use by” instructions or your suppliers

advice on a suitable maximum storage time.

●Keep foods covered to retain moisture and prevent flavour/odour

transference. Plastic bags, aluminium foil, plastic stretch wrap and containers

with lids are ideal.

●Avoid opening the doors unnecessarily or for longer than needed.

●Allow hot or warm food to cool down in covered containers before placing in

fridge, as placing hot food inside reduces efficiency.

Storing Food in a Fridge

●Pack and store cooked and fresh food separately.

●Wrap raw or defrosting meat and poultry in polythene or foil and store

below cooked foods and dairy products to avoid contamination of dripping

food juices.

●Wrap cheese in greaseproof paper and place in an airtight container or

polythene bag.

Bring to room temperature before consuming.

●Empty left over canned food into a covered storage containers before

placing in the fridge.

●Position food to allow cold air to circulate freely, ensuring nothing comes

into contact with the back of the fridge compartment, or covers the defrost

gutter drain hole below this.

●Use the different storage zones inside your fridge compartment to store a

wide variety of food items.

Useful Advice

USEFUL ADVICE

Microban® is a unique antibacterial technology which is built into interior

components of your fridge during manufacture. Microban® protects against growth

of potentially harmful and odour causing bacteria on the interior fridge surfaces,

thereby keeping your fridge fresher and more hygienically clean during use.

Microban® will not wash out or wear out and will provide continuous protection

against bacteria for the life of your fridge. Microban® technology has been proven

safe, durable and effective over many years of use in personal care and household

consumer products. In addition, Hotpoint operate a rigorous antibacterial testing

programme through approved independent testing laboratories.

Note : You should continue to clean your fridge as recommended (see CLEANING

& MAINTENANCE section). Microban® provides an extra level of hygiene

protection in your fridge in between cleanings.

Useful Advice

USEFUL ADVICE

Advice on Adjusting Shelves

Make the most of the interior storage

space by repositioning shelves to suit the

various heights of individual items you

wish to store.

Note : Only the front half of the

shelf can be repositioned, the back

half must remain in its original

position.

Split glass shelf

The split shelf can be used as a standard shelf but also as

two half shelves.

The front half can be repositioned above or below to

enable storage of larger items.

To remove, ensure that the door is open fully.

Slide the shelf forward and tilt from position.

To remove, lift rack vertically to release from fixing supports. To replace, align grooves

on either side of the rack above fixing supports and push down until secure.

In order to get the best results from the bottle retainer it is advised that it be

positioned centrally on the bottle rack.

Egg Rack

The egg rack can be used in conjunction with any commodity rack and is easily

removed for cleaning.

Note: Wipe, don’t wash eggs.

Commodity and Bottle Racks

Commodity racks can be repositioned in the door to

suit your storage requirements.

The lidded commodity rack is recommended for the

storage of dairy items, such as butter, margarine and

cheese.

Your larder is designed and constructed with good door sealing to make it

operate as efficiently as possible. For this reason, after closing the door, it may

be difficult to open again immediately.This is not a fault. If you wait about 2

minutes for the internal and external pressures to equalise the door can be

opened more easily.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Hotpoint

Hotpoint

Hotpoint HTR17BBSRWW - 16.6 cu. Ft. Top Freezer... Manual de usuario

Hotpoint

Hotpoint STM 15xx xx Manual de usuario

Hotpoint

Hotpoint CTF14 Instrucciones de instalación

Hotpoint

Hotpoint HPS10L Instrucciones de funcionamiento

Hotpoint

Hotpoint KHM325FF.1 Manual de usuario

Hotpoint

Hotpoint HTR16BBELWW Guía del usuario

Hotpoint

Hotpoint 23 Series Guía de seguridad

Hotpoint

Hotpoint HTS22GBP Manual de usuario

Hotpoint

Hotpoint HTR16ABSLCC - R 15.6 cu. Ft. Top-Freezer... Instrucciones de montaje

Hotpoint

Hotpoint HSM25GFTSA Manual de usuario

Hotpoint

Hotpoint HTH16BBXLWW - 16' Refrigerator Manual de usuario

Hotpoint

Hotpoint CTF14 Instrucciones de instalación

Hotpoint

Hotpoint ENERGY STAR HTJ17CBCSA Manual

Hotpoint

Hotpoint ENXTM 19 F Series Manual de usuario

Hotpoint

Hotpoint HM 3x AA Manual de usuario

Hotpoint

Hotpoint TDC85 Series Manual de usuario

Hotpoint

Hotpoint MSZ 900 DF (UK) Manual de usuario

Hotpoint

Hotpoint CTX18EACAA Manual de usuario

Hotpoint

Hotpoint ENXTM 18 F Series Manual de usuario

Hotpoint

Hotpoint RFA60 Manual de usuario

Hotpoint

Hotpoint 18 Instrucciones de funcionamiento

Hotpoint

Hotpoint MISTRAL PLUS 8496 Manual de usuario

Hotpoint

Hotpoint NMTL 1925 FW TK Manual de usuario

Hotpoint

Hotpoint HTM18IBPLRSA and Instrucciones de funcionamiento

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
