FRIDGE FREEZER - MODELS RFA80, RFA70,RFA60,RFS60

INSTRUCTIONS FOR INSTALLATION & USE

GETTING STARTED:

To ensure that your fridge freezer runs reliably and efficiently follow these steps.

SAFETY &

INSTALLATION CONTROLS USEFUL ADVICE

CLEANING &

MAINTENANCE

SERVICE &

GUARANTEE

TROUBLESHOOTING

Choose a location for your

fridge freezer, away from

any heat sources and

allow adequate

ventilation - 100mm

(4 inch) gap above.

Level the fridge freezer by

adjusting the front feet.

This will stop rocking or

vibration and keep the

door aligned.

Before plugging in and

switching on, leave the

fridge freezer in its final

location for at least 15

minutes to allow it to

settle.

If you are freezing fresh

food, turn on fast freeze

by pressing the switch 24

hours before placing the

food inside.

Place the fresh food

inside.

Move the fridge freezer

into position, using the

sides of the cabinet.

Take care to avoid

damaging the refrigerant

circuit pipe work on the

rear.

Plug in and switch on.

Allow the fridge freezer to

cool before placing food

inside.

The high temperature

light will stay on until the

fridge freezer has cooled

down.

All food in the fridge

freezer should be

covered.

STEP 1 STEP 2

After the front feet have

been adjusted and the

fridge freezer is level fit

the left and right hand

bottom hinge covers

supplied.

Align with the cover plate

slots and push into

position.

STEP 4

STEP 3

STEP 5 STEP 6

STEP 7

Your fridge freezer is now

working.

If after 24 hours your

fridge freezer is not

operating as you want,

refer to the

Troubleshooting section.

STEP 8

Read the rest of these instructions to get the best from your appliance

and remember to fill in your guarantee registration.

Keep this Book in a safe place for quick reference.

NB.The spanner is for illustration

only and is not supplied with the

fridge freezer.

Remember to turn fast freeze off

after 24 hours, however if you

forget to do so it will automatically

cancel after 48 hours.

For Your Safety

For your safety, read the following advice:

The fridge freezer cooling system contains a small amount of gas which is

environmentally friendly but flammable. To avoid any risk :-

Install the fridge freezer following the installation instructions and ensure

that ventilation openings are kept clear of obstruction.

Take care when installing or moving the fridge freezer to avoid damaging

the pipes on the rear.

If you suspect a leak, do not switch on the fridge freezer, but open the

windows and doors to ventilate the room.

Do not use any mechanical or electrical devices inside the fridge freezer, for

instance for manual defrosting, they may cause damage.

Only use this fridge freezer for storing domestic foodstuffs.

When installing your fridge freezer :-

Ensure that the mains cable is not trapped underneath or behind the fridge

freezer when you install or move it.

Do not stack any other appliance on top of this fridge freezer as they may

damage the fridge freezer or become unstable.

When using your fridge freezer :-

Do not sit or stand on top of your fridge freezer.

Do not store poisonous, flammable or dangerous substances in your fridge

freezer.

Do not use aerosol sprays for defrosting or cleaning your fridge freezer.

If you sell the fridge freezer, pass on this booklet to the new owner.

SAFETY &

INSTALLATION

Installation

Location & Air Circulation

Locate your fridge freezer away from sources of heat e.g.

cookers, radiators, direct sunlight as extreme temperature

will affect its performance.

Allow a minimum 100mm (4 inches) between the top of

the fridge freezer and the ceiling or the underside of a

wall cupboard.

Providing you follow the recommended ventilation

requirements you will :-

Prolong the life of the fridge freezer.

Minimise the risk of condensation on the outside of

the fridge freezer.

Minimise the running costs.

Minimise operating sounds caused by vibration.

Minimum space required to open door

The fridge freezer needs a space of 600mm (24 inches) in front to allow the door

to open.

When positioning the fridge freezer next to a unit, a gap of 30mm (11/4inch) can

be left at the hinge side of the door to allow the easy removal of furniture. If

preferred the fridge freezer can be positioned so that a gap is not left.This will

restrict how far the door can be opened but the furniture can still be removed

(see diagrams below).The door hinge side can be changed to make it easier to

open (see ‘Door Reversal’ in the CLEANING & MAINTENANCE section).

SAFETY &

INSTALLATION

100mm

(4 inches)

TOP VIEW TOP VIEW

less than 30mm

30mm or more

600mm

Installation

Levelling:

Level the fridge freezer when it is in its final location by adjusting the front feet, until

firm contact is made with the floor. This will stop rocking or vibration and keep the

doors aligned which helps the fridge freezer run reliably and efficiently.

Note: Before plugging in and switching on, leave the fridge freezer standing

in its final location for at least 15 minutes to allow it to settle.

Hinge Covers:

After the front feet have been adjusted and the fridge freezer is level fit the left and

right hand bottom hinge covers supplied.

To fit:

SAFETY &

INSTALLATION

Align the bottom hinge cover onto the

cover plate slots.

Push until the bottom hinge cover

clicks into place.

Defrost Tube:

A tube is supplied to help feed defrost water into a collecting vessel, ie. a bowl (see

‘Defrosting’ in the CLEANING & MAINTENANCE section).

For safe keeping until required, the tube can be stored in the floor of the freezer

compartment.

Floor of the freezer compartment

Defrost tube in storage position

Installation

Electrical Supply

WARNING: This appliance must be earthed.

The appliance must be positioned so that the plug is accessible after

installation.

Fuses

Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the

fuse, only use those rated at 13A and ASTA approved to BS1362.

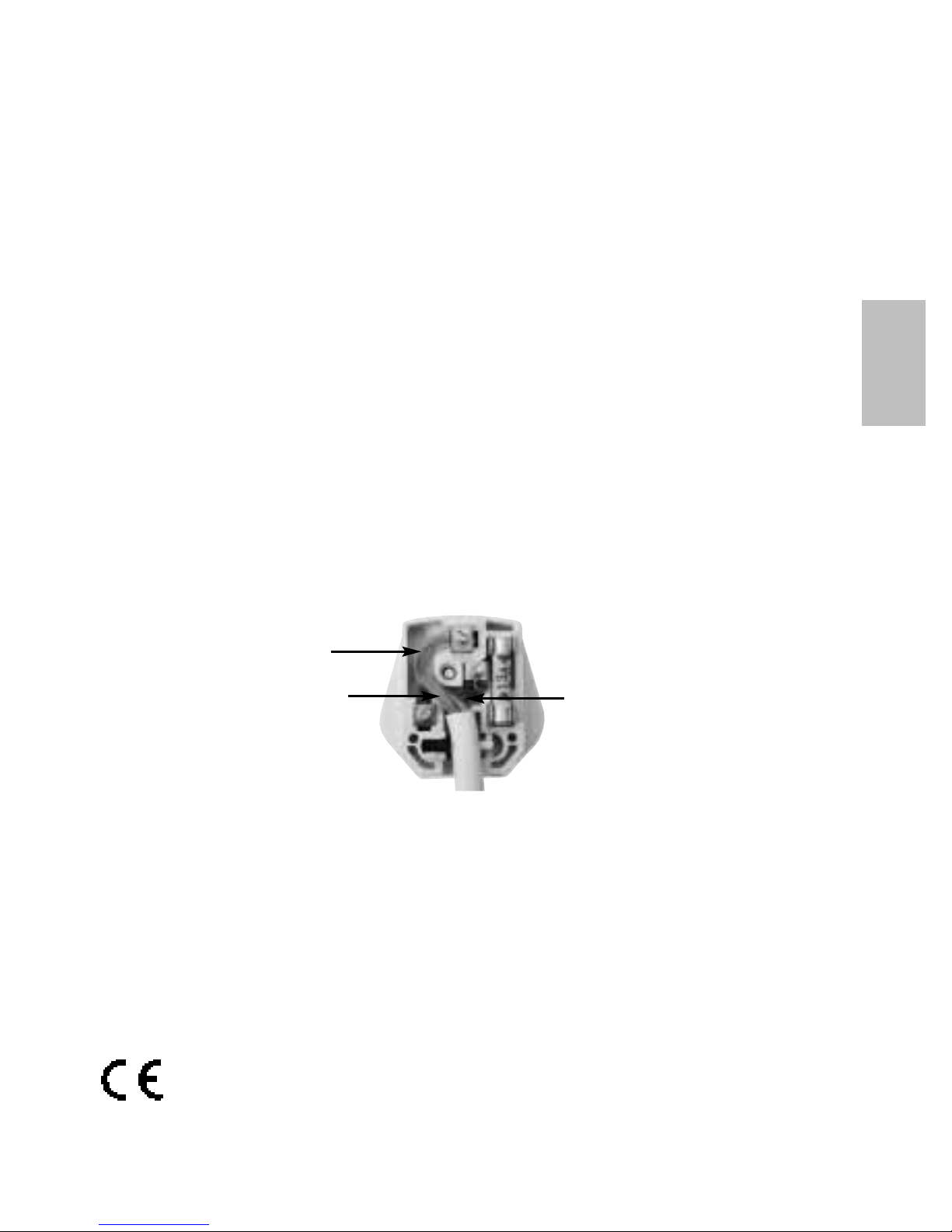

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING: To avoid a shock hazard do not insert the discarded plug into a socket

anywhere else.

IMPORTANT WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE

FOLLOWING CODE :

Green/Yellow - Earth

Blue - Neutral Brown - Live

If you change the plug, the colour of wires in the mains lead may not correspond with

the colour of the markings identifying terminals in the plug. You should therefore

wire it as shown above.

Changing the Mains Lead

This appliance is fitted with a special mains lead. If you need to replace the mains

lead due to damage, one can be bought from Hotpoint Service (see KEY CONTACTS,

back page).

It is strongly advised that this work is carried out by a qualified electrician.

CE Marking certifies that this appliance conforms to the following EEC

directives : Low Voltage Equipment - 72/23/EEC & 93/68 EEC

Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC

SAFETY &

INSTALLATION

Controls

Controlling the Temperature of the Fridge Compartment

The left hand control wheel on the front panel adjusts the internal fridge

compartment temperature. The internal temperature should be 5˚C or colder,

although some sections such as the salad bin will be slightly warmer.

The setting of the control wheel will depend on the location of the fridge freezer, the

room temperature and how often the door is opened. The normal set point (marked

by a 3 on the dial) is usually suitable. If you need to adjust the temperature turn the

control wheel using a coin to avoid damage:

Clockwise (higher number) - Colder

Anti-clockwise (lower number) - Warmer

Controlling the Temperature of the Freezer Compartment

The right hand control wheel on the front panel adjusts the internal freezer

compartment temperature. The internal temperature should be -18˚C or colder.

The setting of the control wheel will depend on the location of the fridge freezer, the

room temperature and how often the door is opened. The normal set point (marked

by a 3 on the dial) is usually suitable. If you need to adjust the temperature turn the

control wheel using a coin to avoid damage:

Clockwise (higher number) - Colder

Anti-clockwise (lower number) - Warmer

You can check the temperature of the fridge freezer compartments by using a Fridge

Freezer Thermometer available from Hotpoint Genuine Parts and Accessories Mail

Order Hotline (see KEY CONTACTS back page).

WARNING: Do not use a mercury filled thermometer, as breakage would cause a

health hazard.

Your fridge freezer must NOT be placed in a room where the temperature goes below

6˚C or above 38˚C for prolonged periods, as the internal temperatures will not be

maintained.

CONTROLS

RFA70 illustrated

Controls

CONTROLS

Indicator Lights

Green Mains Light

The green mains light will stay on as long as the electricity supply is not interrupted.

Amber Fast Freeze Light

The amber fast freeze light indicates that the fast freeze button has been pressed on.

By pressing this button ON, the freezer motor will run continuously for extra cooling.

Amber Holiday Light (Models RFA80 & RFA70 only)

The amber holiday light indicates that the holiday mode is set.

Red High Temperature Warning Light

The red temperature warning light will come on when the freezer is first switched on

or when the temperature inside the compartment rises above the correct storage

temperature. Check the TROUBLESHOOTING section before calling for advice. The

red light may come on for a short period when opening the freezer door to load or

unload food, in this case storage times will not be affected.

Holiday Function (Models RFA80 & RFA70 only)

This feature allows you to set your fridge compartment to a warmer setting while you

are away on holiday, to reduce running costs without affecting the freezer.

To set up holiday mode:

1. Remove any food, from the fridge compartment, that will deteriorate while you

are away. Make sure the fridge is clean.

2. Close the door.

3. Press the holiday button and the amber holiday indicator light will show that

holiday mode is set.

To reset to normal operation:

1. Press the holiday button OR open the fridge door. The amber holiday indicator

light will go out to show holiday mode is cancelled.

2. The fridge compartment will return to the temperature set on the fridge

temperature control wheel.

Note : Opening the door or pressing the holiday button at any time after holiday

mode has been set will turn the function off. The holiday button works

independently of the fridge temperature control wheel.

RFA70 illustrated

Controls

Fast Freeze Button - Freezing Fresh Food

The top compartment (the top two on Model RFA70), with or without the drawers,

should be used to freeze fresh food. Transfer already frozen food to one of the lower

compartments/drawers.

- Before loading 2kg or more of fresh food select fast freeze for the required

pre-freeze time (see chart below).

- If freezing up to 2kg of fresh food just select fast freeze when loading.

Once the fresh food is loaded leave fast freeze on for 24 hours to freeze the food as

quickly as possible.

Maximum freezing capacity in 24 hours: RFA70 18kg

RFA80 / RFA60 / RFS60 15kg

Note : Don’t forget to turn fast freeze off after 24 hours.

However fast freeze will turn off automatically after 48 hours if you do forget.

CONTROLS

Pre-Freeze chart when selecting Fast Freeze:

Load for freezing Pre-freeze time Load position

12 to 18kg max. 24 hours Directly on the top two compartment grids

OR in the top two drawers.

10 to 15kg max. 24 hours Directly on the top compartment grid only.

6 to 12kg 12 hours Directly on the top two compartment grids

OR in the top two drawers.

5 to 10kg 12 hours Directly on the top compartment grid

OR in the top drawer.

2 to 6kg 6 hours Directly on the top compartment grid

OR in the top drawer.

2 to 5kg 6 hours Directly on the top compartment grid

OR in the top drawer.

up to 2kg not required Directly on the top compartment grid

OR in the top drawer.

Model

RFA70

RFA80

RFA60

RFS60

RFA70

RFA80

RFA60

RFS60

RFA70

RFA80

RFA60

RFS60

RFA70

RFA80

RFA60

RFS60

RFA70 illustrated

Useful Advice

Note:

The Rating Plate, which lists the

appliance Model Number and Serial

Number can be found near the bottom

of the fridge compartment on the

interior wall.

USEFUL ADVICE

Fast Freeze

Models: RFA60 / RFS60

Model: RFA70

Fast Freeze

Model: RFA80

Making the best use of your Fridge Freezer

To ensure that your fridge freezer operates as efficiently as possible :

Follow food packaging “best before/use by” instructions or your suppliers

advice on a suitable maximum storage time.

Keep foods tightly covered to retain moisture and prevent flavour/odour

transference. Plastic bags, aluminium foil, plastic stretch wrap and containers

with lids are ideal.

Select chilled and frozen food last when shopping, transport in a ‘cool bag’

and place in freezer as soon as possible after arriving home.

Avoid opening the doors unnecessarily or for longer than needed.

Allow hot or warm food to cool down in covered containers before placing in

the fridge or freezer, as placing hot food inside reduces efficiency.

Prepare fresh foods for freezing in small quantities to ensure that the food

freezes quickly and so that its quality does not deteriorate.

Ensure that packets/containers of food are dry before freezing otherwise

they may freeze together.

Storing Food in a Fridge

Pack and store cooked and fresh food separately.

Wrap raw or defrosting meat and poultry in polythene or foil and store

below cooked foods and dairy products to avoid contamination of dripping

food juices.

Wrap cheese in greaseproof paper and place in an airtight container or

polythene bag.

Bring to room temperature before consuming.

Empty left over canned food into a covered storage containers before

placing in the fridge.

Position food to allow cold air to circulate freely, ensuring nothing comes

into contact with the back of the fridge compartment, or covers the defrost

gutter drain hole below this.

Use the different storage zones inside your fridge compartment to store a

wide variety of food items.

Useful Advice

USEFUL ADVICE

STORAGE ZONES

Zone Type Food Storage

A Cool Dairy products, Cheese, butter, margarine,

Low fat spreads, cooking fats / lards

Preserves - Jam, curd, marmalade,

spread, salad dressing or sauces.

B Colder General food storage

C Coldest Meat fish & poultry

Pre-cooked / chilled food

D Salad Bins Vegetables, fruit and salad items

(Not recommended for the storage of

bananas or onions).

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Hotpoint

Hotpoint

Hotpoint FTM70S Manual de usuario

Hotpoint

Hotpoint RSR50V Manual de usuario

Hotpoint

Hotpoint HSZ3021VL Manual de usuario

Hotpoint

Hotpoint No-frost models Manual del propietario

Hotpoint

Hotpoint HL161AI Manual de usuario

Hotpoint

Hotpoint FFB6200AP Manual de usuario

Hotpoint

Hotpoint LECO8 Manual de usuario

Hotpoint

Hotpoint CTX18GICAA Manual de usuario

Hotpoint

Hotpoint HTR16BBSLWW - 15.7 cu. Ft. Top Freezer... Manual de usuario

Hotpoint

Hotpoint HTS17CBT Manual de usuario

Hotpoint

Hotpoint HTS17CBTBB - 16.6 cu. Ft. Top-Freezer... Instrucciones de montaje

Hotpoint

Hotpoint 39-6233 Instrucciones de instalación

Hotpoint

Hotpoint FFUXL4D Manual de usuario

Hotpoint

Hotpoint 15 Manual de usuario

Hotpoint

Hotpoint CB16M 60/40 Manual de usuario

Hotpoint

Hotpoint HTS18BCPL Manual

Hotpoint

Hotpoint HTM16BBR Manual de usuario

Hotpoint

Hotpoint Larger Fridge RLM54 Manual de usuario

Hotpoint

Hotpoint XECO85 XXX XX Series Manual de usuario

Hotpoint

Hotpoint HTH16BBXLCC - 15.5 cu. Ft. Top-Freezer... Manual de usuario

Hotpoint

Hotpoint FFUL 1913 P Manual de usuario

Hotpoint

Hotpoint ENXTY 19 FO3 Series Manual de usuario

Hotpoint

Hotpoint SBL series NF Manual de usuario

Hotpoint

Hotpoint ECOFL series Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
