Hotpoint RGB508PPH Manual

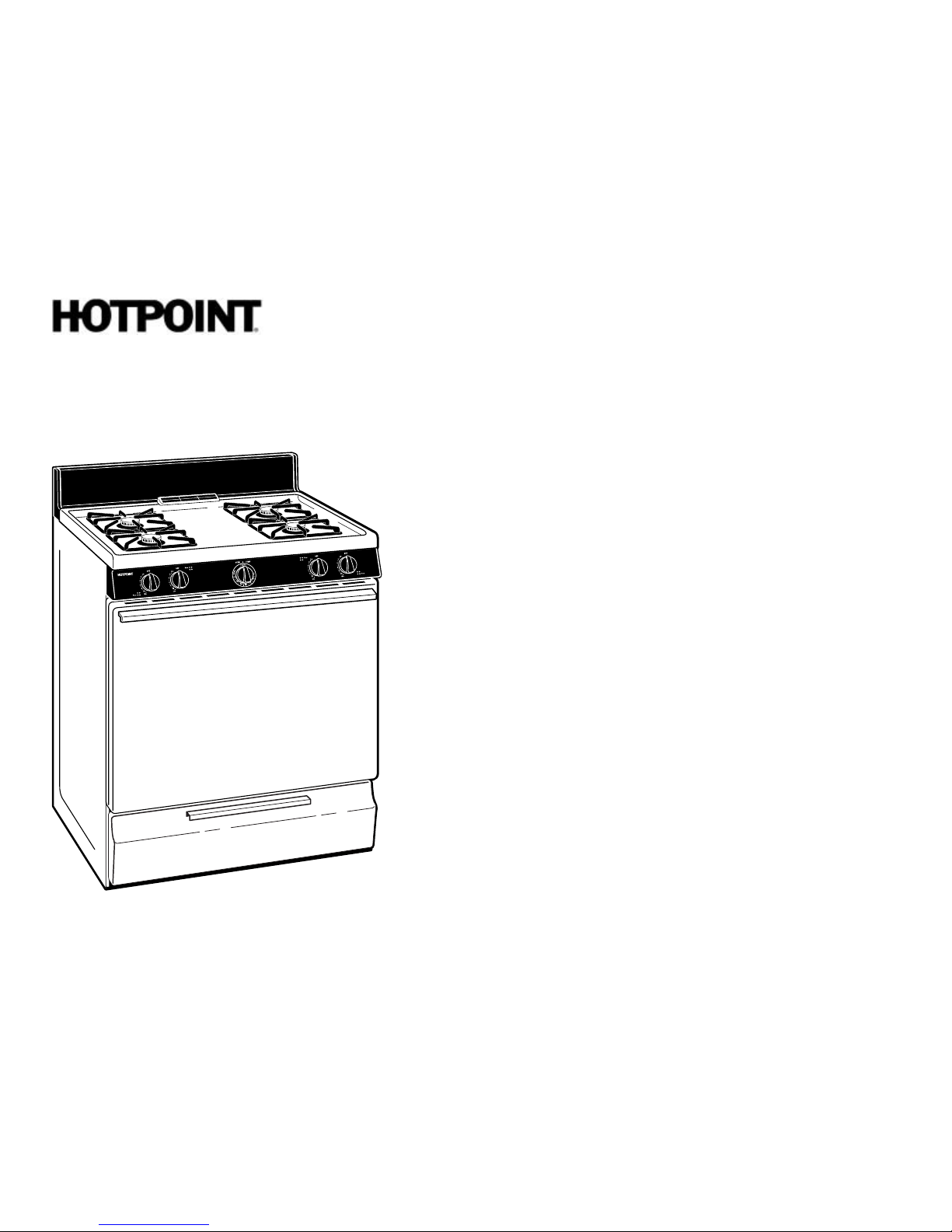

RGB508PPH – Hotpoint 30" Free-Standing Gas Range

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is an

important, required step in the

installation of the range.

Installation Information: Before

installing, consult installation

instructions packed with product

for current dimensional data.

Optional gas range

accessory drip pans:

(Available at additional cost)

To order these accessory drip pans,

call toll-free 800-626-2002.

24

30

8

4

92

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common

area for gas outlet and

electrical outlet

CERTIFIED

*Depth from wall to front of

closed oven door

Specification Created 4/03

Dimensions (in inches) 30" Gas Range Installation Information (in inches)

30

39-7/8

26-1/2*

46-3/8

36±1/4

RGB508PPH – Hotpoint 30" Free-Standing Gas Range

Features and Benefits

•Extra-Large Oven Capacity – Provides a large oven interior ideal for cooking more items

at once.

• All Purpose Burners – Deliver a wide range of heat output ideal for most cooking requirements.

• Standard Grates – Provide a sturdy and convenient cookware surface for everyday cooking.

• Lift-Up Cooktop – Cooktop lifts up for easy access to porcelain-enameled subtop.

• Easy Clean Subtop – Porcelain enameled subtop collects spills and messes for easy cleaning.

• Porcelain Oven Door – Offers a scratch-resistant porcelain coating for easy cleaning.

• Two Oven Racks – Feature a durable construction to help accommodate any size

or type of cookware.

•Model RGB508PPHWH – White (white door and black control panel)

•Model RGB508PPHCT – Almond (almond door and black control panel)

Specification Created 4/03
