Hotpoint RVM1635BK Instrucciones de uso

®

Listed by

Underwriters

Laboratories

Dimensions (in inches)

Important Information: When installing the microwave oven over a range, allow

minimum of 2" from bottom of Counter Saver Plus microwave oven to top of range

backguard to allow for removal of light covers.

Installation Information: This information is not intended to be used for installing

unit described. Before installing, consult installation instructions packed with product/

kit for current dimensional data.

Ventilation Options: The microwave oven is designed for adaptation for the

following three types of ventilation:

Outside Exhaust (Vertical – Delivered from factory in vertical position)

Outside Exhaust (Horizontal)

Recirculating (Non-vented ductless)

JX81J –

Recirculating

Charcoal Filter Kit

To be used when the

Counter Saver Plus

microwave oven

cannot be vented to

the outside.



Optional Accessories (Available at additional cost)

rvm1625 1435 Dimensions (in inches)

66" MIN.

Mounting

height

from floor

30" MIN.

width required Exhaust outlet

connects to

3-1/4" X 10" duct

16-1/2

21-3/4

Door open

15-9/16

13"

MAX.

15-3/4

RVM1635BK/WK/SK – Hotpoint® 1.6 Cu. Ft. Over-the-Range Microwave Oven

Specification Created 7/05

440027

®

Features and Benefits

• 1.6 cu. ft. capacity - 1000 Watts (IEC-705 test procedure)

• Turntable - Continually rotates food to ensure even cooking

• Instant On Controls - Allow quick, one-touch cooking and reheating

• Auto and Time Defrost - Automatically defrosts for a specified amount of time

• Time Cook I & II - Makes it possible to enter two cooking times, so users can stop the

microwave to stir or rotate foods without reprogramming

• Express Cook pads - A shortcut to set cook times from 1 to 6 minutes

• Two-Speed, 200-CFM Venting System - Quickly removes smoke and steam from cooktop

• Full-View Cooktop Lighting - Illuminates the cooking surface below

• Child lock out - Enables you to lock the keypad to prevent the oven from being accidentally

started

• Easy-mount installation - Easily mounts below cabinetry, freeing up valuable counter space

• Model RVM1635SK – Silver Metallic

• Model RVM1635WK – White

• Model RVM1635BK – Black

minute cook 1-6

Start

Surface

Light

Vent

Fan

Pause

Clear

Off

on/off

display on/off

1 3

4 6

87 9

Time

Cook

Auto

Defrost

Time

Defrost

Delay

Start

Power

Level

Add 30

sec.

Beverage Popcorn Ti mer

ClockReheat

on/offon/off

RVM1635SK

Specification Created 7/05

440027

RVM1635BK/WK/SK – Hotpoint® 1.6 Cu. Ft. Over-the-Range Microwave Oven

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microondas de Hotpoint

Hotpoint

Hotpoint MC43NHS Manual de usuario

Hotpoint

Hotpoint RVM1535 - 1.5 cu. Ft. Microwave Oven Manual de usuario

Hotpoint

Hotpoint MWH 2824 Manual de usuario

Hotpoint

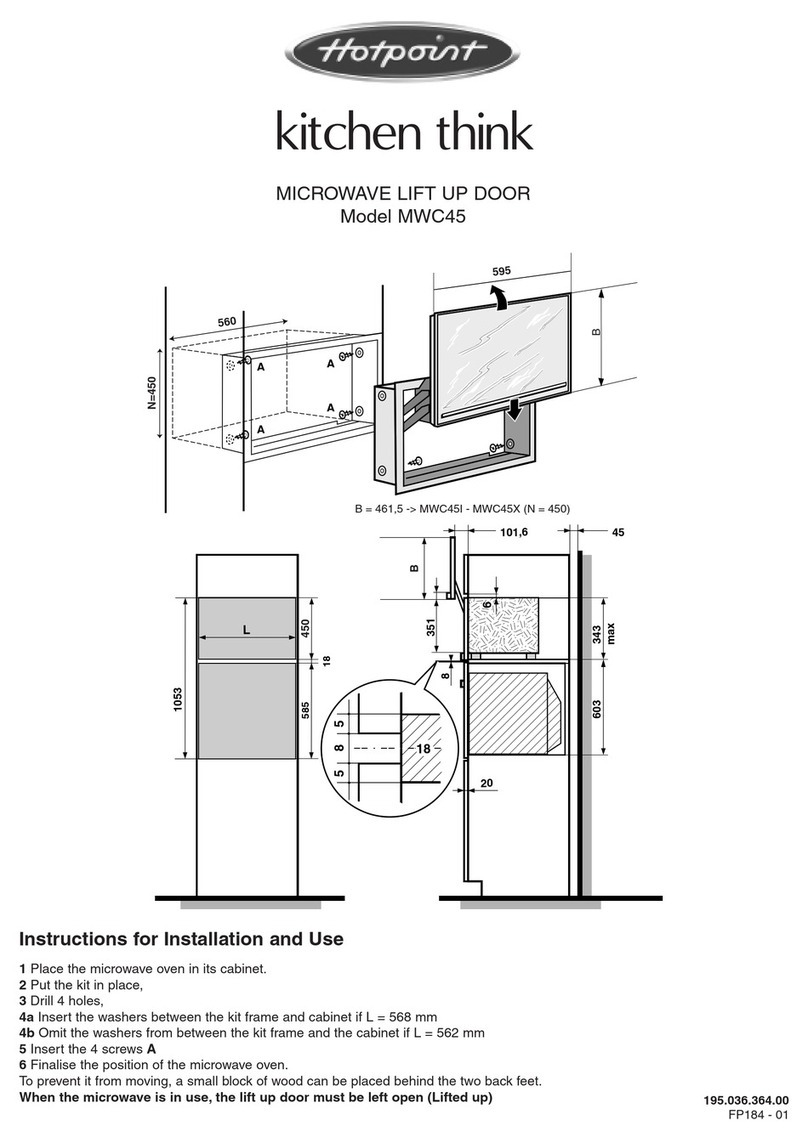

Hotpoint kitchen think MWC45 Manual de usuario
