Safety Information . . . . . . .4–7

Operating Instructions

Control Panel . . . . . . . . . . . . . . .8

Control Settings . . . . . . . . . . . . .9

Dial Cycles . . . . . . . . . . . . .10, 11

Using the Dishwasher . . . .12, 13

Loading the

Dishwasher Racks . . . . . . .14, 15

Care and Cleaning . . . . . . .16, 17

Optional Accessories . . . . . . . .18

Troubleshooting Tips

Before You

Call For Service . . . . . . . . .19–24

Customer Service

Product Registration . . . . . . . .29

Warranty . . . . . . . . . . . . . . . . .31

Service Telephone

Numbers . . . . . . . . . .Back Cover

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be

followed to minimize the risk of fire, explosion, electric

shock, or to prevent property damage, personal injury,

or loss of life.

Under certain conditions hydrogen gas may be produced in

a water heater that has not been used for two weeks or

more. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two weeks or more, prevent

the possibility of damage or injury by turning on all hot water

faucets and allow them to run for several minutes. Do this before

using any electrical appliance which is connected to the hot water

system. This simple procedure will allow any built-up hydrogen gas

to escape. Since the gas is flammable, do not smoke or use an open

flame or appliance during this process.

WATER HEATER SAFETY

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

Use your dishwasher only for its intended purpose as

described in this Owner’s Manual.

This dishwasher must be properly installed and located in

accordancewith theInstallation Instructionsbefore itis used.

If you did not receive an Installation Instructions sheet with

your dishwasher, you can receive one by calling us toll-free

at the GE Answer Center®

, 800.626.2000.

■Connect to a grounded

metal, permanent wiring

system; or run an equipment-

grounding conductor with

the circuit conductors and

connect to the equipment-

grounding terminal or lead

of the appliance.

■Improper connection of the

equipment-grounding

conductor can result in a risk

of electric shock. Check with

a qualified electrician or

service representative if you

are in doubt whether the

appliance is properly

grounded.

■Dispose of discarded

appliances and shipping or

packing material properly.

■Do not attempt to repair or

replace any part of your

dishwasher unless it is

specifically recommended in

this manual. All other

servicing should be referred

to a qualified technician.

■To minimize the possibility of

electric shock, disconnect

this appliance from the

power supply before

attempting any maintenance.

NOTE:

Turning the

dishwasher off does not

disconnect the appliance

from the power supply. We

recommend having a

qualified technician service

your appliance.

PROPER INSTALLATION

AND MAINTENANCE

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

DO NOT…

■Do not tamper with controls.

■Do not abuse, sit on, or stand

on the door or dish rack of

the dishwasher.

■Do not discard a dishwasher

without first removing the

door of the washing

compartment.

■Do not store or use

combustible materials,

gasoline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance.

■Do not allow children to play

inside, on or with this

appliance or any discarded

appliance.

WARNING!

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

WHEN USINGYOUR DISHWASHER

■Use only powder or liquid

detergents or wetting agents

recommended for use in a

dishwasher, and keep them

out of the reach of children.

■Locate sharp items so that

they are not likely to damage

the door seal.

■Load sharp knives with the

handles up to reduce the risk

of cut-type injuries.

■Do not wash plastic items

unless marked

dishwasher

safe

or the equivalent. For

plastic items not so marked,

check the manufacturer’s

recommendations.

■Do not touch the heating

element during or

immediately after use.

■Do not operate your

dishwasher unless all

enclosure panels are properly

in place.

■Close supervision is necessary

if this appliance is used by or

near children.

■Load light plastic items so

they will not become

dislodged and drop to the

bottom of the dishwasher—

they might come into contact

with the heating element and

be damaged.

Read and follow

this Safety Information carefully.

SAVE THESE INSTRUCTIONS

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

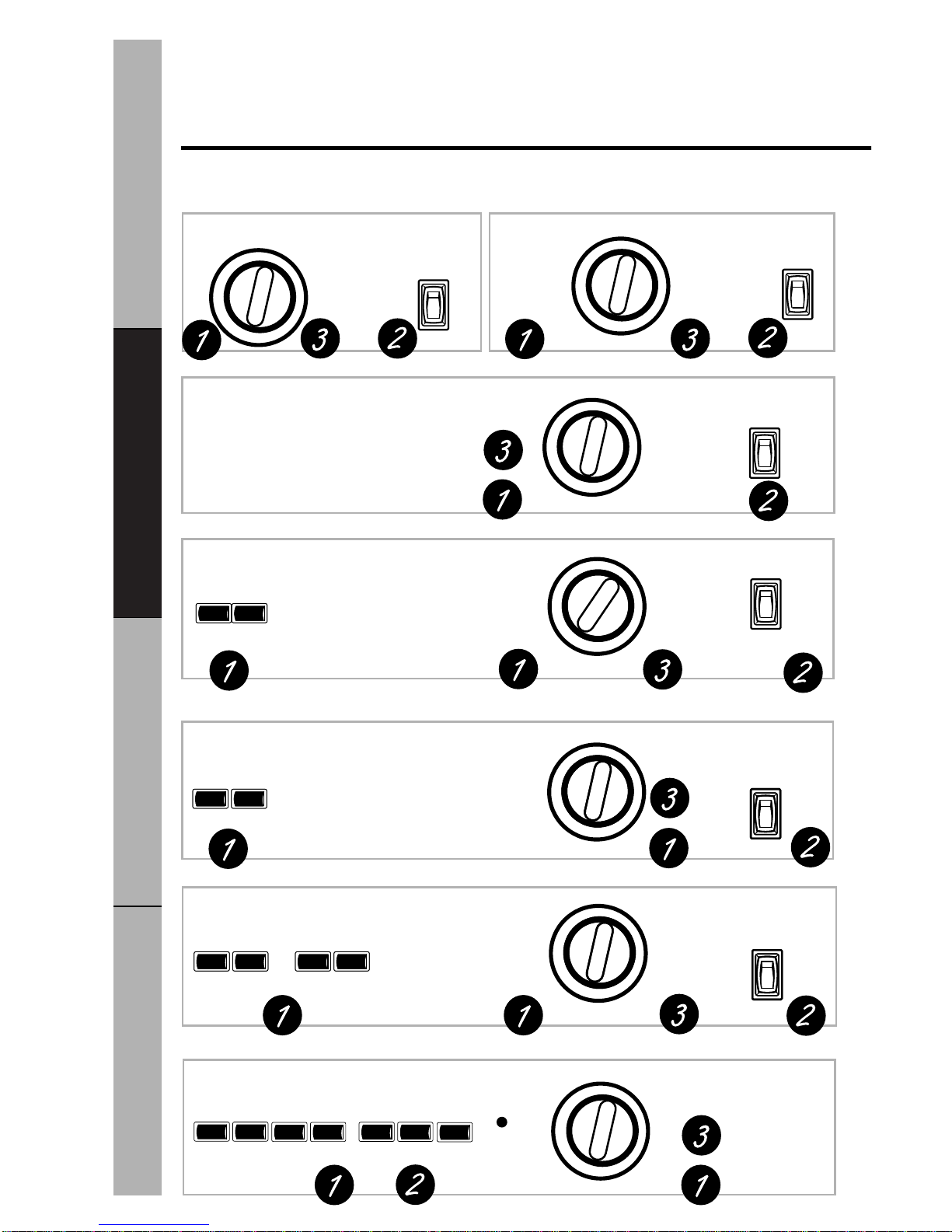

About the dishwasher control panel.

You can locate your model number on the tub wall just inside the door.

Throughout this manual, features and appearance may vary from your model.

OFF ON

OFF

HEATED

DRY

OFF

DRYING OFF

HEATED

DRY

HEAVY WASH

NORMAL WASH

WATER SAVER

RINSE & HOLD (HEATED DRY OFF)

OFF ON

RINSE & HOLD

OFF

HEATED

DRY

NORMAL

WASH

POTS

& PANS

OFF

WATER SAVER

PLATE WARMER

(HEATED DRY OFF)

OFF

HEATED

DRY

(HEATED DRY ON)

NORMAL

WASH

OFF ON

RINSE & HOLD (HEATED DRY OFF)

OFF

HEATED

DRY

NORMAL

WASH

POTS

& PANS

OFF ON WATER SAVER

RINSE & HOLD (HEATED DRY OFF)

OFF

HEATED

DRY

(HEATED DRY ON)

NORMAL

WASH

cycle

selector energy saver

options

HI TEMP WASH

ON OFF

PLATE WARMER

HOURS

DELAY

OFF

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

NORMAL

WASH

POTS

& PANS

(HEATED DRY ON)

ENERGY

SAVER

DELAYED

START

WATER

SAVER

LIGHT

WASH HI TEMP

WASH HEATED

DRY 6

Model HDA1000

Models HDA2000, HDA2020 and HDA2030

Model HDA2220

OFF NORMAL/

POTS & PANS

ON OFF SHORT WASH

OFF

HEATED

DRY

DRYING

RINSE & HOLD (HEATED DRY OFF)

Models HDA2120 and HDA2130

Models HDA3220 and HDA3230

Models HDA3420 and HDA3430

OFF

DRYING

OFF

HEATED

DRY

NORMAL WASH

SHORT WASH

RINSE & HOLD (HEATED DRY OFF)

Model HDA1100

Energy Options

HI TEMP Provides extra heat for best performance. It is used best with

WASH ON/ heavily-soiled dishes.

HI TEMP WASH

HI TEMP Turns

HI TEMP WASH

off.

WASH OFF

HEATED DRY/ Turns the heating element on for fast drying. This option will extend

HEATED DRY ON the time of your wash cycle.

HEATED DRY OFF Turns

HEATED DRY

off.Dishes air dry naturally and energy

is saved.

ENERGY SAVER Turns all options off.

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

Control Settings

Cycles

POTS & PANS/ For heavily soiled dishes or cookware with dried-on or baked-on soils.

HEAVY WASH Everyday dishes may be included. This cycle will not remove

burned-on foods.

NORMAL WASH

For loads of everyday dishes, glasses and cookware with medium

soils.

NOTE:

Many dishes have lighter soil than normal. Choosing

a cycle other than

NORMAL WASH

will save energy and water.

SHORT WASH For quickly washing loads of everyday dishes with medium soils

that have not dried on, such as loads consisting mostly of glasses.

LIGHT WASH/ For dishes with light soils.

WATER SAVER

RINSE & HOLD For rinsing partial loads that will be washed later.

Do not use detergent.

PLATE WARMER For warming clean dishes and serving plates. This cycle will take

approximately 32 minutes.

Start

Slowly turn t

he Dial to the

START

position, or the selected cycle.

Don’t turn it past the

START, ON

or cycle position, or you could

accidentally miss a rinse. For models

HDA2120

and

HDA2130,

when

using the

POTS & PANS

cycle, slowly turn the Dial to the

NORMAL/POTS

& PANS

position and press the

POTS& PANS ON

button. When using

the

NORMAL

cycle, slowly turn the Dial to the

NORMAL/POTS & PANS

position and press the

POTS& PANS OFF

button. See

About the Dial

Cycles

section for other cycles on these models.

There is a time delay between start-up and water fill so you will not

hear any wash action right away.

■Latch the door to begin the cycle. 9

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

About the dial cycles.

Rinse & Hold

(HDA1100, HDA2000, HDA2020, HDA2030, HDA2120,

HDA2130, HDA2220, HDA3220, HDA3230, HDA3420 and HDA3430 only)

For rinsing partial loads that will be washed later.

Do not

use detergent.

Make sure

ENERGY SAVER / HEATED DRY OFF

is selected.

Be sure the door is unlatched.

Slowly turn the Dial to

RINSE & HOLD.

Latch the door to start the cycle.

OFF ON

WATER SAVER

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

Plate Warmer

(HDA2220, HDA3220, HDA3230, HDA3420 and

HDA3430 only)

For warming clean dishes and serving plates. This cycle

will take approximately 32 minutes.

Load clean dishware to be warmed.

Select

HEATED DRY / HEATEDDRY ON.

Be sure the door is unlatched.

Slowly turn the Dial to

PLATE WARMER.

Latch the door to start the cycle.

OFF ON

WATER

SAVER

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

Delayed Start

(HDA3420 and HDA3430 only)

The

HOURS DELAY

will allow you to delay the start

time of any cycle not on the Dial automatically for up

to 6 hours.

Be sure the door is unlatched.

Select the wash cycle and option you want.

Slowly turn the Dial to desired time. The

DELAYED

START

light will come on.

Latch the door to start the cycle.

HOURS

DELAY

OFF

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

START

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Hotpoint

Hotpoint

Hotpoint LTB 4B019 Manual de usuario

Hotpoint

Hotpoint HDA 897 Manual de usuario

Hotpoint

Hotpoint LTF 8M124 Manual de usuario

Hotpoint

Hotpoint HDA2100H Guía del usuario

Hotpoint

Hotpoint FDD 912 Manual de usuario

Hotpoint

Hotpoint H7F HS41 UK Manual de instalación y operación

Hotpoint

Hotpoint FDFSM 31111Smart Tech Manual de usuario

Hotpoint

Hotpoint LLD 8M132 Manual de usuario

Hotpoint

Hotpoint HDA969 Instrucciones de instalación

Hotpoint

Hotpoint LSB 5B019 Manual de usuario

Hotpoint

Hotpoint HFC 3C41 CW X Manual de instalación y operación

Hotpoint

Hotpoint HDA1000 series Manual de usuario

Hotpoint

Hotpoint FDUD 43133 ULTIMA Manual de usuario

Hotpoint

Hotpoint DC 28 Manual de usuario

Hotpoint

Hotpoint HIC3C33CWEUK Manual de instalación y operación

Hotpoint

Hotpoint HDA2020ZBB Manual de servicio

Hotpoint

Hotpoint LFT 114 Manual de usuario

Hotpoint

Hotpoint SIUF 22111 ULTIMA Manual de usuario

Hotpoint

Hotpoint HDA3500NBB - Dishwasher w/ 5 Wash Cycles... Manual de usuario

Hotpoint

Hotpoint 7840 Manual de instrucciones

Hotpoint

Hotpoint Aquarius DF62 Manual de usuario

Hotpoint

Hotpoint SDL 510 Manual de usuario

Hotpoint

Hotpoint HDA2100 Manual de usuario

Hotpoint

Hotpoint HDA6009 Instrucciones de instalación

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
