Hotpoint DWF60 Instrucciones de funcionamiento

HOTPOINT

60cm FREESTANDING

DISHWASHER

USER & INSTALLATION

INSTRUCTIONS

MODELS DWF61 & DWF60

Contents...

Retention of this Instruction Book...

This Instruction Book must be kept handy for reference as it contains important details on the safe

and proper use of the appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind, make sure

this Book is also provided so the new owner can become familiar with the appliance and safety

warnings.

Recycling & Disposal Information...

As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the

right to use quality recycled components to keep down customer costs and minimise material

wastage.

Please dispose of packaging and old appliances carefully.

To minimise risk of injury to children, remove the door, plug and cut mains cable

off flush with the appliance, dispose of separately to ensure that the appliance can

no longer be plugged into a mains socket.

Electricity Supply / Safety Information...............3

Installation:

Choose a Location......................................................4

Adjust the Feet............................................................4

Connect to a Drainage System..............................5

Connect to the Water Supply.................................6

Check List......................................................................6

Getting to Know your Appliance..................7 & 8

Before Using your Appliance:

Adjust the Water Softener.......................................9

Filling the Special Salt Container........................10

Filling the Rinse Aid Container............................11

Detergents........................................................12 & 13

What Can I Wash.......................................................14

Programme Overview..................................15 & 16

Loading your Dishwasher...........................17 & 18

Washing Dishes..............................................19 & 20

Care & Maintenance.....................................21 & 22

Troubleshooting.............................................23 & 24

Important Information...........................................25

Hotpoint After Sales Service................................26

Hotpoint Guarantee................................................27

Key Contacts...............................................Back Page

CE marking certifies that this appliance

conforms to the following EEC directives:

Low Voltage Equipment 72/23/EEC

Electromagnetic Compatibility 89/336/EEC and

subsequent modifications.

Electrical Supply...

WARNING: This appliance must be earthed.

Fuses

Your appliance comes fitted with a plug and a 13A fuse.

If you need to replace the fuse, only those rated at 13A and ASTA

approved to BS1362 should be used.

WARNING: Do not use the plug unless the fuse cover is fitted.

Changing the Mains Lead

A special lead can be ordered from your Service Department:

UK: 08709 066 066 or

Republic of Ireland: 1850 302 200

If you have damaged the existing lead or require a longer one a charge will be made. It is

strongly advised that this work is carried out by a qualified electrician.

Changing the plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING: To avoid a shock hazard do not insert the discarded plug into a socket anywhere

else.

IMPORTANT: WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE

FOLLOWING CODE:

Green and yellow (Earth) wire to

terminal marked ‘E’, symbol ,

or coloured green and yellow.

Blue (Neutral) wire to terminal

marked ‘N’ or coloured black. Cord

clamp

13A ASTA approved fuse

to BS1362.

Brown (Live) wire to

terminal marked ‘L’ or

coloured red.

Green / Yellow - Earth

Blue - Neutral

Brown - Live

If you change the plug, the colour of

the wires in the mains lead may not

correspond with the colour of the

markings identifying terminals in the

plug. You should therefore wire it as

shown.

Installation...

Follow the Installation Instructions, making

sure the Dishwasher is correctly installed.

When installing the Dishwasher, carry out

tasks in the following order:

- choose a location.

- level the appliance (adjusting the feet).

- connect to a drainage system.

- connect inlet hose to water supply.

CHOOSE A LOCATION...

The choice of location for your appliance

will influence its performance.

●

Position where possible on a solid floor.

Vibration may occur with a wooden

floor.

●

Take care with vinyl floor coverings.The

weight of the appliance may cause

indentations in some vinyl floor cover-

ings.

●

For your safety and to comply with IEE

regulations, you should not install your

appliance in a bath or shower room.

Seek professional advice if you wish to

do so.

●

Ensure sufficient space is allowed for the

appliance.

●

Ensure the electrical socket and water

taps are easily accessible and that the

water supply can be isolated if neces-

sary. Do not use an extension lead or

multiple plug for connection to the elec-

trical socket.

●

If your dishwasher is underneath a

work surface with a hob.You must

add thermal insulation to the top of the

machine.

ADJUST THE FEET...

It is essential that the door is closed and

latched before stabilising the dishwasher.

Ensure that the rear feet are adjusted so

that the product is not sitting on the base

of the machine. Adjust either clockwise or

anti-clockwise as necessary to level.

Then adjust either of the two front feet

clockwise or anti-clockwise as necessary

until all feet are in contact with the floor to

avoid the machine from rocking and is level

to within 2˚

The door must be aligned centrally with the

sides of the cabinet to ensure the door seal

is correctly located.

Note: If the appliance is not stabilised the

door may be off centre and make the

machine unstable.

CONNECT TO A DRAINAGE SYSTEM...

WARNING

●Connect your dishwasher drain hose to

pipes which connect to the foul drain

system, and not to surface water drains.

IMPORTANT NOTES For the correct

operation of your dishwasher, it is

essential to comply with the following

information.

Standpipe

Fit the hose to the standpipe

hook which can be found in

the machine.

Ensure that the hose is not

pushed too far down the

standpipe.

DO NOT position the stand-

pipe near an electrical outlet.

ENSURE that the drain hose is

routed as shown in the diagram.

The standpipe should be connected to:

a) A discharge stack-pipe

b) An external gulley OR

c) A sink waste.

The standpipe should have a bore of at

least 38mm (11/2"). It should be installed as

shown, have a trap fitted and must

discharge into the same drain system as

your household sink.

It must NOT be connected to a surface

water drain.

Sink Waste System

For under sink drainage:

Before connecting the drain hose,

remove any internal restrictions - This

will prevent a build up of debris which

could cause a blockage.

Remove any restrictions from the waste

spigot and ensure that the sealing

bung is removed.The hose should be

routed, such that it is raised to a

minimum height of 800mm (31/2")

Note: Ensure the sink outlet pipe has a

minimum diameter of 32mm.

1. Untie the end of the GREY drainage

hose from the rear of the appliance.

2. Reposition ‘Hooked End Support’ as

required along GREY drainage hose.

3. If fitting an under sink waste disposal

unit, cut out the membrane, bung or

blanking plug.

4. Attach the GREY drainage hose to

the under sink waste disposal unit

securely, using the clip and rubber

tube supplied.

Ensure the drain hose is securely attached,

to prevent it coming away while the

machine is in use and causing a flood.

Installation...

120

min

CONNECT TO THE WATER SUPPLY...

●For your machine to operate correctly

it requires water pressures in the range

of 6-150 psi (100-1000 KPa). Most

cold water supplies will be in this

range.

●Ensure the fill hose is only connected

to the cold water supply.

WARNING

●Ensure the fill hose is NOT kinked.

Note: Do not over tighten the hose connec-

tor. Hand tight is sufficient.

●Tap connections (if applicable) - A

range of adaptors are available to suit

your tap.

WARNING

●Do not connect appliance to a single

outlet instantaneous water heater or

an electric heater.

Remember you may be charged for a

service call if a problem with your

appliance is caused by incorrect

installation or misuse.

CHECKLIST...

When you have installed your appliance,

ensure it is ready to use by following this

Check List:

1. Dispose of packaging safely, see

‘Recycling Information’ on page 2.

2. Position appliance close to

electrical/water supply see ‘Choose a

Location’ on page 4.

3. Connect supplied hose to appliance

water supply, confirm water is flowing

before connecting to the appliance

inlet valve see ‘Connect to a Water

Supply’, page 6.

4. Untie drainage hose at rear of

appliance and connect to either a

standpipe or sink waste drainage

system see ‘Connect to a Drainage

System’ page 5.

5. Untie mains lead at rear of appliance

and plug into electrical supply via a

switched socket, see ‘Electrical

Supply’ on page 3.

6. Position appliance, taking care not to

kink or damage hose at rear of

appliance.

7. Stabilise the appliance, see ‘Adjusting

the Feet’ page 4.

8. Turn on the water supply to the

appliance.

9. Switch on at plug socket.

Your appliance is now ready for use, refer to

‘Getting to know your Appliance’ on page 7 to

familiarise yourself with the appliance.

Installation...

Getting to Know your Appliance...

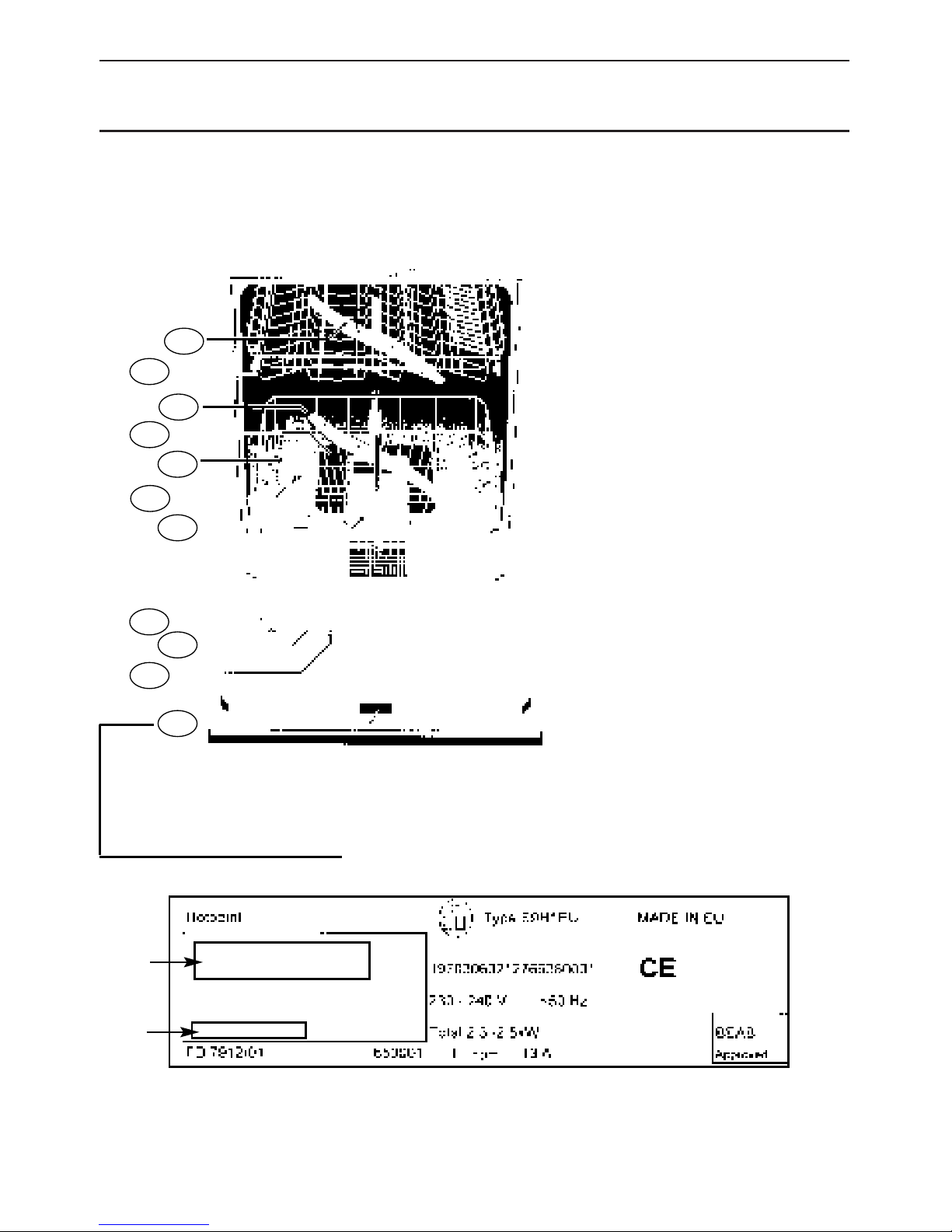

Interior...

1. Salt Container,

with level indicator.

2. Filters.

3. Lower Basket.

4. Rinse Aid Container,

with level indicator.

5. Rating Plate.

6. Upper Basket,

with 2-tier cup rack.

7. Upper Spray Arm.

8. Lower Spray Arm.

9. Cutlery Basket.

10. Detergent Compartment

Locking Mechanism.

11. Detergent Compartment.

Rating plate sample

Model

No.

Serial

No.

Getting to Know your Appliance...

DWF61

DWF60

1 3 4 65 7 8 910 11

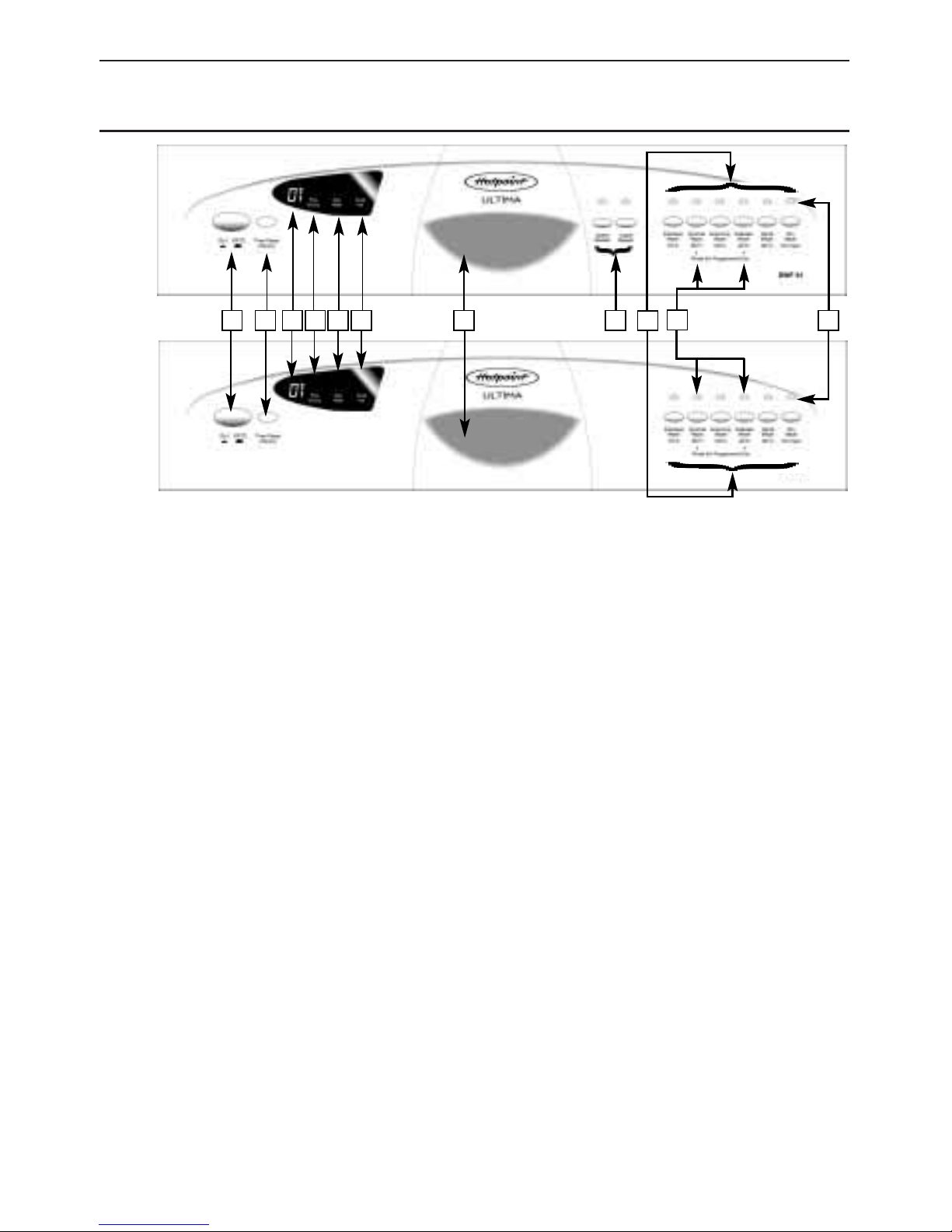

Fascia.

1. Mains Switch (ON/OFF) 7. Door Handle

2. Time Delay Selector Switch 8. Wash Basket Programme Selector*

3. Numerical Indicator (DWF 61 only)

4. Time to End Indicator 9. Programme Selection Buttons

5. Salt Refill Indicator 10. Programme End Buttons (Reset)

6. Rinse Aid Indicator 11. Selection Indicators

Before using your Dishwasher you must carry

out the following steps to ensure you obtain

the best possible wash performance from

your appliance.

Follow these 4 steps:

- Adjust the Water Softener.

- Fill the Salt Container.

- Fill the Rinse Aid Container.

- Add detergent.

ADJUSTING THE WATER SOFTENER...

●In order to rinse dishes and glasses

satisfactorily, the dishwasher requires

soft water i.e containing little or no

lime, otherwise water stains are left

behind on crockery and glasses etc. If

the tap water exceeds a certain level of

hardness, it must be softened, ie.

decalcified, so that it can be used in

the dishwasher.

●The water Softener should be properly

adjusted to optimise salt consumption

and for best washing results.

●In order to ensure that the correct

amount of salt is being used to

regenerate the water softener, the

water hardness adjuster needs to be

set accordingly. To set this correctly

the hardness of your water needs to

be ascertained. Find on the table the

level corresponding to the hardness

of your water and the required

adjustments or contact your local

Water company to find the exact water

hardness level for your area.

●Press and hold the ECONOMY 50˚

programme button 9, and set the

mains switch 1 to on, before releasing

the programme button again.

The indicator lamp for the ECONOMY

50˚ button flashes, as does the figure

in the numerical display 3. The latter

represents the value that was pre-set in

the factory.

To change the setting:

Press the ECONOMY 50˚ programme

button 9.

Every time the button is pressed, the

figure increases by one. After reaching

, the display starts at

again.

●Set the mains switch 1to OFF. The

new setting is stored in the appliance’s

memory.

Approximately 4 litres of water are required

for regenerating the water softening

system. The overall water consumption per

load can therefore be increased by between

0 and a maximum of 4 litres according to

the water hardness setting.

Before Using your Appliance...

Water hardness table

˚dH ˚fH ˚Clarke mmol/l

0 - 3 0 - 6 0 - 4 0 - 0.6

4 - 6 7 - 11 5 - 8 0.7 - 1.1

7 - 9 12-16 9 - 11 1.2 - 1.6

10-12 17-21 12-15 1.7 - 2.1

13-16 22-29 16-20 2.2 - 2.9

17-21 30-37 21-26 3.0 - 3.7

22-30 38-54 27-38 3.8 - 5.4

31-50 55-89 39-62 5.5 - 8.9

Display readout example

FILLING THE SPECIAL SALT

CONTAINER...

Note: Only use recommended Dishwasher

salt or granular salt. DO NOTuse everyday

table salt, cooking salt or road salt as they

contain insoluble substances which could

harm the Dishwasher.

How the salt works:

While washing is taking place, salt is

automatically rinsed out of the salt

container into the water softener where it

dissolves the lime in the water.The

dissolved lime is pumped out of the

dishwasher.The water softener system is

then ready for the next load.This process of

regeneration can only function when the

salt is dissolved in water.

● You should fill just before starting the

programme.

●Unscrew the lid of the salt container.

Before using the dishwasher for the

first time, pour approximately 1 litre of

water into the salt container.

●Use the supplied funnel to fill salt to the

top of the container (maximum of

1.5kg). As you tip in the salt some of

the water is displaced and drains away.

When you have done this, clean off any

remnants of salt from the area around

the neck of the container. Replace the

lid, back onto the container, ensuring

that it is not cross-threaded.

The LOW SALT indicator 5 on the front

panel will light up initially but will

extinguish again after a short period when

the salt solution has become sufficiently

concentrated.

Note:

When the control is set to

, it is not

necessary to fill up with salt as none will be

consumed while the dishwasher is

operating. The LOW SALT indicator is

switched off. If the control is set between

and

, then salt must be added to the

dispenser.

WARNING:

DO NOT pour detergent into the

special Salt Container. This will destroy

the water softener.

LOW SALT Indicator:

Add more salt as soon as the LOW SALT

indicator 5 on the front panel lights up.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Hotpoint

Hotpoint

Hotpoint SISML 21011Smart Tech Manual de usuario

Hotpoint

Hotpoint Aquarius DF62 Manual de usuario

Hotpoint

Hotpoint SDD 910 Manual de usuario

Hotpoint

Hotpoint FDEM 3101 EXPERIENCE Manual de usuario

Hotpoint

Hotpoint DC23/24 Instrucciones de funcionamiento

Hotpoint

Hotpoint LFK 7M124 Manual de usuario

Hotpoint

Hotpoint HDA1000 series Manual de usuario

Hotpoint

Hotpoint HDA969 Instrucciones de instalación

Hotpoint

Hotpoint SIUF 32120 ULTIMA Manual de usuario

Hotpoint

Hotpoint LFB 4M010 Manual de usuario

Hotpoint

Hotpoint HDB727K Instrucciones de instalación

Hotpoint

Hotpoint FDFSM 31011 Smart Tech Manual de usuario

Hotpoint

Hotpoint LFFA++ 8H14 Manual de usuario

Hotpoint

Hotpoint LTF 8M124 Manual de usuario

Hotpoint

Hotpoint FDM550P Instrucciones de funcionamiento e instalación

Hotpoint

Hotpoint BFT680 Manual de usuario

Hotpoint

Hotpoint HFC 3T232 WFG X UK Manual de instalación y operación

Hotpoint

Hotpoint HSFCIH4798FS Manual de instalación y operación

Hotpoint

Hotpoint FDFEX 11011 EXTRA Manual de usuario

Hotpoint

Hotpoint BFV68 Manual de usuario

Hotpoint

Hotpoint HDA150 Instrucciones de instalación

Hotpoint

Hotpoint HDA430 Manual de usuario

Hotpoint

Hotpoint LTF 8B019 Manual de usuario

Hotpoint

Hotpoint HLD4000NWW - on 24 Inch Full Console... Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
