Instructions for
YOUR NEW HOOVER
DIAL-A-MATIC CLEANER
Model 1100
HANDLE
GRIP
OPENING
FOR
HANGING
CLEANER
IN
STORAGE
AREA
ON/OFF
SWITCH
/
COVER
LATCH
NOZZL
HOSE
MODEL 1100
G
HANDLE
TO ATTACH HANDLE TO
CLEANER
I.
Remove tape and screw from handle socket and set aside for later use.
2.
Connect electric plug from bottom of handle to electric plug projecting
from handle socket. Make sure plug assembly is positioned as shown
in illustration.
3.
Push handle into place in handle socket. The excess wire and electric
plugs are guided into handle tube.
4. Line up holes in handle and handle socket. Insert screw and tighten
with screwdriver.
HANDLE
ADJUSTMENTS
-
The handle on your clean-
er has three positions
-
storage, operating,
and
low (for reaching under
low furniture). The handle
can be lowered by step-
ping on pedal at the left
rear of cleaner. The
handle should always be
in storage position when
cleaning tools are used.
,
THIS IS THE
ttHEART”
OF Y
THE DIAL-A-MAT/C GIVES THE BEST AND MOST
E/=F/C/E)
SET THE DIAL FOR
CARPET AND RUG
CLEANING
Your new HOOVER DIAL-A
MATIC
is the most powerful up-
right cleaner ever built. Proper
suction control for your floor
coverings is most important for
cleaning effectiveness and ease
of operation.
FIRST, set the dial between
“MEDIUM” and “LOW”. This
will be the correct setting for
the majority of rug thicknesses.
For deep pile carpets, shag
rugs, cotton rugs, or lightweight
throw rugs, move the lever to-
ward “LOW” if the cleaner does
not push easily.
For low pile, sculptured, or
multi-level rugs, it may be
necessary to move the lever to-
ward “HIGH”.
When you have the proper setting
on the dial, your Hoover will
push easily and clean thor-
oughly.
4
l
V HOOVER DIAL-A-MATIC CLEANER
SE OF A VACUUM
CbEANER
THAT YAS EVER BEEN DEVISED.
SET THE DIAL FOR
CLEANING TOOLS
The handle of the cleaner
should be in storage position
(See page 2) when cleaning
tools are used. When the
handle is in this position, the
nozzle is raised and the
agitator does not come in
contact with the rug.
Attach hose and cleaning
tools (Page
7).
Set lever on
Suction Control Dial to
“High” under “Cleaning
Tool
Use”
for most clean-
ing. For cleaning draperies
and delicate fabrics, move
lever toward
‘
‘
Low’
9.
The lever can be placed at
“High”, “Medium”,
“Low’~
or any space between these
markings.
5
THE CLEANING TOOLS MODEL
1101
(See Page 5 for setting Suction Control Dial when using tools.)
The cleaning tools have many uses. Some are listed below:
1.
TUFFLEX HOSE Double vinyl reinforced with nylon mesh for
long, trouble-free life. The light flexible hose has a vinyl tab,
so it can be hung on the cleaner or on a hook in a closet.
2. TELESCOPING WAND When you
require extra length for cleaning
bare floors or hard-to-reach places,
attach the telescoping extension
wand.
To lengthen the wand, push in on the
plastic latch and extend wand until
it locks in place. To shorten, use
opposite procedure.
3.
FLOOR BRUSH For Hard Surface Floors and Carpeted Stairs.
4.
UPHOLSTERY NOZZLE For Upholstered Furniture, Draperies,
Tapestries, Mattresses, Clothing, Automobile Interiors, Stairs.
5.
DUSTING BRUSH For Carved Furniture, Table Tops, Books,
Lamps, Light Fixtures, Venetian Blinds, Registers, Baseboards.
6. CREVICE TOOL For Upholstered Furniture, Edges of
Wall-to-
Wall Carpeting, Radiators, Dresser Drawers.
6
TO STORE TOOLS
While moving furniture, hose can be
conveniently hung on handle.
The vinyl tool kit has
been,designed
so the tools can be packed inside
and the hose attached, by strap, on
outside. The kit has two slots
located near the top for ease in
hanging on the cover latch of the
cleaner or on a hook in the closet.
TO CLEAN TOOLS
To clean the hose, wipe off dirt with
a cloth, dampened with a liquid
detergent. Use a damp cloth to re-
move the detergent. Cleaning tools
can be washed in warm water with a
detergent. Rinse and let dry before
using.
TO CONNECT HOSE TO CLEANER
Insert hose connector in opening below dial. Turn hose connector
in either direction until it locks in place.
TO CONNECT TOOLS
To connect the cleaning tools to either the telescoping wand or
hose, press down on the plastic latch and fit the attachment into
place making sure the button on the attachment is locked in
place. To release, press down on plastic spring latch and remove.
HELPFUL HINTS
EASY TO CARRY Use the comfort-
able handle grip for carrying your Hoover
cleaner, or move it from room to room by
tipping it back on wheels and pushing it.
DON’T
PICK
UP
TACKS
Hard,
sharp objects should not be picked up
by the cleaner. They may damage the
hose and the throw-away bag.
TAKE CARE OF CORD It should
be wound loosely on cover latch and
lever on Suction Control Dial to avoid
unnecessary strain. The clip-on plug
snaps directly onto the cord. Don’t run
your cleaner over the cord
-
it may
damage the insulation.
IF TROUBLE OCCURS If the
cleaner does not pick up surface dirt,
it is an indication that something is
wrong. Here are some of the things you
should check before calling the service
man. If you need further help, call your
Hoover Dealer or Hoover Factory Branch
Service Station listed on the service page.
1.
Check
Nozzle
Hose
The nozzle hose on the cleaner carries
the dirt from the nozzle to the throw-
away bag. If an object lodges across the
entrance of the hose, remove bottom
plate (see Page
II),
pull hose from
cleaner and remove object. Replace
hose, making sure that metal collar is
lodged completely inside the hose
connection. Then replace bottom plate.
If hose is clogged as a result of the
8
Check
Nozzle
Hose
(cont.)
throw-away bag being full of fluff from a new carpet, put a new
throw-away bag on the cleaner. Then place handle in storage
position, turn cleaner on, and move lever on Suction Control Dial
back and forth. This will clear the hose.
2.
Check
Secondary
Filter
The secondary filter protects the
motor from dirt. Before installing a
new bag, check the filter. Dirt
spilled in the bag housing will
accumulate on the filter and may
restrict motor performance. To clean
filter, remove wire holder and lift
out filter. Tap against a hard sur-
face, or rinse thoroughly with warm
water and dry. Replace in bag
housing and secure with holder.
3.
Check
Bag
(See
Below.) 4.
Check
Belt
(Page 11.)
5.
Check
Agitator
Brushes (Page 12.)
THE THROW-AWAY BAG
To assure that your Hoover cleaner operates at
peak performance it is imperative that you use
only genuine Hoover Throw-Away Filter Bags
made by The Hoover Company. Genuine
Hoover bags can be identified by the
Hoover Medallion. These bags are made
from a special material which is
scien-
@
OOJf
P
tifically formulated to filter out dust
while allowing air to flow through freely.
The use of other than genuine Hoover bags
voids your guarantee !
WHEN

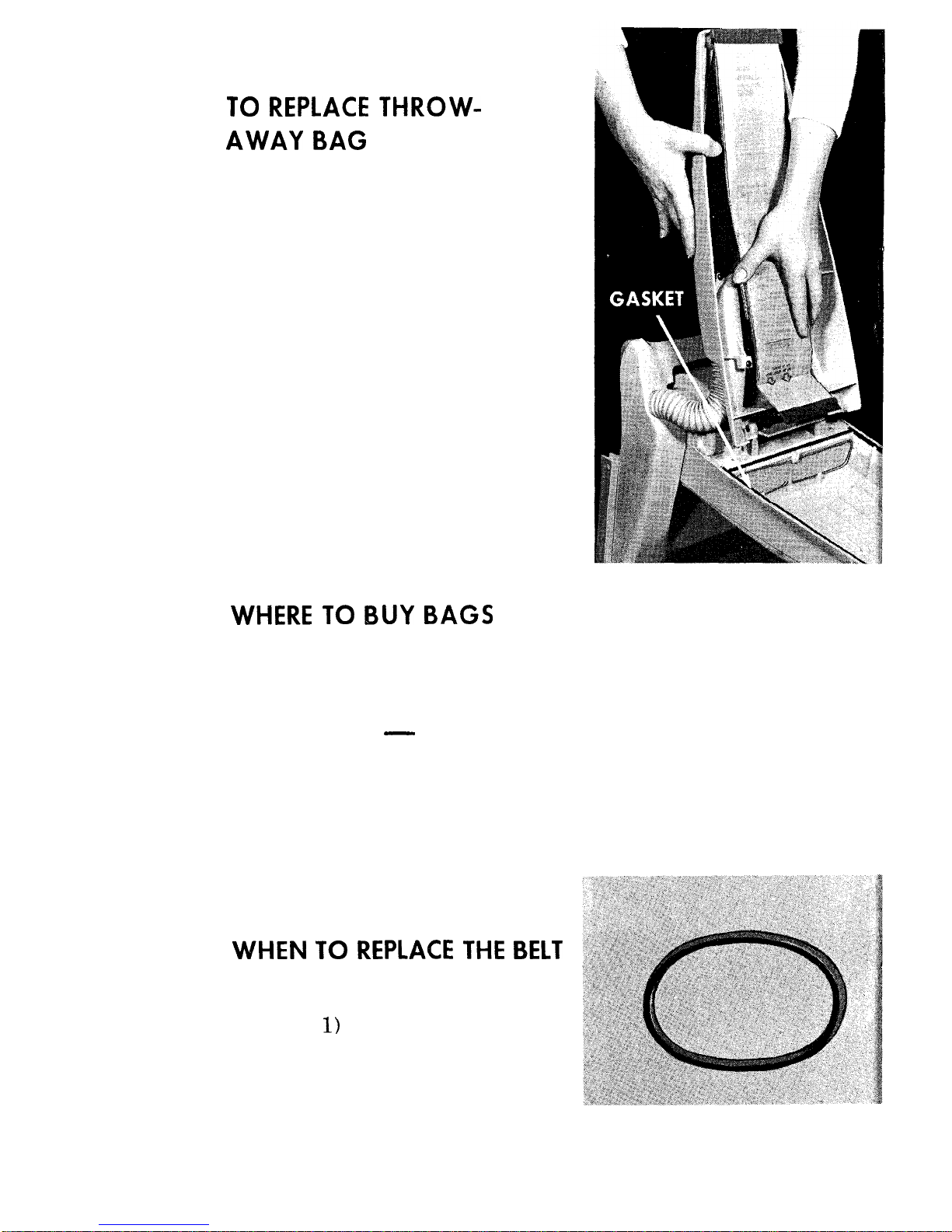

TO
REPLACE
THE
BAG
Check the bag from time to time. When bag is
approximately three-fourths full of dirt, it should
be changed. If you let more dirt than this accum-
ulate, your cleaner will not operate efficiently.
Be sure that throw-away bag is not extending
outside of cover and that cover is in proper
position on the gasket before latching.
9
i
TO
REPLACE
THROW-
AWAY
BAG
Tip cleaner over, resting handle on
the floor. @pen bag cover of cleaner
by turning latch in either direction.
Lift bag cover. Hold throw-away
bag by cardboard cover, twist out-
ward, and remove. Discard used bag.
To attach new throw-away bag, hold
bag with cardboard collar down and
with arrows pointing toward front of
cleaner. Push hole in cardboard
firmly over tube, twisting until bag
is secure. Be sure that throw-away
bag is not extending outside of cover
and that cover is in proper position
on the gasket before latching.
WHERE
TO
BUY
BAGS
Keep a supply of Throw-Away Bags on hand. They may be
purchased at your local Authorized Hoover Dealer (listed in
in the Yellow Pages of your Telephone Directory under “Vac-
uum Cleaners”
-
Hoover) or from Hoover Factory Branch
Service Stations listed on the service page of this book.
WHEN ORDERING THROW-AWAY BAGS, BE SURE TO MEN-
TION THE MODEL OF YOUR CLEANER.
THE BELT
WHEN
TO
REPLACE
THE
BELT
Remove bottom plate from cleaner
(see Fig,
1)
and check from time to
time to be sure the belt is in good
condition. If it is stretched or cut,
it should be replaced.
10
